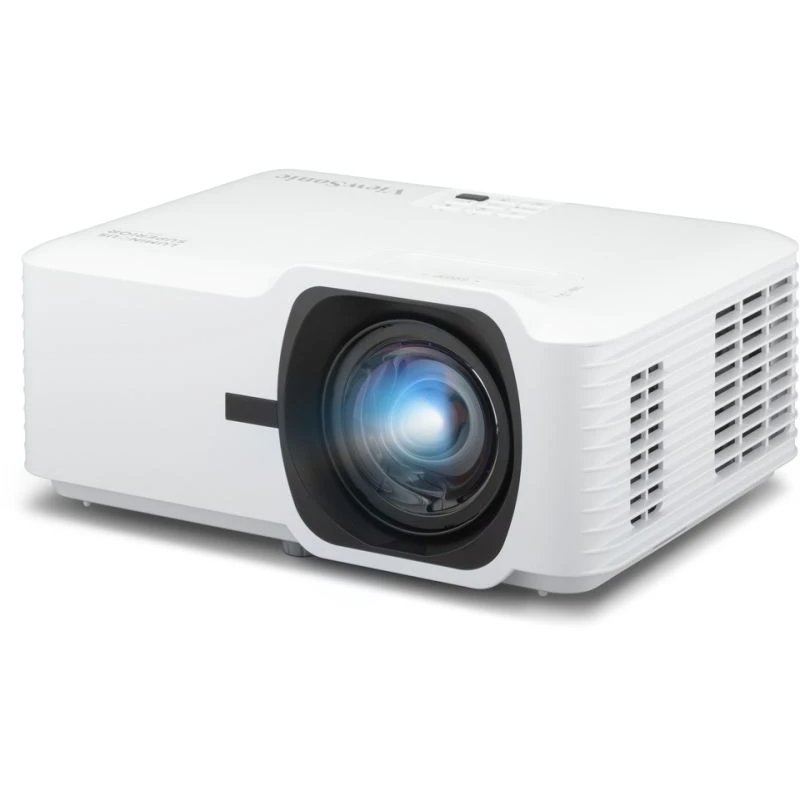

ViewSonic LSD400HD-ST Short Throw Laser Projector
Compact Full HD short throw laser projector with 4000 ANSI lumens for classrooms, meeting rooms and tight spaces.
- 4000 ANSI lumens, laser light source
- Native 1080p Full HD, 0.65 inch DLP chip
- Short throw ratio 0.5
- Image size 40 to 300 inches
- Light source life 20000 hours, 30000 in eco
- 2 x HDMI 2.0, RJ45, RS-232, built-in 15 W speaker
- HDR and HLG support
- IP6X dust protection, 360 degree installation
- Brand new, 2-year manufacturer warranty
- 4000ANSI lumens
- 1080pNative Full HD
- 0.5Short throw ratio
- 20000 hLight source life, normal mode

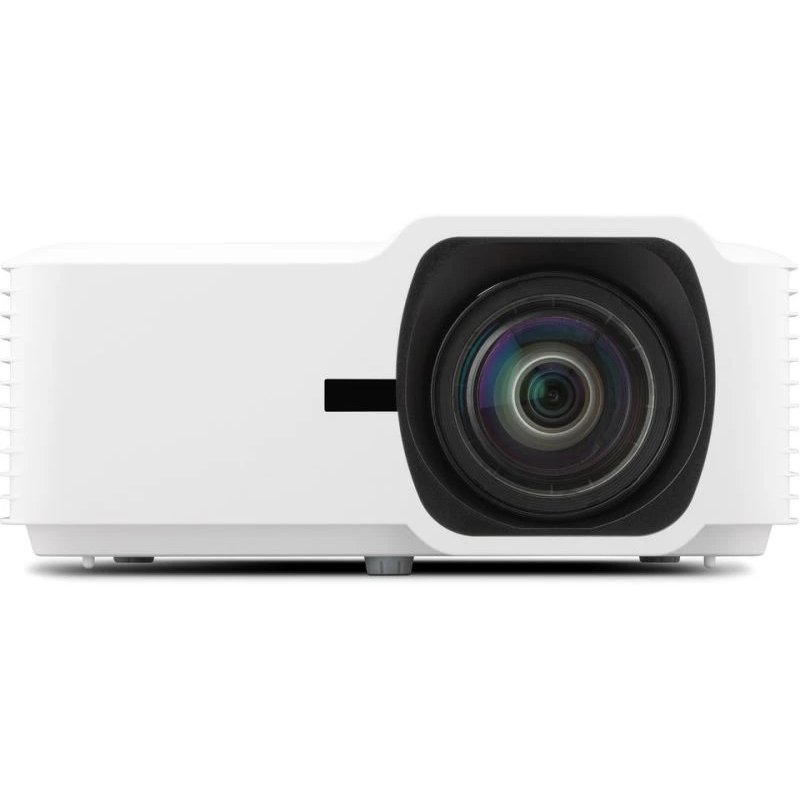

Bright Full HD picture
The LSD400HD-ST delivers 4000 ANSI lumens at a native 1920 x 1080, so slides and video stay clear with the lights on. It uses a 0.65 inch DLP chip with a contrast ratio of 3,000,000:1 and 10-bit colour processing.
HDR and HLG are supported, and a Curved Surface Correction mode is included.

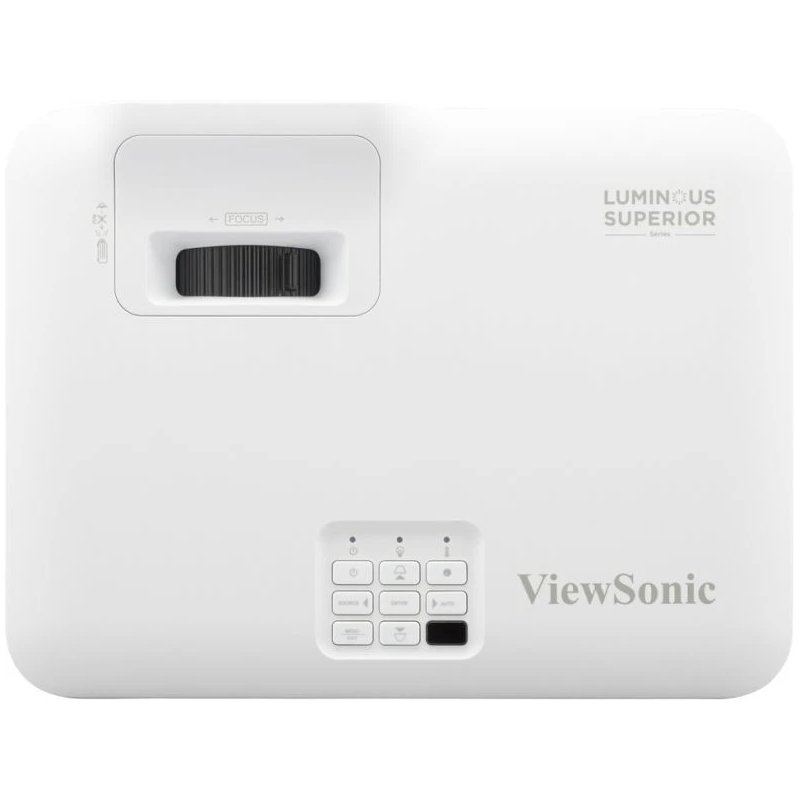

Big image from a short distance
With a throw ratio of 0.5 the projector fills a 40.2 to 300.15 inch screen from a throw distance of 45.72 cm to 332.23 cm, which keeps shadows and glare out of the presenter's way. The lens is fixed with manual focus, and there is no lens shift.
Horizontal and vertical keystone correction covers up to 15 degrees, with 4-corner adjustment for awkward positions.
Laser light, no lamp to change
The laser phosphor light source switches on and off instantly and needs no lamp replacement. Light source life is 20000 hours in normal mode and 30000 hours in eco mode.

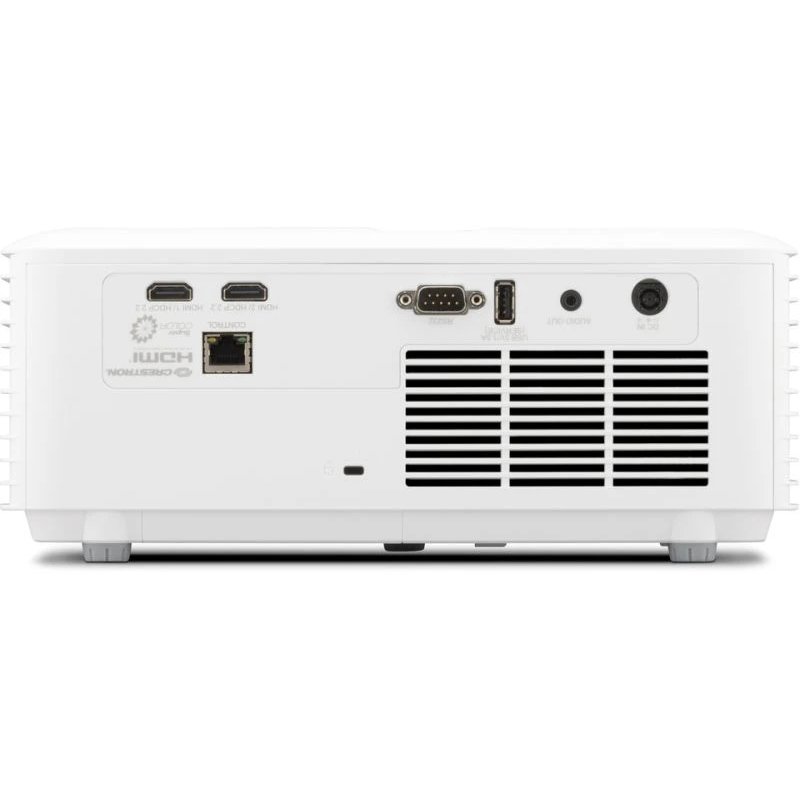

Inputs and outputs
- 2 x HDMI 2.0
- 1 x RJ45 network port
- 1 x RS-232
- USB-A power output, 5V/1.5A
- 1 x mini jack audio output
Data signals up to 3840 x 2160 are accepted.
Sound
A built-in 15 W mono speaker covers small rooms without extra equipment, and the mini jack output lets you feed a larger system when you need one.
Built for daily use
The sealed optical engine has IP6X dust protection and the projector supports 24/7 operation. It can be installed at any angle (360 degrees) or used in portrait orientation. Crestron RoomView and HDMI CEC are listed for easier room management.
Size and running

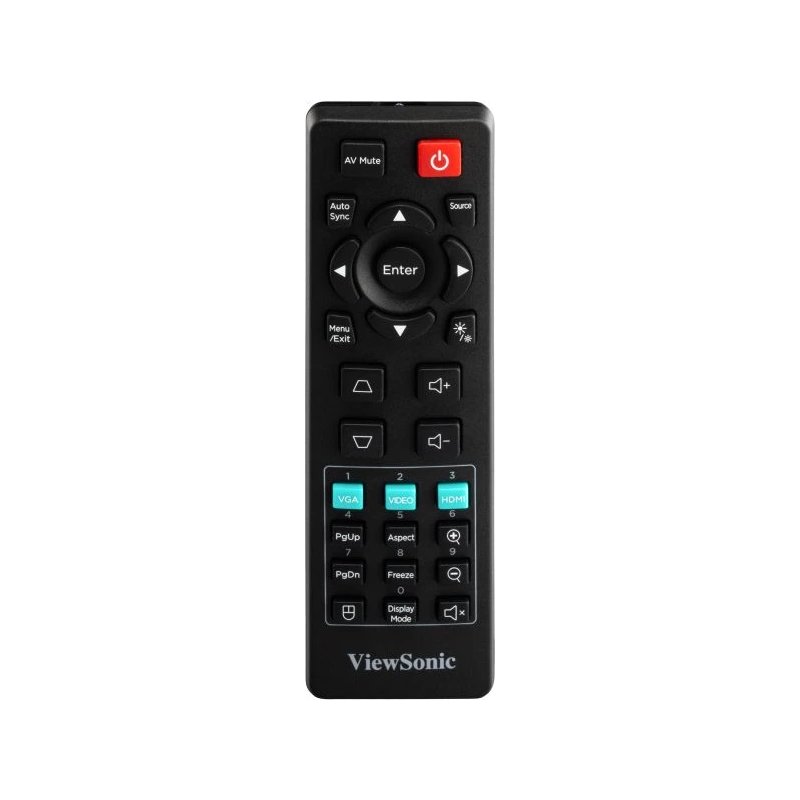

The projector measures 40 x 15.5 x 28 cm, weighs 3.1 kg and draws 143 W in normal operation. Noise is 32 dB in normal mode and 27 dB in eco mode. A remote control and lens cap are supplied.
Picture size and distance
| Screen (16:9) | Picture | Lens to screen |
|---|---|---|
| 80" | 1.77 x 1.00 m | 89 cm |
| 100" | 2.21 x 1.25 m | 1.1 m |
| 120" | 2.66 x 1.49 m | 1.3 m |
| 150" | 3.32 x 1.87 m | 1.7 m |
Calculated from the throw ratio 0.5:1, approximate. Picture size range 40-300".
Specifications
| Picture | |
| Display technology | DLP, 0.65" chip |
| Resolution | 1080p (FHD) |
| Brightness | 4,000 lm (ANSI) |
| Contrast | 3,000,000:1 (dynamic) |
| HDR | HLG |
| Aspect ratio | 16:9 |
| Lens and set-up | |
| Throw ratio | 0.5:1 |
| Zoom | 1.1x optical |
| Keystone | Vertical ±15°, horizontal ±15° |
| Projection distance | 46 cm - 3.3 m |
| Picture size | 40" - 300" |
| Light source | |
| Type | Laser, 345 W |
| Light source life | 20,000 h Normal / 30,000 h Eco |
| Connections and smart | |
| HDMI | 2 x HDMI (HDMI 2.0) |
| Other connections | RS-232C, 3.5 mm audio out, LAN (RJ45), USB |
| Sound, noise and power | |
| Speaker | 15 W |
| Fan noise | 32 dB Normal / 27 dB Eco |
| Power consumption | 143 W |
| Size | |
| Dimensions (W x D x H) | 40 x 28 x 15.5 cm |
| Weight | 3.1 kg |
| Warranty | |
| Manufacturer warranty | 2 years |
Good to know
- Brightness is the manufacturer's figure in ANSI lumens.
