Specification:
Model:ZQ06210
Model:ZQ06210
Input Voltage: AC 100V–240V, 50/60Hz
Rated Power: 108W
Control Protocol: Infrared
Effective Control Distance: 5–8 Meters
Light Source: 9 × 12W RGBW LEDs
Beam Angle: 15°
Average LED Lifespan: 50,000 hours
Dimming Curve: 0–100% Linear Dimming
Strobe Frequency: 1–20Hz
Operation Modes: Auto, Sound-Activated, Master-Slave, DMX Remote Control
Control Channels: 4/8 CH
Protocols: Standard DMX512 Protocol, RDM Protocol
Data Connection: 3-pin XLR Input/Output
Display: 4-digit Digital Display
Ingress Protection Rating: IP20
Operating Environment: -10°C to 40°C
Housing Material: Plastic Casing
Product Size: 50.7x9.5x13.2cm/20x3.7x5.2in
Net Weight: 1.05Kg/2.3lb
Rated Power: 108W
Control Protocol: Infrared
Effective Control Distance: 5–8 Meters
Light Source: 9 × 12W RGBW LEDs
Beam Angle: 15°
Average LED Lifespan: 50,000 hours
Dimming Curve: 0–100% Linear Dimming
Strobe Frequency: 1–20Hz
Operation Modes: Auto, Sound-Activated, Master-Slave, DMX Remote Control
Control Channels: 4/8 CH
Protocols: Standard DMX512 Protocol, RDM Protocol
Data Connection: 3-pin XLR Input/Output
Display: 4-digit Digital Display
Ingress Protection Rating: IP20
Operating Environment: -10°C to 40°C
Housing Material: Plastic Casing
Product Size: 50.7x9.5x13.2cm/20x3.7x5.2in
Net Weight: 1.05Kg/2.3lb
Features:

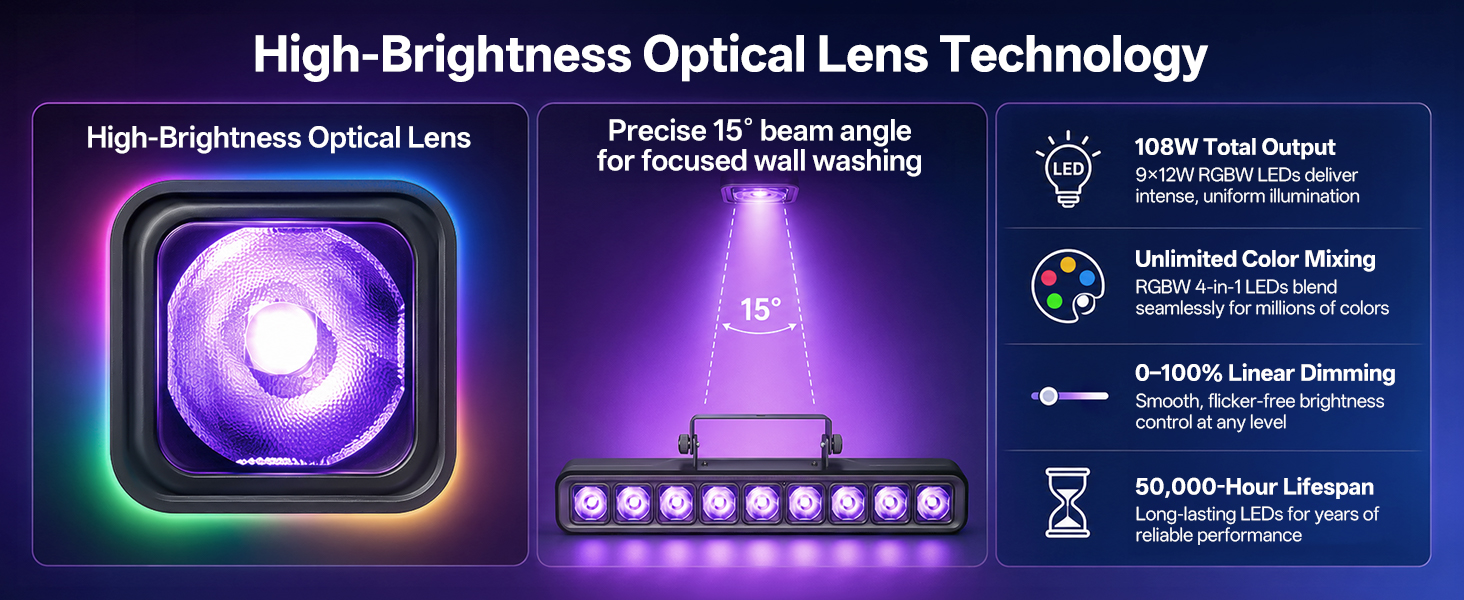

1. High-Power RGBW LED & Premium Light Output

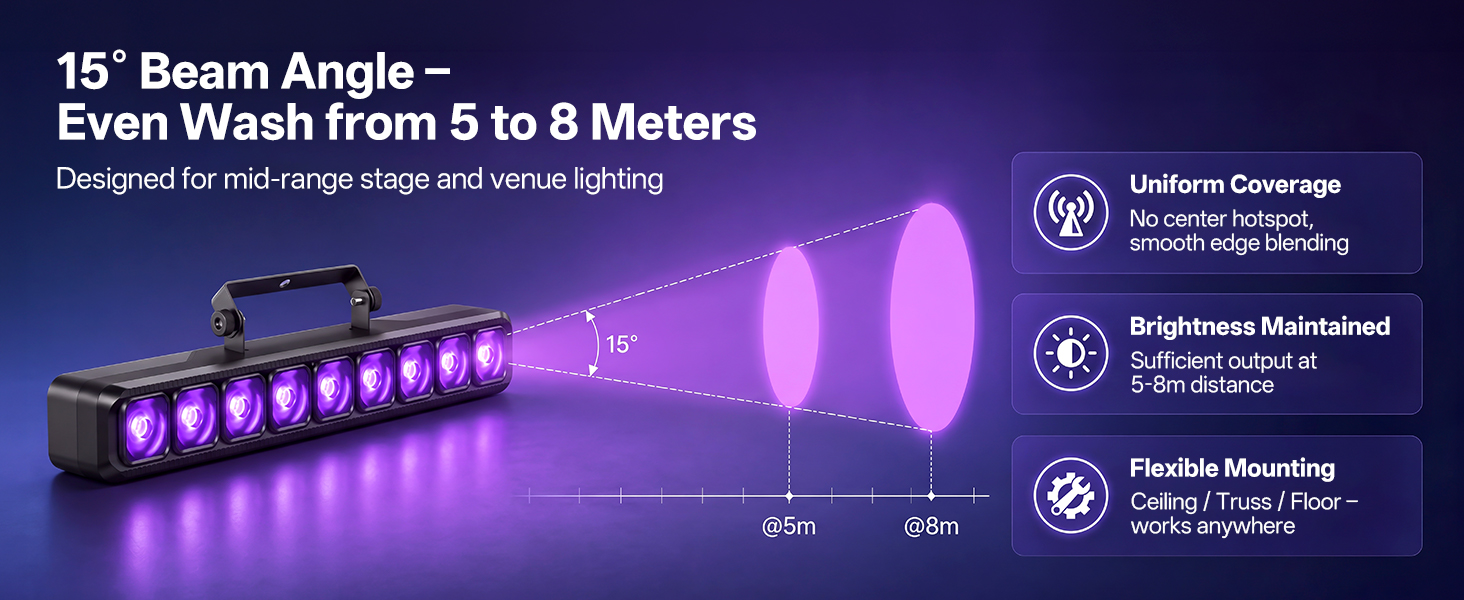

Equipped with 9 pieces of 12W high-power RGBW LED light sources and upgraded high-brightness optical lenses with a 15° beam angle, this light delivers sufficient brightness and uniform color blending for infinite color mixing effects. It supports 0-100% smooth linear dimming and boasts an ultra-long LED service life of up to 50,000 hours.
1. High-Power RGBW LED & Premium Light Output
Equipped with 9 pieces of 12W high-power RGBW LED light sources and upgraded high-brightness optical lenses with a 15° beam angle, this light delivers sufficient brightness and uniform color blending for infinite color mixing effects. It supports 0-100% smooth linear dimming and boasts an ultra-long LED service life of up to 50,000 hours.

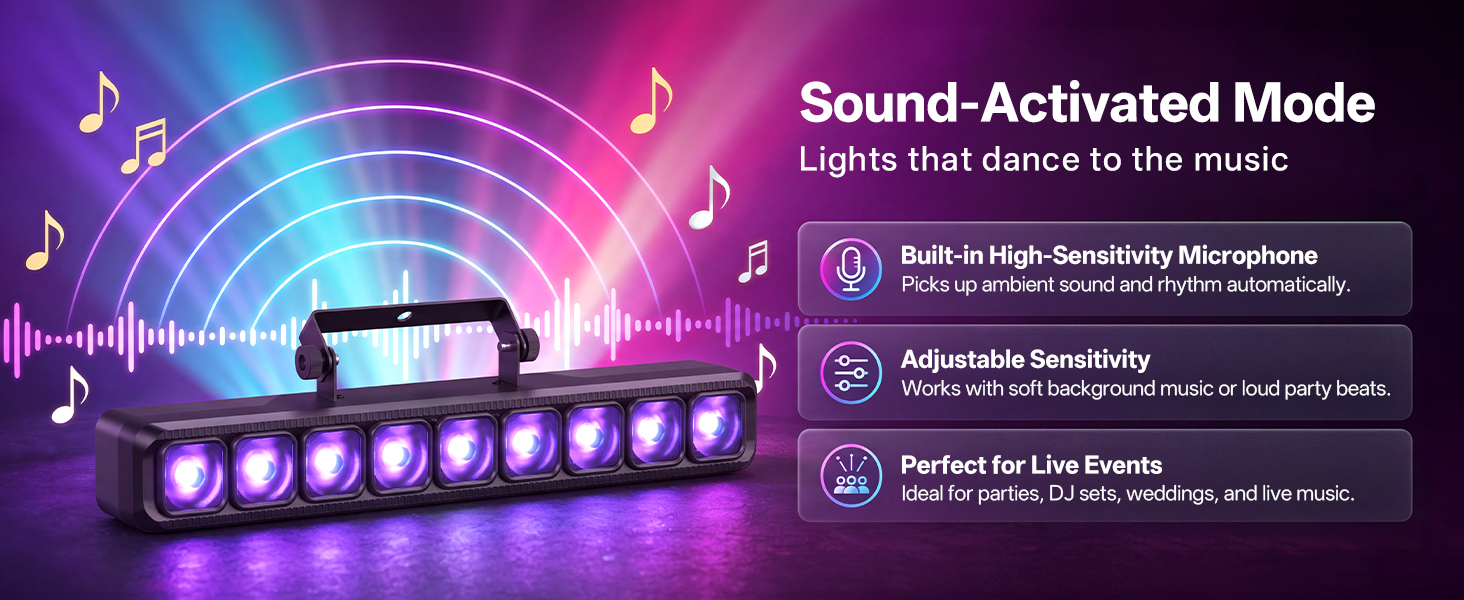

2. Diverse Lighting Modes & Adjustable Sound Activation

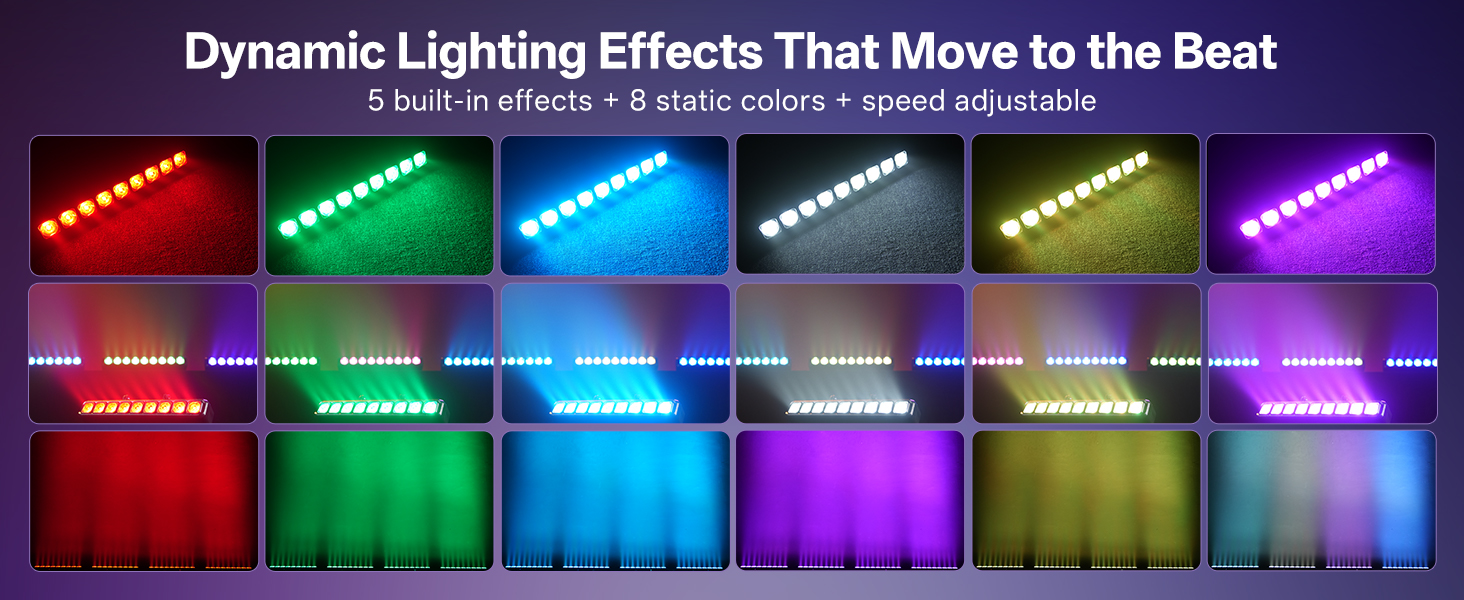

Features built-in dynamic lighting effects including jump, gradient, pulse and strobe, with freely adjustable running speed and a 1-20Hz strobe frequency range. It comes with a sensitivity-adjustable sound-activated mode, 8 preset static colors, and a practical master-slave linkage mode for synchronized lighting performance.
Features built-in dynamic lighting effects including jump, gradient, pulse and strobe, with freely adjustable running speed and a 1-20Hz strobe frequency range. It comes with a sensitivity-adjustable sound-activated mode, 8 preset static colors, and a practical master-slave linkage mode for synchronized lighting performance.
3. Multiple Control Methods & Professional DMX Compatibility

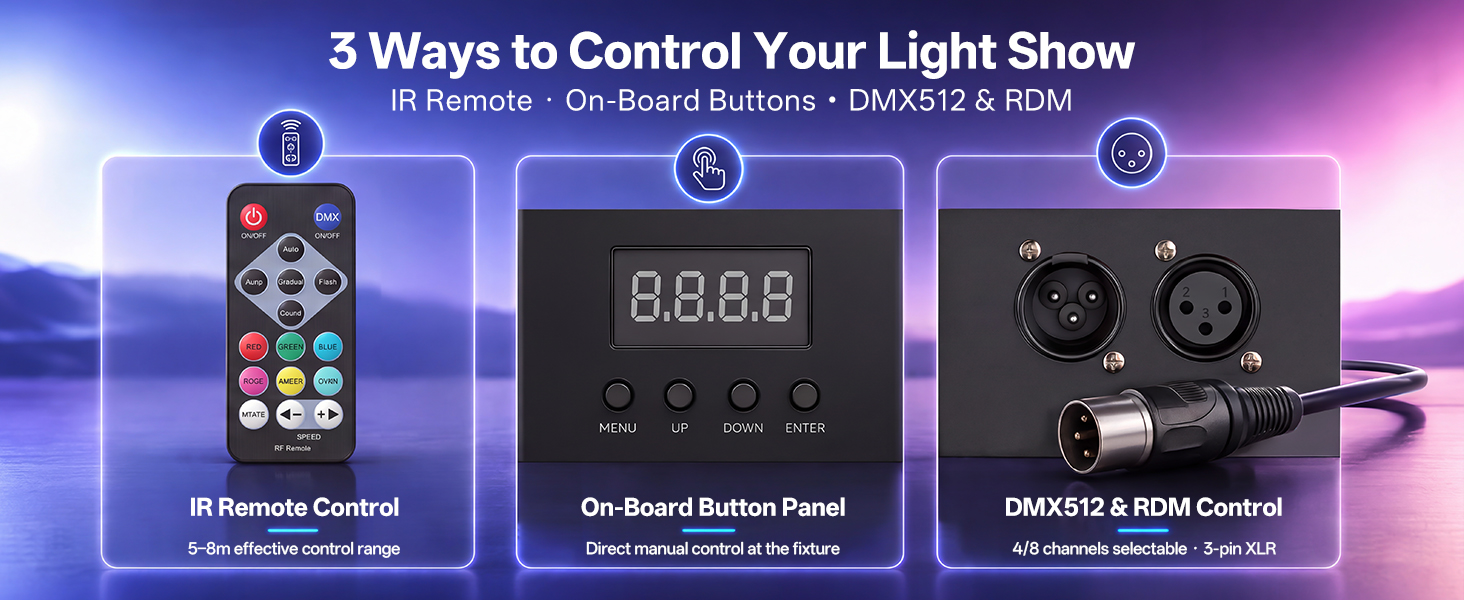

Offers versatile control options: infrared remote control (5-8 meters effective range), on-board button panel, and DMX512 control. It is compatible with standard DMX512 and RDM protocols, supports 4/8 selectable control channels, and adopts 3-pin XLR connectors for stable signal transmission and reception.
Offers versatile control options: infrared remote control (5-8 meters effective range), on-board button panel, and DMX512 control. It is compatible with standard DMX512 and RDM protocols, supports 4/8 selectable control channels, and adopts 3-pin XLR connectors for stable signal transmission and reception.

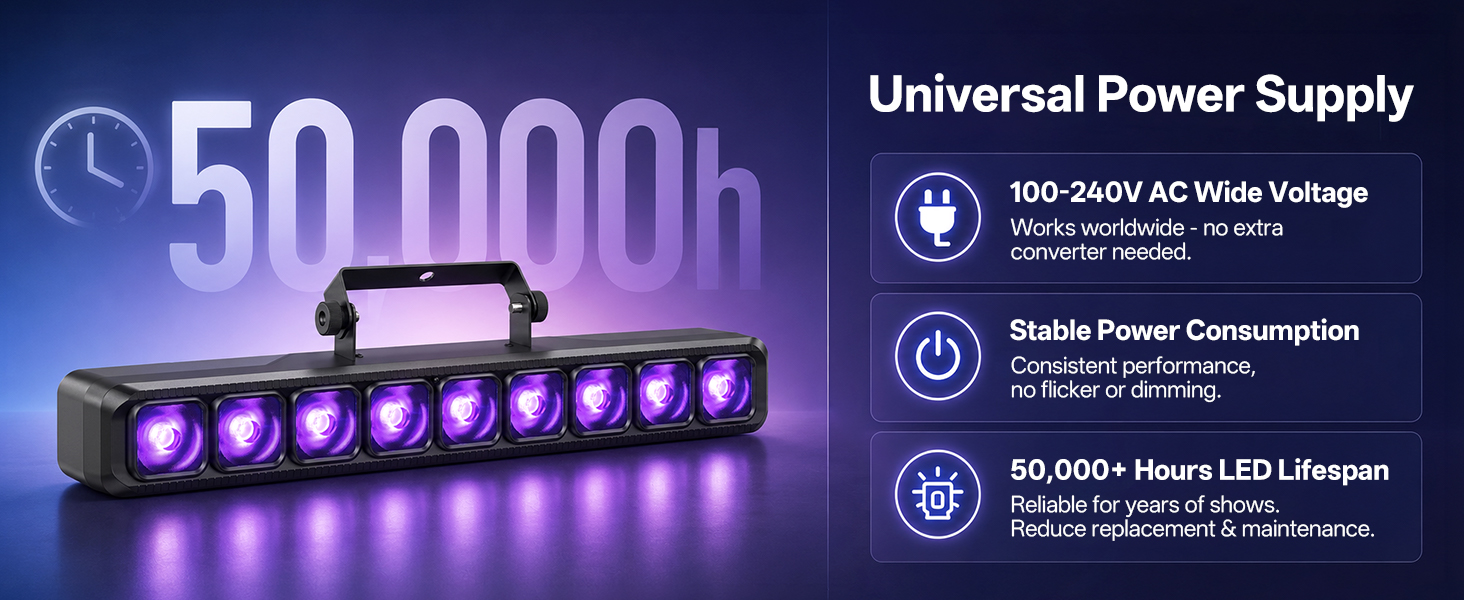

4. Wide Voltage Input & Stable Long-Time Operation
Adopts AC 100V-240V 50/60Hz wide voltage power supply with strong global power adaptability. With stable power consumption design, this fixture can maintain reliable and consistent performance continuously for long working hours.
Adopts AC 100V-240V 50/60Hz wide voltage power supply with strong global power adaptability. With stable power consumption design, this fixture can maintain reliable and consistent performance continuously for long working hours.

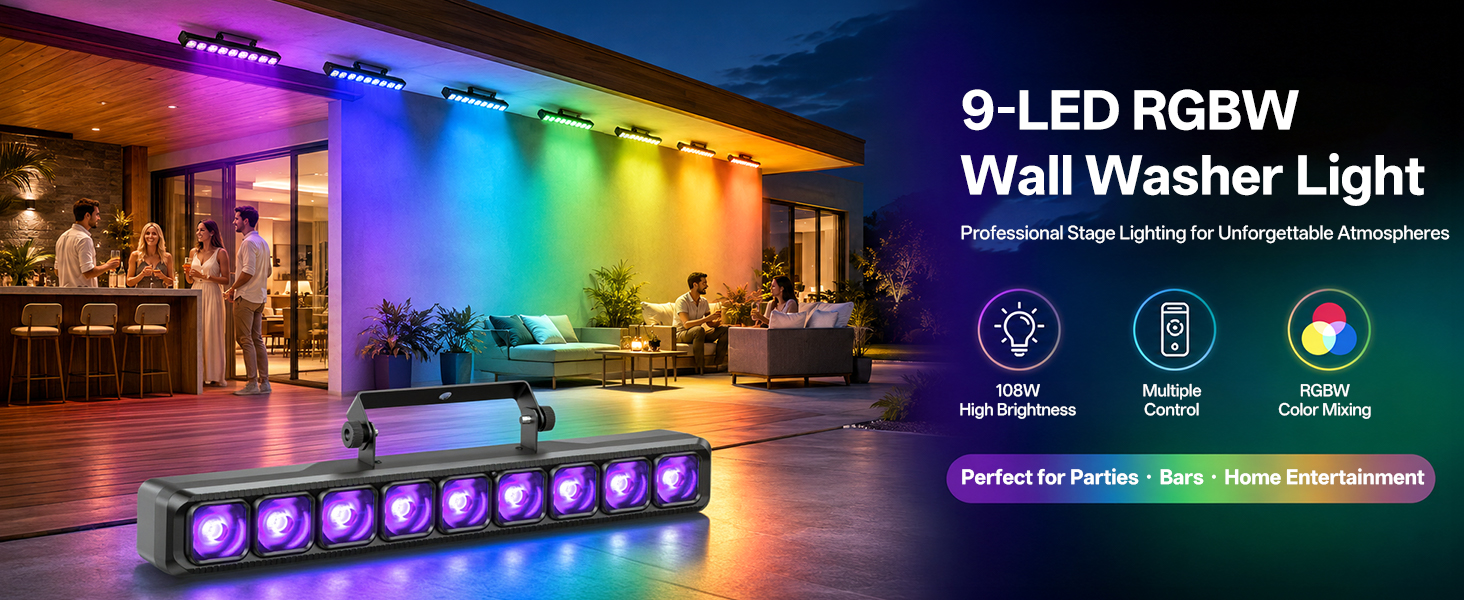

5. Wide Application for Entertainment Atmosphere Building
Ideal for small and medium-sized leisure and entertainment scenarios such as private parties, small lounge bars, and home entertainment spaces. It is widely used for scene decoration, space color rendering, and on-site atmosphere enhancement.
Ideal for small and medium-sized leisure and entertainment scenarios such as private parties, small lounge bars, and home entertainment spaces. It is widely used for scene decoration, space color rendering, and on-site atmosphere enhancement.

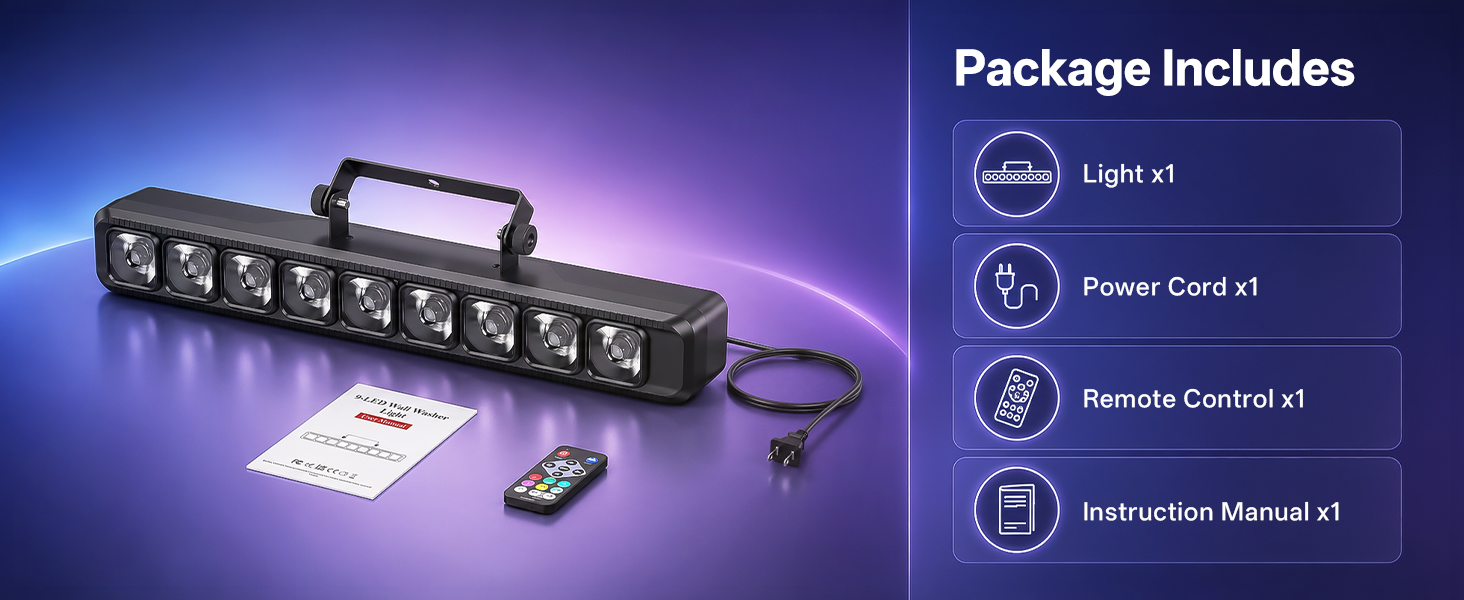

Packing Lists:
Light x1
Power Cord x1
Remote Control x1
Instruction Manual x1
Light x1
Power Cord x1
Remote Control x1
Instruction Manual x1
