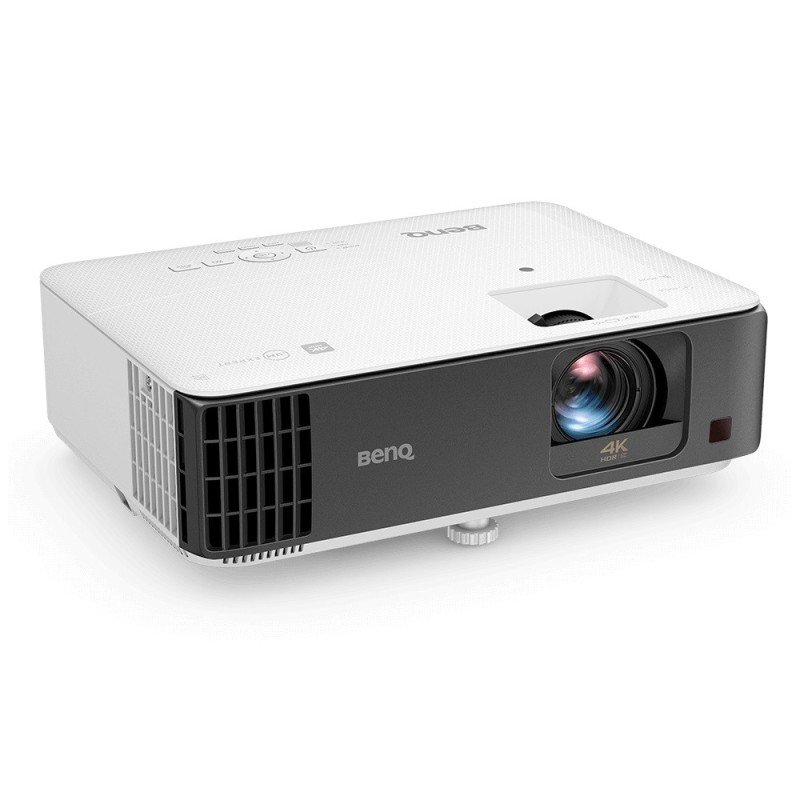

BenQ TK700 4K Gaming Projector
A bright 3200 ANSI lumen 4K UHD DLP projector with low input lag, built for console gaming and big-screen films.
In stock in the United Kingdom. Dispatched from a UK warehouse, no customs or import charges.
- 3200 ANSI lumens, DLP
- 3840 x 2160 via pixel shifting
- Input lag 16.67 ms at 4K 60Hz
- HDR10 and HLG support
- 96% Rec.709 colour coverage
- 2 x HDMI 2.0 with eARC
- Image size 30 to 300 inches
- 1.3x zoom, keystone ±30°
- Brand new, manufacturer warranty
- 3200ANSI lumens
- 3840x21604K UHD resolution
- 16.67 msinput lag, 4K 60Hz
- 10000:1contrast ratio
4K picture, bright enough for the room
The TK700 uses a 0.47 inch DLP chip with pixel shifting to display a 3840 x 2160 image. Light output is 3200 ANSI lumens, so the picture stays readable when the room is not fully dark.
Contrast is 10000:1 (full on, full off) with 30-bit colour, around 1.07 billion colours. HDR10 and HLG content is supported, and 3D playback is available with optional glasses.
Low input lag for gaming
The Game mode cuts the delay between controller and screen. Input lag is 16.67 ms at 4K 60Hz, 8.33 ms at 1080p 120Hz and 4.16 ms at 1080p 240Hz.
BenQ lists PlayStation 5, PlayStation 4 Pro, PlayStation 4, PlayStation 4 Slim, Xbox One X, Xbox One S and Nintendo Switch as compatible consoles. There are separate picture modes for Game and HDR Game, plus an FPS game mode.
Colour and picture modes
The projector covers 96% of the Rec.709 colour space, the standard used for most HD video. Picture modes include Bright, Living Room, Game, Sport, Cinema, HDR Game and a user setting, so you can switch between films, sport and games without adjusting each setting by hand.
Placement and image size
The throw ratio is 1.127 to 1.46:1 with a 1.3x zoom, which helps in smaller rooms. Image size runs from 30 to 300 inches, with the best focus range at 60 to 200 inches.

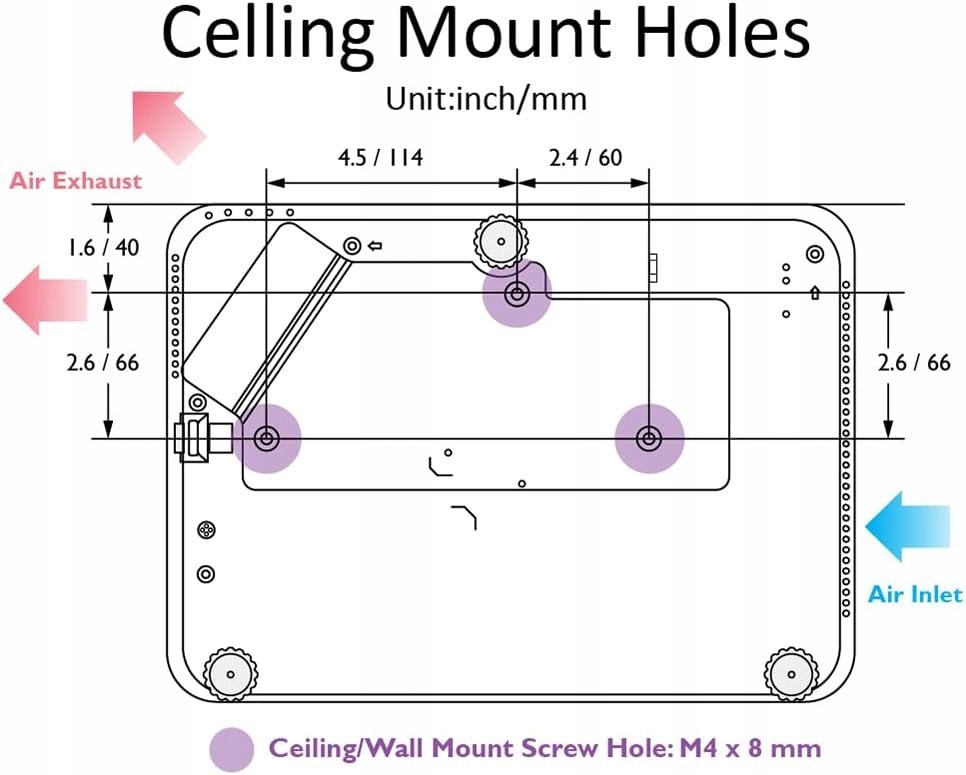

Vertical and horizontal keystone correction covers ±30°. The base has M4 ceiling mount holes that take screws up to 8 mm long. Check the distance for your screen size before installing.

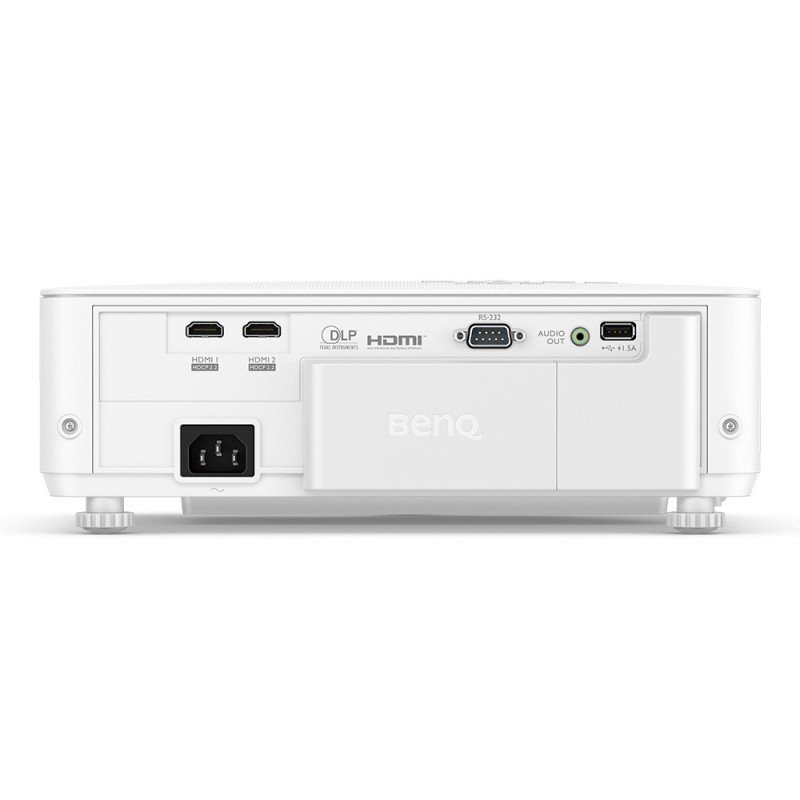

Connections
- 2 x HDMI 2.0 (HDCP 2.2)
- HDMI eARC audio return
- USB type A
- RS-232 control port
- Audio out (3.5 mm mini jack)
The projector does not have Wi-Fi built in.
Built-in sound
A single 5 W speaker is built in, so you can use it straight away. For better sound, use the audio output or send audio to a soundbar over HDMI eARC.

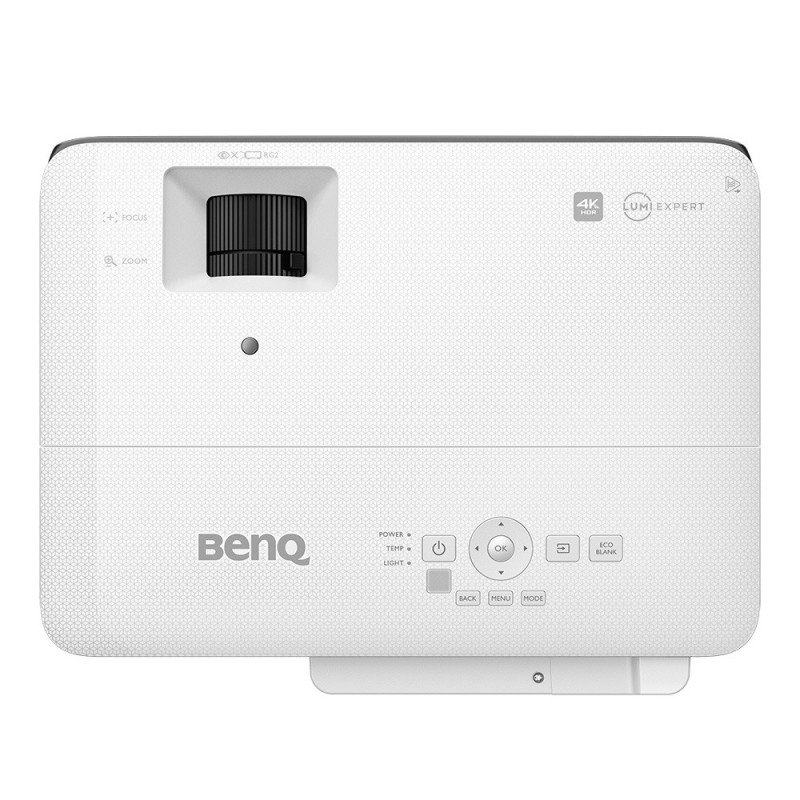

Lamp, noise and size
The 240 W lamp is rated for 4000 hours in normal mode, 8000 hours in SmartEco, 10000 hours in Eco and up to 15000 hours in LampSave mode. Noise is 34 dB in normal mode and 28 dB in eco mode.
Power use is 310 W in normal mode and 215 W in eco mode. The projector measures 312 x 110 x 246 mm and weighs 3.1 kg, with a security bar and Kensington lock slot.
Picture size and distance
| Screen (16:9) | Picture | Lens to screen |
|---|---|---|
| 80" | 1.77 x 1.00 m | 2.0 - 2.6 m |
| 100" | 2.21 x 1.25 m | 2.5 - 3.2 m |
| 120" | 2.66 x 1.49 m | 3.0 - 3.9 m |
| 150" | 3.32 x 1.87 m | 3.7 - 4.8 m |
Calculated from the throw ratio 1.12 - 1.46:1, approximate. Picture size range 30-300".
Specifications
| Picture | |
| Display technology | DLP, 0.47" chip |
| Resolution | 4K UHD (pixel shifting) |
| Brightness | 3,200 lm (ANSI) |
| Contrast | 10,000:1 (native) |
| Aspect ratio | 16:9 |
| 3D | Yes |
| Lens and set-up | |
| Throw ratio | 1.12 - 1.46:1 |
| Zoom | 1.3x optical |
| Keystone | Vertical ±30°, horizontal ±30° |
| Projection distance | 98 cm - 7.5 m |
| Picture size | 30" - 300" |
| Lamp | |
| Type | Lamp, 240 W |
| Lamp life | 10,000 h Normal / 15,000 h Eco |
| Connections and smart | |
| HDMI | 2 x HDMI (HDMI 2.0, eARC) |
| Other connections | USB Type-A, RS-232C |
| Sound, noise and power | |
| Speaker | 5 W |
| Fan noise | 34 dB Normal / 28 dB Eco |
| Power consumption | 310 W Normal / 215 W Eco |
| Size | |
| Dimensions (W x D x H) | 31 x 25 x 11 cm |
| Weight | 3.1 kg |
Good to know
- 4K is produced by pixel shifting: the DLP chip is not native 4K, the picture is shifted to put 4K detail on screen.
- Brightness is the manufacturer's figure in ANSI lumens.
