The Kicker 44L7S122 is a Solo-Baric L7S 12 inch square subwoofer with dual 2 ohm voice coils, rated at 750W RMS. The square cone gives more cone area and air displacement than a round woofer of the same size, and it works in sealed or ported enclosures.

This is the dual 2 ohm voice coil version. For a ready-built box with two of these drivers, see the Kicker 44DL7S122 dual 12 inch L7S enclosure.

Key specifications

• Size: 12" (30.5 cm) square
• Voice coils: dual 2 ohm (DVC)
• Power: 750W RMS, 1500W peak
• Sensitivity: 88.6 dB (1W/1m)
• Frequency response: 20-100 Hz
• Mounting depth: 16.9 cm
• Mounting cutout (square): 28.1 cm
• Recommended sealed box: 35.4-56.64 litres
• Recommended ported box: 49.6-92.1 litres

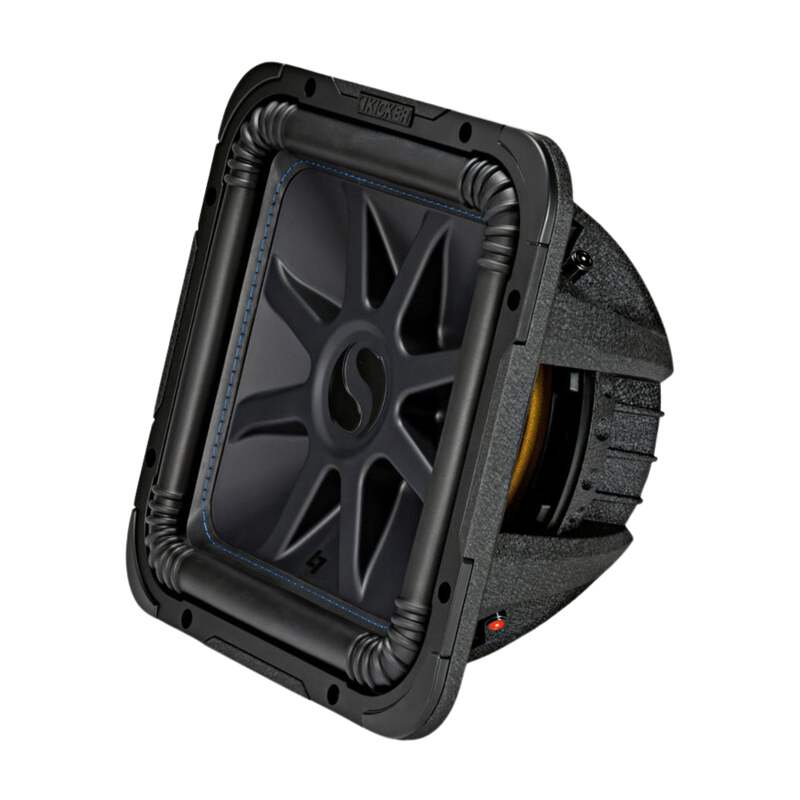

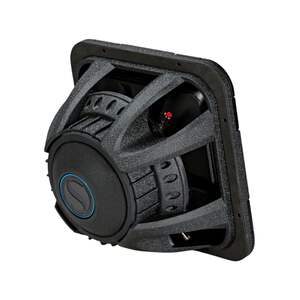

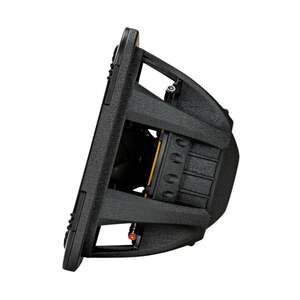

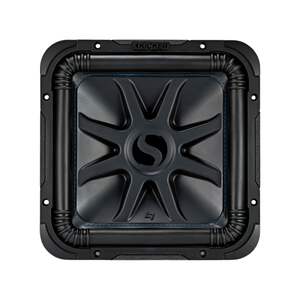

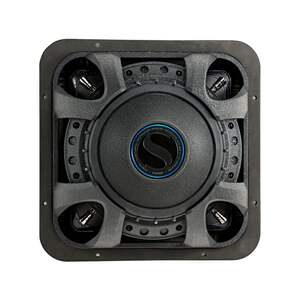

Solo-Baric L7S 12" Square Dual Voice Coil Subwoofer - 2 Ohm

44L7S122

The Kicker Solo-Baric L7S is the original square subwoofer, built to move more air than a round driver of the same size, delivering deep, clean bass at high power levels.

The square cone design increases cone area and air displacement over a conventional round woofer. Thermal management is handled by the UniPlate back plate and pole piece with perimeter venting, so the driver stays cool under sustained use.

Features

• Dual Two-Ohm Voice Coils
• Injection-Molded Polypropylene Cone
• Patented Corner Ribs Minimize Distortion
• SoloKon 360-Degree Back Bracing
• Ribbed Santoprene Surround With Blue Surround Stitching
• UniPlate Back Plate And Pole Piece, Plus Perimeter Venting For Excellent Thermal Management
• Thick Tinsel Leads
• Large Ceramic Magnet
• Cast Aluminum Basket
• Satin-Nickel Plated, Spring-Loaded Speaker Terminals

The Solo-Baric L7S 12-Inch Subwoofer works best with a sealed or ported enclosure and 750 watts of recommended power.

• Impedance (Ohms): Dual 2

• Voice Coils: Dual

• RMS Power (W): 750

• Peak Power (W): 1500

• Sensitivity (dB @ 1W/1m): 88.6

• Frequency Response (Hz): 20-100

• Height (cm): 32

• Width (cm): 32

• Depth (cm): 19.8

• Protrusion (cm): 2.5

• Mounting Depth (cm): 16.9

• Mounting Hole Diameter (cm): 28.1

• Recommended Box Volume Sealed (Litres): 35.4-56.64

• Recommended Box Volume Ported (Litres): 49.6-92.1

• Kicker 44L7S122 Subwoofer
