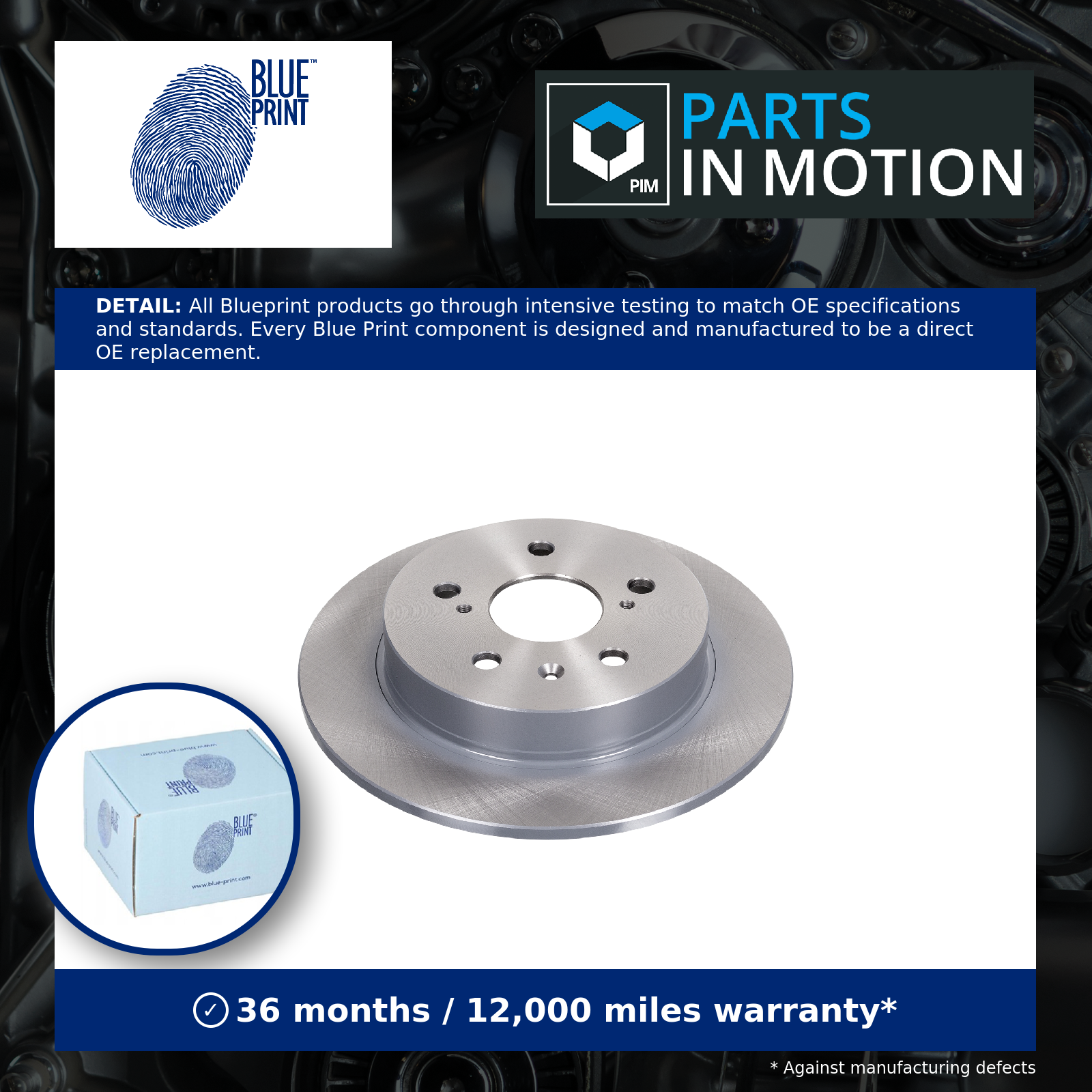

Blue Print 2x Brake Discs Pair Solid Rear ADL144346 [PM1724423]
2x Brake Discs Pair Solid fits FIAT SEDICI FY 1.6 Rear 06 to 14 M16A 278mm Set


PartsInMotion benefits

For any queries please contact using the contact seller link provided.
Description

2x Brake Discs Pair Solid fits FIAT SEDICI FY 1.6 Rear 06 to 14 M16A 278mm Set

BrandBlue Print
Placement on VehicleRear Axle
Outer diameter278 mm
Thickness43 mm
Brake Disc Thickness9 mm
Brake Disc Typesolid
Minimum thickness8 mm
Bolt Hole Circle Diameter114 mm
Centering Diameter62 mm
SurfaceCoated
Number of mounting bores3
for OE number7176 8089
Rim Hole Number5 -Hole
NoteObserve service information
Rotor StyleSolid
TypeBrake Disc Rotor
FunctionBrake Disc

Information

General Information

These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.


Cross references

7 SEVEN PARTSSV03D0314, SV03D0314IP
A.B.S.18077
A.S.P. QualityTestedDP803JM
A.Z. MeisterteileAZMT-44-024-2405
ABEC48002ABE
ALLIED NIPPONAND6912
ALTE AUTOMOTIVE128956FCAL
AP15033
APECDSK2957, SDK6725
ASHIKA61-08-803C
ASHUKI by PalidiumK016-43
ATE24.0109-0167.1
BENDIX BrakingBDS1841
BORG & BECKBBD5168, BBD5199
BOSCH0 986 479 047
Brake ENGINEERINGDI957026
BRECOBS 6025
BREMBO08.B557.10
BREMSICD8075S
BurigB010781
CAR142.1730
CIDAKCBD2553
CIFAM800-1398C
COMLINEADC0930, AND6912
CWORKSC220R0744
DACO Germany603709
DANAHERDR10638
DELPHIBG4222
DENCKERMANNB130760
DJ PARTSBD2966
DONPCD20992
E.T.F.19-2841
EUROBRAKE5815205223, 5815315223
EUROREPAR1622806180
FahrenFBD6725
FEBI BILSTEIN43898
FERODODDF2067C
FITFR0887
fri.tech.BD1438
FTE9072348, 9082378, BS7745, BS7745B
G.U.D.GDB109167
GALFERB1.G209-0167.1
GIRLING6061784
HART260 518
HELLA8DD 355 123-021
HELLA PAGID8DD 355 123-021
HERTH+BUSS JAKOPARTSJ3318005, J3318006
Hi-QSD4806
IAP QUALITY PARTS709-16101
JAPANPARTSDP-803C
JAPKO61803C
JAPOCATMRD-28006, MRD-2803
JP GROUP4763200300
JURID562967JC, 562967JC-1
KAMOKA103154
KAVO PARTSBR-8736-C
KAWE61372 00
KLAXCAR FRANCE25545z
LYNXautoBN-1439
MAGNETI MARELLI360406120200, 361302040369
MandoMBC035570
MASTER-SPORT GERMANY200901670, 200901670P, 200951670, 200951670P, 24010901671-PCS-MS, 24010901671-PCS-MSP, 24010901671-SET-MS, 24010901671-SET-MSP, 24010901671PR-PCS-MS, 24010901671PR-PCS-MSP, 24010901671PR-SET-MS, 24010901671PR-SET-MSP
MAXGEAR19-3350, 19-3350SPORT
MAXTECH863526
MDRMRD-2803
METELLI23-1398C
METZGER AUTOTEILE6110330
MEYLE33-15 523 0000/PD
MGAD1957
MINTEXMDC2715
MOTAQUIPLVBD1660
Motrio8550501918
MTR13217100
NAPANBD5822, PBD8174
NationalNBD1860
NiBKRN1755
NiBK AutomotiveRN1755
NISSHINBOND9019K
NK205222, 205223, 315222, 315223
OPEN PARTSBDA2566.10
OPTIMALBS-9156, BS-9156C
OSSCA70681
PAGID55253, 55253NC, T2030N-55253N-00
PEMEBLABNXBDS1841, JAPDP-803C
Premium PartsBD2966
PROFORMERPBD8174
PROTECHNICPRD5454
QUAROQD1297
RAICAMRD01246
RAP BRAKESR-D0137
REMSA61372.00
REMYRAD1750C
RIDEX82B0629
ROADHOUSE61372.00
ROTINGERRT 1902, RT 1902-GL, RT 1902-GL T3, RT 1902-GL T5, RT 1902-GL T6, RT 1902-GL T9
SBBR29120
sbs1815205223, 1815315223
SIGMAUTODBC075S
SKFVKBD 90214 S2
StarkSKBD-0022576
STELLOX6020-1720-SX
SWAG70 94 3898
TATSUMITCC1243
TEXTAR92225303
TRIALLIDF 190615
TRUSTINGDF1438
TRWDF6178
VALEO197600, 297608
VILLAR628.2337
WOKINGD61372.00
ZEKKERTBS-5854
zentpartsZ06425
ZIMMERMANN230.2379.20

Compatible with the following OEM references

FIAT71768089

Passenger/LCV Vehicles

VehicleBodyFuelFromToDriveValvesBHPKW
FIAT SEDICI (189_) 1.6 16VSUVPetrol06/200610/2014FWD1612088
FIAT SEDICI (189_) 1.6 16VSUVPetrol06/200610/2014FWD1610779
FIAT SEDICI (189_) 1.6 16V 4x4SUVPetrol06/200610/2014AWD1612088
FIAT SEDICI (189_) 1.6 16V 4x4SUVPetrol06/200610/2014AWD1610779
FIAT SEDICI (189_) 1.9 D MultijetSUVDiesel06/200610/2011FWD812088
FIAT SEDICI (189_) 1.9 D Multijet 4x4SUVDiesel06/200610/2011AWD812088
FIAT SEDICI (189_) 2.0 D MultijetSUVDiesel06/200610/2014FWD1613599
FIAT SEDICI (189_) 2.0 D Multijet 4x4SUVDiesel06/200610/2014AWD1613599

Blue Print is a brand of high quality parts for use in the servicing and repair of cars and vans. Blue Print parts are a great value alternative to expensive replacement parts from the vehicle manufacturer’s dealership. They are designed and specified to be an exact replacement for the original part that is removed from the car and to perform to high standards when fitted.
