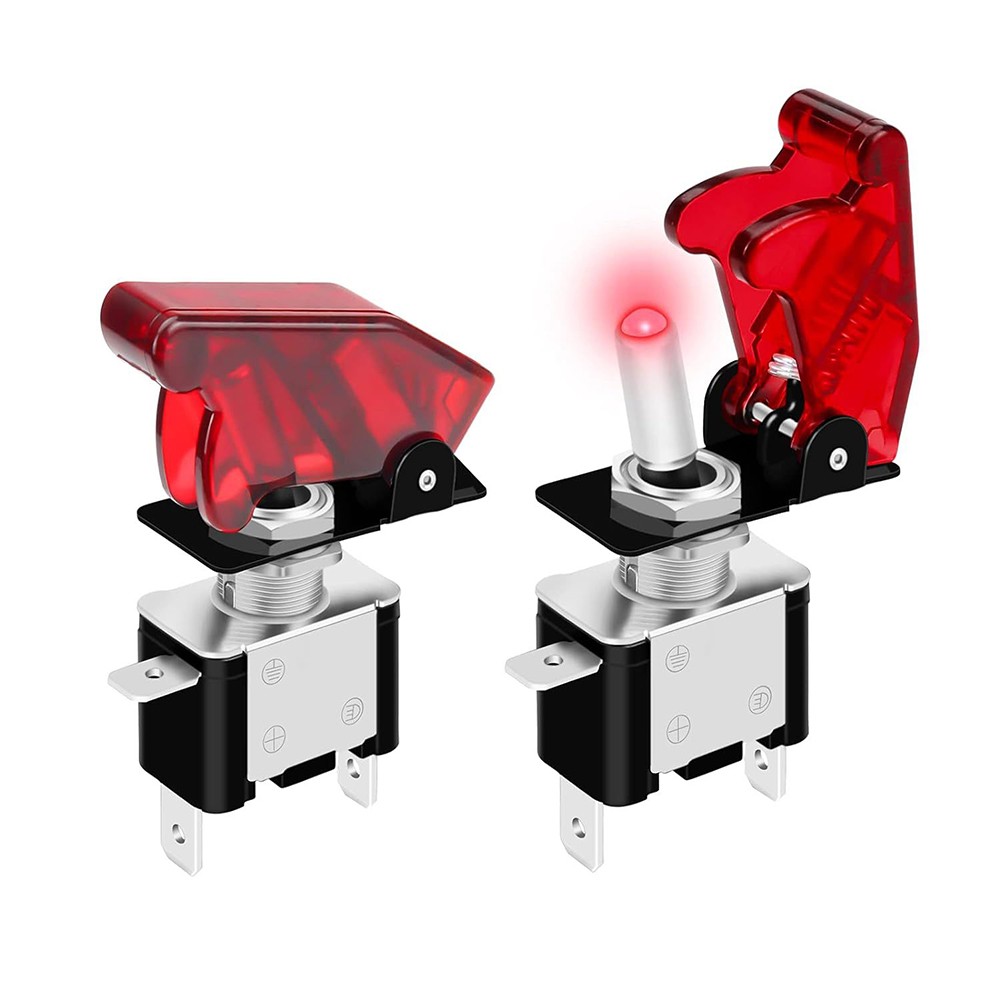

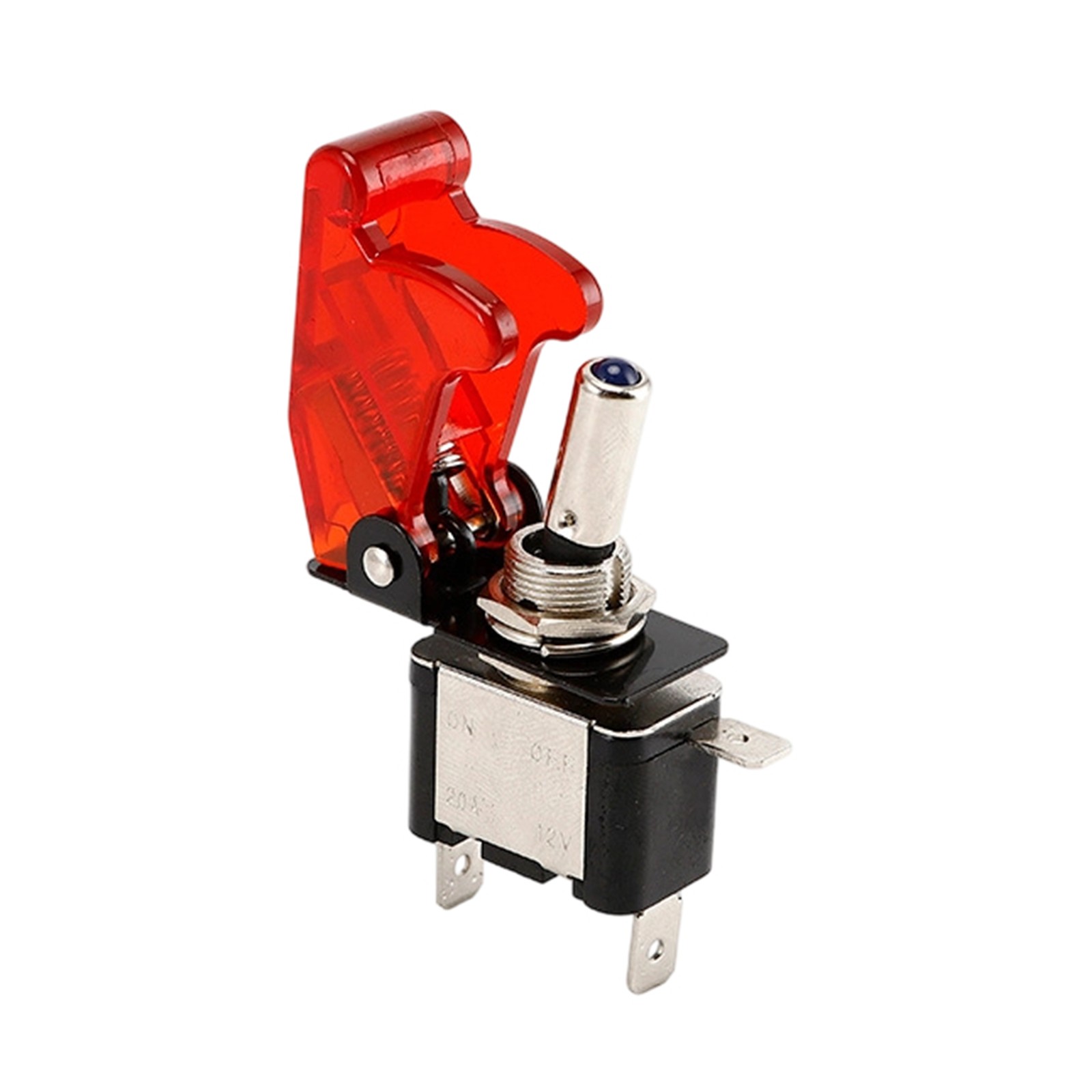

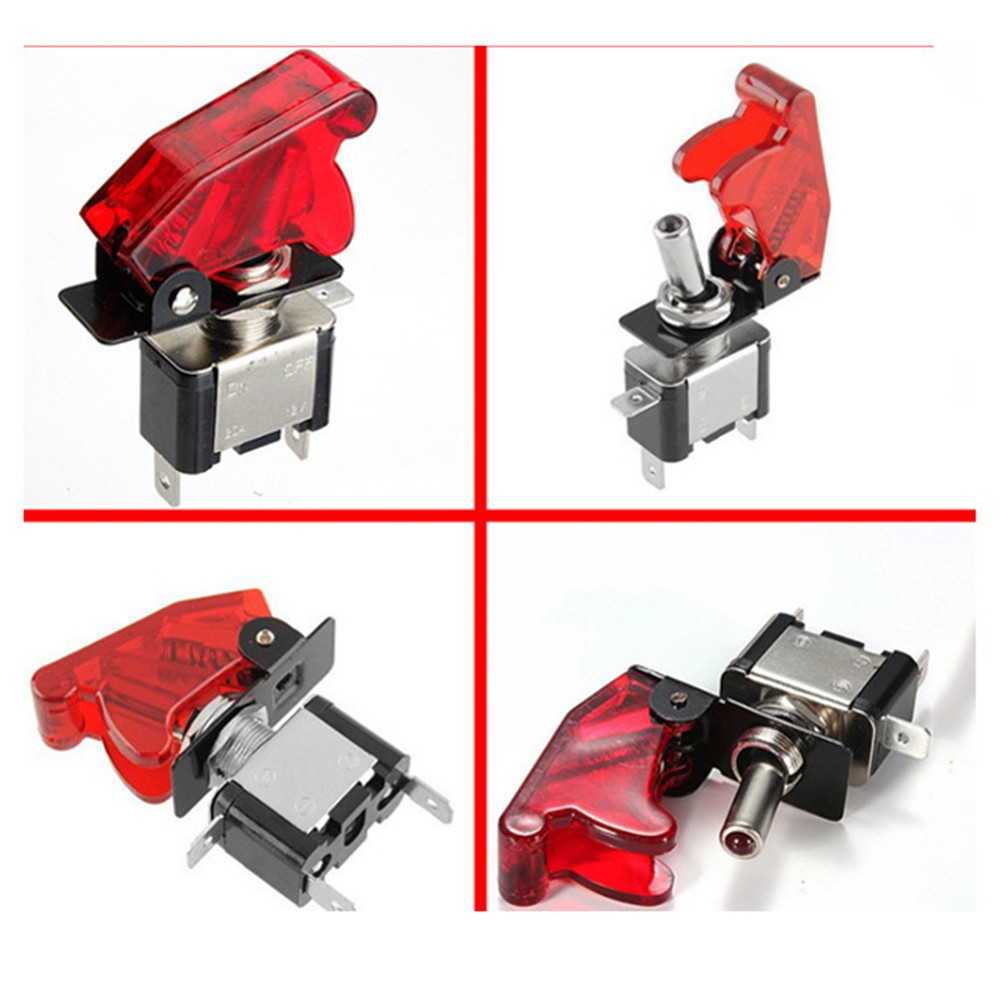

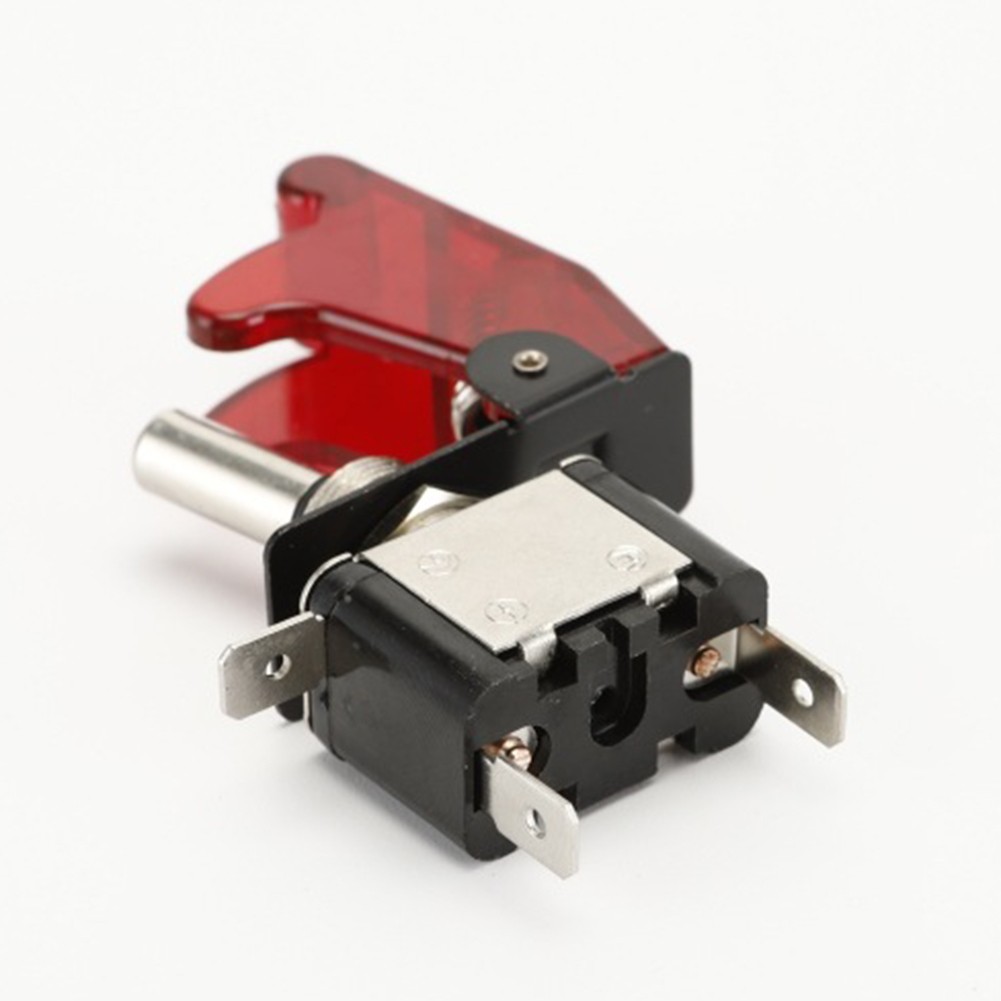

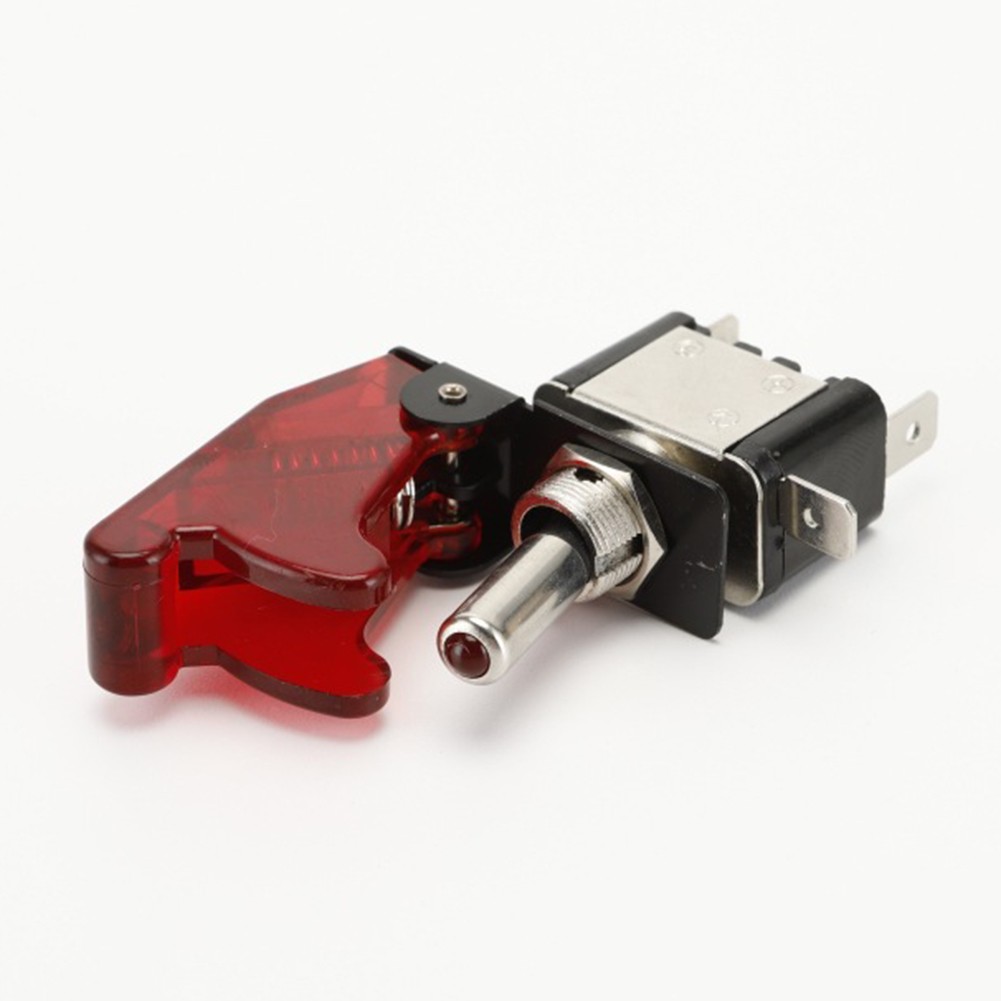

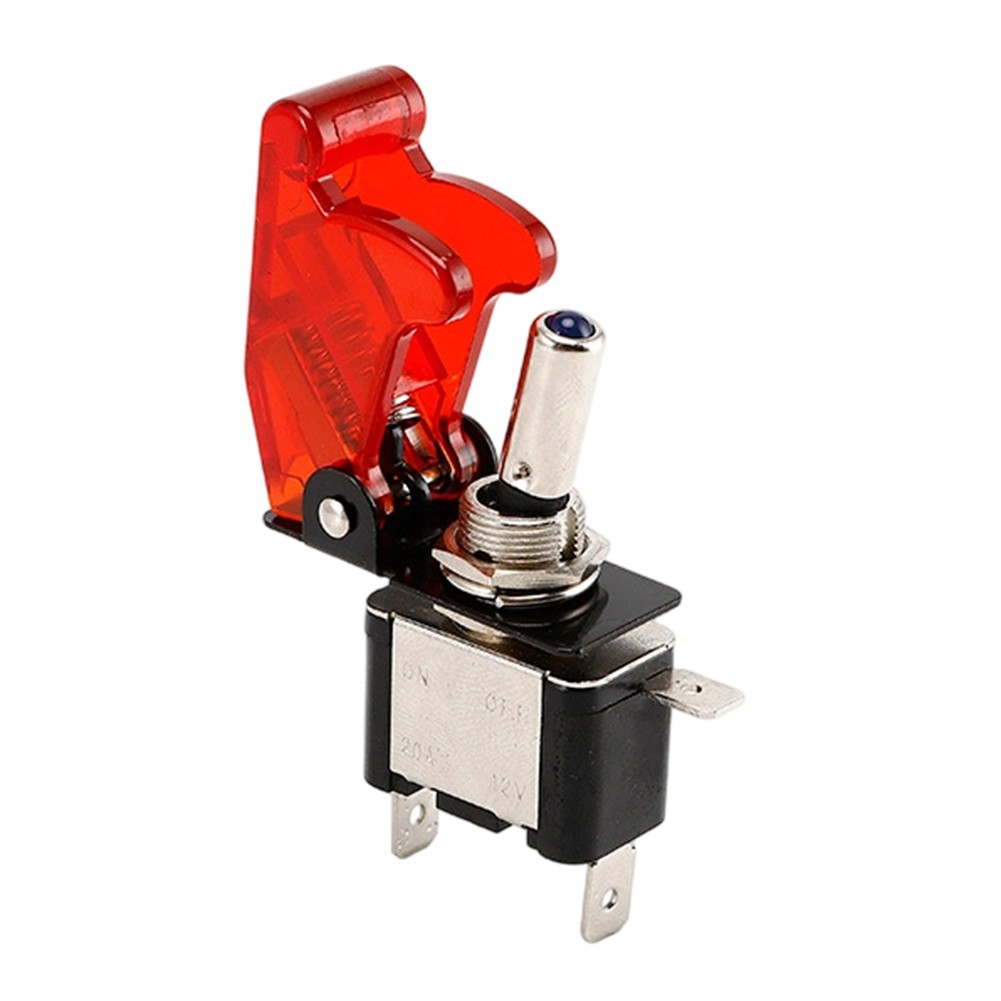

12V 20A for toggle Switch 2 Pin SPST ASW07D with Red Cover for Industrial Use
DESCRIPTION

Features:
Transparent Safety Cover & Rocker Design: Features a transparent for red safety cover to prevent accidental activation. The for robust rocker mechanism ensures smooth, stable operation and long-term reliability.
- Materials & Accuracy Craftsmanship: Made of for premium materials with excellent conductivity, and polished to a flat, burr-free finish for durability and a refined appearance.
Brass Terminals & Easy Installation: Equipped with oxidation-resistant brass terminals and -style pins for quick, secure wiring and soldering. Includes a 12mm screw hole for firm mounting.
Lasting & Resilient Construction: for up to 50,000 cycles, with a heat-resistant, wear- for proof, and flame-retardant housing that offers high mechanical strength and temperature resistance.
Wide Applications & Safe Power Control: Perfect for automotive, marine, and industrial use. Features 1NC+1NO contacts and a self-locking mechanism for safe, efficient switching in demanding environments.

Specification:
Part Name: for Toggle switch
Color: Red
Model: -07D
Product for type: 2 Pin 2 Position
Operating structure: self-locking
Rated voltage : 12V
Rated current : 20A
for type: 1NC+1NO
Hole size: 12mm
resistance: ≤50mΩ
Insulation resistance: ≥1000MΩ

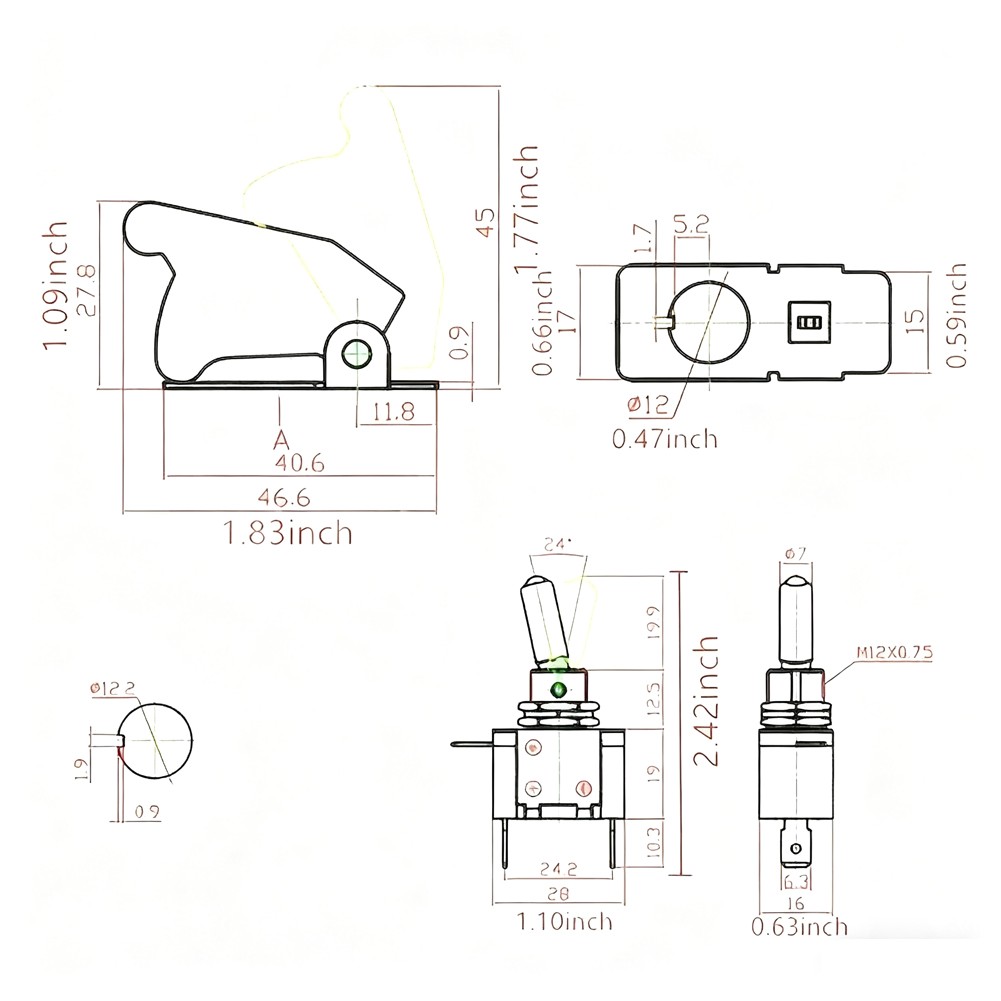

Size: As show

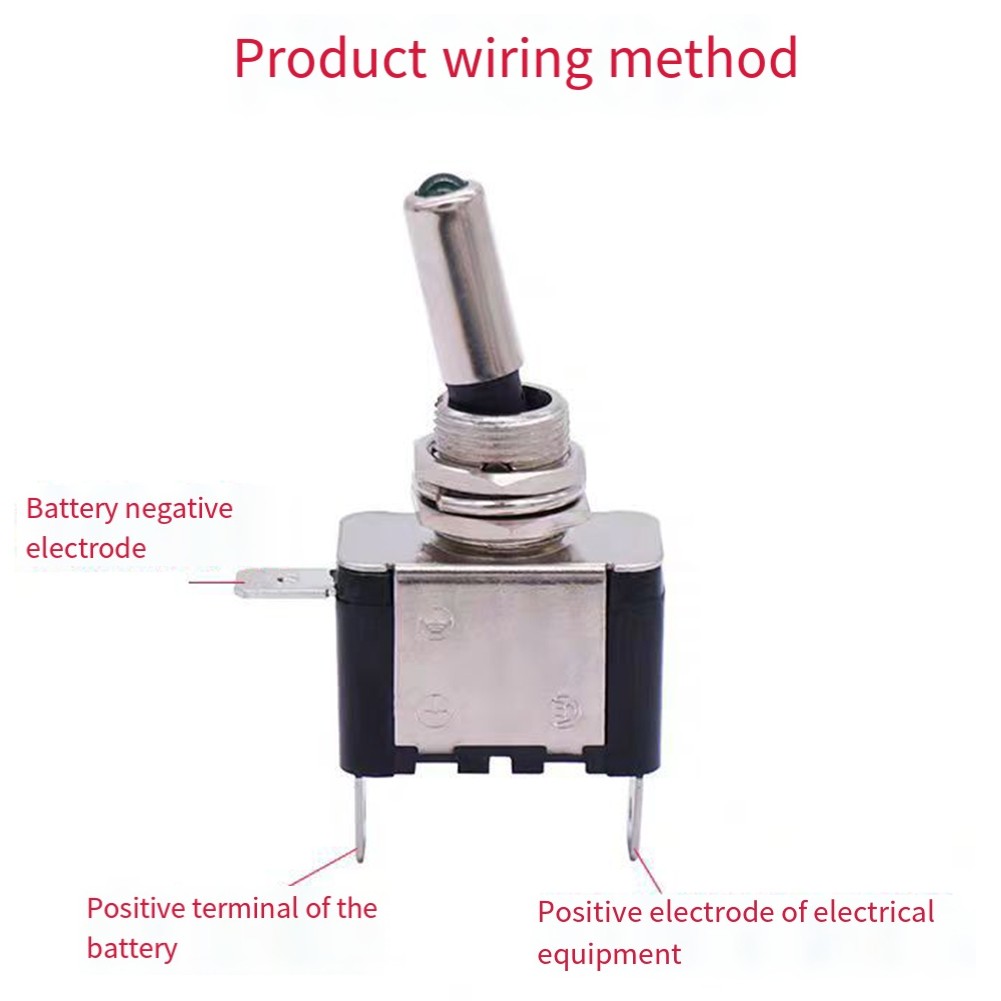

Wiring way: Pins foot
Protection level: IP40
Shell material: flame retardant shell
Button handle material: iron
Pin material: copper
material: copper plated with silver
Dielectric Strength: 1500VAC, 1Minute
Operating Temperature: -20℃~ +80℃
Mechanical Life: 50,000 cycles
Electrical Life: 10,000 Cycles

Package Contents:
1* for Toggle switch


Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
