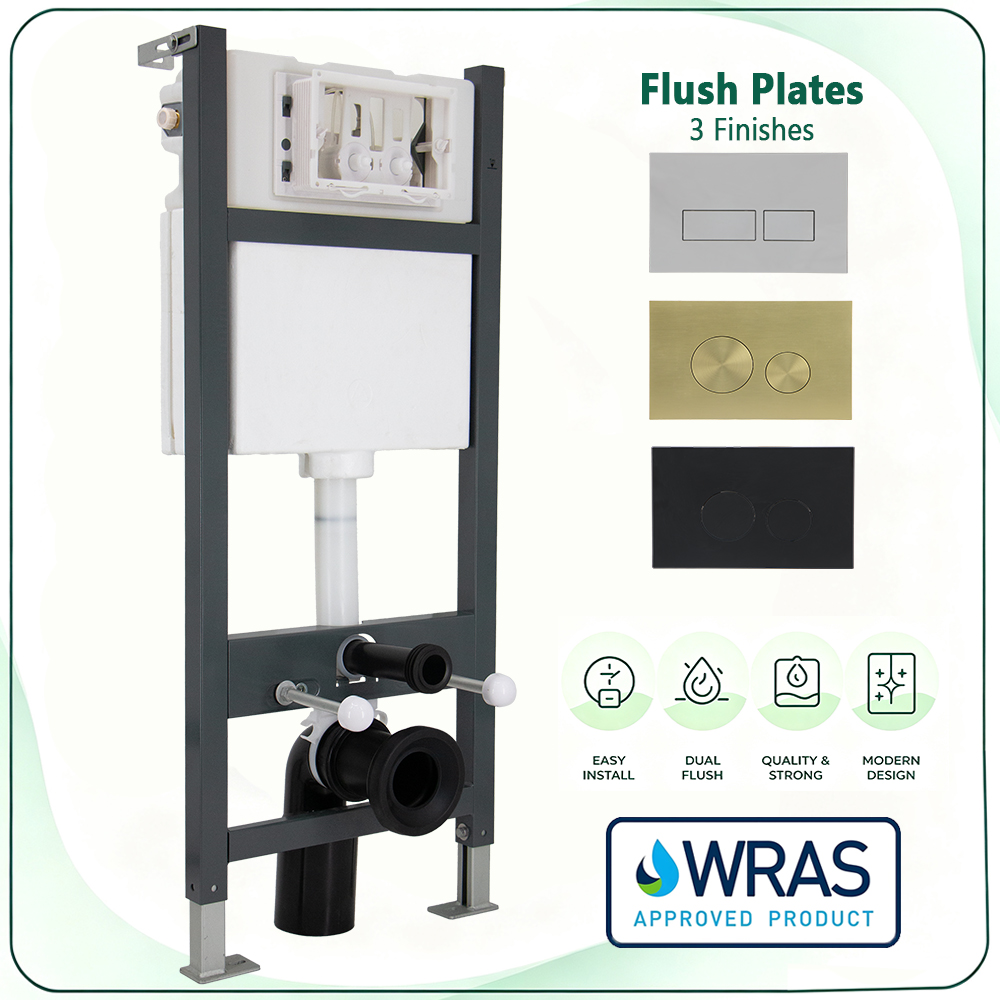

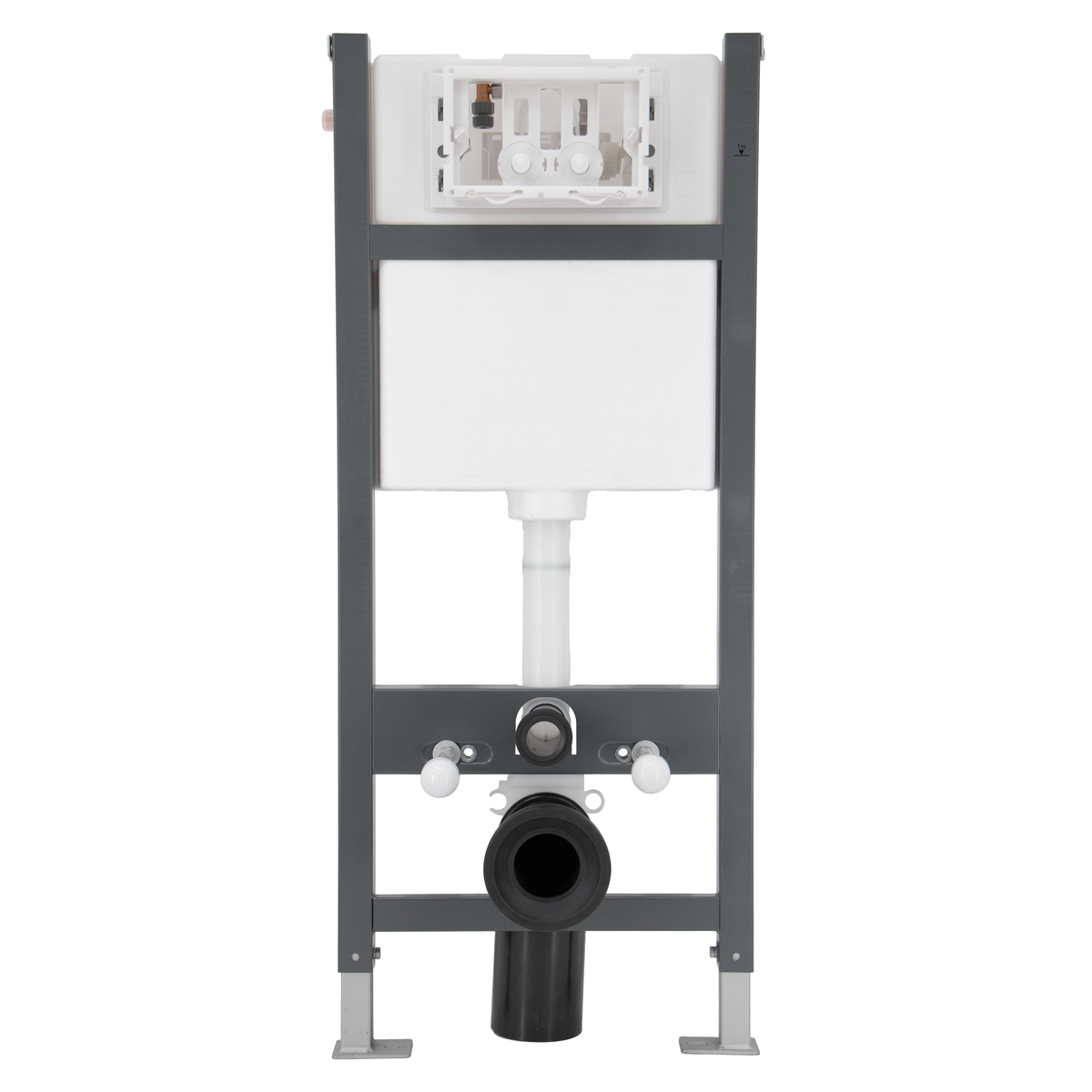

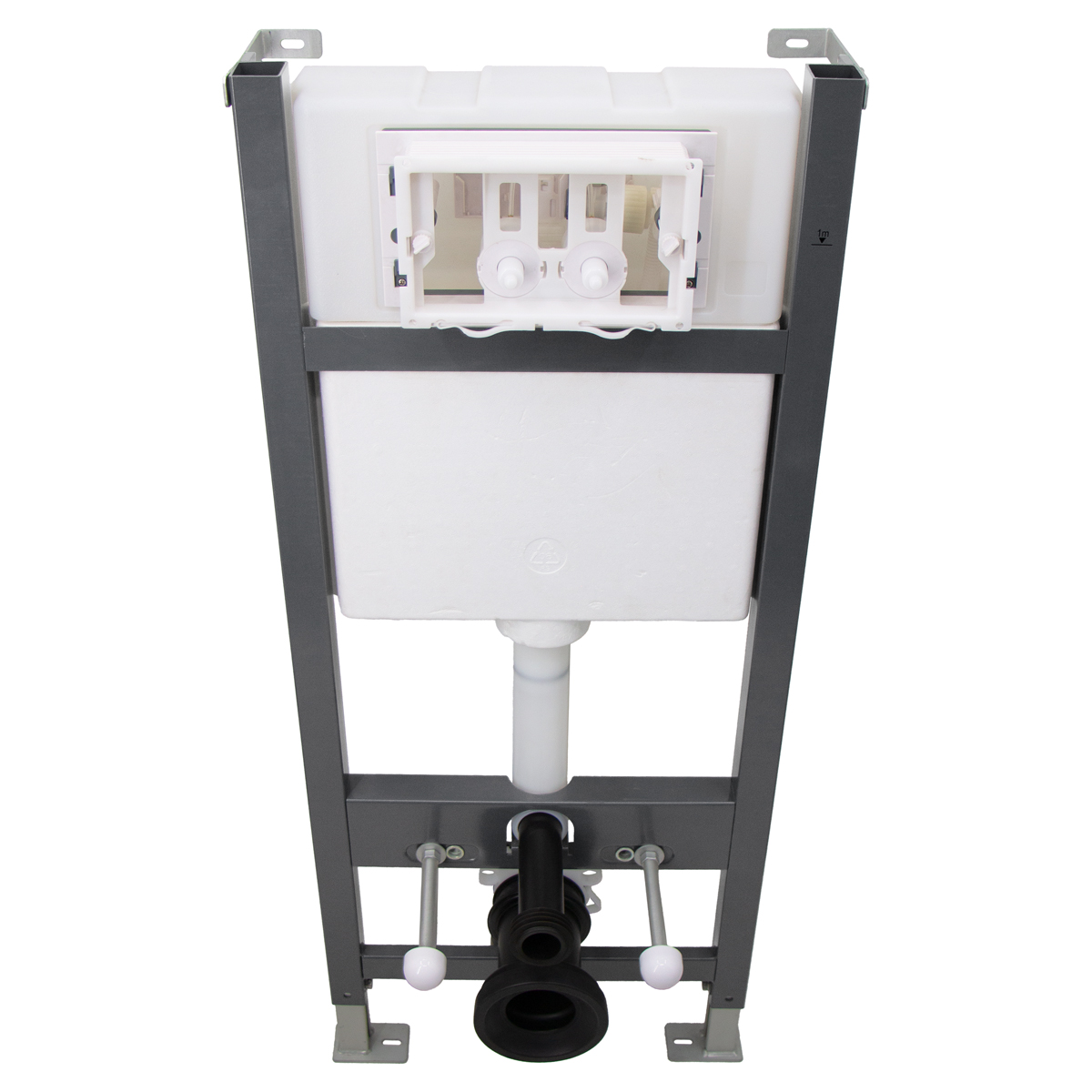

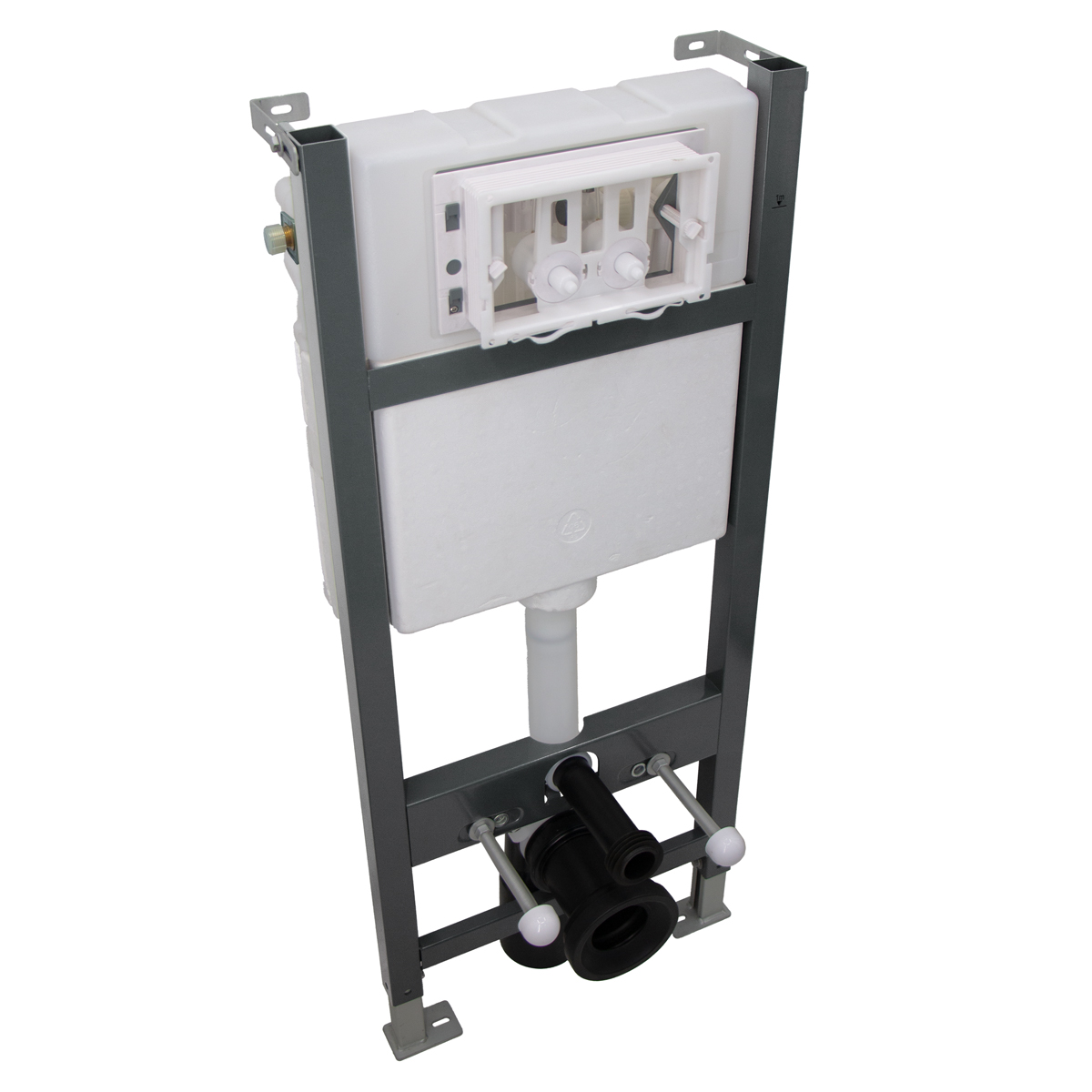

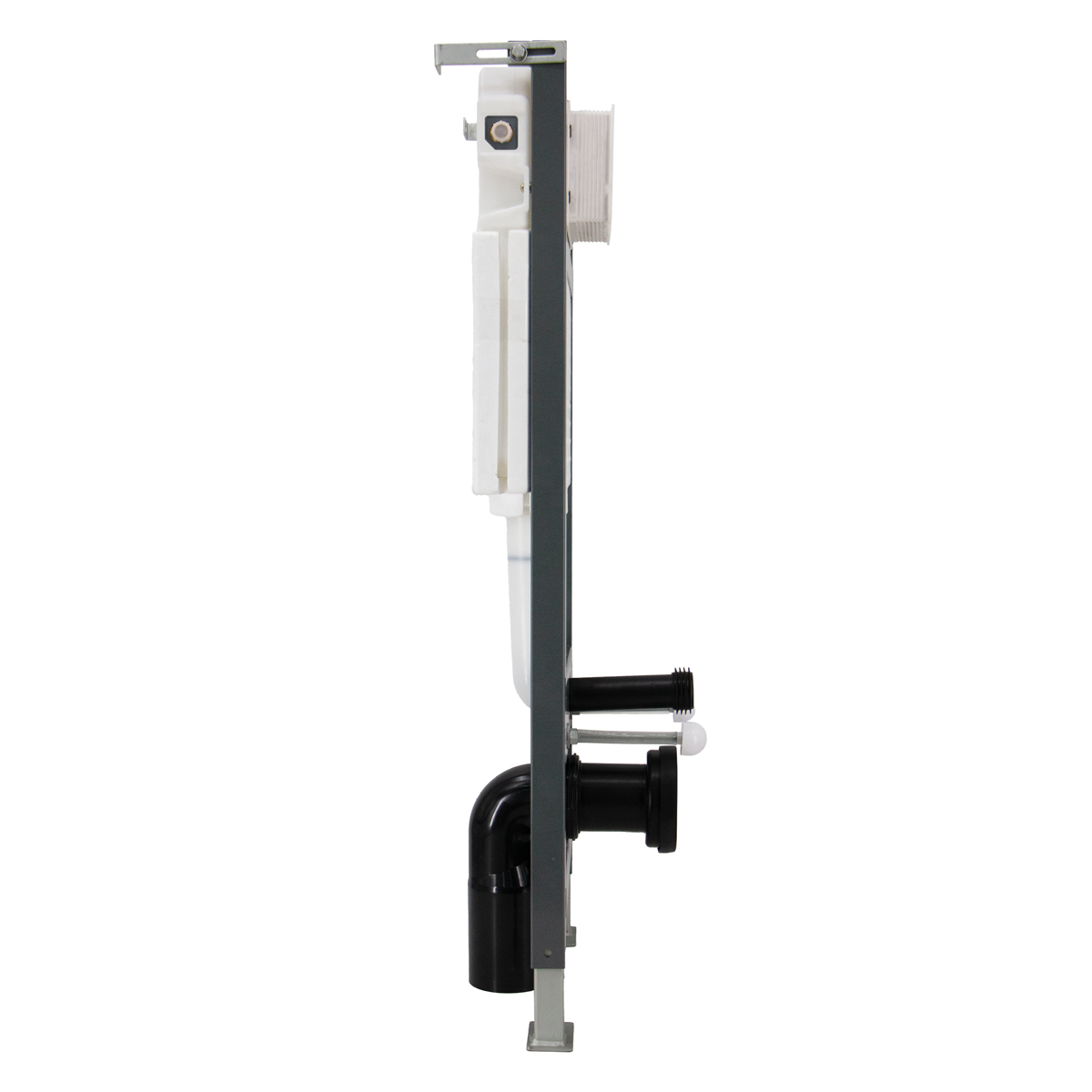

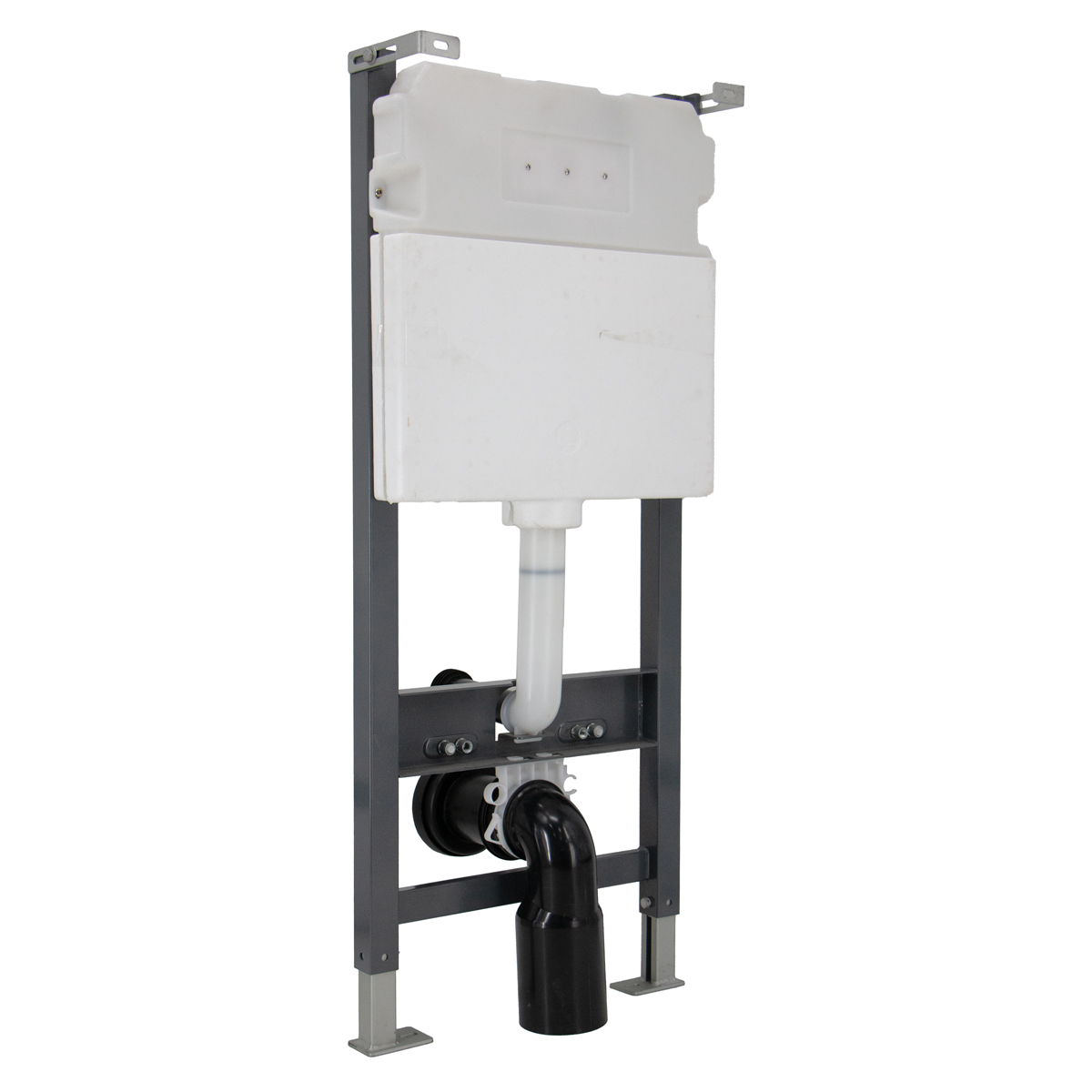

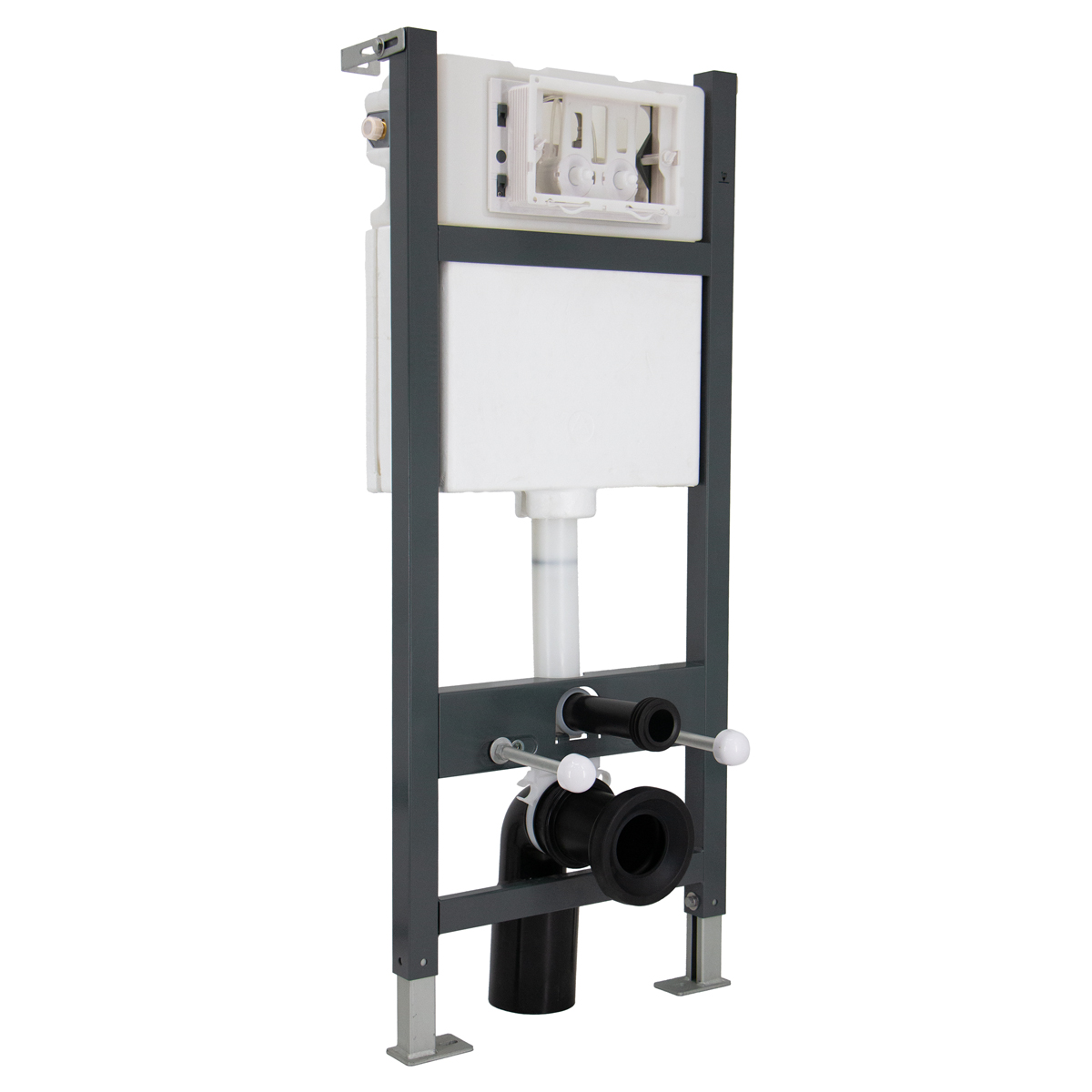

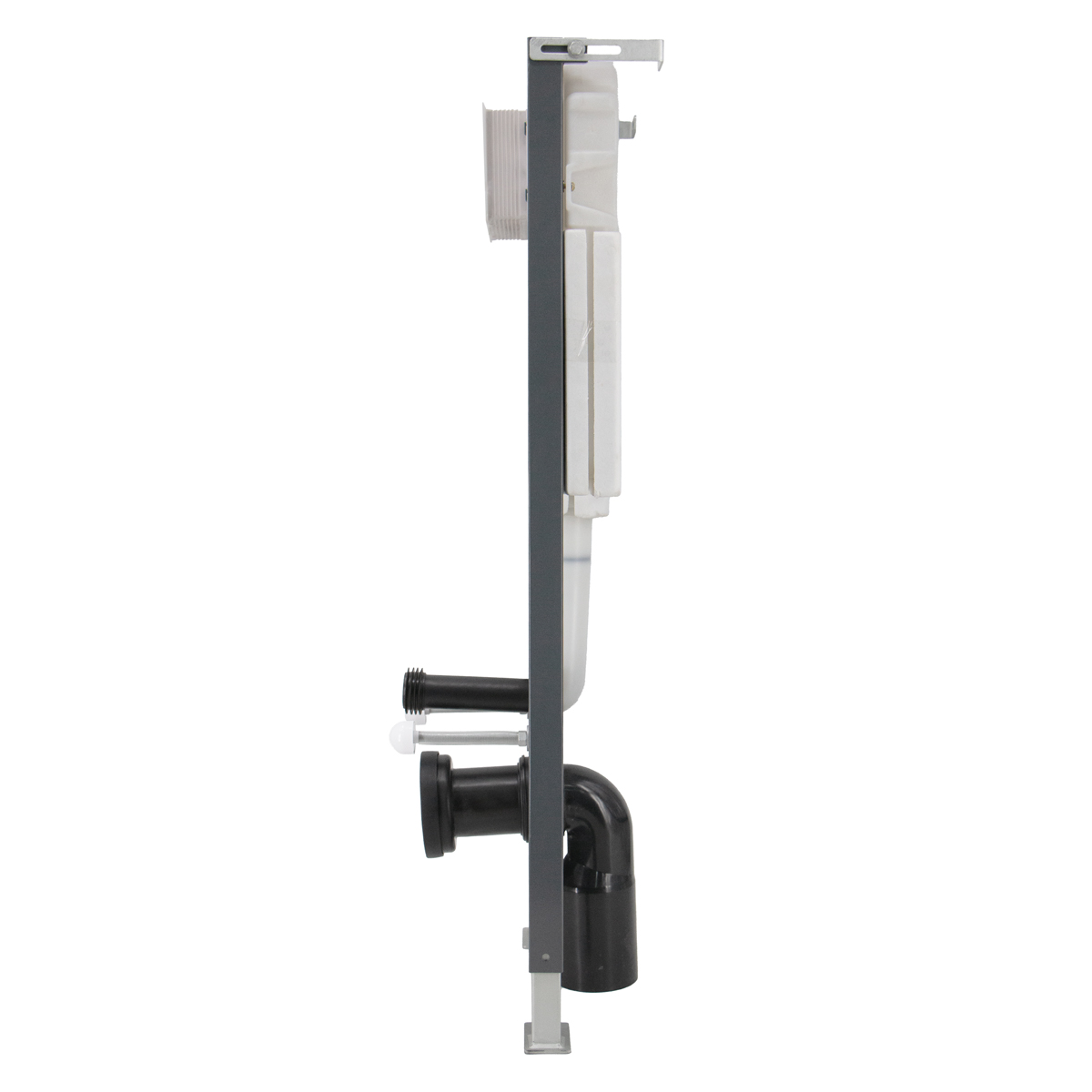

Compact Wall Hung Concealed Cistern Frame

This wall hung concealed cistern frame provides a compact solution for modern bathrooms. The dual-flush cistern offers a 4-litre half flush and 6-litre full flush for efficient water use, while adjustable legs allow the frame height to be set from 1134mm to 1439mm. Supplied with your choice of flush button finish - Chrome, Black, or Brushed Brass. Designed for installation behind plasterboard or solid walls, the unit features a side water inlet and accepts a front push-button flush plate for a clean, minimalist finish - ideal for wall-hung WC installations.

Specifications:

Type: 1134mm Concealed Cistern Frame

Water Inlet: Side entry

Push Operation: Front push

Mode of Operation: Pneumatic operation

Flush Type: Dual flush cistern. 6 litre full flush, 4 litre half flush

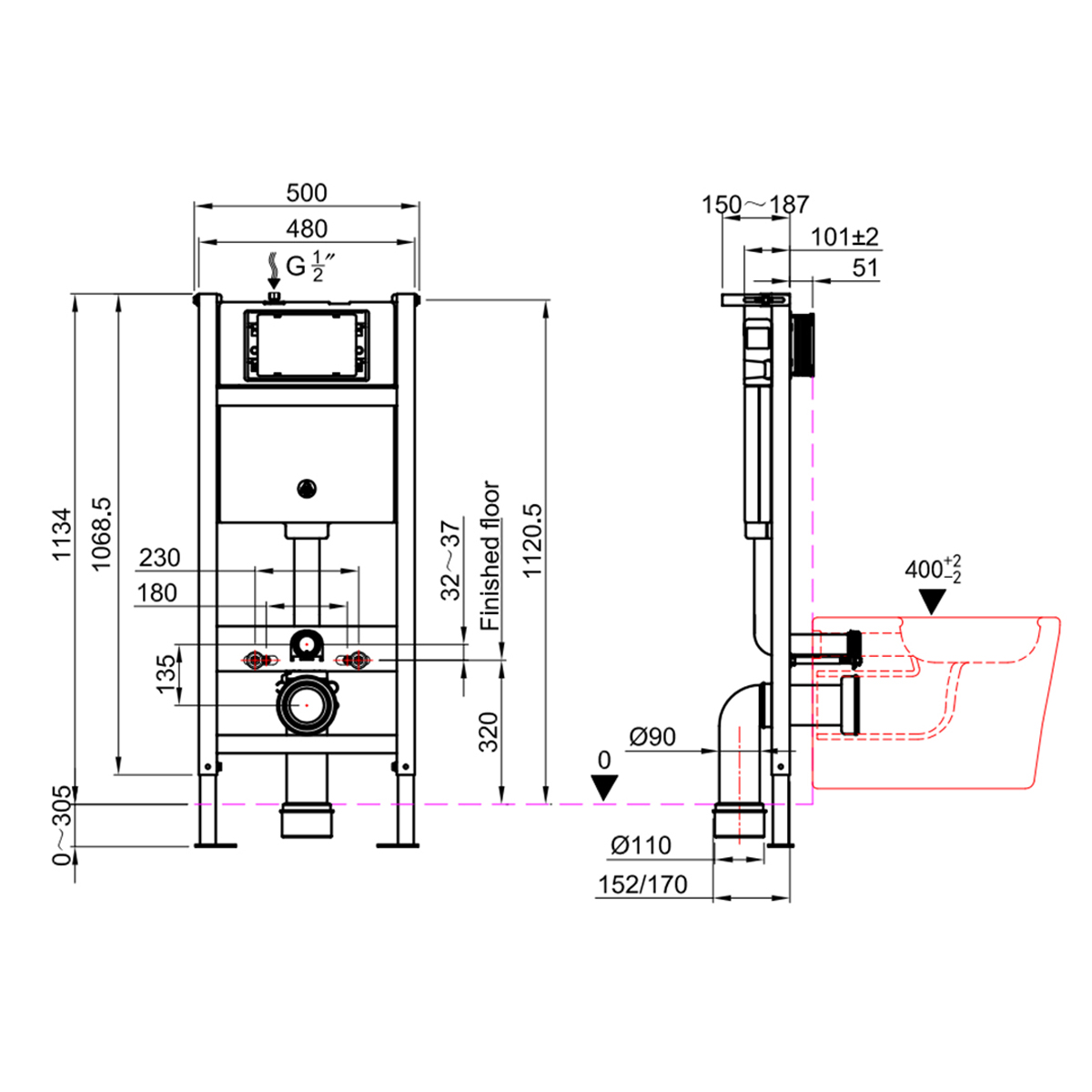

Width: 500mm - Depth: 150~187mm (Approx.) - Height: 1134~1439mm (Approx.)

Frame Size: 1068.5x40x40mm, thickness:2mm

Cistern Material: HDPE

Frame Material: Iron

Frame Finish: Grey paint

Frame Weight: 9.1kg

Included: Concealed Cistern, Frame, Push Plate

Features:

Water saving dual-flush valve.

Compatible with all wall-hung WC pans

Made from durable high-quality materials.

Hides pipework for a clean, uncluttered finish.

WRAS approved - trusted quality you can rely on.

Insulated against condensation and reduces noise from water tank.

Choice of flush plate finishes: Choose from Chrome / Matt Black / Brushed Brass to match your style.

Cistern Installation Method: Built-in or Wall Mounted. Applicable for solid walls and dry build up wall (plaster board)

This fixing frame provides stable, reliable support for your wall-hung pan, while seamlessly delivering a clean, streamlined bathroom finish.

Important Details:
- We suggest you ask a qualified plumber to install these item
- 10-year guarantee on cistern shell and button; 5 years on internal mechanisms.
- Images are for illustrative purposes only. All measurements are approximate.

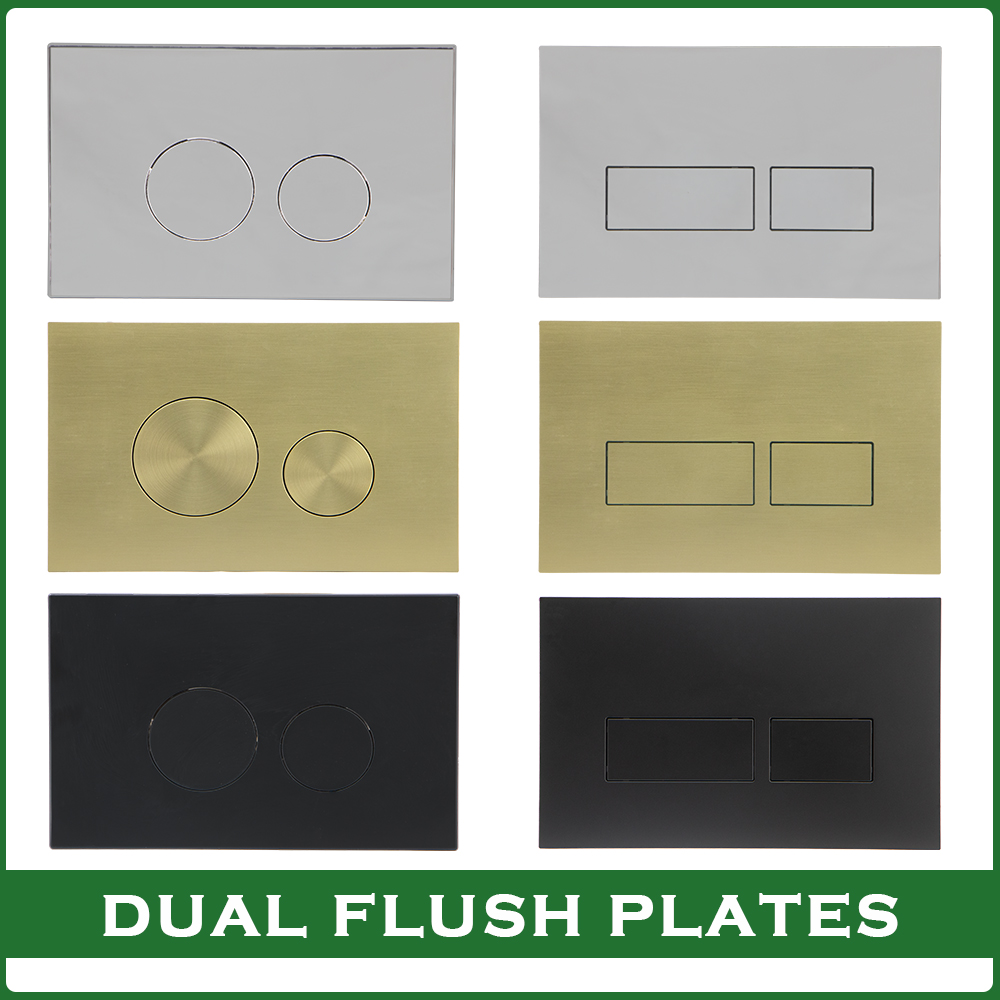

Pneumatic Flush Plate

This pneumatic flush plate is designed specifically for our pneumatic frame concealed cistern. Replacement Push Plate is manufactured from ABS plastic. The dual-flush mechanism offers two water-saving options, letting you choose the right flush volume for different needs, reducing water waste without compromising performance.

Specifications:

Product Type: Pneumatic Flush Plate

Plate Size: 234x150mm (WxH)

Plate Shape: Rectangle

Button Shape: Round / Square(Rectangle)

Material: High impact, tough ABS

Colour/Finish: Chrome / Black / Brushed Brass
