HXCONTROLLER MPPT Wind Turbine Controller

800W / 600W / 400W, 12V/24V Auto-Match, IP67 Waterproof ⚡

Product Overview

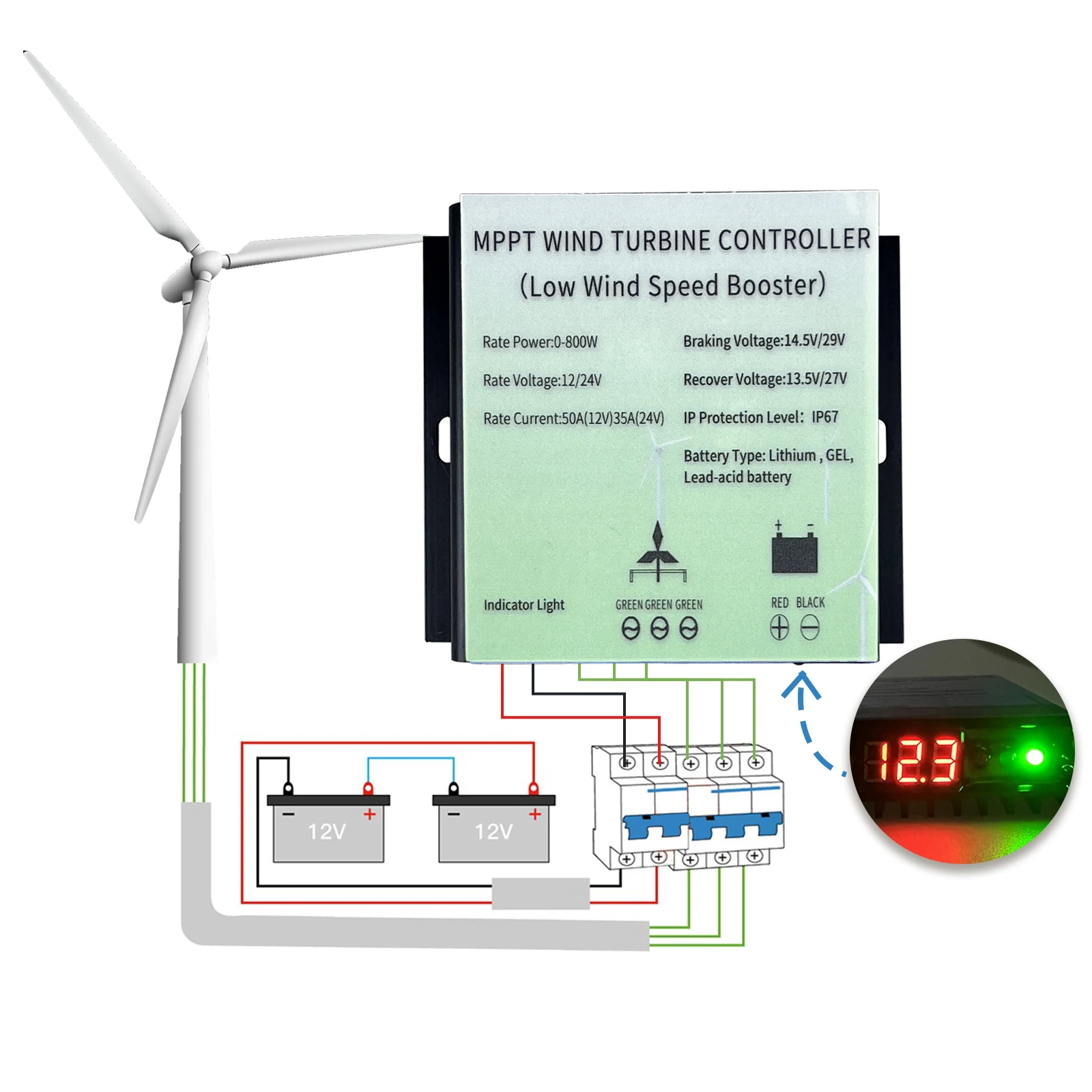

This MPPT wind turbine charge controller automatically manages charging from your wind turbine to your battery bank. Once the battery reaches full charge, the built-in circuit engages automatic braking; when voltage drops to the recovery threshold, charging resumes automatically, protecting both turbine and battery.

Key Features

🌀 MPPT Stepless Charging

Voltage and current-limited charging maximizes efficiency while protecting the turbine and battery from overload.

🔌 Reverse Connection Protection

Miswired battery polarity won't damage the unit or blow a fuse. Simply reconnect correctly and the controller resumes normal operation.

💧 IP67 Waterproof Design

Fully sealed housing resists humidity, salt spray, and wet outdoor conditions for reliable long-term use.

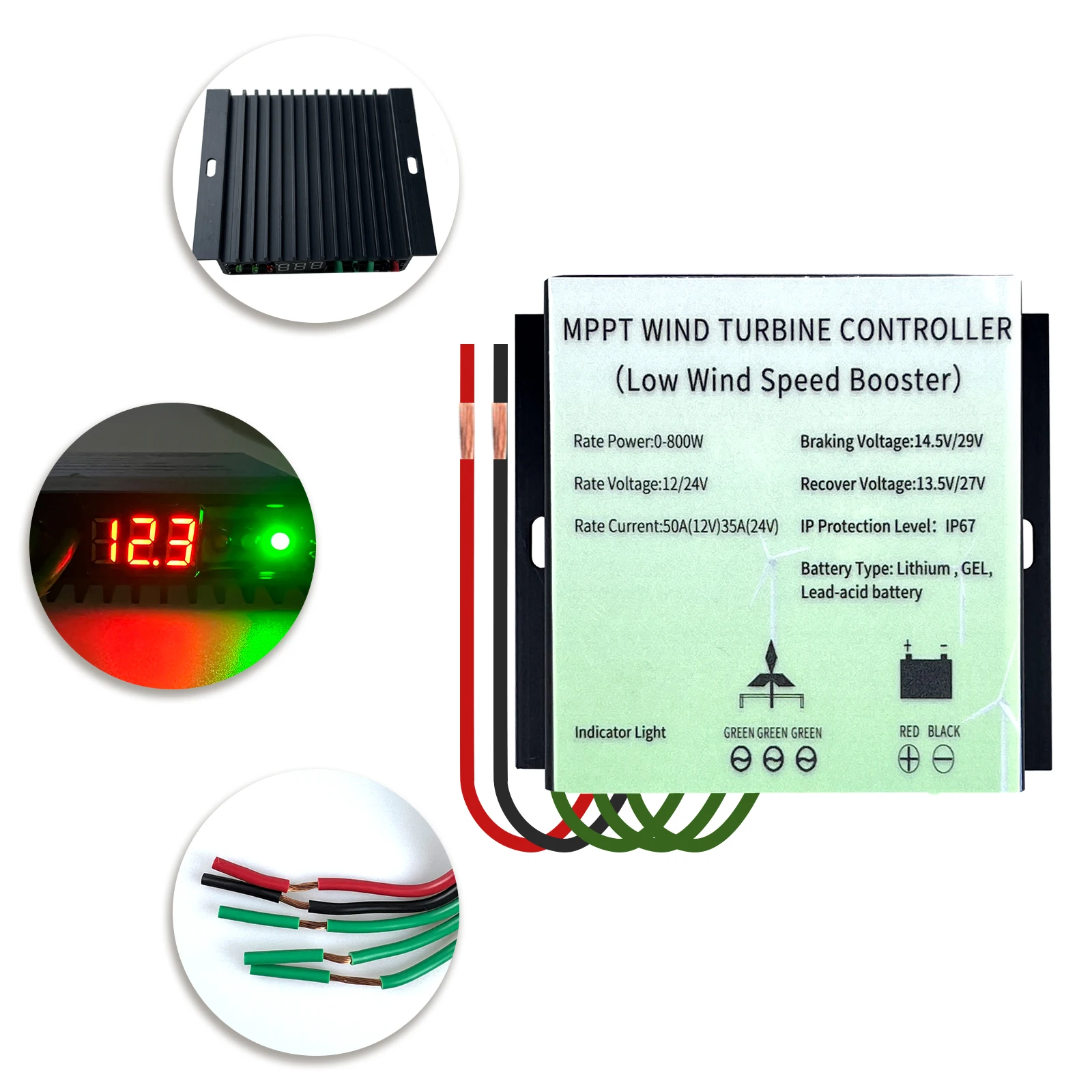

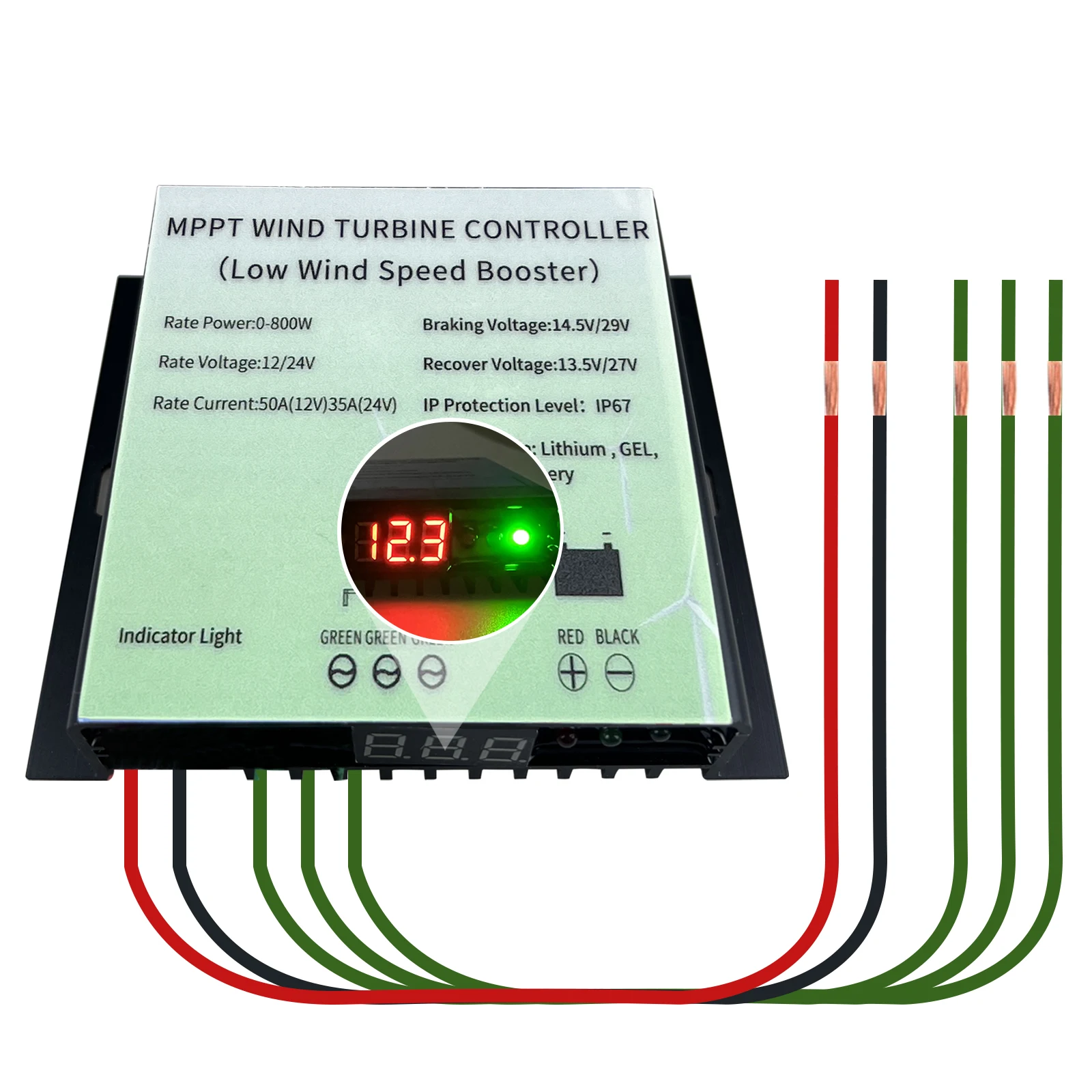

📟 LED Voltage Display

Built-in display lets you monitor real-time battery voltage and confirm the turbine is actively charging.

Specifications

ModelMPPT800W-GN
Rated Power800W (600W / 400W options)
Starting Voltage8V (12V system), 17V (24V system)
Battery VoltageAuto-matching 12V / 24V
Braking Voltage14.5V (12V system), 29V (24V system)
Recovery Voltage12.5V / 27V
Maximum Current50A
Waterproof RatingIP67
Compatible BatteriesLead-Acid, GEL, Lithium, LiFePO4

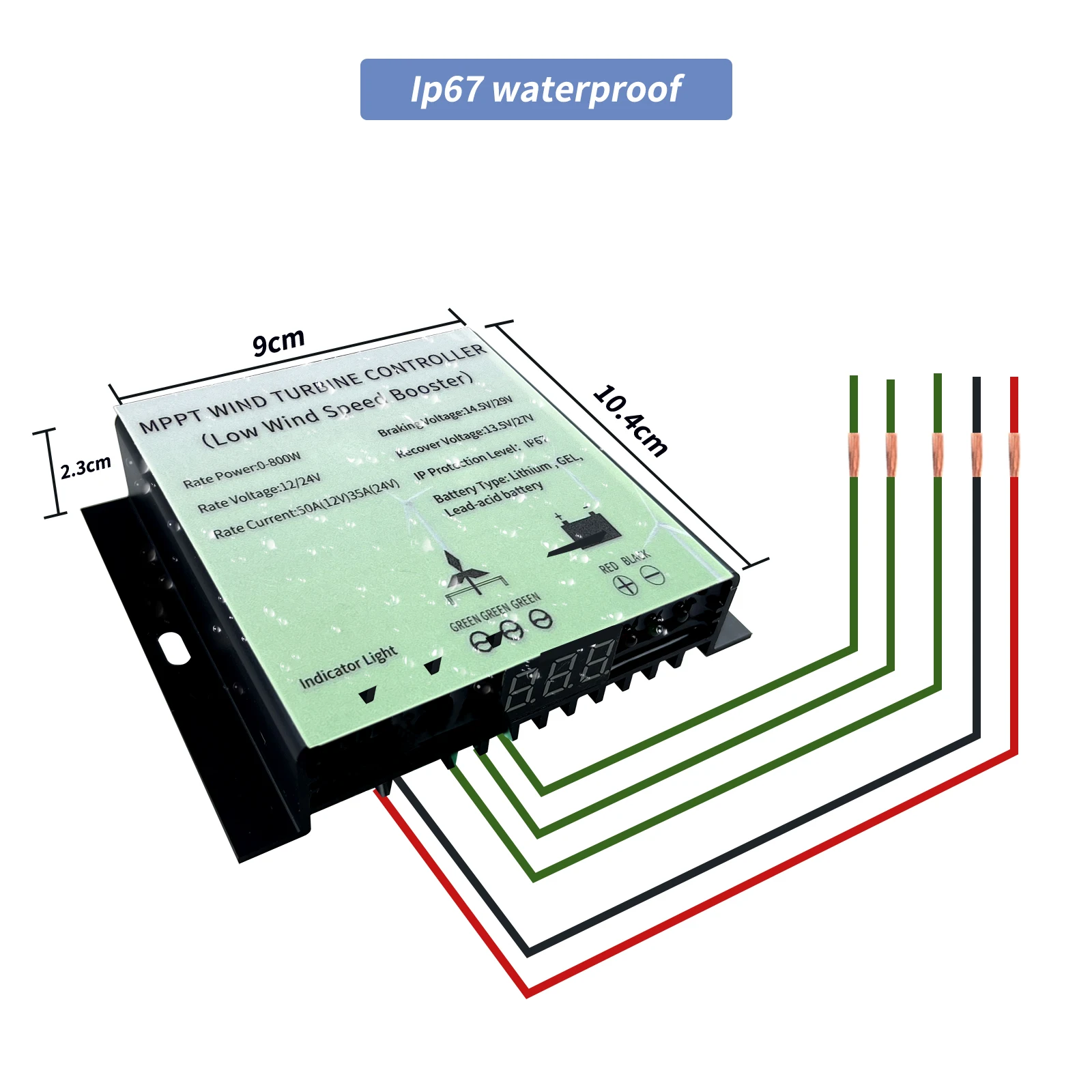

Dimensions10.4 x 9 x 2.3 cm
Weight~350g

Product Images

FAQ

Which battery types are supported?

Lead-acid, GEL, lithium, and LiFePO4 batteries are all supported with automatic 12V/24V matching.

Is this suitable for outdoor or marine use?

Yes, the IP67 waterproof housing withstands humidity, salt spray, and wet environments.

What happens if I connect the battery backwards?

The built-in reverse connection protection prevents damage. Simply reconnect correctly and the unit will function normally.
