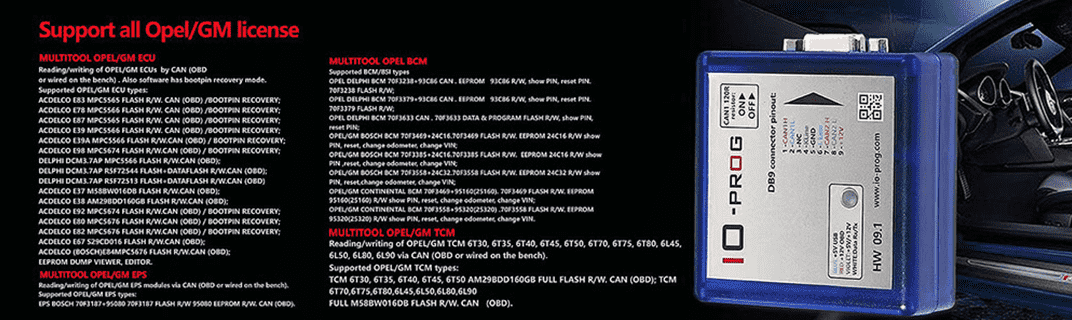

IO-PROG Terminal Multi Tool for OPEL GMs BCM ECU EPS TCM Full Version

Product Description
IO-PROG for reading and writing OPEL / GMs ECU BCM TCM EPS by OBD or on Bench.
ECUHELP IO-PROG Terminal Multi Tool for reading and writing OPEL / GMs ECU BCM TCM EPS

IO-PROG ECU Programmer Advantages:
1. Read and write the FLASH and EEPROM memory image using the diagnostic connector link.
2. A combination of K-line and CAN interfaces provides ideal software compatibility without acquiring an expensive J2534 device
3. Checksums testing and correction. Safe reading and flashing
4.Software cannot be upgraded online
5.This IO Prog is only available with GMs / OPEL license now, not full cars
Software Download Support ( Software for IO Prog hardware owners）
6. Software can read and write the memory of OPEL / GMs ECUs via OBD or on Bench. Also, the software has bootpin recovery mode.
7. The ECU EEPROM EDITOR allows you to extract PINCODE and do other functions with EEPROM DUMP.
8. Software and wiring diagrams is available to be downloaded as well.
9. Read and write EEPROM and flash of GMs Opel ECU ie, E39A, E78 that has 5-bit seed and needs to calculate key before reading that KT200 can' t support (it will show Slilent key at the left corner of the software).

NOTE : MULTITOOL +OPEL / GMs ECU LICENSE
IO PROG Supported OPEL / GMs ECU types
1. ACDELCO E83 MPC5565 FLASH R/W. CAN (OBD) / BOOTPIN RECOVERY.
2. ACDELCO E78 MPC5566 FLASH R/W. CAN (OBD) / BOOTPIN RECOVERY.
3. ACDELCO E87 MPC5565 FLASH R/W. CAN (OBD) / BOOTPIN RECOVERY.
4. ACDELCO E39 MPC5566 FLASH R/W. CAN (OBD) / BOOTPIN RECOVERY.
5. ACDELCO E39A MPC5566 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY.
6. ACDELCO E98 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY.
7. DELPHI DCM3.7AP MPC5566 FLASH R/W.CAN (OBD).
8. DELPHI DCM3.7AP R5F72544 FLASH + DATAFLASH R/W.CAN (OBD).
9. DELPHI DCM3.7AP R5F72513 FLASH + DATAFLASH R/W.CAN (OBD).
10. ACDELCO E37 M58BW016DB FLASH R/W.CAN (OBD) .
11. ACDELCO E38 AM29BDD160GB FLASH R/W.CAN (OBD) .
12. ACDELCO E92 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY.
13. ACDELCO E80 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY.
14. ACDELCO E82 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY.
15. ACDELCO E67 S29CD016 FLASH R/W.CAN (OBD) .
16. ACDELCO (BOSCH) E84 MPC5676 FLASH R/W.CAN (OBD)
17. EEPROM DUMP VIEWER, EDITOR.

The software is marketed on a module basis. Each module is a separate program that functions independently with one joint adapter. You can download and use only the software you have licenses on. Licenses are stored on special cards which are to be inserted in the special adapter slot before the software use. Some licenses can be recorded on one card, others require separate recording.

IO Prog Opel / GMs ECU List
Reading / writing of OPEL / GMs ECUs by CAN (OBD or wired on the bench) . Also
software has bootpin recovery mode.
Supported OPEL / GMs ECU types
ACDELCO E83 MPC5565 FLASH R/W. CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E78 MPC5566 FLASH R/W. CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E87 MPC5565 FLASH R/W. CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E39 MPC5566 FLASH R/W. CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E39A MPC5566 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E98 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
DELPHI DCM3.7AP MPC5566 FLASH R/W.CAN (OBD);
DELPHI DCM3.7AP R5F72544 FLASH + DATAFLASH R/W.CAN (OBD);
DELPHI DCM3.7AP R5F72513 FLASH + DATAFLASH R/W.CAN (OBD);
ACDELCO E37 M58BW016DB FLASH R/W.CAN (OBD);
ACDELCO E38 AM29BDD160GB FLASH R/W.CAN (OBD);
ACDELCO E92 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E80 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E82 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E67 S29CD016 FLASH R/W.CAN (OBD);
ACDELCO (BOSCH) E84 MPC5676 FLASH R/W.CAN (OBD);
EEPROM DUMP VIEWER, EDITOR.

IO Prog Opel BCM List
Reading / writing of OPEL BCM modules made by DELPHI, BOSCH, CONTINENTAL.
Also software extracts PIN CODE rom the EEPROM dump or data flash dump.
Supported BCM / BSI types
OPEL DELPHI BCM 70F3238 + 93C86 CAN . EEPROM 93C86 R/W, show PIN, reset
PIN. 70F3238 FLASH R/W;
OPEL DELPHI BCM 70F3379 + 93C86 CAN . EEPROM 93C86 R/W, show PIN, reset
PIN. 70F3379 FLASH R/W;
OPEL DELPHI BCM 70F3633 CAN . 70F3633 DATA & PROGRAM FLASH R/W, show
PIN, reset PIN;
OPEL / GMs BOSCH BCM 70F3469 + 24C16.70F3469 FLASH R/W. EEPROM 24C16 R/W
show PIN, reset, change odometer, change VIN; OPEL / GMs BOSCH BCM 70F3385 + 24C16.70F3385 FLASH R/W. EEPROM 24C16
R/W show PIN , reset, change odometer, change VIN;
OPEL / GMs BOSCH BCM 70F3558 + 24C32.70F3558 FLASH R/W. EEPROM 24C32
R/W show PIN, reset, change odometer, change VIN;
OPEL / GMs CONTINENTAL BCM 70F3469 + 95160(25160). 70F3469 FLASH R/W.
EEPROM 95160(25160) R/W show PIN, reset, change odometer, change VIN;
OPEL / GMs CONTINENTAL BCM 70F3558 + 95320(25320) .70F3558 FLASH R/W.
EEPROM 95320(25320) R/W show PIN, reset, change odometer, change VIN.

IO Prog Opel / GMs TCM List
Reading / writing of OPEL / GMs TCM 6T30, 6T35, 6T40, 6T45, 6T50, 6T70, 6T75, 6T80, 6L45, 6L50, 6L80, 6L90 via CAN (OBD or wired on the bench).
Supported OPEL / GMs TCM types:
TCM 6T30, 6T35, 6T40, 6T45, 6T50 AM29BDD160GB FULL FLASH R/W. CAN (OBD);
TCM 6T70, 6T75, 6T80, 6L45, 6L50, 6L80, 6L90 FULL M58BW016DB FLASH R/W. CAN (OBD).

IO Oprog Opel / GMs EPS List
Reading / writing of OPEL / GMs EPS modules via CAN (OBD or wired on the bench).
Supported OPEL / GMs EPS types:
EPS BOSCH 70F3187 + 95080 70F3187 FLASH R/W 95080 EEPROM R/W. CAN (OBD).
