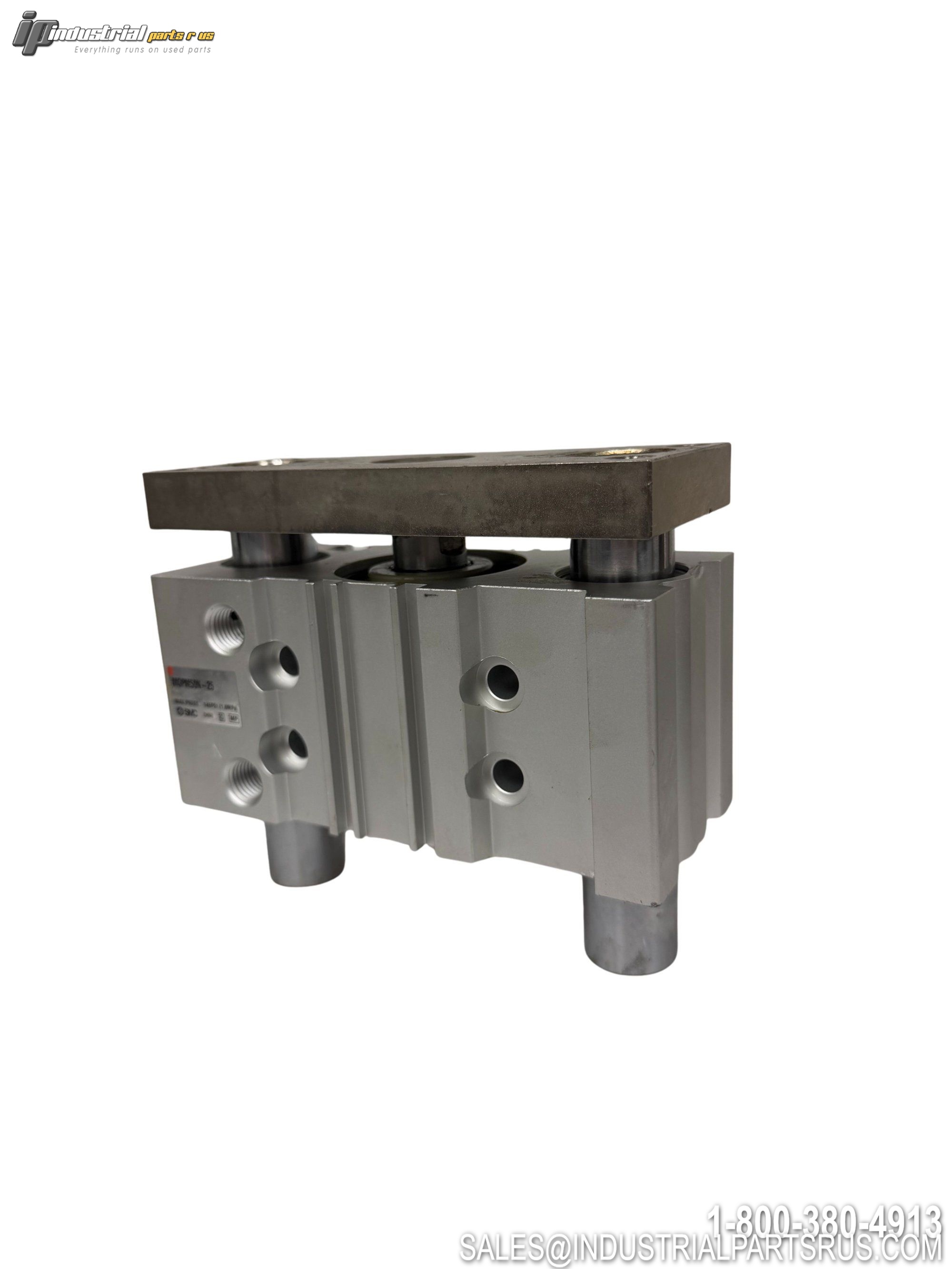

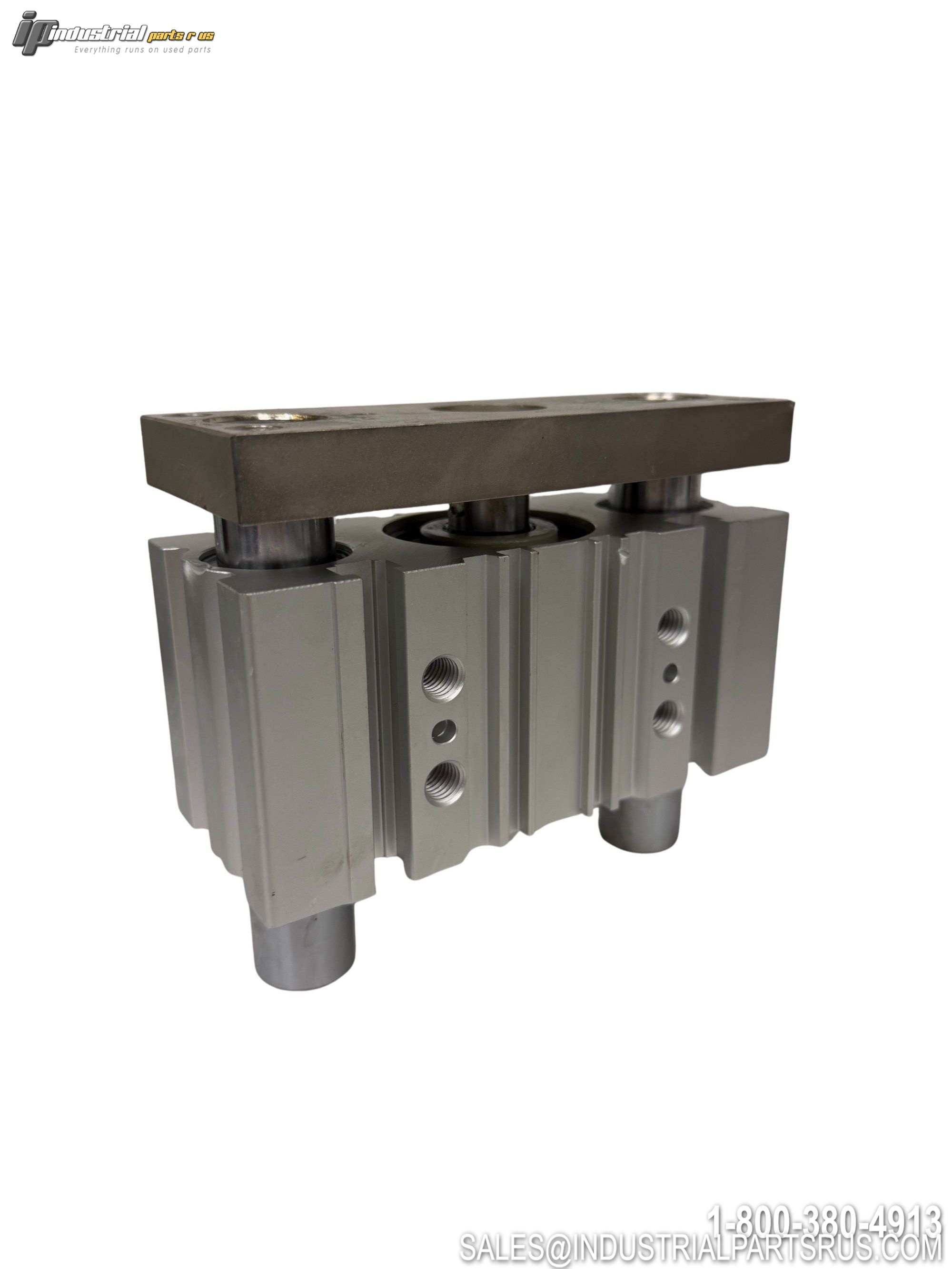

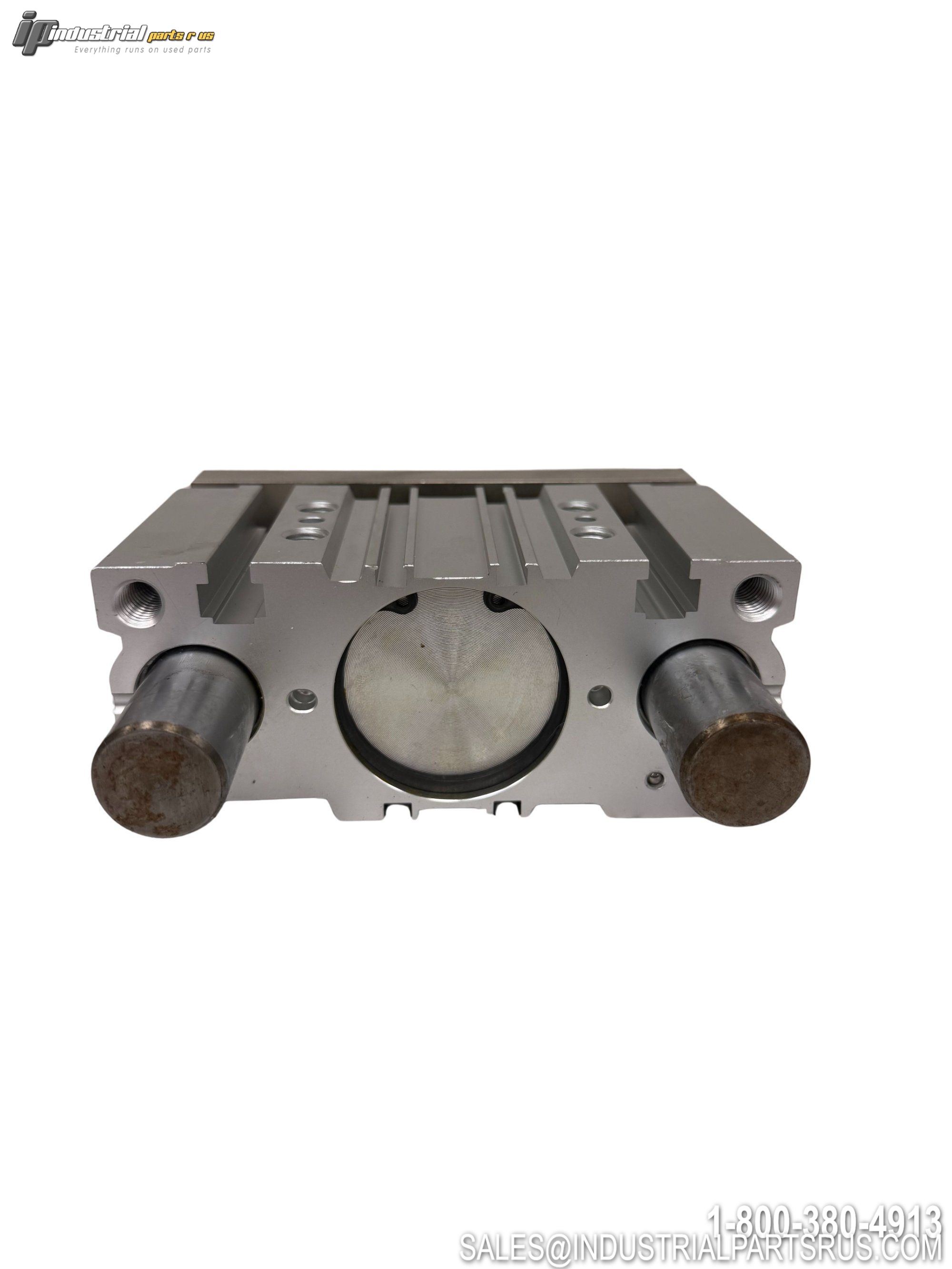

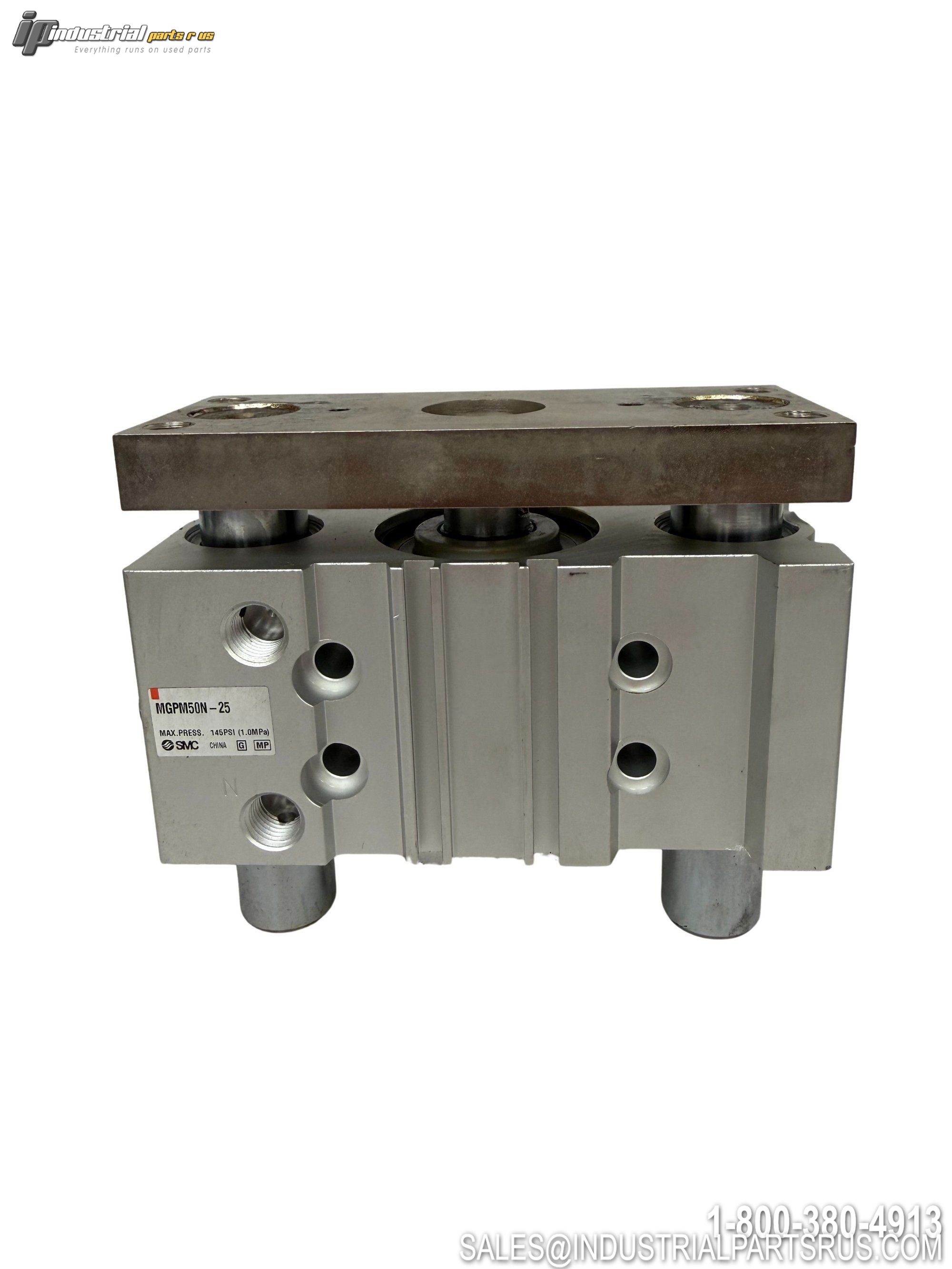

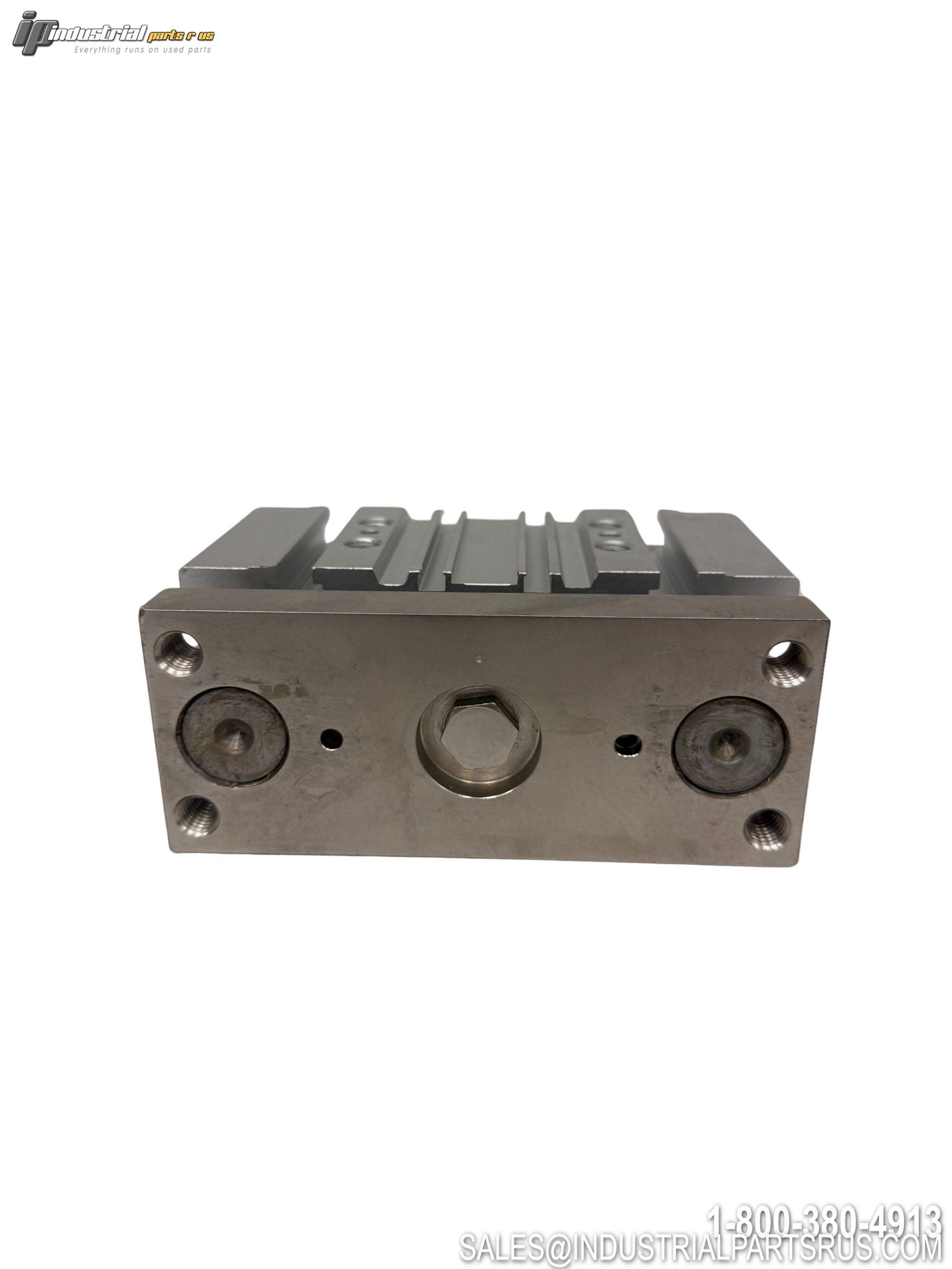

SMC MGPM50N-25 Compact Guide Cylinder 50mm Bore 25mm Stroke End Lock
- In Stock: 1
- Brand: SMC
- Condition: Used
- Notes: Previously used item in good condition. Tested and fully functional. May show normal signs of wear from use. We warranty all items for 30 days.
- Model: MGPM50N-25
- Type: Guided Cylinder
- Shelf: B-16
- Part Number: MGPM50N-25
- Manufacturer: SMC
- Bore Diameter: 50 mm
- MPN: MGPM50N-25
- Media 1 Description: SMC MGPM50N-25 Guided Cylinder - Photo 1
- Media 2 Description: Used - Good SMC MGPM50N-25 Guided Cylinder Image 2
- Media 3 Description: SMC MGPM50N-25 Guided Cylinder View 3
- Media 4 Description: SMC MGPM50N-25 Guided Cylinder - Photo 4
- Media 5 Description: Used - Good SMC MGPM50N-25 Guided Cylinder Image 5
- Stroke Length: 25 mm
- Suitable Media: Air
- Cylinder Action: Double Acting
- Maximum Pressure: 145 PSI (1.0 MPa)
- Rated Pressure: 22 PSI / 0.15 MPa
- Mounting Type: T-Slot (Top and Side)
- Cylinder Type: Compact Guide Cylinder
- Country of Origin: Japan
The SMC MGPM50N-25 is a compact guide cylinder from SMC's MGP series, featuring a 50mm bore and 25mm stroke with a carbon steel alloy slide bearing and an integrated rod-end lock mechanism. It is designed for high side load applications in material handling, lifting, and stopping, with an ultra-compact body that incorporates the cylinder body as part of the guide body. The MGPM50N variant includes a built-in magnet, rod-end lock, manual lock release, and rubber bumpers on both ends for reliable stroke-end cushioning. Compatible with SMC auto switches and suitable for use with compressed air as the operating fluid.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model / Part Number | MGPM50N-25 |
| Series | MGP |
| Cylinder Type | Compact Guide Cylinder with End Lock |
| Bore Diameter | 50 mm |
| Stroke Length | 25 mm |
| Cylinder Action | Double Acting |
| Bearing Type | Slide Bearing (Carbon Steel Alloy) |
| Maximum Operating Pressure | 145 PSI / 1.0 MPa |
| Minimum Operating Pressure | 22 PSI / 0.15 MPa |
| Proof Pressure | 218 PSI / 1.5 MPa |
| Port Size | 1/4" (Rc / NPT) |
| Number of Ports | 2 |
| Piston Speed | 50–500 mm/s |
| Seal Material | NBR (Nitrile Rubber) |
| Cushion Type | Rubber Bumper (Both Ends) |
| Body / Plate Material | Aluminum Alloy, Hard Anodized |
| End Lock Type | Rod-End Lock with Manual Release |
| Built-in Magnet | Yes (for auto switch compatibility) |
| Non-Rotating Accuracy | ±0.05° (50 mm bore) |
| Fluid | Compressed Air |
| Ambient Operating Temperature | -10°C to +60°C (14°F to 140°F) |
| Mounting Style | T-Slot (Top and Side) |
| Switch Mounting Grooves | Yes – Two Sides |
| Stroke Availability (ø40–100mm) | 5 mm increments |
| Manufacturer | SMC Corporation |
