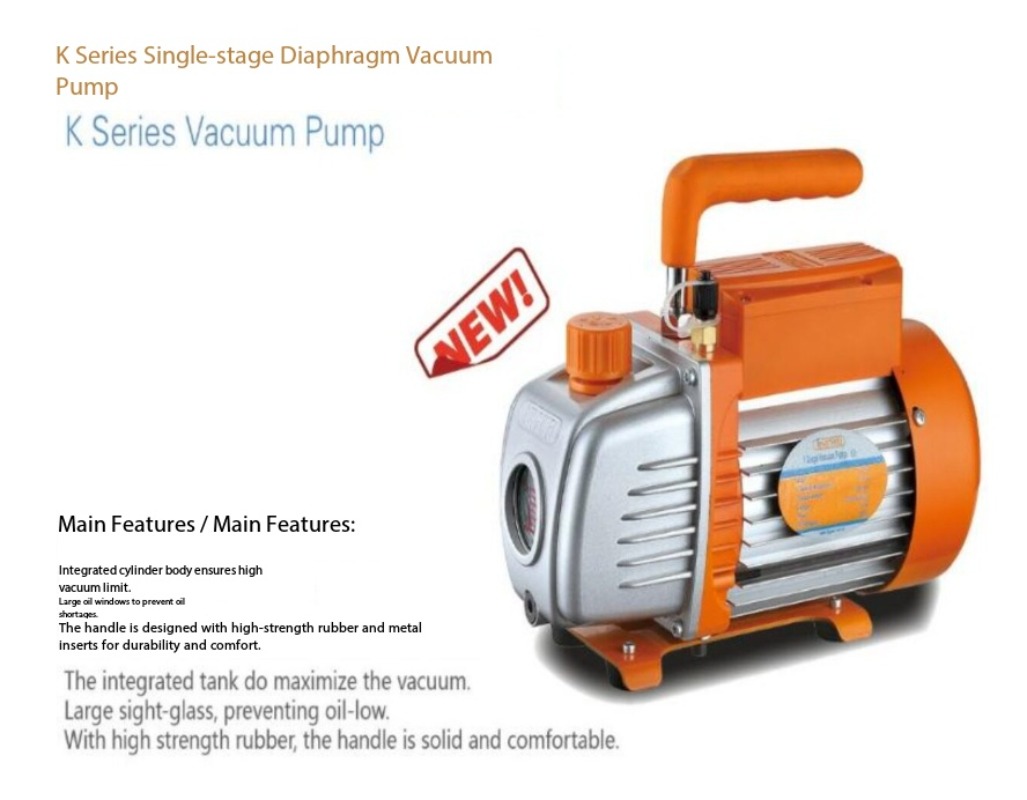

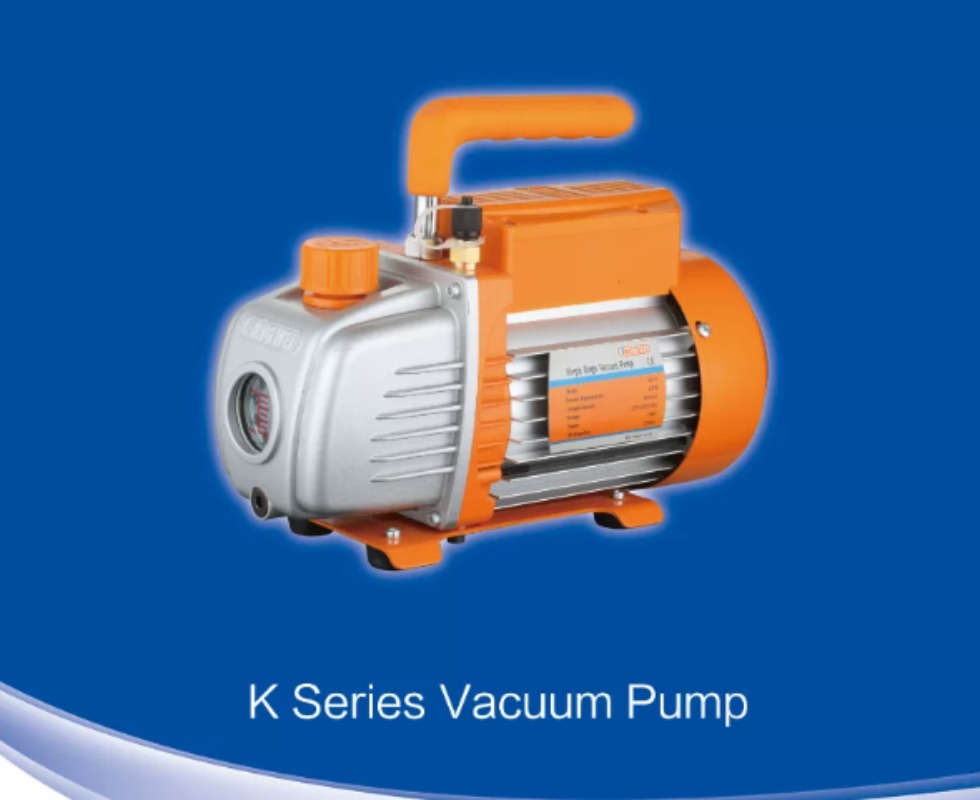

Single-Stage High-Vacuum Vacuum Pump TW-2K Compact Vacuum Pump 1 L/s

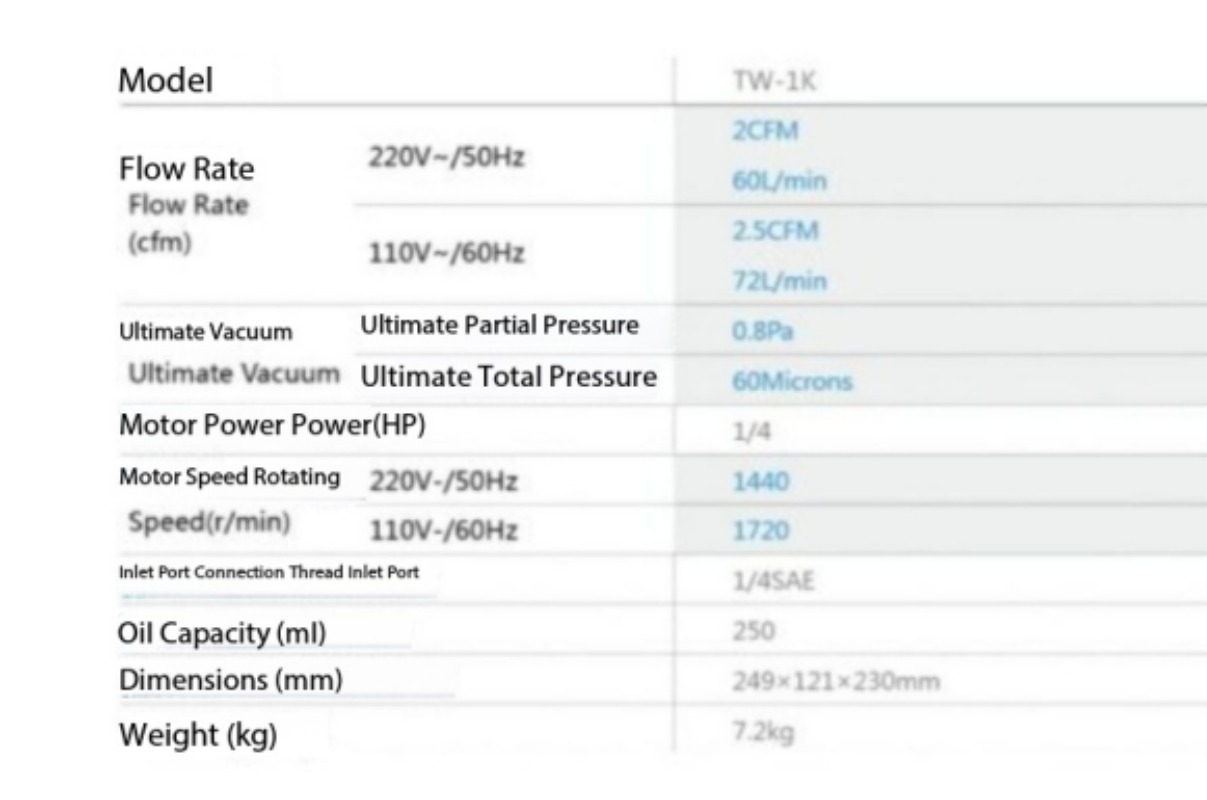

Model: TW-1K

Pumping Speed (220 V~/50 Hz): 2 CFM, 60 L/min

Pumping Speed (110 V~/60 Hz): 2.5 CFM, 72 L/min

Ultimate Partial Pressure: 0.8 Pa

Ultimate Total Pressure: 60 microns

Motor Power: 1/4 HP

Motor Speed (220 V AC/50 Hz): 1,440 r/min

Motor Speed (110 V AC/60 Hz): 1,720 r/min

Inlet Thread: 1/4 SAE

Oil Capacity: 250 ml

Dimensions: 249 × 121 × 230 mm

Weight: 7.2 kg

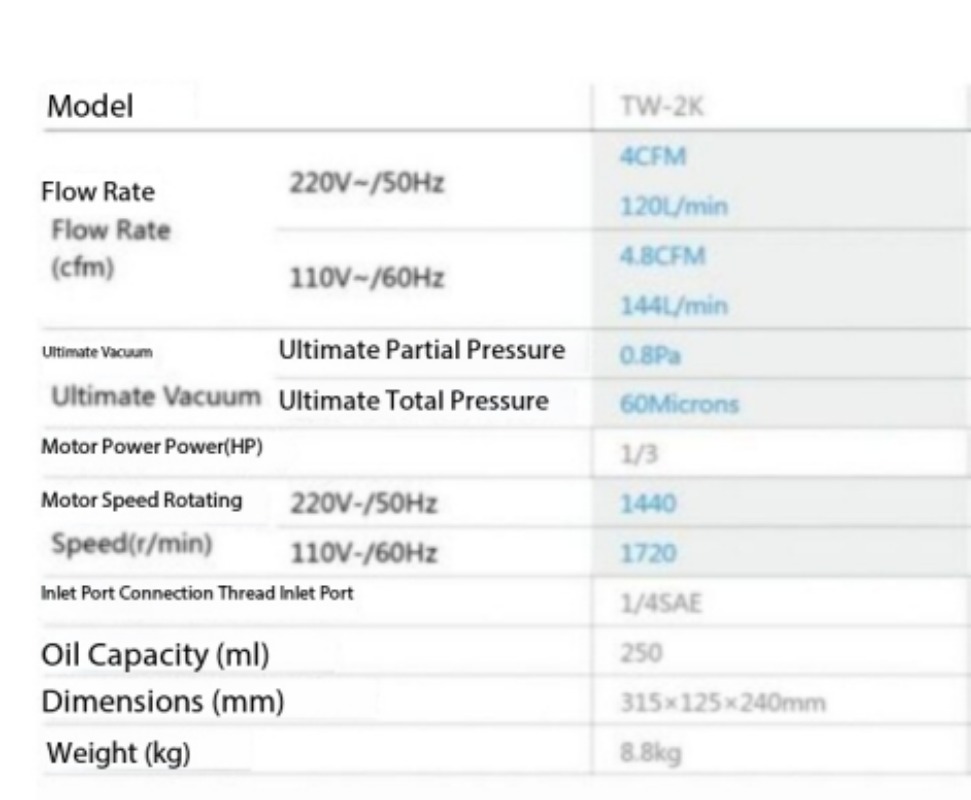

Model: TW-2K

Pumping Speed (220 V~/50 Hz): 4 CFM, 120 L/min

Pumping Speed (110 V~/60 Hz): 4.8 CFM, 144 L/min

Ultimate Partial Pressure: 0.8 Pa

Ultimate Total Pressure: 60 microns

Motor Power: 1/3 HP

Motor Speed (220 V AC/50 Hz): 1,440 r/min

Motor Speed (110 V AC/60 Hz): 1,720 r/min

Exhaust Port Thread: 1/4 SAE

Oil Capacity: 250 ml

Dimensions: 315 × 125 × 240 mm

Weight: 8.8 kg
