Specifications:

Product name: Knob type temperature control switch
Working principle: Thermal expansion and contraction
Voltage and current: 250V 16A 50/60Hz
Electrical strength: AC2000V/1min
Lead length: 0.7 meters stainless steel wire
Insulation resistance: ≥100MΩ/500V
Grounding resistance: ≤50MΩ
Electrical strength: AC2000V 1min 0.5mA
Minimum current: 200mA
Maximum temperature of the main body: 125°C
Lifetime: 100000 times

Note:
- 1. The temperature control switch adopts the principle of thermal expansion and contraction, so its accuracy is not as high as that of electronic temperature controllers.
- The ceramic bottom screws are not removable. There are contacts inside the temperature control switch. Removing screws can cause damage.

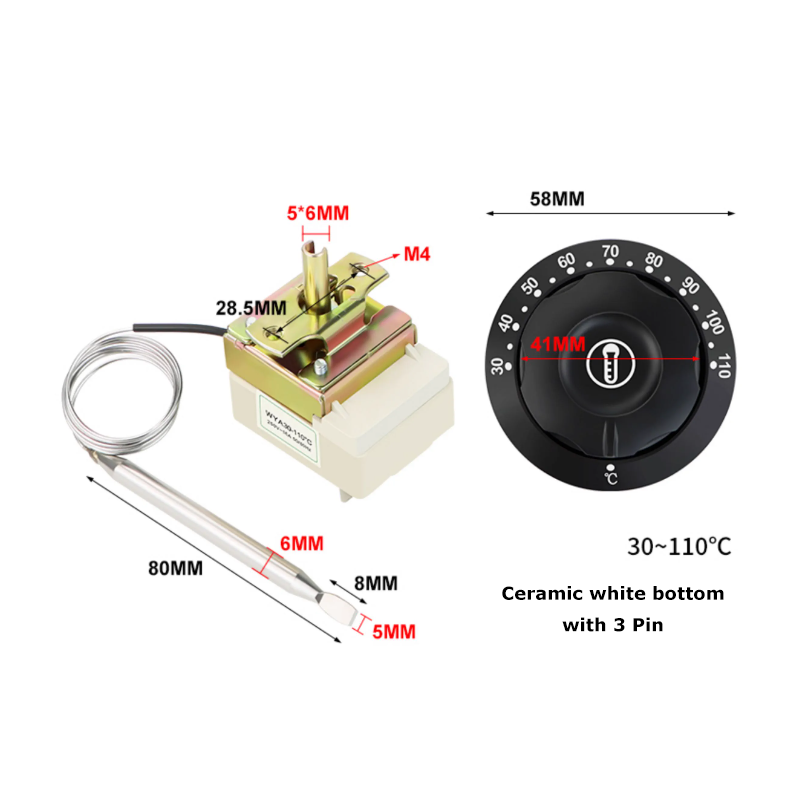

- Proofread after installation. After installation, adjust the dial (taking 30~110 ° C as an example) clockwise until the position that cannot be rotated corresponds to 110 degrees; Rotate counterclockwise until the position that cannot be rotated corresponds to 0 degrees (0 degrees: directly power off).
- Temperature control switch installation, the temperature sensing tube should be tightly attached to the surface of the controlled temperature as much as possible to achieve accurate temperature control.
- The M4 screws for installing the bracket should not be too long, otherwise it will damage the performance of the temperature controller.



Features:
- High quality ceramic bottom, non removable bottom screws, resistant to high/low temperatures, high strength, and safer to use.
- Wide temperature adjustment range, high overload current, metal temperature sensing components, copper temperature sensing components, faster and more sensitive temperature sensing.
- A brand new insulated shell, fire-resistant and flame retardant, with strong adaptability to the environment. The thickened knob shell has clear handwriting and a smooth and comfortable feel.
- Silver alloy, wiring contacts, high current screw locking, not easy to loosen, and reliable wiring.

Applications:
- Home appliance industry
Showers, washing machines, heaters, temperature switches, etc.
- Heating Equipment
Boilers, food machinery, fryers, medical equipment, etc.
- Refrigeration industry
Freezers, safes, cold storage, refrigerants, beverage dispensers, etc.

Package Including:

Knob type temperature control switch x 1pcs
