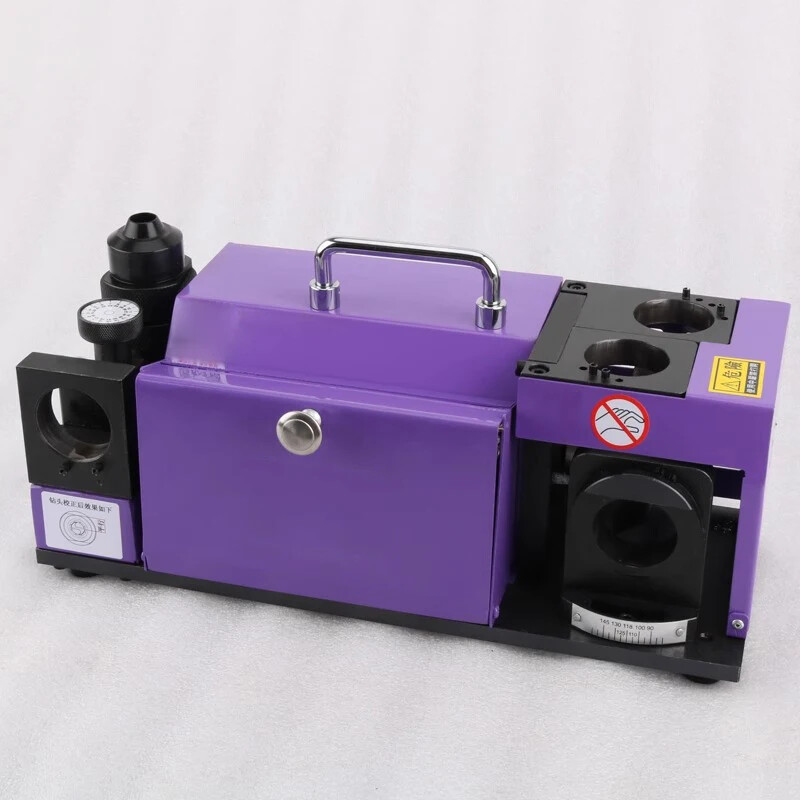

13D Drill Bit Grinder
The 13D multifunctional model features an adjustable large rake angle and a center cross-edge for drill bit grinding, ensuring more precise positioning of the ground drill bits.
Note: Due to slight measurement errors from manual measurement, please refer to the actual dimensions of the product you receive.
Grinding Range: Φ3–Φ13 mm
Grinding Wheel: CBN/SDC
Power Supply: 220 V / 120 W
Weight: 9 kg
Point Angle: 90°–140°
Package Dimensions: 28.5 × 20 × 20 cm
Grinding Wheel Speed: 5,000 RPM
Standard Collet Set: 11 pieces

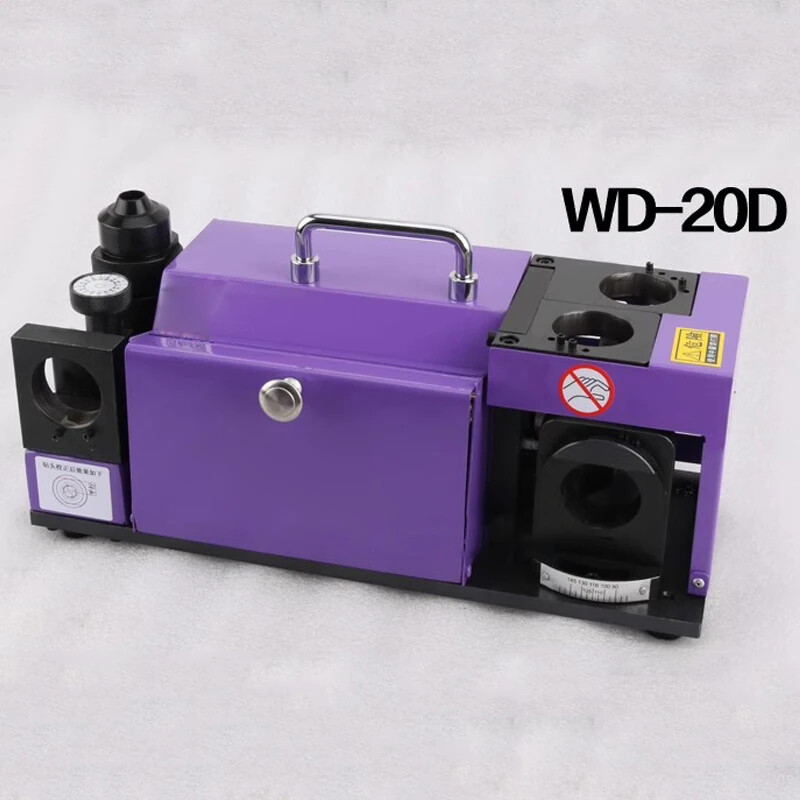

20D Drill Bit Grinder
The 20D multifunctional cross-cut grinder with adjustable large rake angle features an additional clearance angle positioning grinding hole for more precise positioning, smoother chip removal, and more efficient drilling.
Note: Due to slight measurement errors from manual measurement, please refer to the actual dimensions of the product you receive.
Grinding Range: Φ3–Φ20 mm
Grinding Wheel: CBN/SDC
Power Supply: 220 V/300 W
Weight: 18 kg
Point Angle: 90°–140°
Package Dimensions: 41.5 × 20.5 × 23.5 cm
Grinding Wheel Speed: 4,000 RPM
Standard Collets: 18
