Evertz 5601MSC+2PS GP HDTG 3GTG NTP 4K Master SPG Clock HD/3G/4K Test Generators
Evertz 5601MSC+2PS GP HDTG 3GTG NTP 4K Master SPG Clock HD/3G/4K Test Generators
Evertz 5601MSC+2PS GP HDTG 3GTG NTP 4K Master SPG Clock HD/3G/4K Test Generators
Functional Condition: Fully Functional
Cosmetic Condition: Very Good
CONDITION:
Functional: Fully Functional
Cosmetic: Very Good
Scroll down for additional photos
Overview:

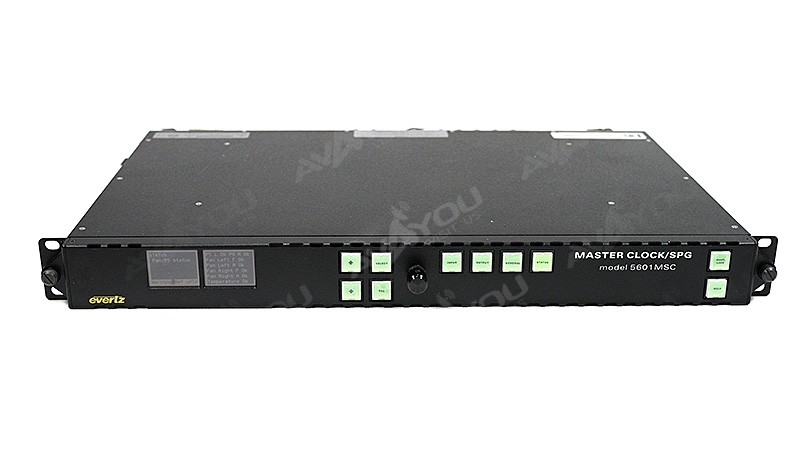

For sale is ONE (1) used master clock system serial #7438510042. Besides base features it comes with 2PS NTP SDTG HDTG 3GTG and 4K quad link options. Actual photos are showed. Very good condition. If you are looking for any other Evertz SPG or processor - we have a lot to offer. Check out our inventory.
SKU# 7317
Description:
The 5601MSC Master Sync and Clock Generator is a broadcast quality, master sync pulse generator (SPG) and a master clock. It provides all of the synchronizing signals needed in a 21st century TV station or post production facility at the same time as solving the problem of locking the in-house master clock system to the master video sync pulse generator.
A high stability, temperature controlled oscillator, provides the 5601MSC with better than 1.0x10-8 (or 0.01ppm) frequency reference. The free running drift of this 10MHz reference will be less than 0.1Hz (which amounts to less than one millisecond time drift per day). This guarantees that any frequency drift, with time and temperature, will be within the tolerances expected from the best SPGs or master clocks available in the industry. The 5601MSC may also be referenced to an external 5MHz or 10MHz master oscillator if higher stability is required. Both the SPG and the Master Clock section of the 5601MSC may be referenced to high stability time and frequency standards present in the Global Position System (GPS) by adding the GPS option (+GP).

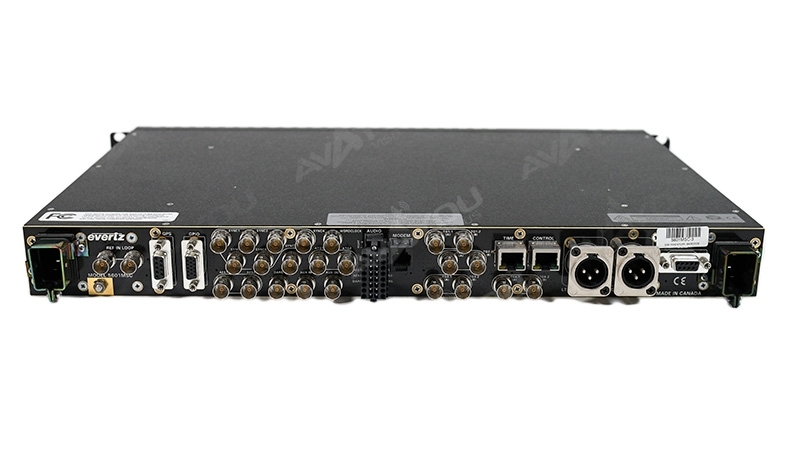

The SPG section of the 5601MSC provides six timeable reference outputs. These six BNC outputs may be configured to provide independently timed color black (black burst) outputs or independently timed HDTV tri-level sync outputs. Each color black output can optionally carry vertical interval time code (VITC) on a user specified set of lines. Additionally, each output can provide 10MHz, 5MHz, PAL Subcarrier, NTSC Subcarrier, 1 PPS, 1/1.001 PPS, 6/1.001 PPS, PAL color frame pulse and 48kHz wordclock.
Features:
  • 6 independently timeable programmable reference outputs
  • Bi-level or Tri-level outputs selectable
  • Optional modem for time reference dial up
  • Optional test generators: 3GTG Included
  • Optional redundant hot swappable power supply - Included
  • Automatic changeover units available for dual redundant systems applications
  • VistaLINK® control for device configuration and status monitoring
  • Compatible with Dual GPS Data Fiber Receivers & Transmitters
  • In the 4K/UHDTV mode the four test generators are combined into one quad-link test generator.
