All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​

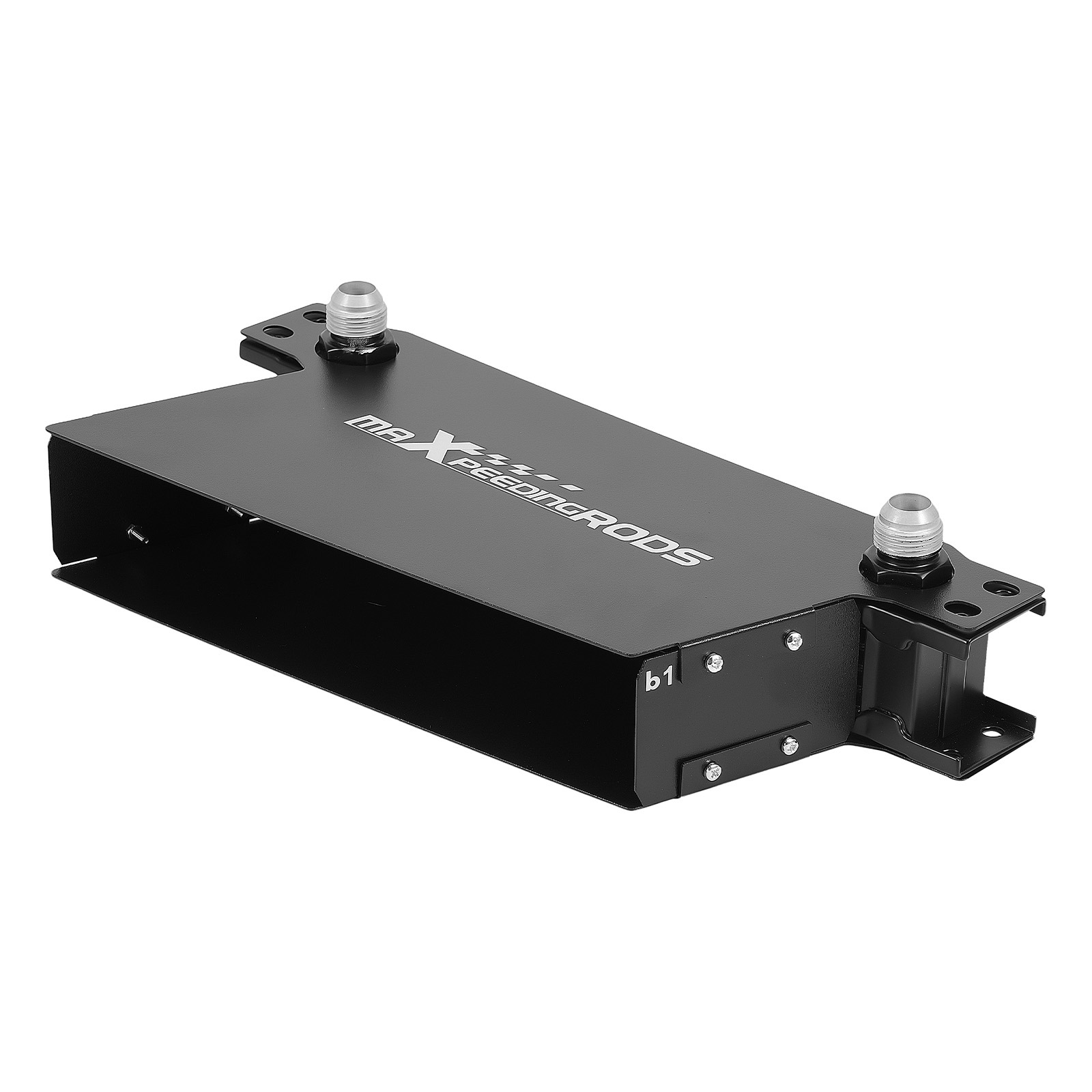

7 Row Oil Cooler Kit, 10AN Transmission Engine Cooler British Radiator Universal Aluminium Black, Thermostatic Oil Filter Sandwich Adapter,with Air Guide Kit and 2Pcs Oil Cooler Hoses

Application:

Universal-Suitable for most cars, may requires additional accessories to meet the needs of the particular application. Please ensure enough space for installation.

Specific:

Type: 7 Row Oil Cooler Kit
Material: Aluminum
Style: English Style
Oil Cooler Inlet/Outlet Size: AN10
Corner Brace Thickness: 3mm
Hose Size:  AN10
Hose Length: 1Pc 1m & 1Pc 1.2m
Hose Clamp Size: AN10

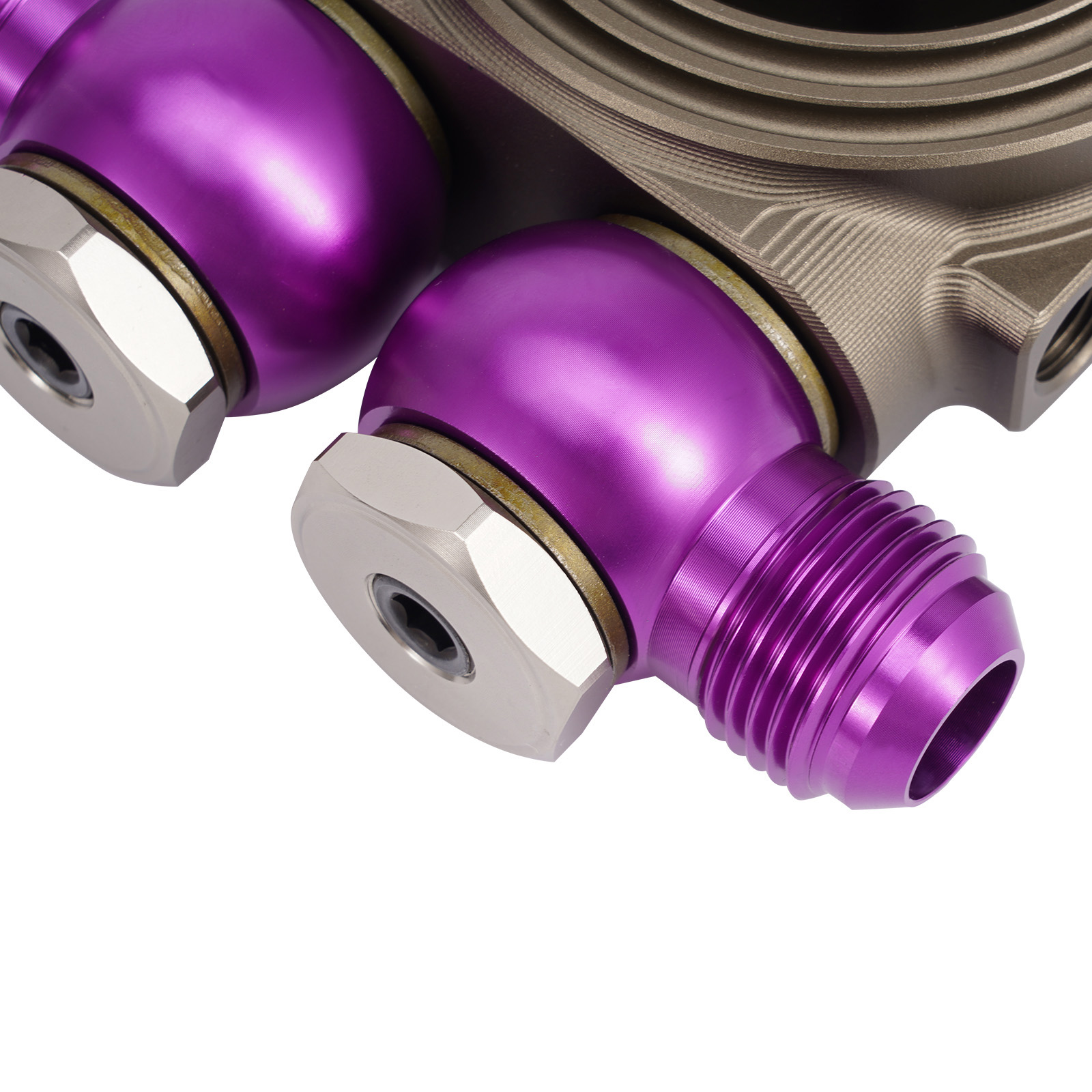

Oil Filter Sandwich Adapter Type: Fisheye Fittings & Thermostatic Adapter
Oil Filter Sandwich Adapter's Fitting Size: AN10
Oil Filter Sandwich Adapter's Center Adapter: 3/4-16 & M20*1.5
Oil Filter Sandwich Adapter's Ports Size: 1/8 NPT Ports
Thermostat Working Temperature: 73℃-83℃

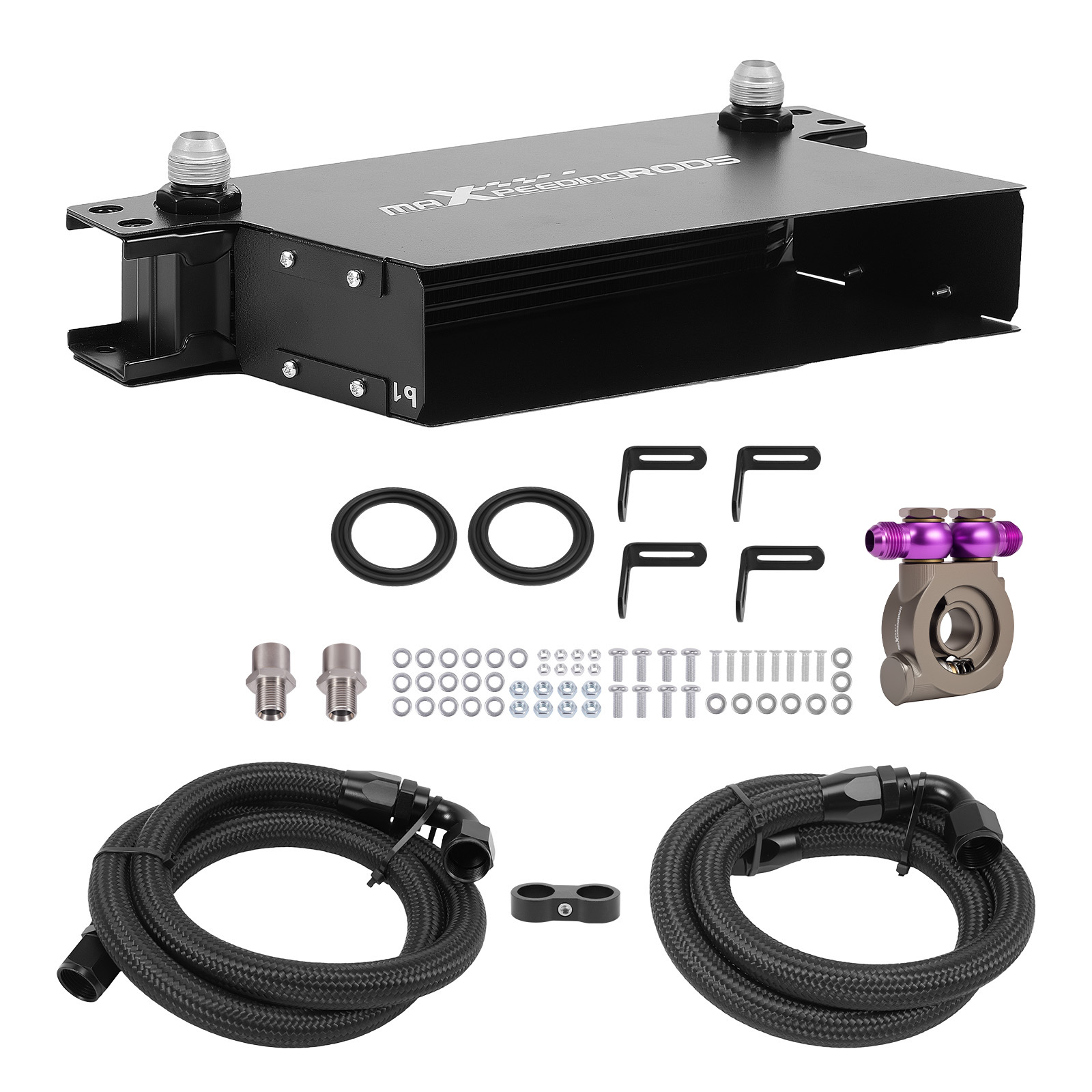

Package Include:

1* 7 Row Oil Cooler
1* Air Guide Kit
1* Fisheye Fittings Oil Filter Sandwich Adapter

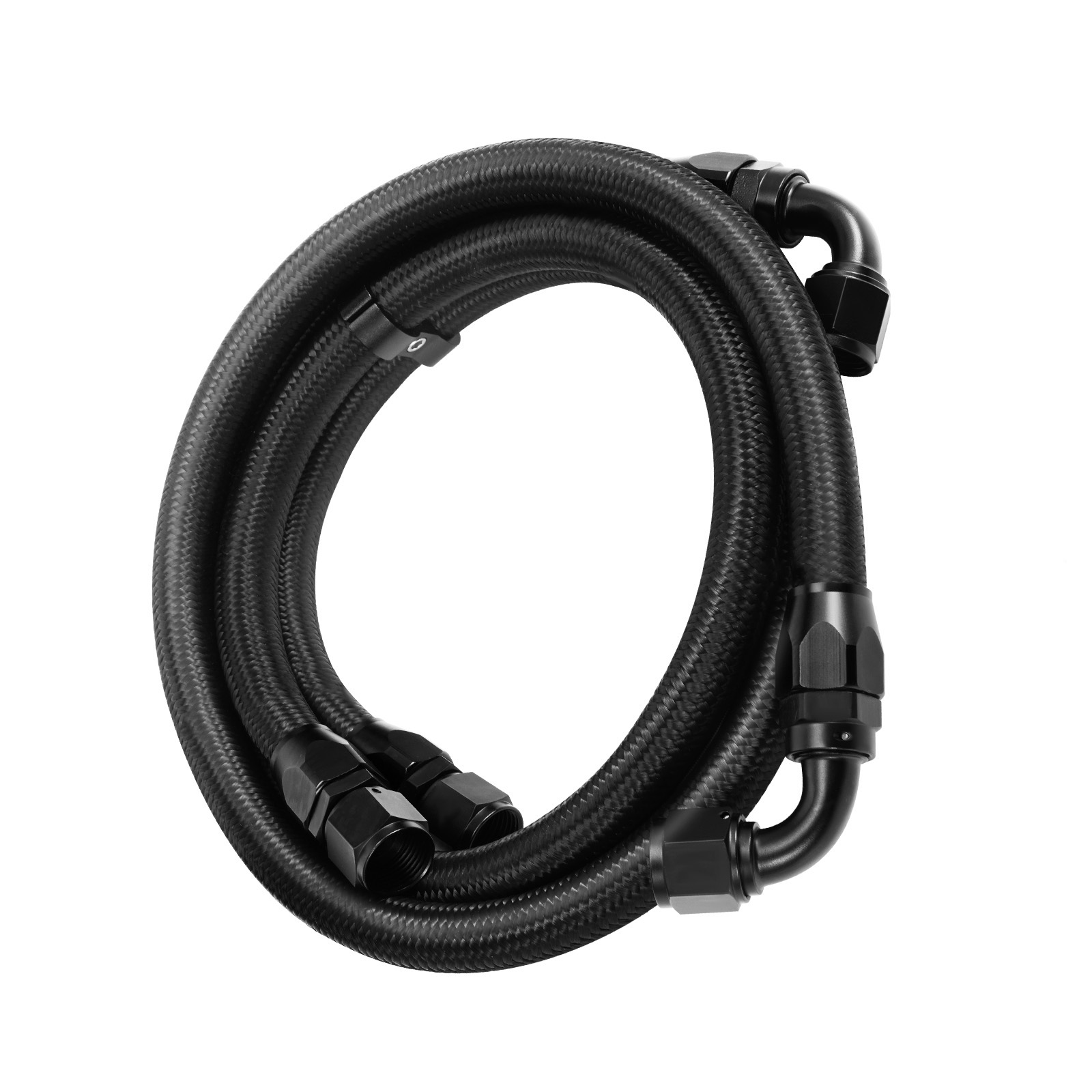

1* 10AN Braided Oil Cooler Hose(1m)
1* 10AN Braided Oil Cooler Hose(1.2m)
1* Corner Brace Kit
1* 3/4-16 Center Adapter
1* M20*1.5 Center Adapter
1*Hose Clamp
(As Shown in the Picture)

Feature:

1. The oil cooler is made of high quality aluminum, and it is powder-coated and oxidized which can protect the product and be more durable.
2. This oil cooler kit is efficient to cool the oil temperature, and it can keep the oil at a suitable operating temperature to improve engine performance. It can also help to prolong the life of oil and the internal engine components.
3. The oil cooler kit includes a air guide kit, which can  make the contact area between the air and the oil cooler greater. Thus it can reduce the oil temperature more effectively.
4. The air guide kit’s top cover and base plate can be interchanged to achieve either a left-facing or right-facing air intake. You can choose the orientation based on the vehicle's installation position.
5. This oil cooler kit also includes 4 corner braces and other accessories which make the installation more secure.

Note:

1. Preparation Before Installation: ①Fill the oil cooler with oil. ②Completely fill until all air is evacuated. ③Attach the AN fuel lines. ④Fill the AN fuel lines with oil.
2. This is a universal oil cooler kit. Just measure the size of the space before buying to ensure that it can be installed, and then you can choose the right size according to your cooling efficiency needs.
3. Professional Installation is Highly Recommended.
4. The item description was measured by hand, it could have 1-2 inches deviation.
