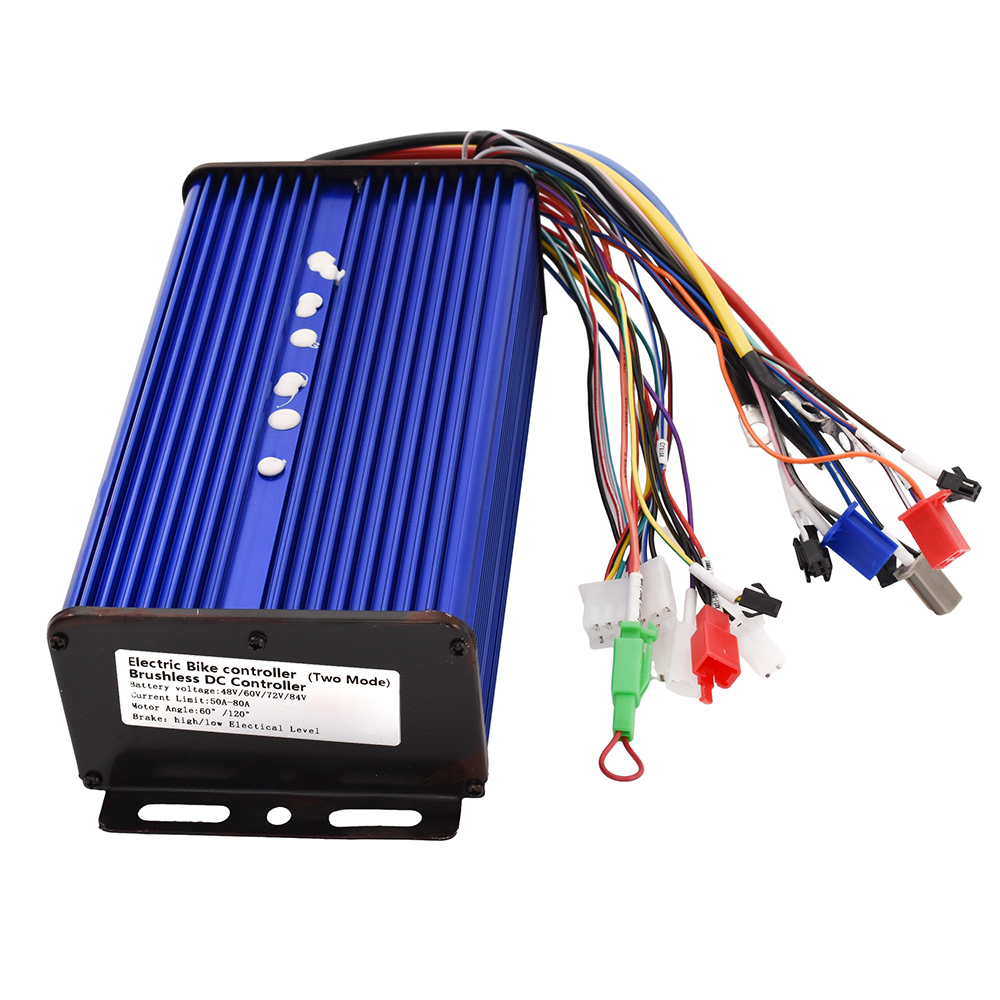

Product parameters:


Color:Blue


Condition: 100% brand newItem


type: Motor Controller


Material: Aluminium alloy


Voltage: 48V-60V-64V-72V-84V

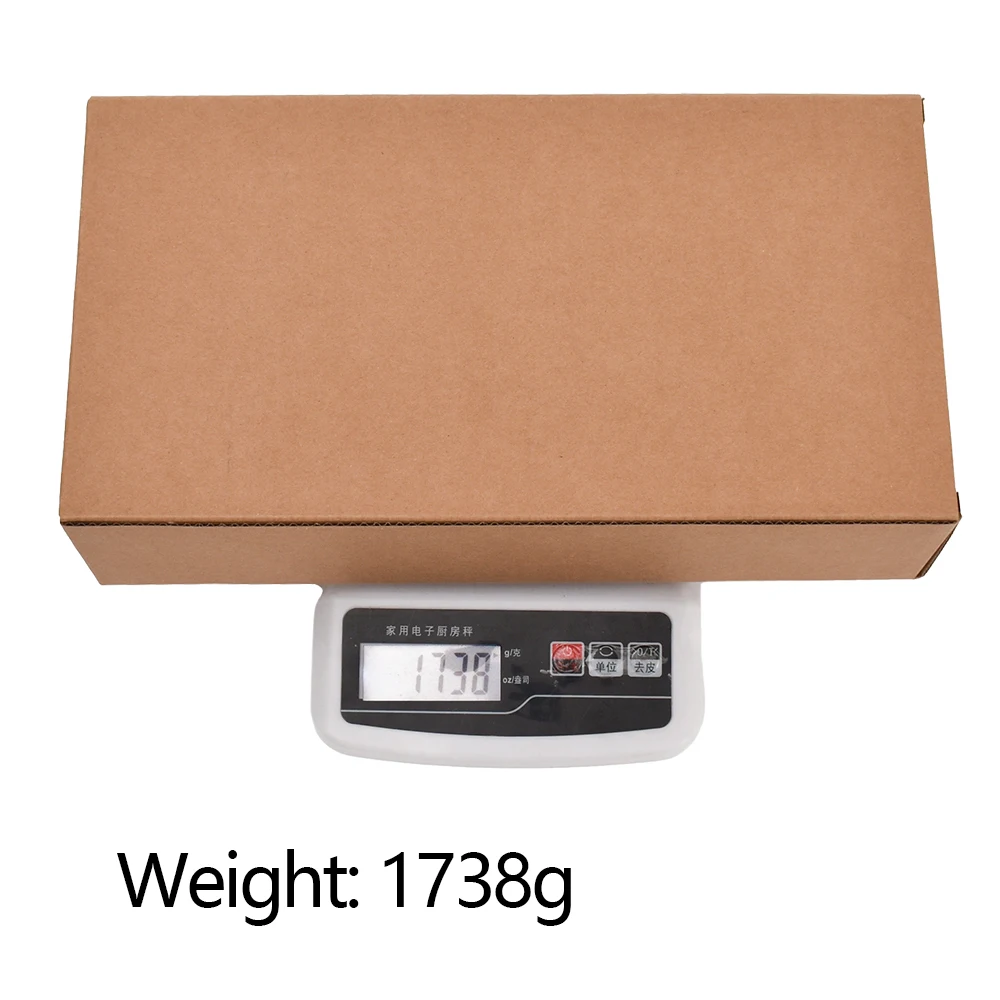

Weight: .1738g


Power: 3000W-4000W


Current limit:50A-80A


Controller type: square wave controller

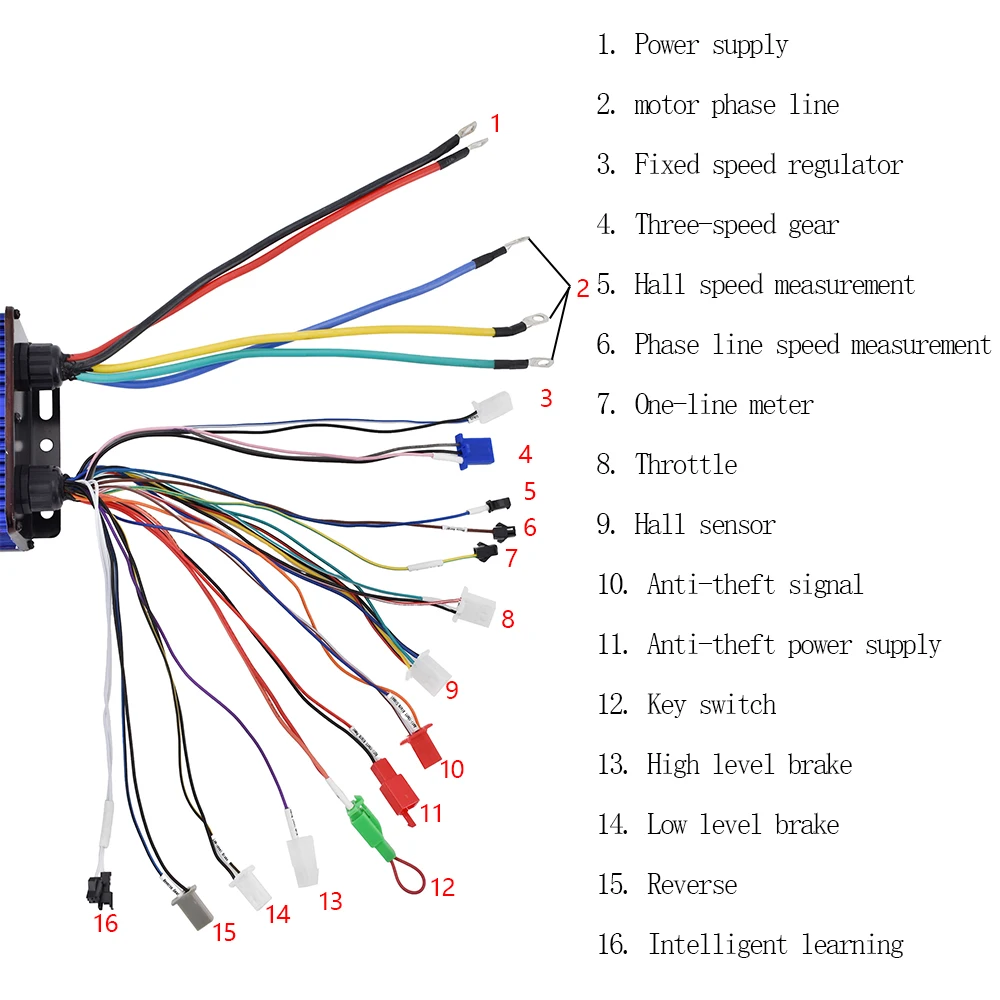

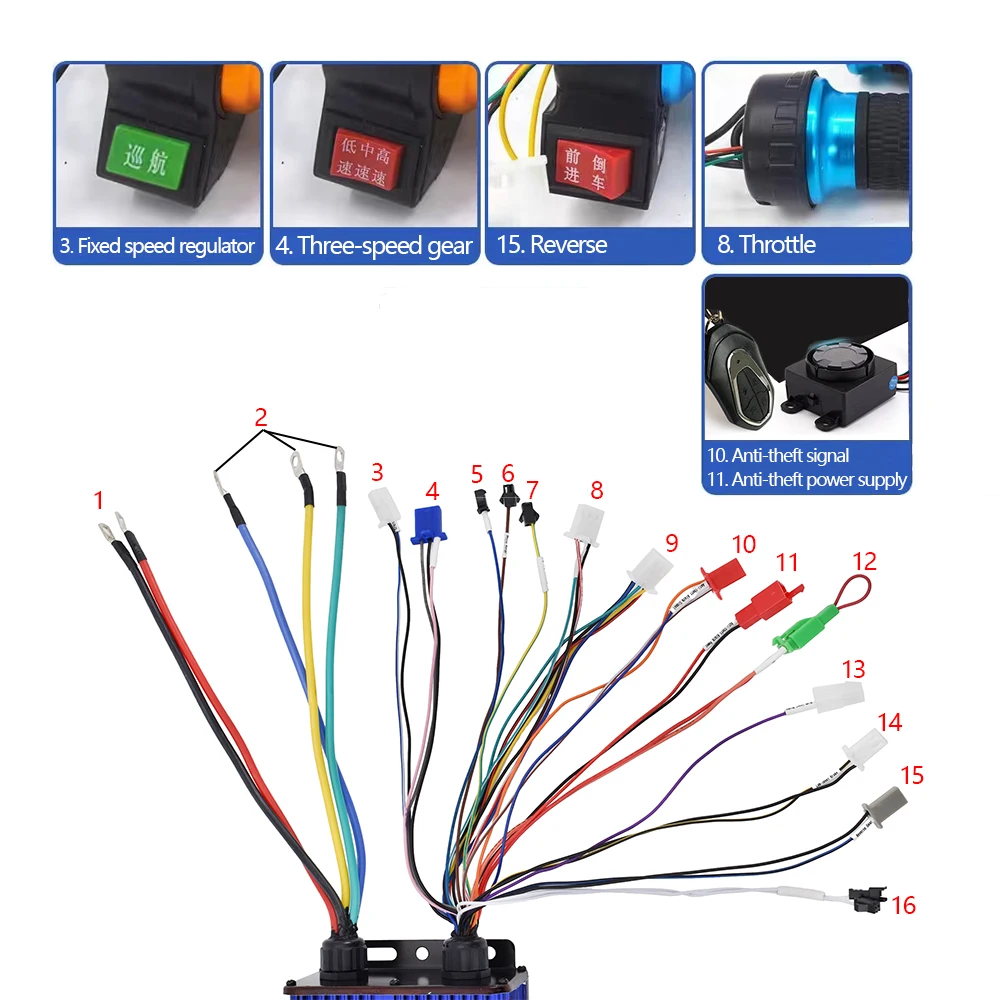

24-Tube Dual Mode controller Function:

  • 1. Power supply

  • 2. motor phase line

  • 3. Fixed speed regulator

  • 4. Three-speed gear

  • 5. Hall speed measurement

  • 6. Phase line speed measurement

  • 7. One-line meter

  • 8. Throttle

  • 9. Hall sensor

  • 10. Anti-theft signal

  • 11. Anti-theft power supply

  • 12. Key switch

  • 13. High level brake

  • 14. Low level brake

  • 15. Reverse

  • 16. Intelligent learning

Installation Instructions


  • Step 1. Connect wires 1, 2, 8, 9, 12.

  • Step 2. Connect the No. 16 wire with the motor suspended. (Note: the motor needs to be in the
          overhang position for docking wire #16)
  • Step 3. The motor will perform a forward/reverse state. (If there is a reversal you will need to disconnect the 16 wire and reconnect it) Wait 10 seconds in the forward state to complete learning.
  • Step 4. Make the wiring connections according to the vehicle.


Function:

1. Increased withstand voltage and increased adaptable voltage:48V, 60V, 64V,72V, 84V,universal

2. One-line instrumentation adds more adaptability, about 80%.

3. In terms of hardware: thicker aluminum shell, better heat dissipation. The motherboard ,solution is better. Power tubes, capacitors, copper bars, etc. are better.

4.Suitable Motor Phrase Angle: Auto recognition.

5.Suitable for:Electric motorcycles,Small tricycle,Two-wheeler etc

6.Package List:

1 x Brushless Controller
