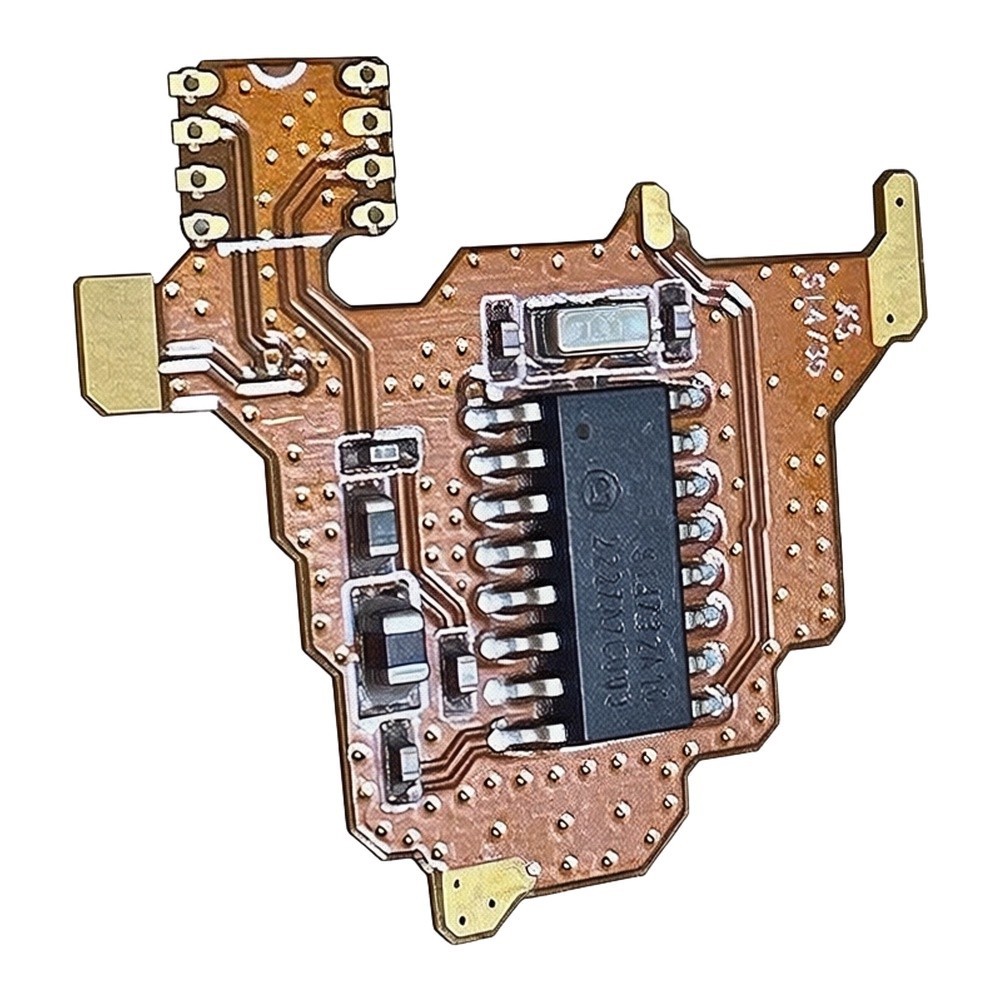

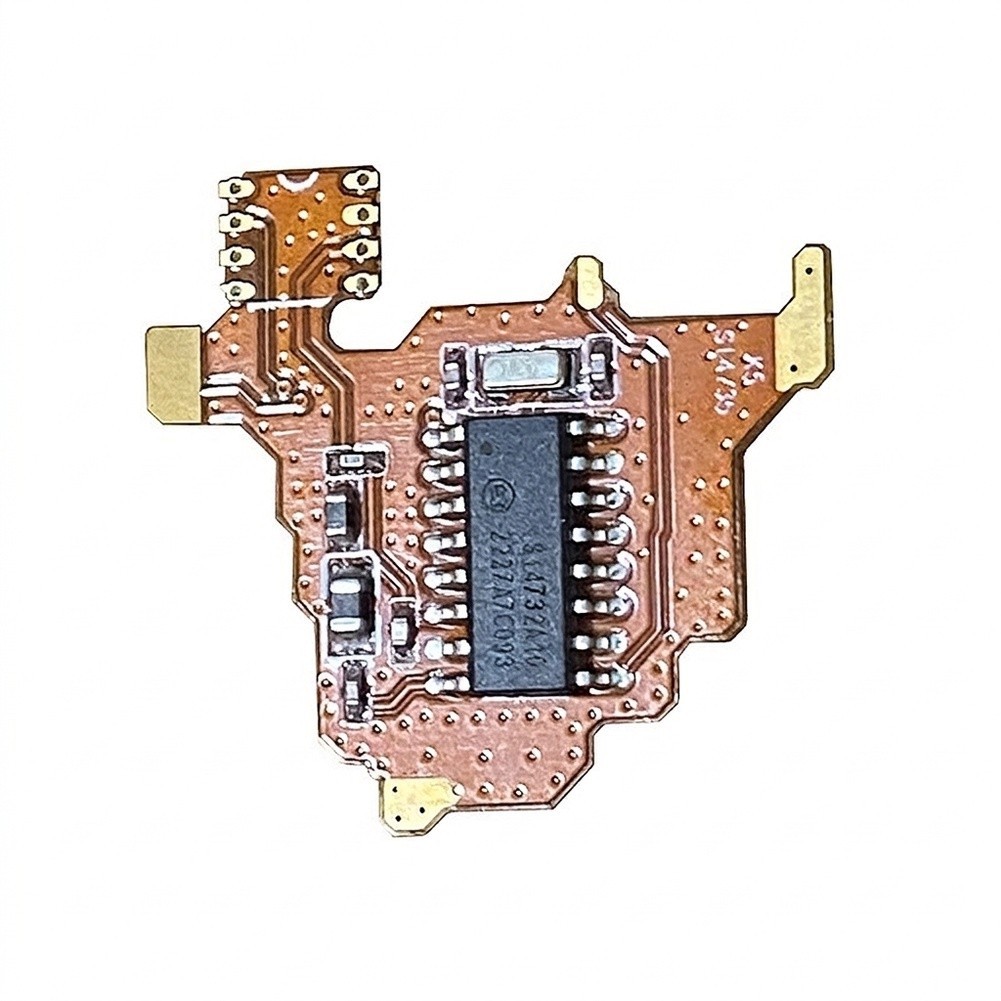

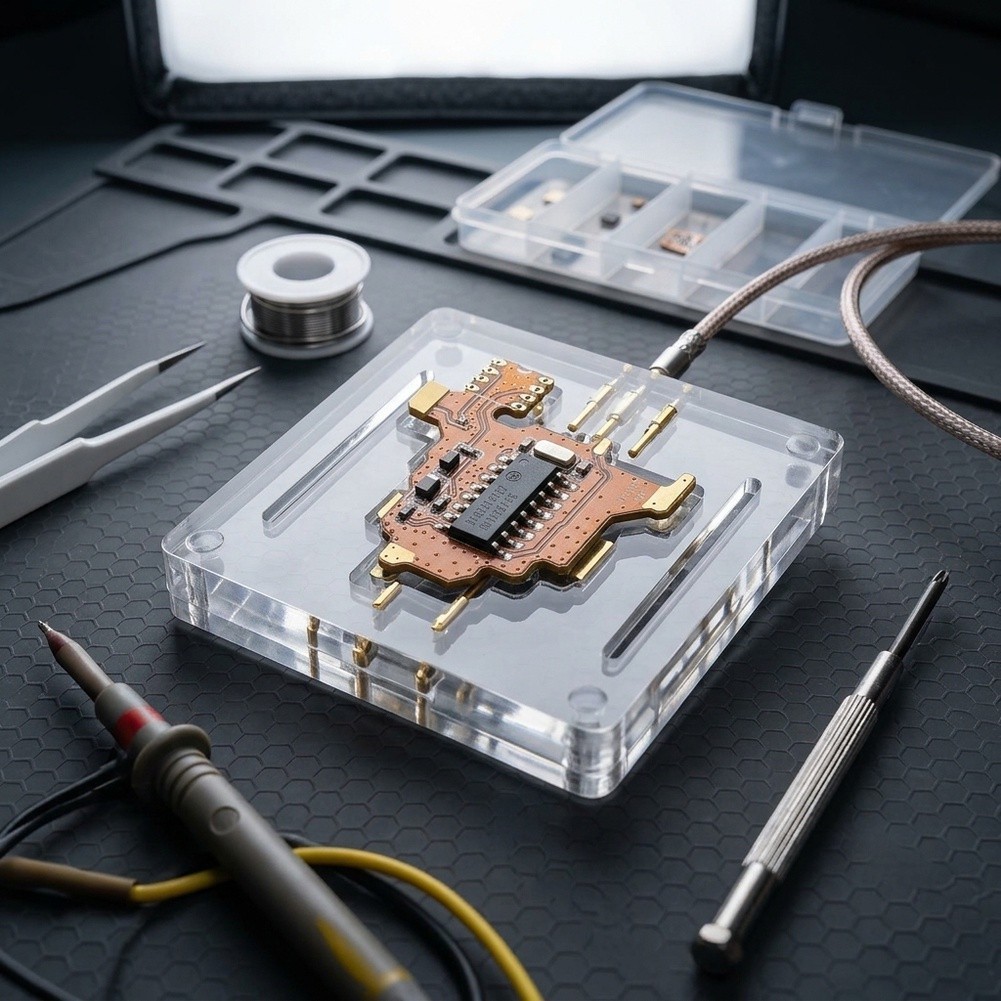

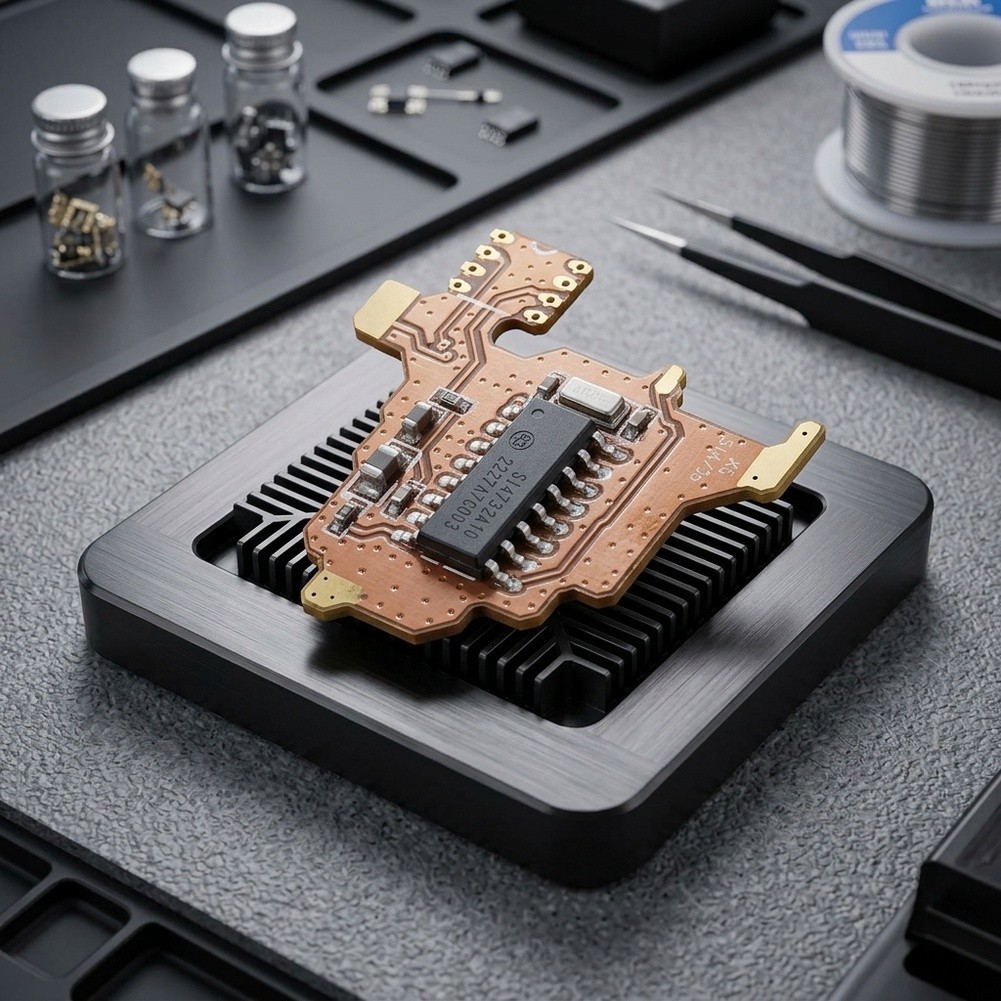

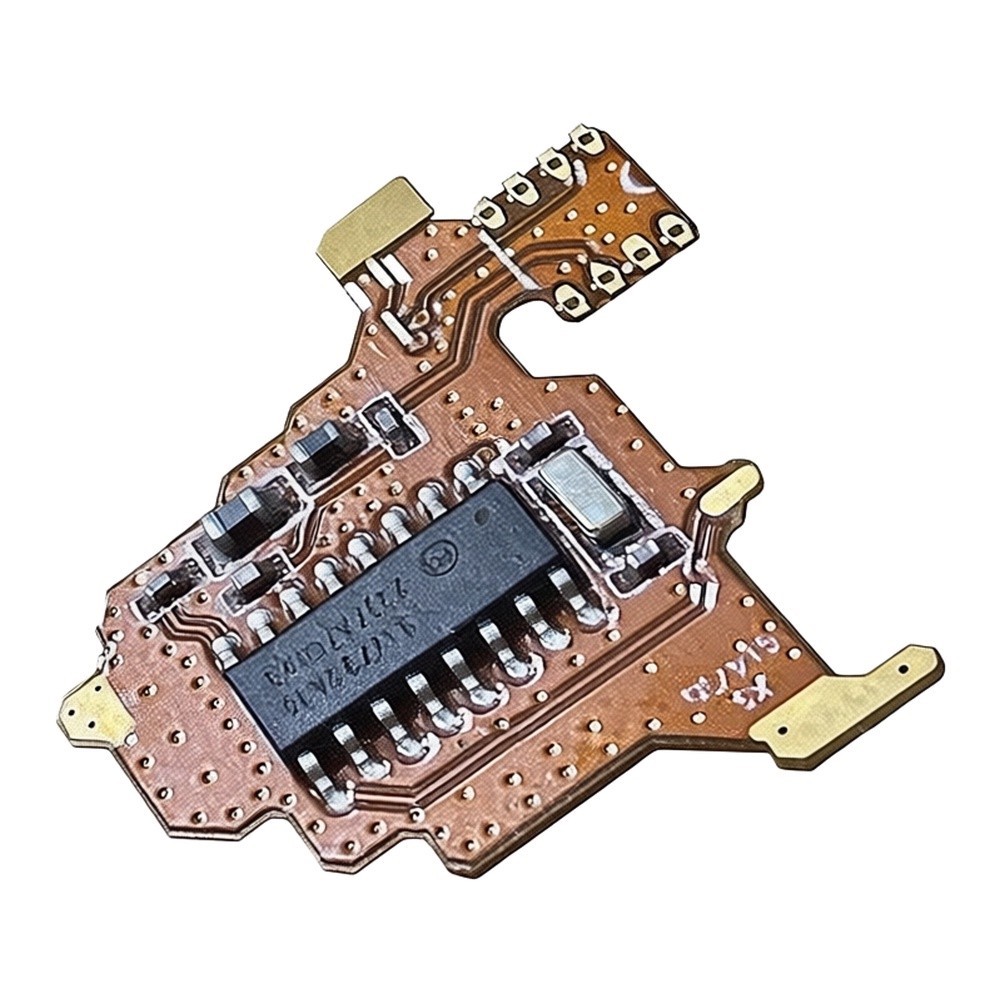

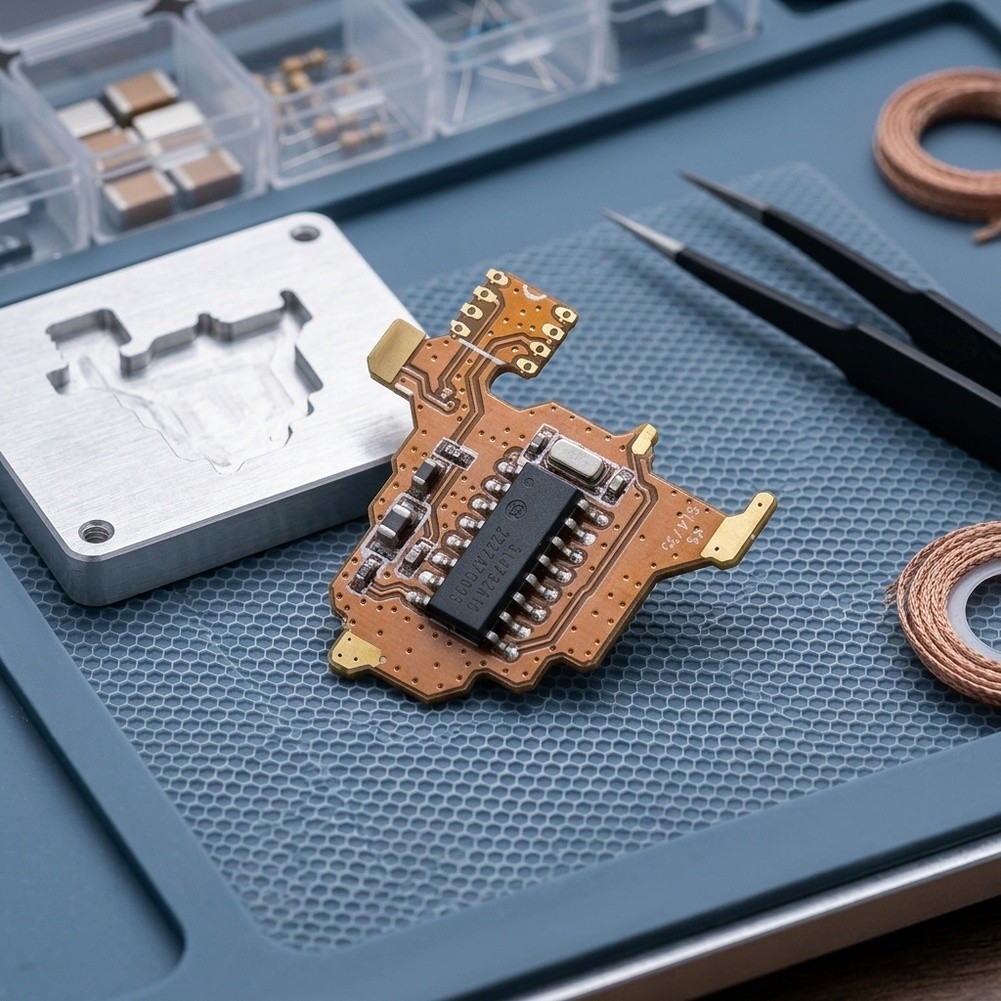

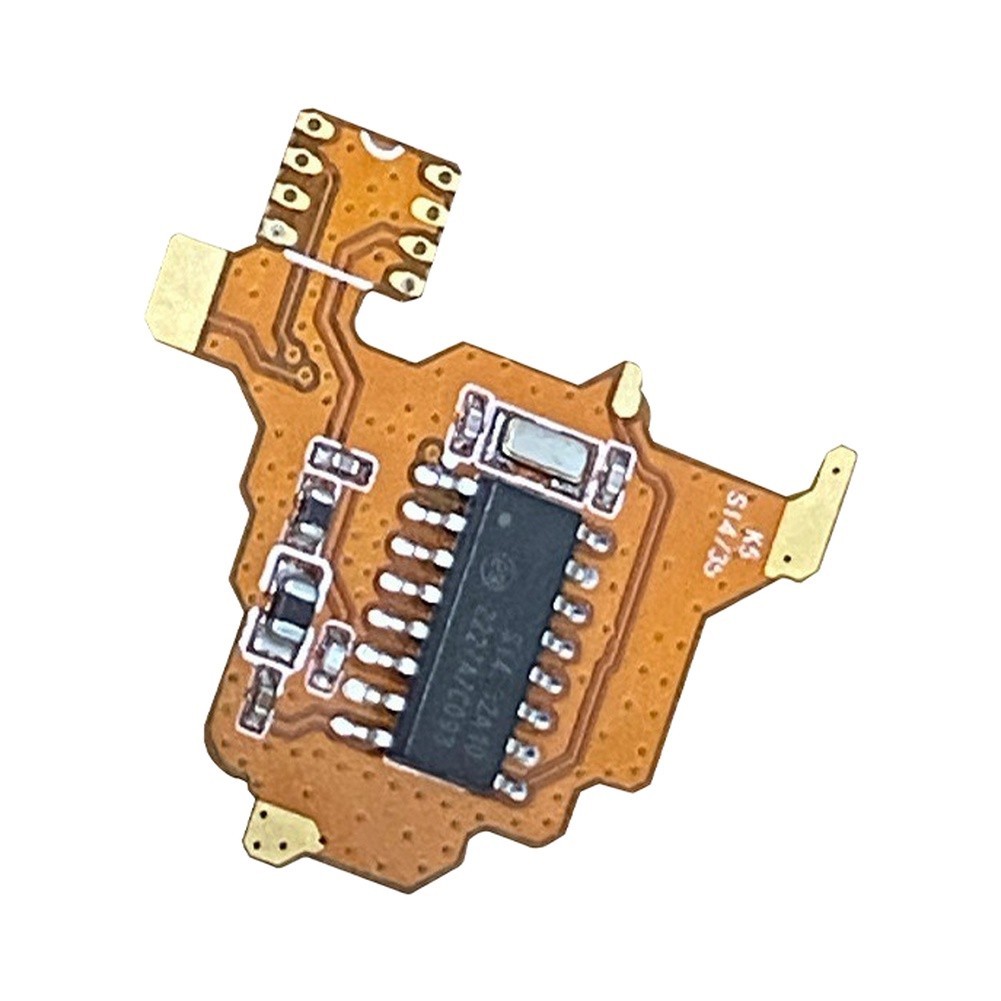

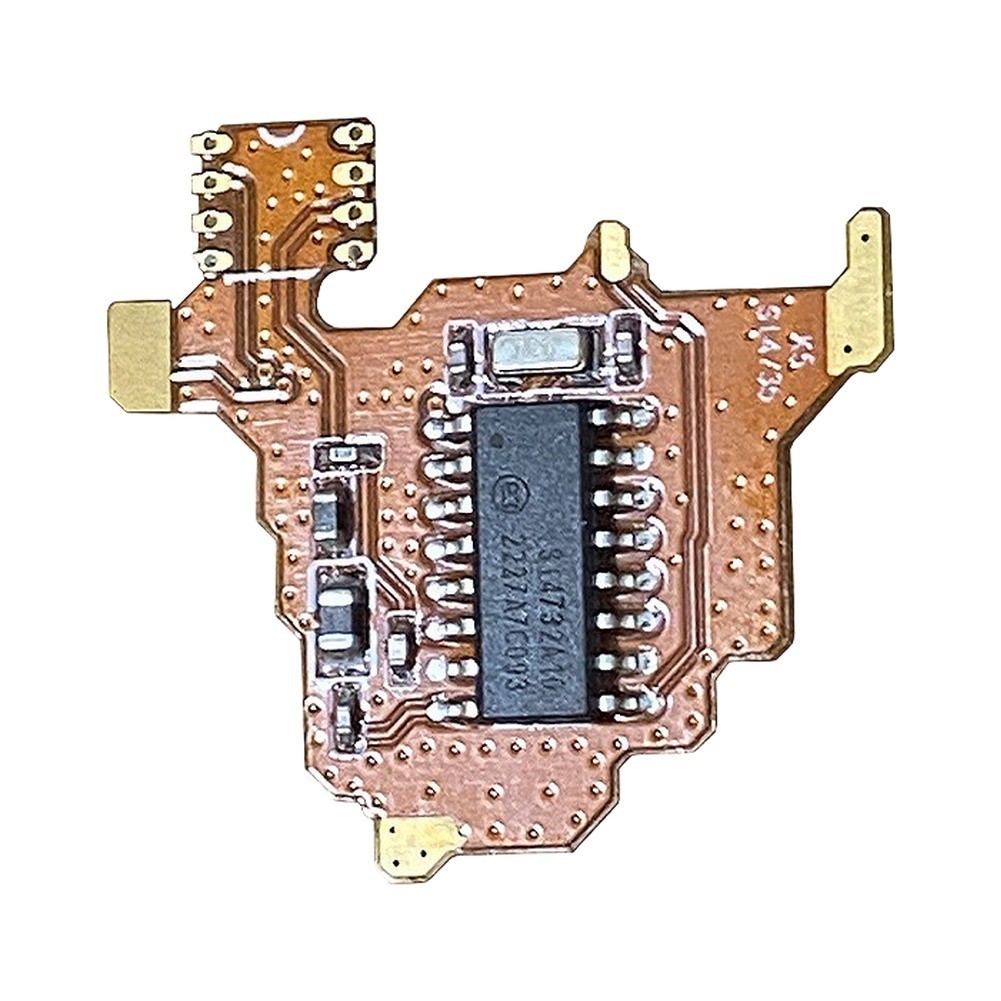

For UV-K5 K6 Transceiver Mod Board with FPC Flexible Circuit and for esd Diode
DESCRIPTION

Features:

An audio for amplifier was added to for address the extremely low volume issue of the for SSB single-sideband signal, with a noticeable improvement.

The for FM and high-frequency bandpass filters were redesigned.

An for ESD protection diode was added at the input for electrostatic discharge ( for ESD) protection and strong signal protection when transmitting in the UV range with dual antennas.

A 0.2mm thick for FPC flexible board is used, safety and reliability, eliminating short circuits, and does not support speaker installation.

In the dual- for antenna design, an additional bandpass filter was added at the for antenna input, and the independent for antenna was connected to the LED using a feed line and for SMA connectors, without affecting the UV performance.

The for FPC flexible board uses a double-sided disk for easier integration with the device.


Specifications:

Product Name: for Modification Board

Material: PCB

Color: Yellow

Size: As shown in the picture

Applicable Models: Suitable for Quansheng UV K5/K6


Package Content:

1* for Modification Board


Note:

1. The actual color of the item may be slightly different from the pictures shown on the website due to various factors such as the brightness of your monitor and ambient light.

2. Please allow slight manual measurement deviation for the data.
