Specifications:
Model: ZQ02102
Colour: Black
Material: aluminum alloy structure + plastic shell
Input voltage: AC110V-240V 50/60HZ
Rated power: 380W
Light source: 19PCS 20W RGBW LEDs + 60PCS 5050RGB LEDs
Material: aluminum alloy structure + plastic shell
Input voltage: AC110V-240V 50/60HZ
Rated power: 380W
Light source: 19PCS 20W RGBW LEDs + 60PCS 5050RGB LEDs
Strobe: 1-25Hz
Fuse: 3A

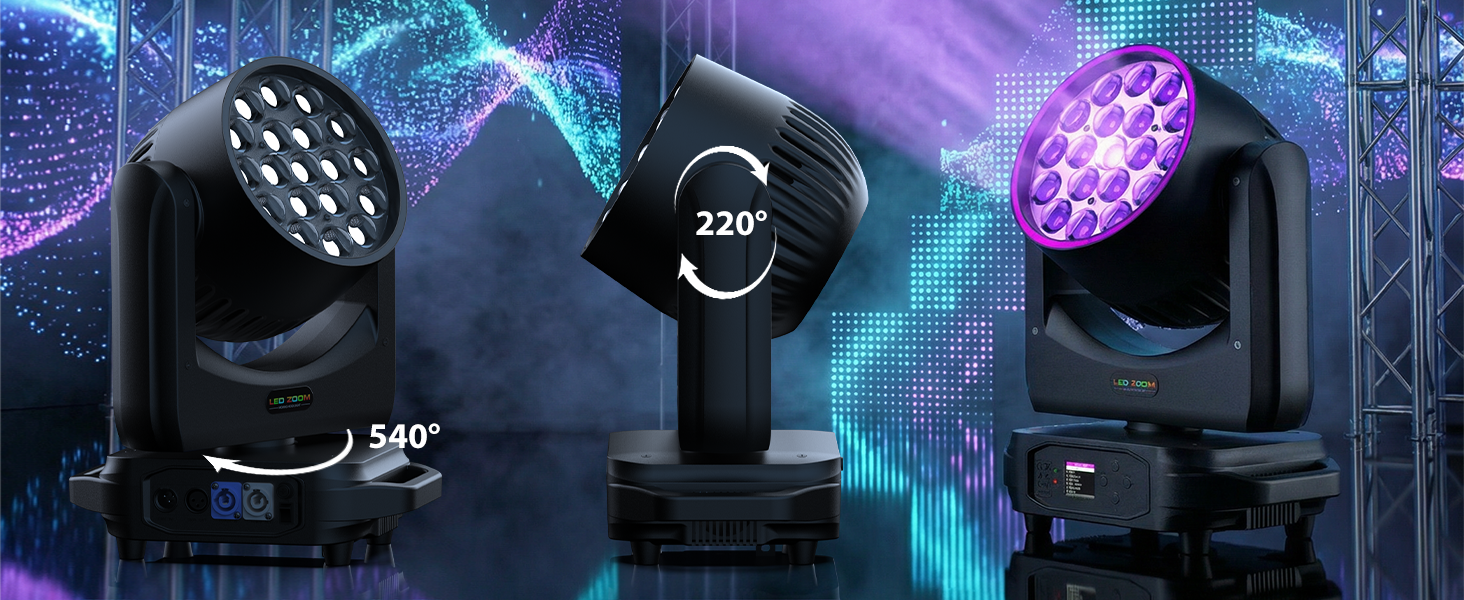

X axis ：540°
Y axis ：220°
Color temperature: 700-8000K
Zoom angle：10°-60°

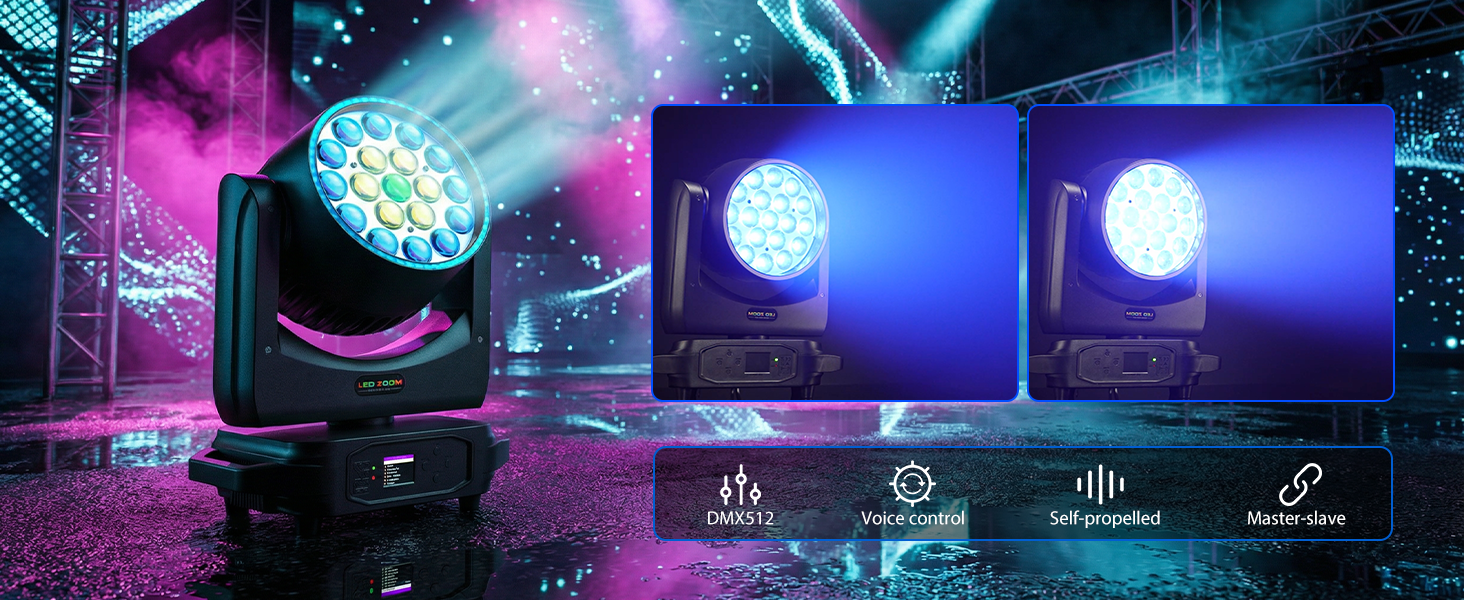

Control mode: self-propelled, voice control, master-slave, DMX
Protocol: standard DMX512 protocol
Channel number: 17/25CH
Plug type: ohm head input/output (up to 4 units)
Illuminance: 201Lux@5 meters
LED average life: 50000H
Data connection: three core XLR input/output
Display: LCD liquid crystal display
Working environment: -20℃-40℃
Dimming: 0-100% linear adjustment
Heat dissipation mode: temperature-controlled intelligent heat dissipation
Focusing: Using optical combination, the effect is far better than ordinary wash lights, and can project HD effect
Protection class: IP20
Product Features:
1. Focusing function: The focusing dyeing shaking head is equipped with the ability to adjust the focus, users can realize the focusing and defocusing of the light and adjust the angle and range of light projection through the console or manual operation according to the needs.
2. Dyeing effect: The luminaire is equipped with dyeing function, which can create rich and diverse lighting color effects and provide more lighting options.
3. Rocking Head Function: The focusing and dyeing rocking head is equipped with a rocking head function, which can realize horizontal and vertical rotation and scanning motion. Through the console or automatic program, you can set the range and speed of the fixture's panning head movement, allowing the lights to scan and display flexibly on the stage or venue.
4. Multiple working modes: The luminaire supports multiple working modes, such as automatic mode, voice-activated mode, DMX control mode, etc. Users can choose the right mode according to their needs to realize different lighting effects.
5. High Brightness Lighting: The focusing coloring moving head adopts high brightness light source to provide strong and bright lighting effect, which is suitable for stage performances, concerts, speeches and other places that need high brightness lighting.
6. High-speed response: The control system of the luminaire has high-speed response capability, which can accurately respond to the user's operating instructions and adjust the parameters and effects of the light in real time to ensure smooth and accurate lighting changes.
7. Multiple installation methods: the focusing coloring moving head is designed to be flexible and can be installed on the boom, bracket or hook. Suitable for different venues and requirements, convenient for users to install and carry as needed.
1. Focusing function: The focusing dyeing shaking head is equipped with the ability to adjust the focus, users can realize the focusing and defocusing of the light and adjust the angle and range of light projection through the console or manual operation according to the needs.
2. Dyeing effect: The luminaire is equipped with dyeing function, which can create rich and diverse lighting color effects and provide more lighting options.
3. Rocking Head Function: The focusing and dyeing rocking head is equipped with a rocking head function, which can realize horizontal and vertical rotation and scanning motion. Through the console or automatic program, you can set the range and speed of the fixture's panning head movement, allowing the lights to scan and display flexibly on the stage or venue.
4. Multiple working modes: The luminaire supports multiple working modes, such as automatic mode, voice-activated mode, DMX control mode, etc. Users can choose the right mode according to their needs to realize different lighting effects.
5. High Brightness Lighting: The focusing coloring moving head adopts high brightness light source to provide strong and bright lighting effect, which is suitable for stage performances, concerts, speeches and other places that need high brightness lighting.
6. High-speed response: The control system of the luminaire has high-speed response capability, which can accurately respond to the user's operating instructions and adjust the parameters and effects of the light in real time to ensure smooth and accurate lighting changes.
7. Multiple installation methods: the focusing coloring moving head is designed to be flexible and can be installed on the boom, bracket or hook. Suitable for different venues and requirements, convenient for users to install and carry as needed.
Safety warning!
In order to ensure your safe and correct use of lamps, please read the following safety tips carefully before use to avoid unnecessary failures and injuries.
In order to ensure your safe and correct use of lamps, please read the following safety tips carefully before use to avoid unnecessary failures and injuries.

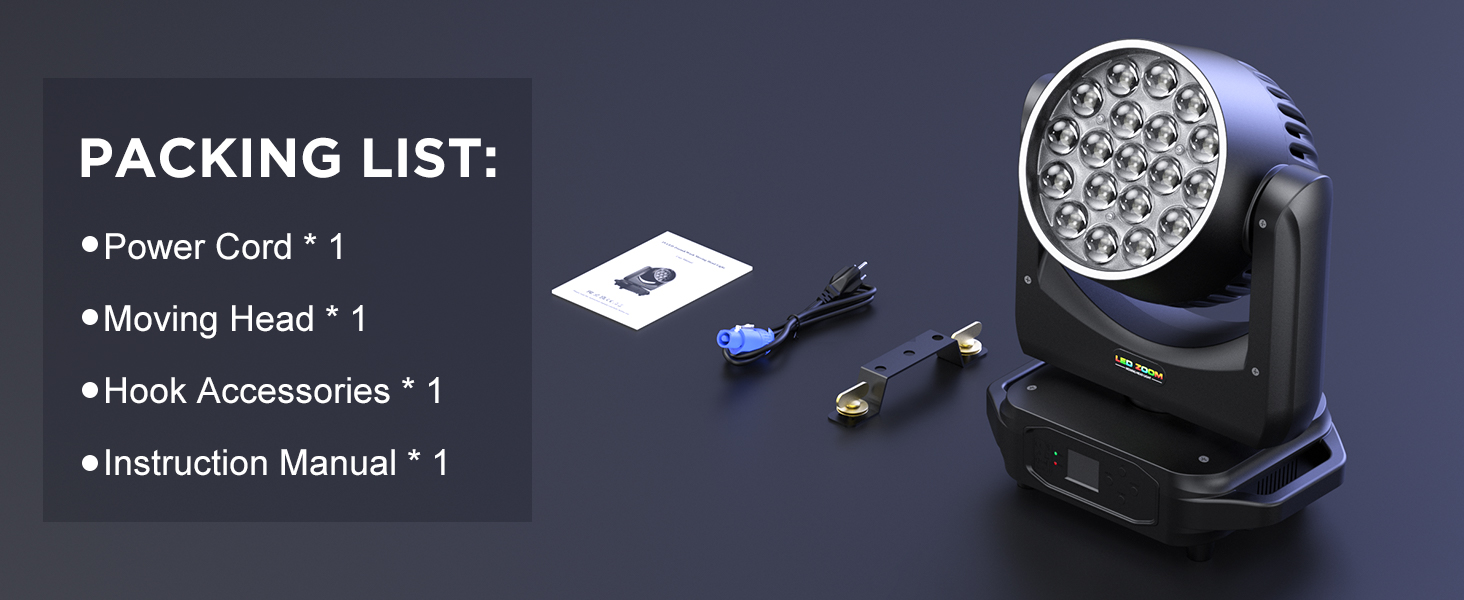

Packing List:
Power Cord: *1
Machine: *1
Hook Accessories: *1
Instruction Manual: *1
Power Cord: *1
Machine: *1
Hook Accessories: *1
Instruction Manual: *1
