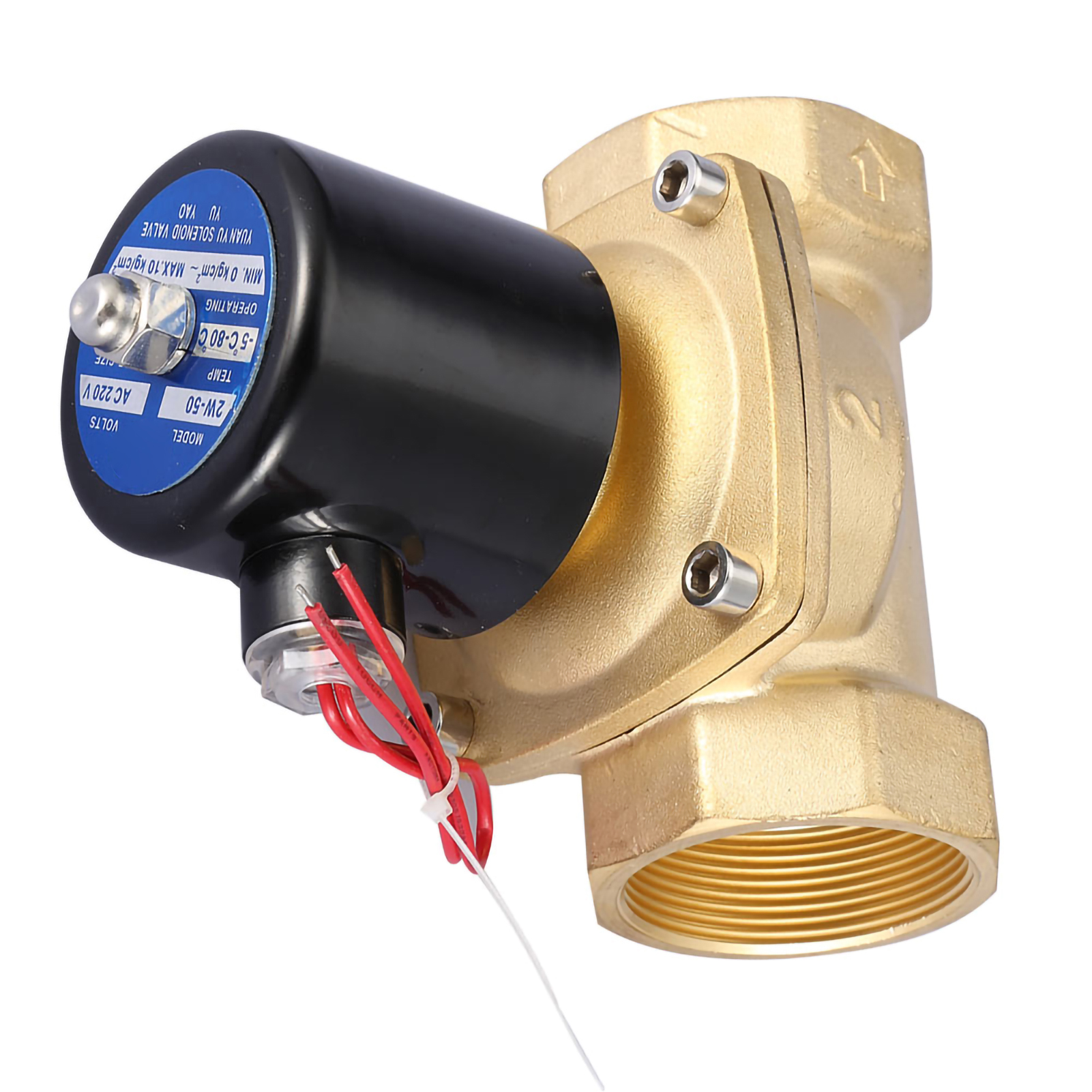

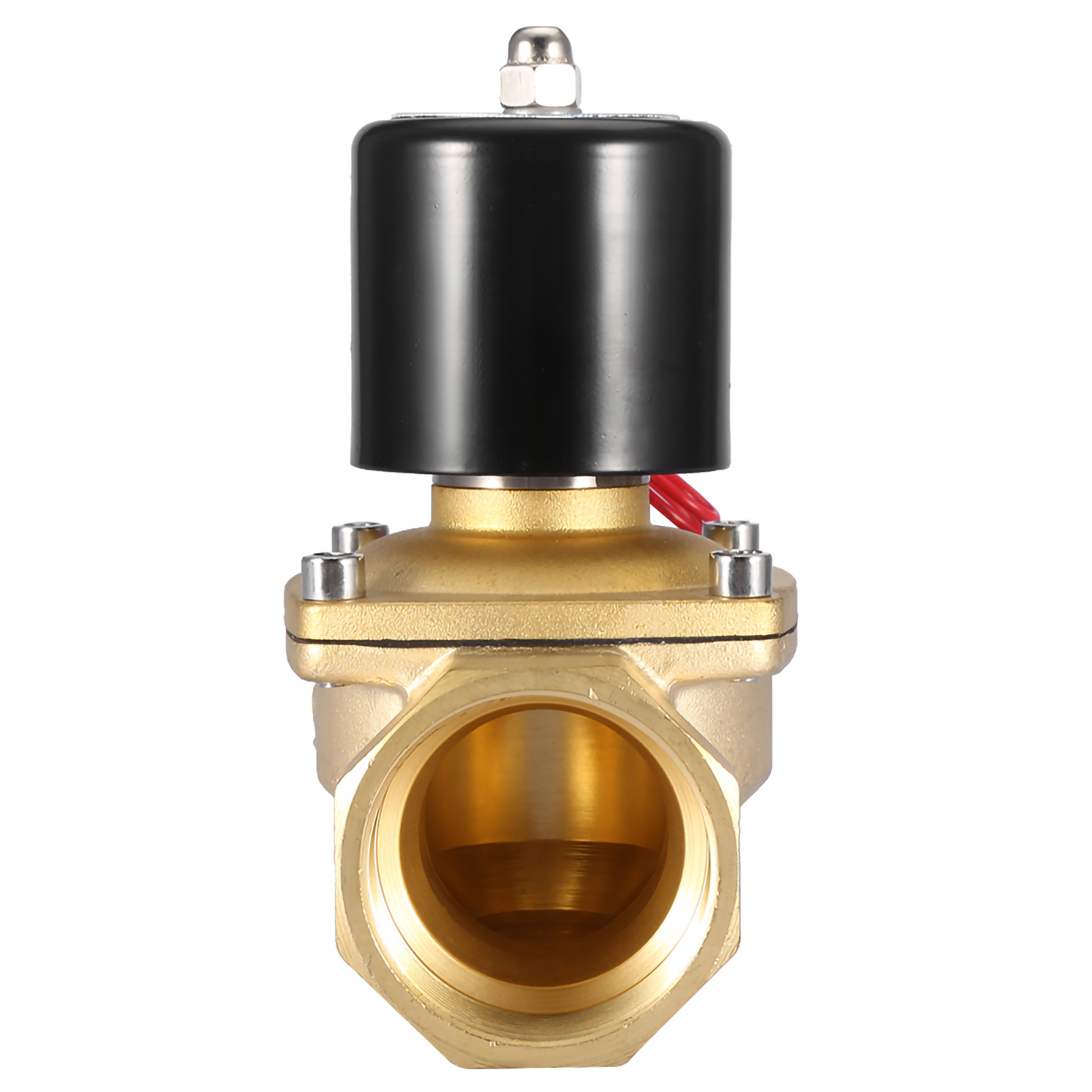

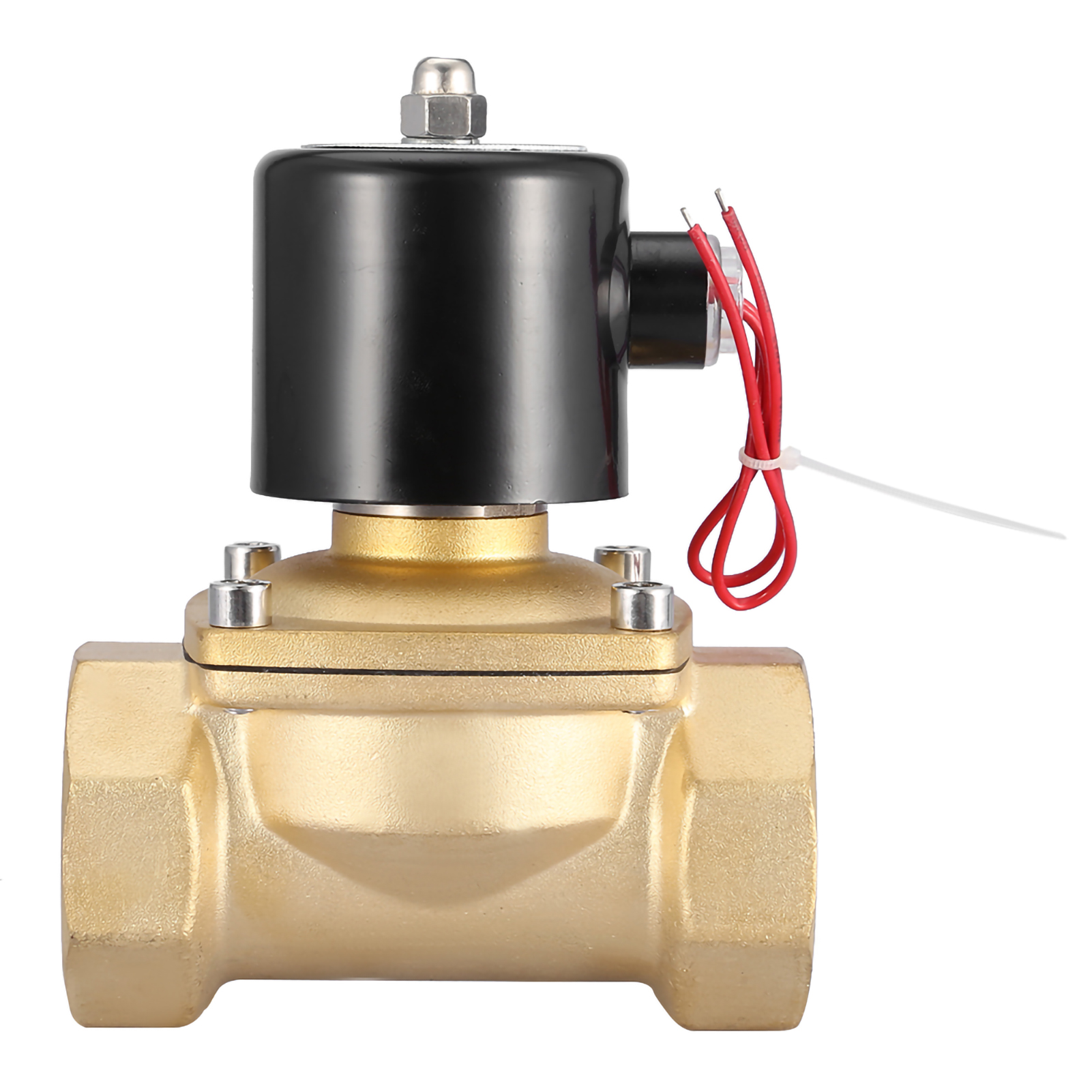

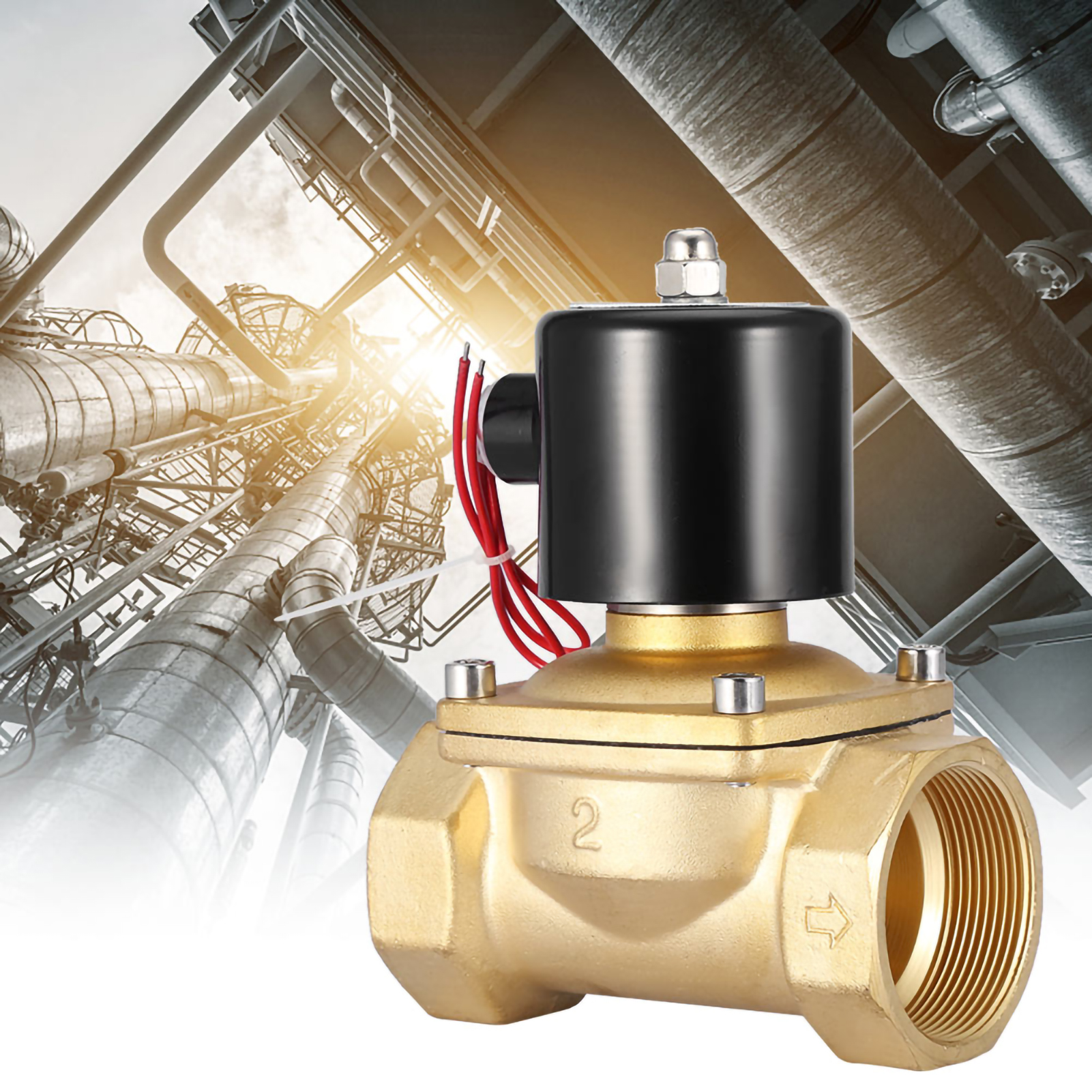

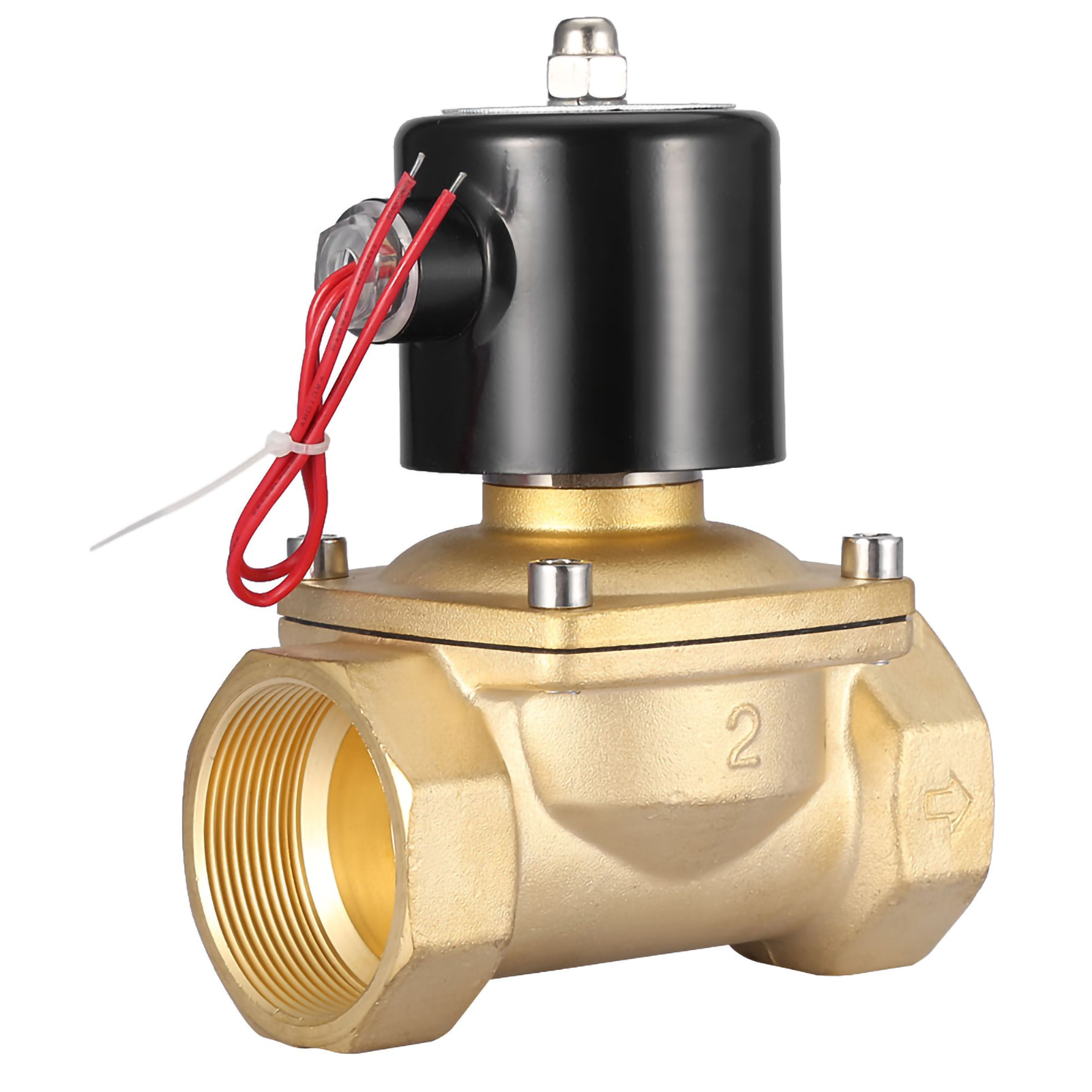

Feature:
1. Normally closed type valve - open when power on, always close when not energized.
2. Direct-acting two-position two-way solenoid valve, quick and sensitive to change the direction.
3. Compact structure, small size, light weight, convenient to mount and dismount.

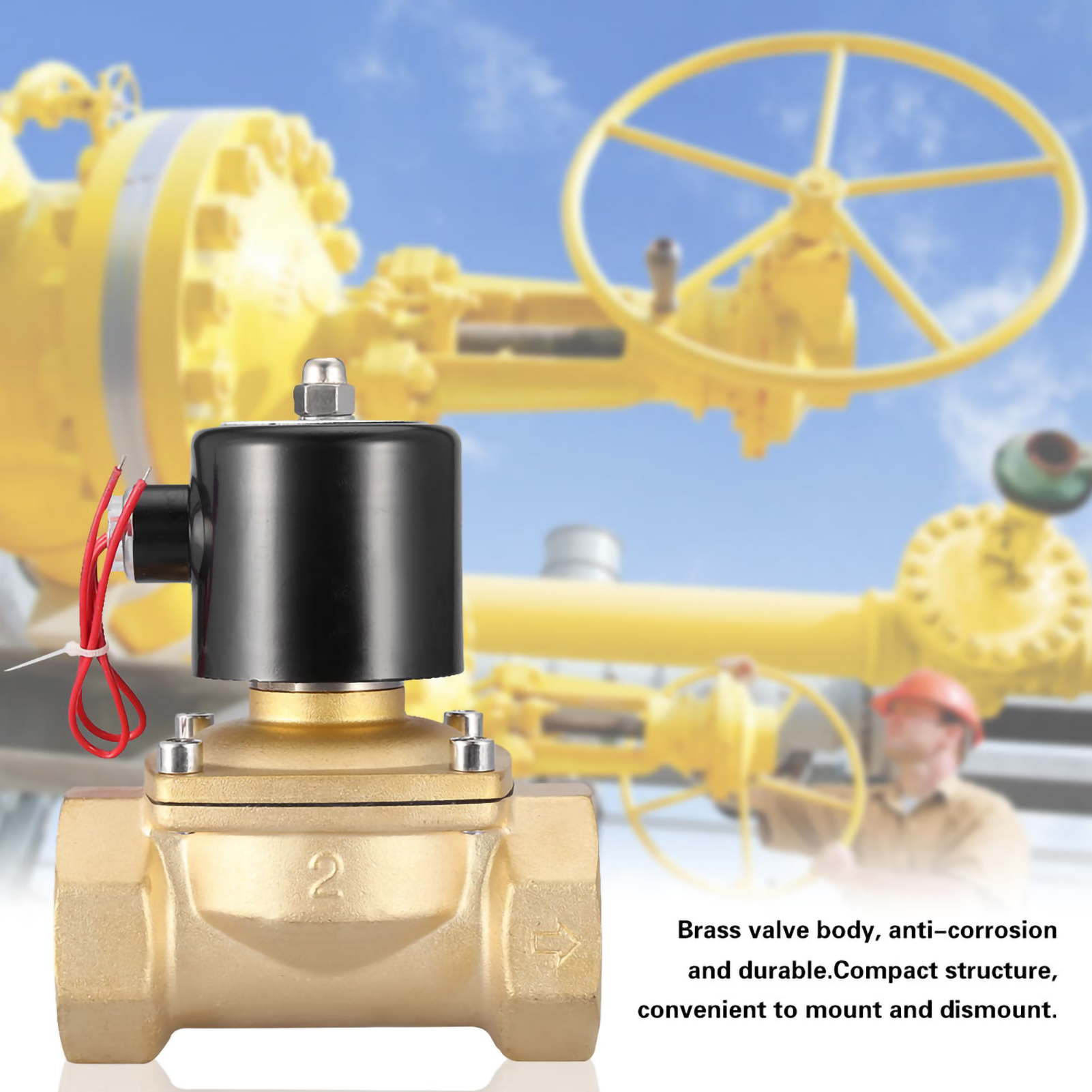

4. Brass valve body, anti-corrosion, sturdy and durable.
5. Adopt heat resistant electromagnetic coil and standard seal material nitrile rubber.
Specification:
Features:
1. Normally closed type valve - open when power on, always close when not energized.
2. Direct-acting two-position two-way solenoid valve, quick and sensitive to change the direction.
3. Compact structure, small size, light weight, convenient to mount and dismount.
4. Brass valve body, anti-corrosion, sturdy and durable.
5. Adopt heat resistant electromagnetic coil and standard seal material nitrile rubber.
Specification:

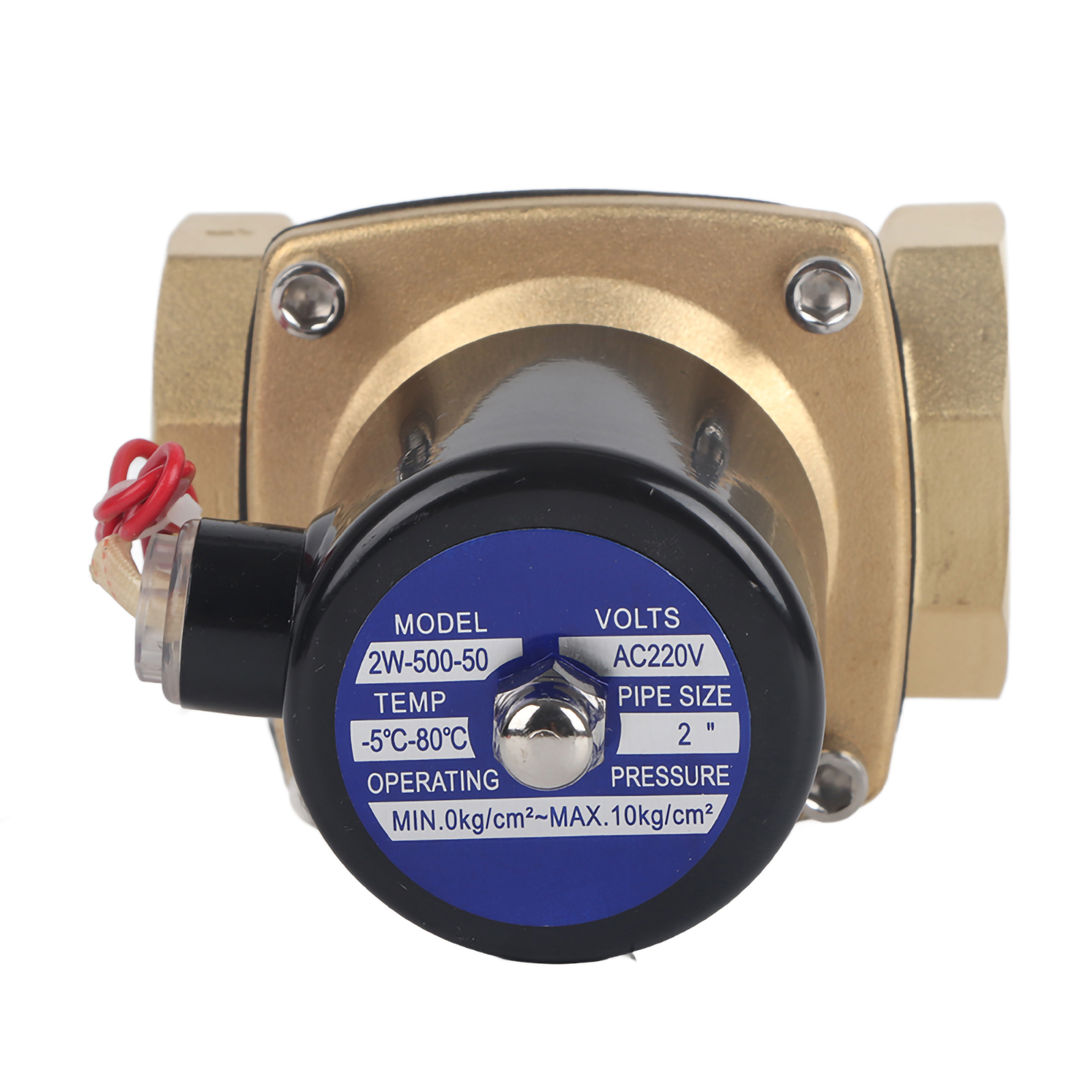

Valve material: Brass
Control form: Normally closed type
Voltage: AC 220V
Pipe thread diameter: 2"
Pressure resistance: 1MPa, 0-10kg
Fluid temperature: -5~80℃
Coil protection grade: IP65
Weight: Approx. 2665g/94.0oz
Package List:
1 * NC Solenoid Valve
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
