Product Description

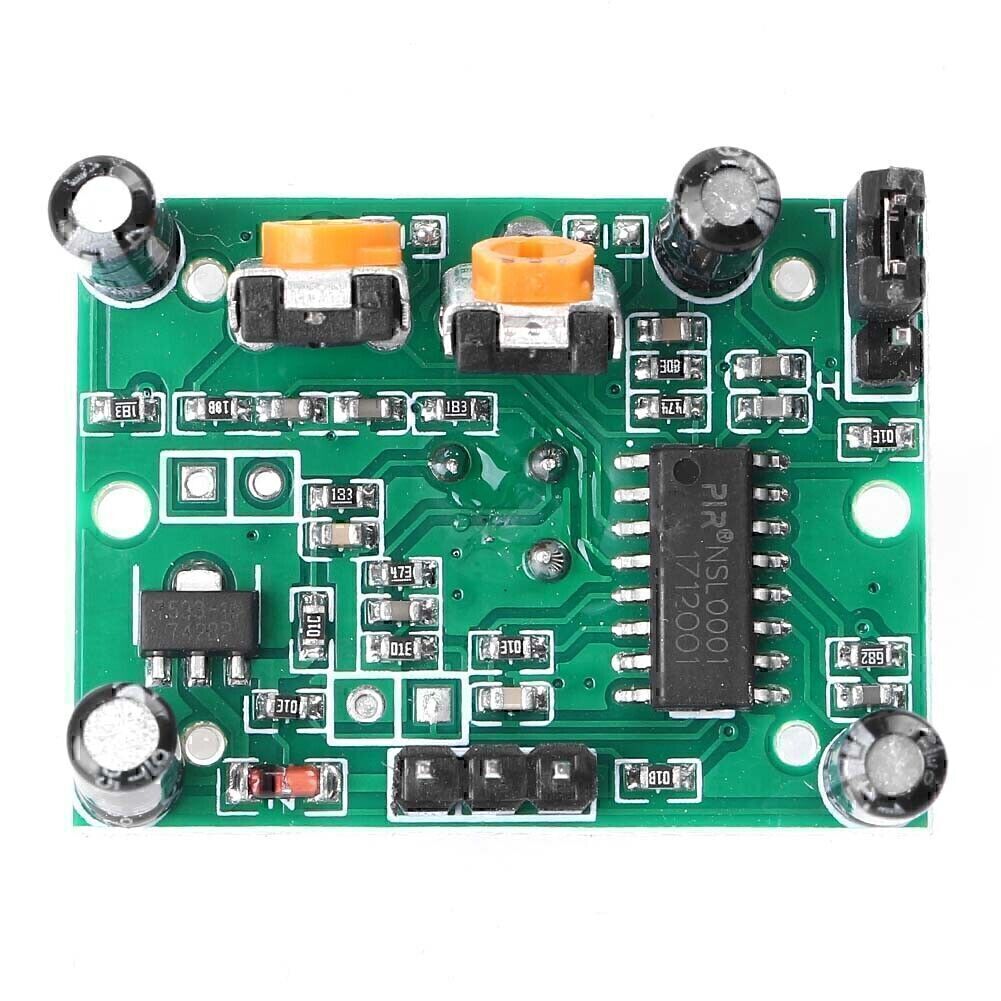

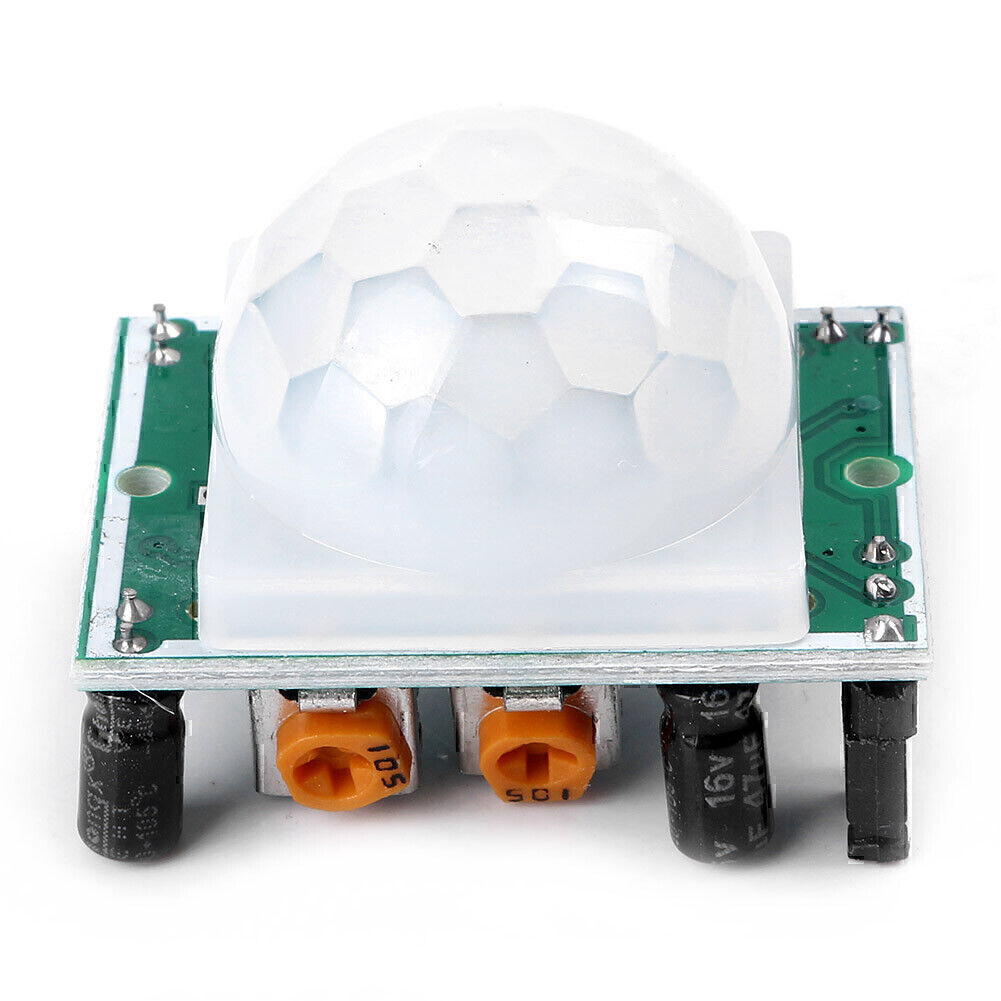

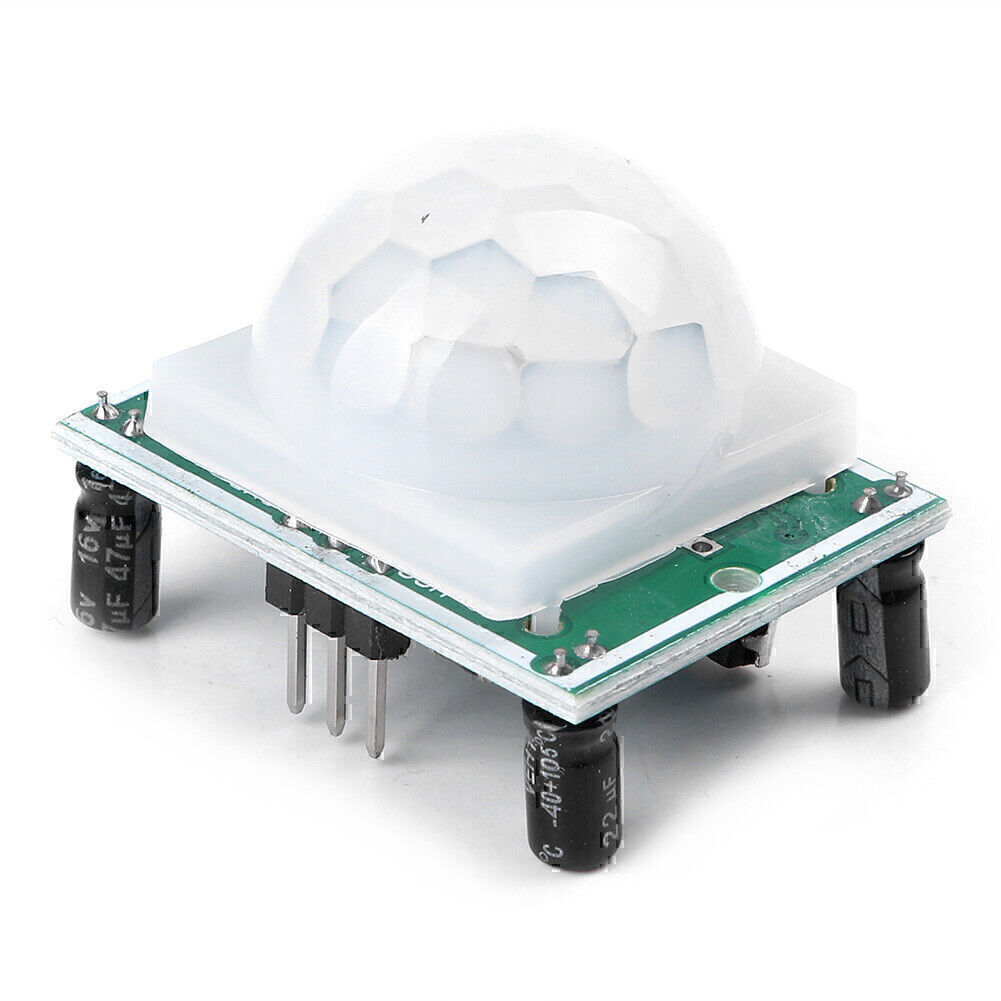

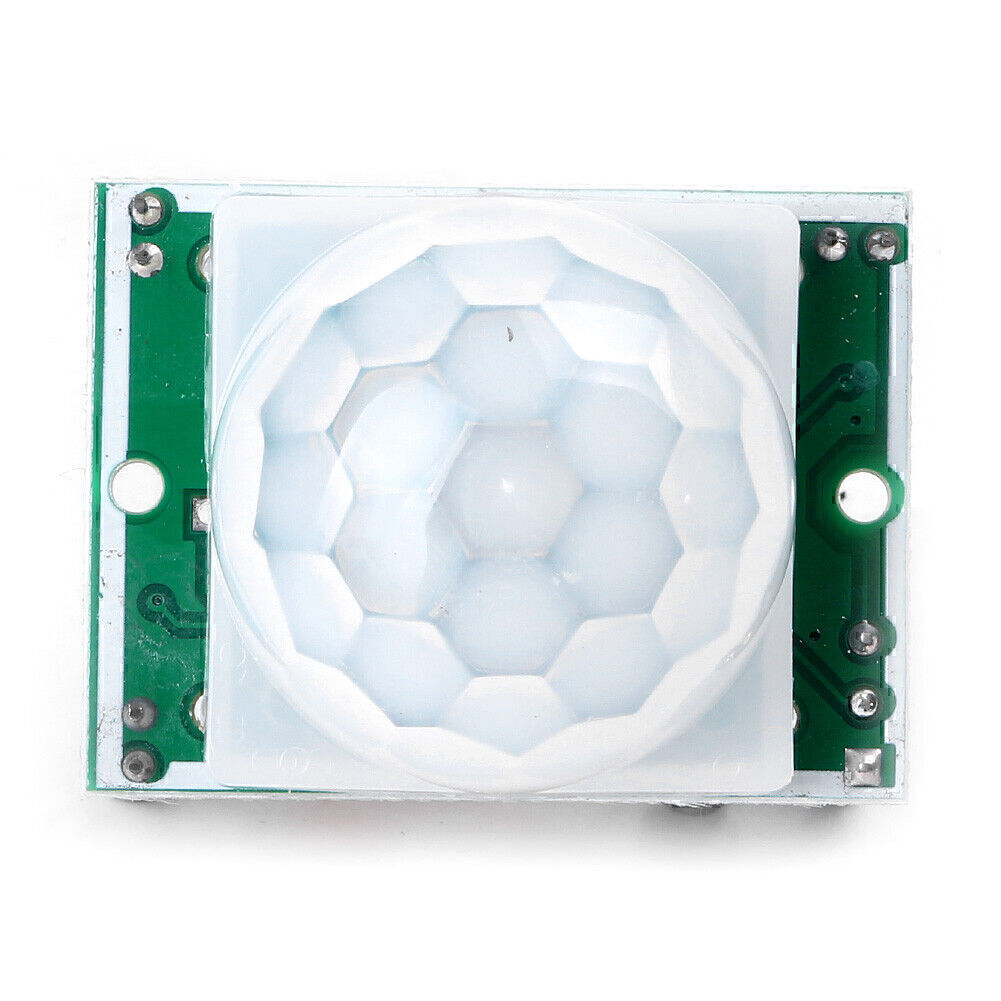

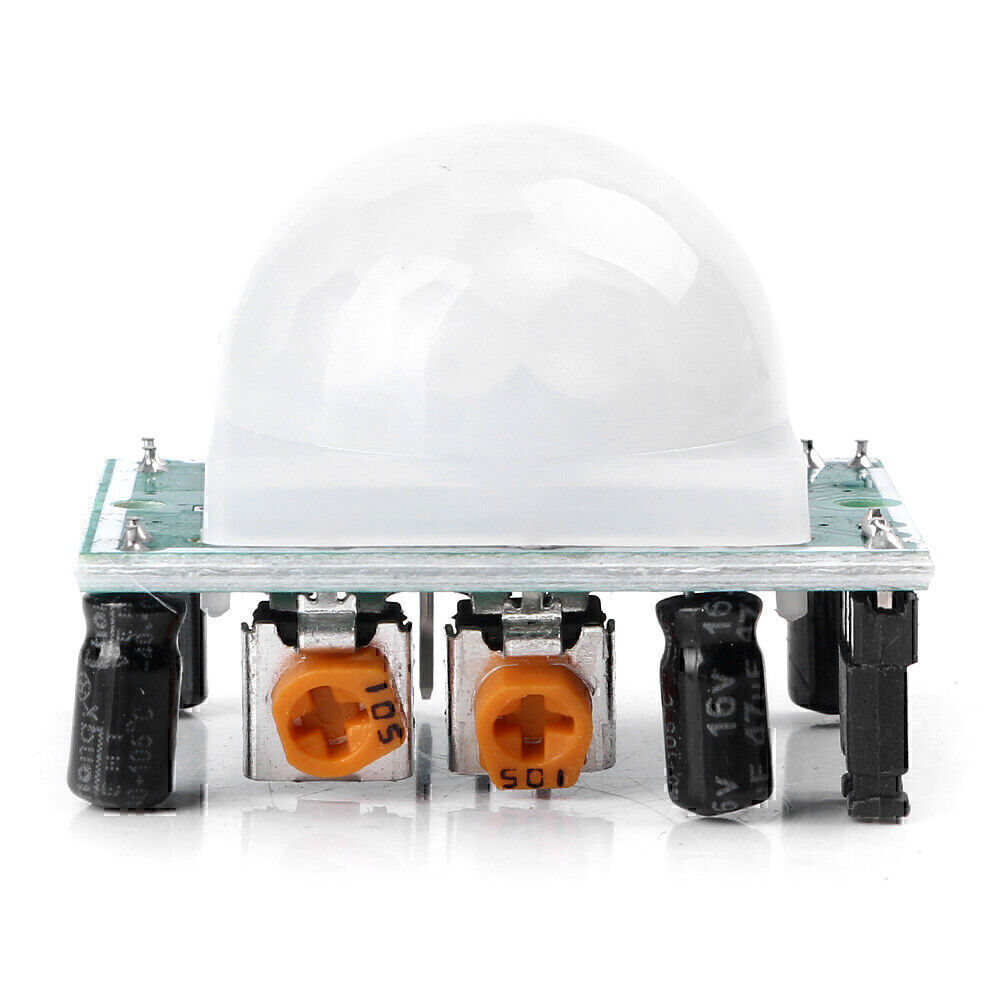

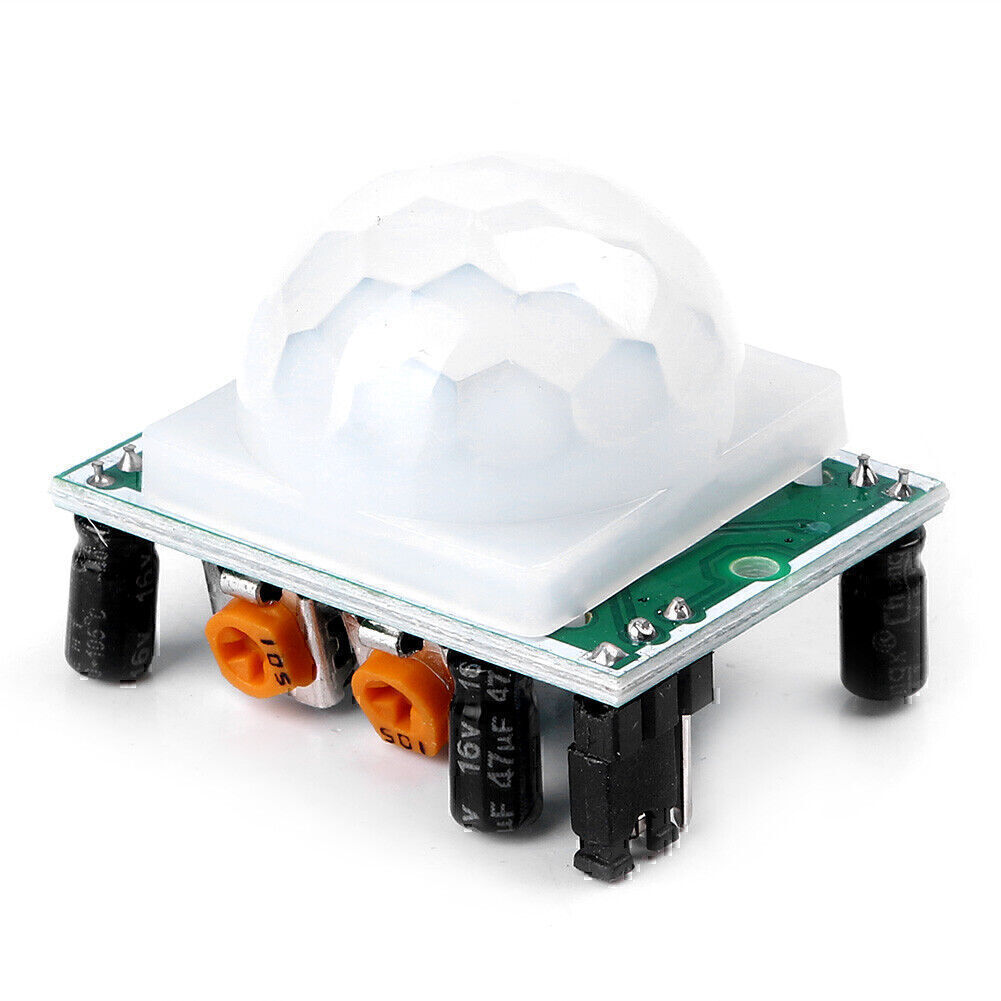

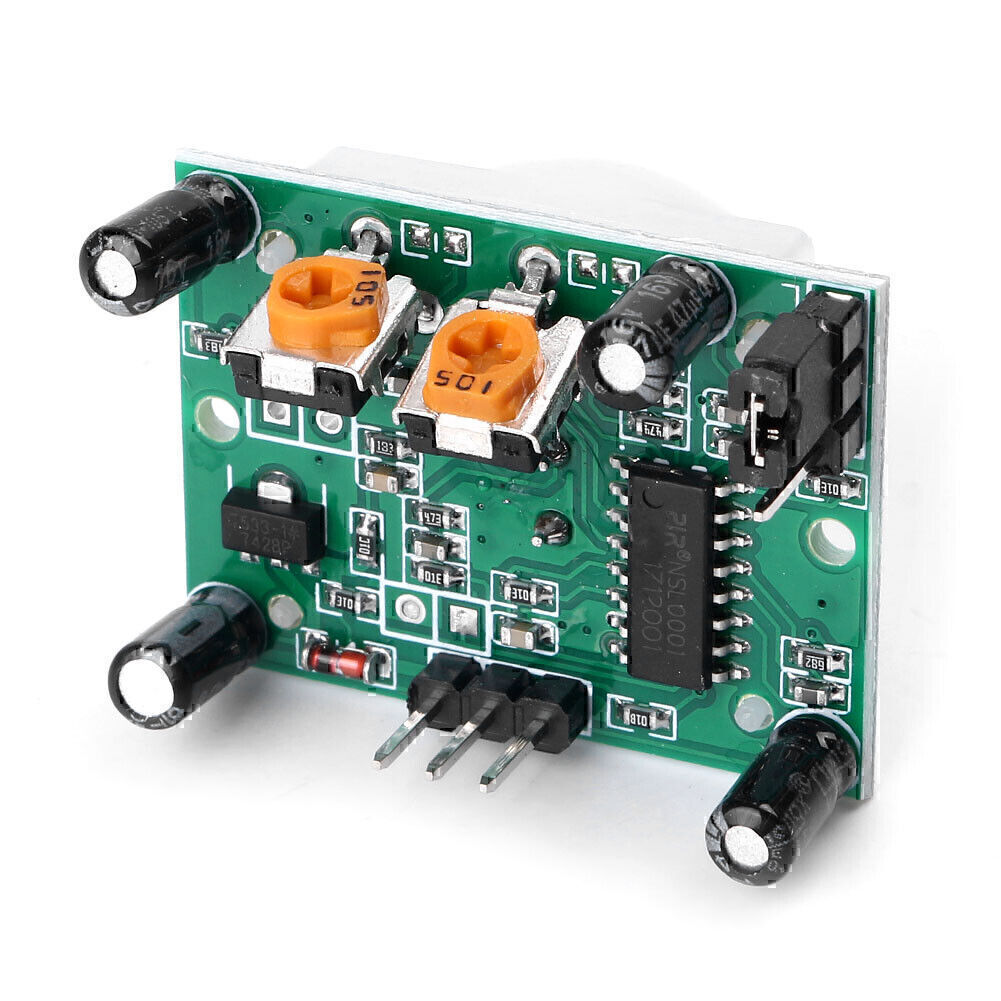

1x Adjust IR Pyroelectric Infrared IR PIR Motion Body Sensor Detector Module
Features:
1.The automatic sensor: Enter the sensor output range is high, people leave the sensor range of the automatic delay off high, output low.
2.The photosensitive control (Optional, factory is not set) may set depend on the day or light intensity without induction.
3.The temperature compensation (optional, factory is not set): In the summer when the ambient temperature rises to 30 ~ 32 ℃, slightly shorter detective range, temperature compensation can be used as a performance compensation.
4.Two trigger mode: (can be selected by jumpers) can not repeat the trigger:
(1)The sensor output high, the delay time is over, the output will automatically become low;
(2)Recyclable trigger: the sensor output high after the delay period, if the human body in its sensor range acts, its output will remain high until the delay left high to low (Sensor module Measured activities of each body will be automatically extended after a delay time, and the final event of the delay time Starting point of time).
5.With induction blocking time (the default setting: 2.5S block time): sensor module, after each sensor output (high change Into a low level),you can set up a blockade followed by time period, in this time period the sensor does not accept any sensor signal. This feature can have a "sensor output time" and "blocking time" the interval between the work produced can be applied to detect the interval Products; also inhibit this function during load switching for a variety of interference. (This time can be set at zero seconds - Tens of seconds).
6.The working voltage range: the default voltage DC4.5V-20V.
7.Micro-power consumption: static current "50 micro amps, especially for battery-powered automatic control products.
8.The output high level signals: types of circuits can be easily and docking.
Specification:
Operating voltage range: DC 4.5-20V
Quiescent Current: <50uA
Level output: High 3.3 V /Low 0V
Trigger: L can not be repeated trigger/H can be repeated trigger(Default repeated trigger)
Delay time: 5-200S(adjustable) the range is (0.xx second to tens of second)
Block time: 2.5S(default)Can be made a range(0.xx to tens of seconds
Board Dimensions: 32mm*24mm
Angle Sensor: <100°cone angle
Operation Temp: -15-+70 degrees
Lens size sensor: Diameter:23mm(Default)
Package Included:1pc Motion Sensor Detector
