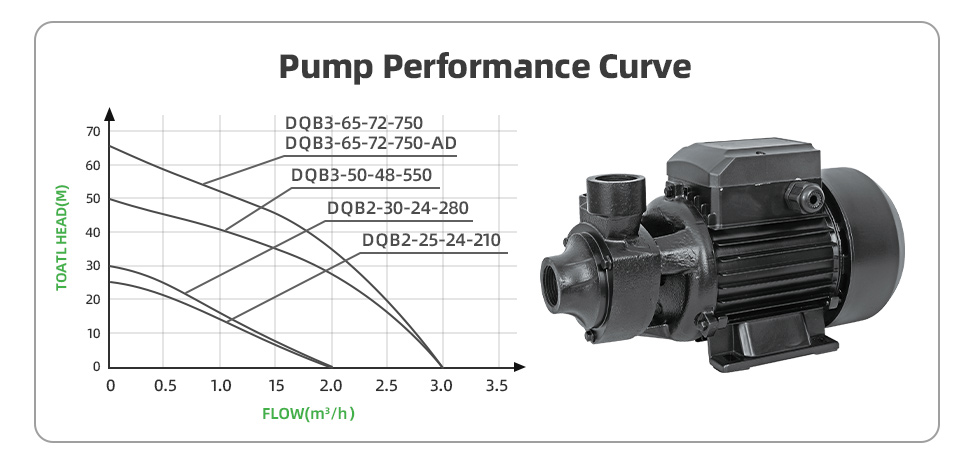

DQB2-25-24-210 (2m³/h / 25m / 24V / 210W): https://www.ebay.com/itm/236952285451
DQB2-30-24-280 (2m³/h / 30m / 24V / 280W): https://www.ebay.com/itm/236897039405
DQB3-50-48-550 (3m³/h / 50m / 48V / 550W): https://www.ebay.com/itm/236881935507
DQB3-65-72-750 (3m³/h / 65m / 72V / 750W): https://www.ebay.com/itm/236897096094

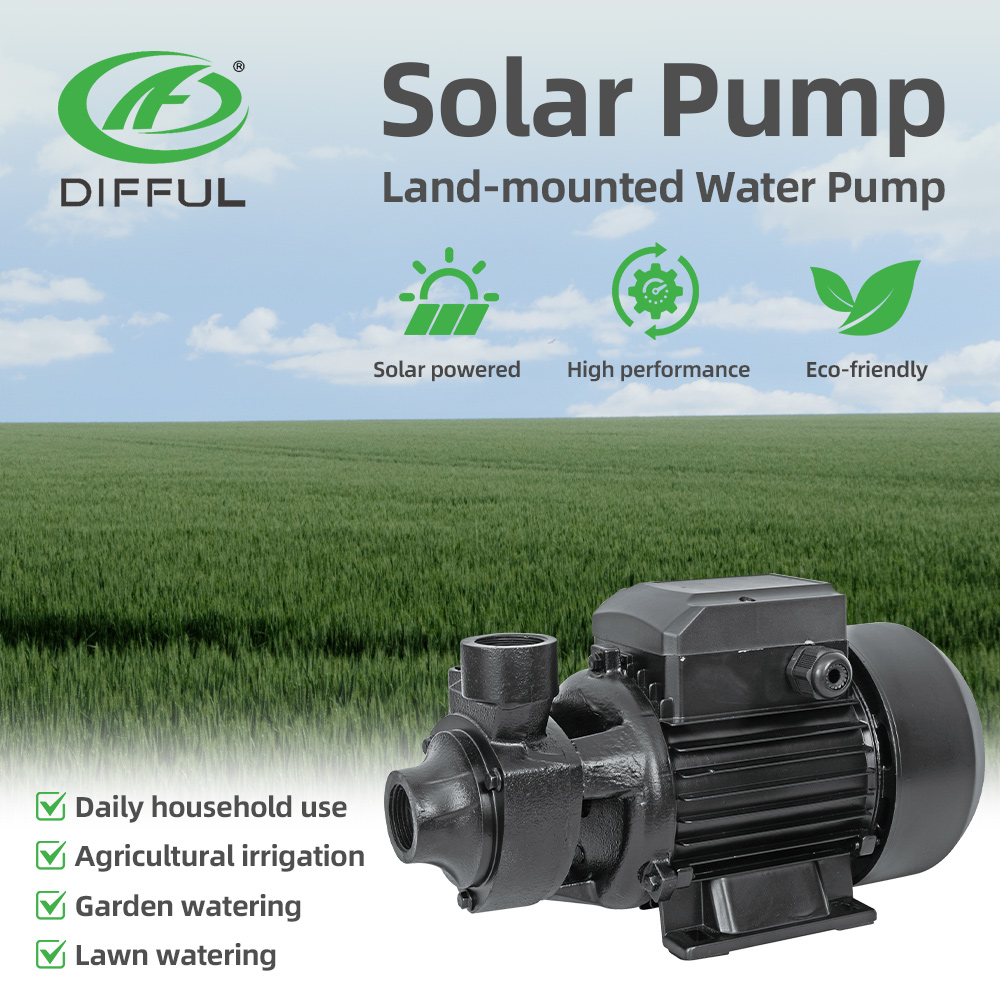

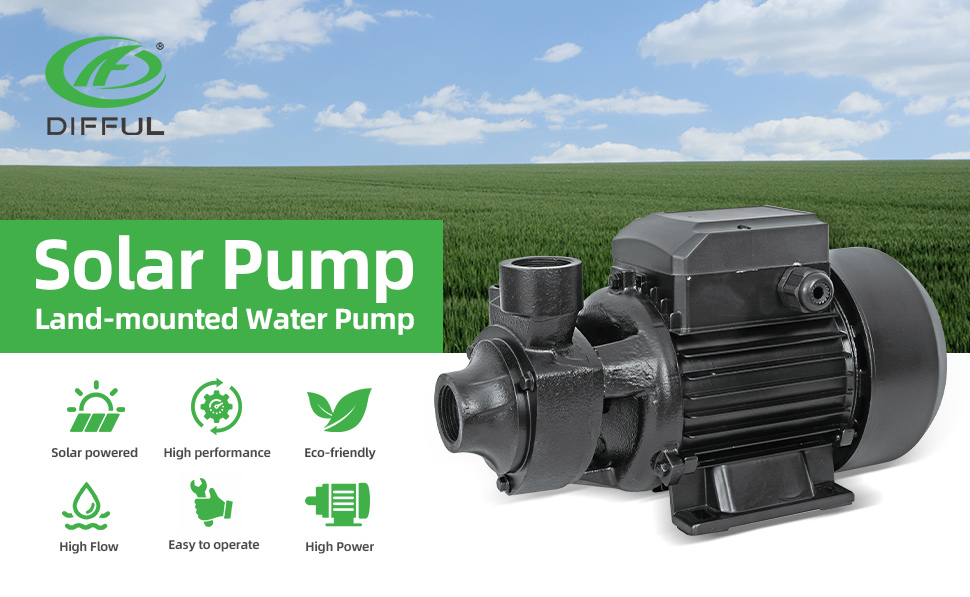

DQB2-25-24-210 Series Solar Peripheral Pumps:
Key Features and Highlights
High-efficiency all-solar operation & 100% off-grid: This all-DC model is designed for 100% solar power, making it the most cost-effective and environmentally friendly solution for remote areas. It is particularly suitable for domestic water supply and small irrigation projects in areas without AC power coverage, such as farms or orchards.
Easy installation and low maintenance costs: The simplified DC configuration eliminates the need for complex AC wiring or mixed switching components. This design reduces potential points of failure, making it a reliable "one-and-done" system for busy users.
Durable premium brass outlet: The premium brass outlet connector is robust, durable, and leak-proof. This industrial-grade material ensures a strong and reliable connection for your piping system.

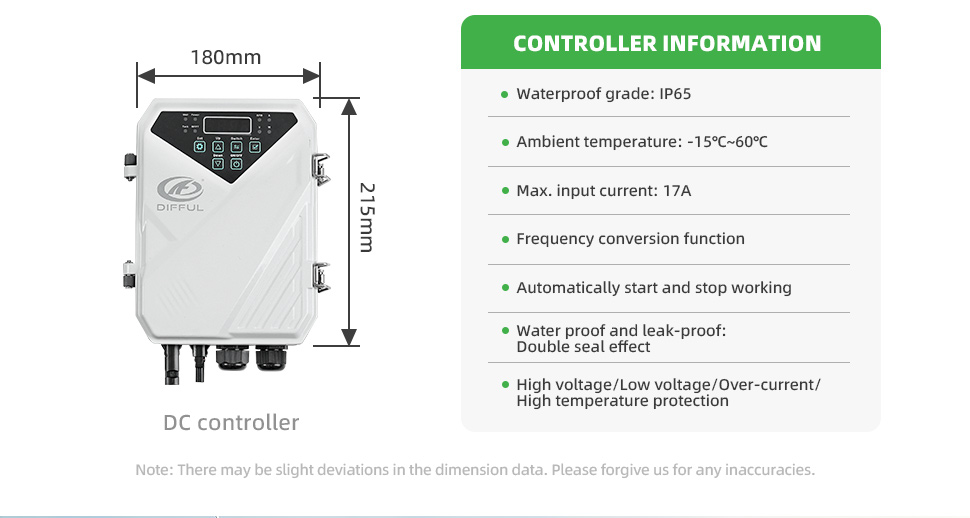

High-performance intelligent MPPT controller: The built-in high-efficiency DC MPPT controller accurately tracks the maximum power point of the solar panels in real time. This ensures the pump starts early and runs for extended periods, even on cloudy days.
Real-time Digital LED Interface: A high-definition LED display shows real-time speed, input voltage, and current data. This facilitates easy performance monitoring and significantly improves troubleshooting efficiency.

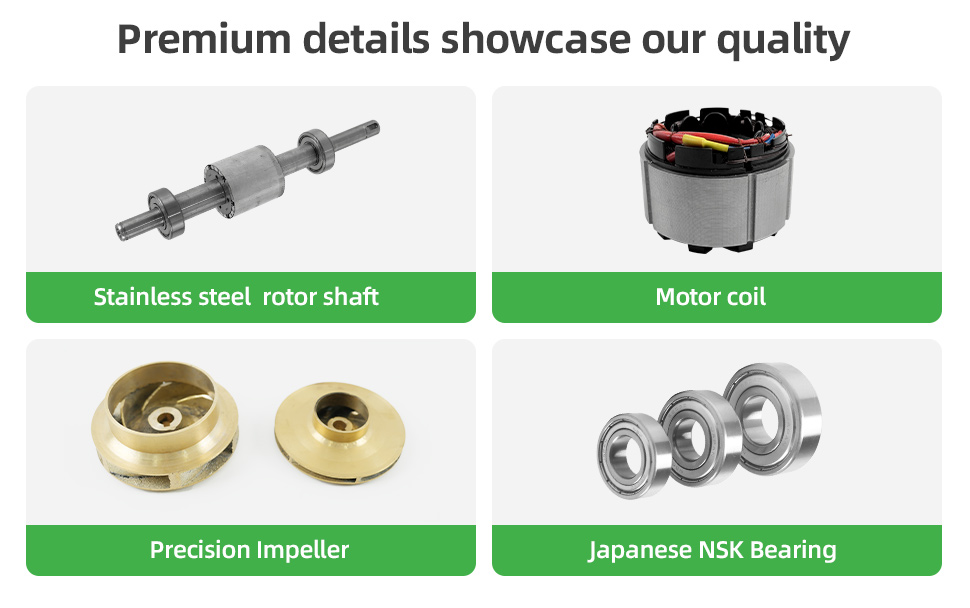

Industrial-Grade Construction: Constructed with high-quality materials, this pump boasts excellent corrosion and wear resistance. High-precision internal components ensure stable operation and a long service life even in harsh environments.
Two-Year Warranty and Professional Support: We offer a comprehensive two-year warranty to guarantee product quality. Our expert engineering team is ready to provide you with accurate system selection and professional installation guidance.

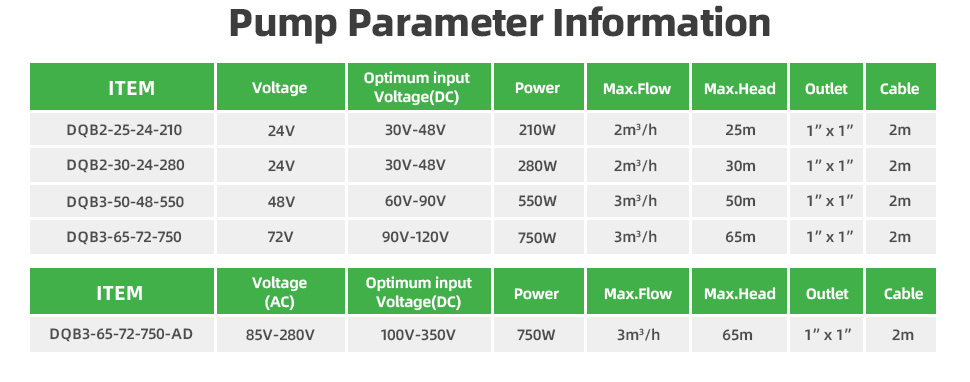

Technical Specifications
Parameter | Details |
Product Model | DQB2-25-24-210 |
Rated Power | 210 W |
Max Flow Rate | 2.0 m³/h |
Max Head / Lift | 25 m |
Voltage | 24 V |
Max Water Temp | 35°C |
Inlet/Outlet Diameter | 1" * 1" |
Cable Length | 2 m |
Optimum input voltage (DC) | < 60 V |
Note: Dimensions and weight may vary slightly between manufacturing batches.

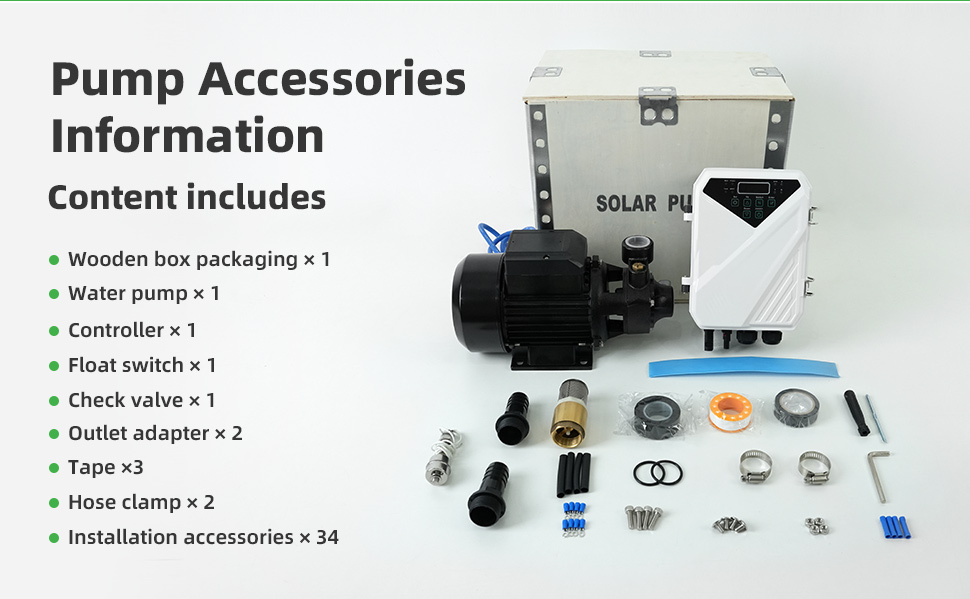

Package Details
What’s in the Box:
·
1 Heavy-duty wooden crate:* For safe international transport.
Outlet Fittings and Washers: High-quality brass fittings and O-rings ensure leak-proof seals.
Hose Clamps: Used to secure water pipes.
Waterproof Kit: Includes heat shrink tubing and waterproof tape for secure electrical connections.
Sealing and Insulation: Includes Teflon tape and electrical tape.
Installation Tools: Screwdriver, terminal blocks, and spare screws.
What You Will Need (Not Included):
Solar Panels: Please refer to the instruction manual for specific recommendations.
Safety Cable: A stainless steel wire to secure the pump if used in a well.
Plumbing & Wiring: Appropriate piping for water delivery and power cables.
About Difful
Since 1989, Difful has been a technology leader in solar pump innovation. With hundreds of thousands of units in use worldwide, we utilize high-precision, fully automated manufacturing to ensure every pump meets our rigorous standards for quality and efficiency.
