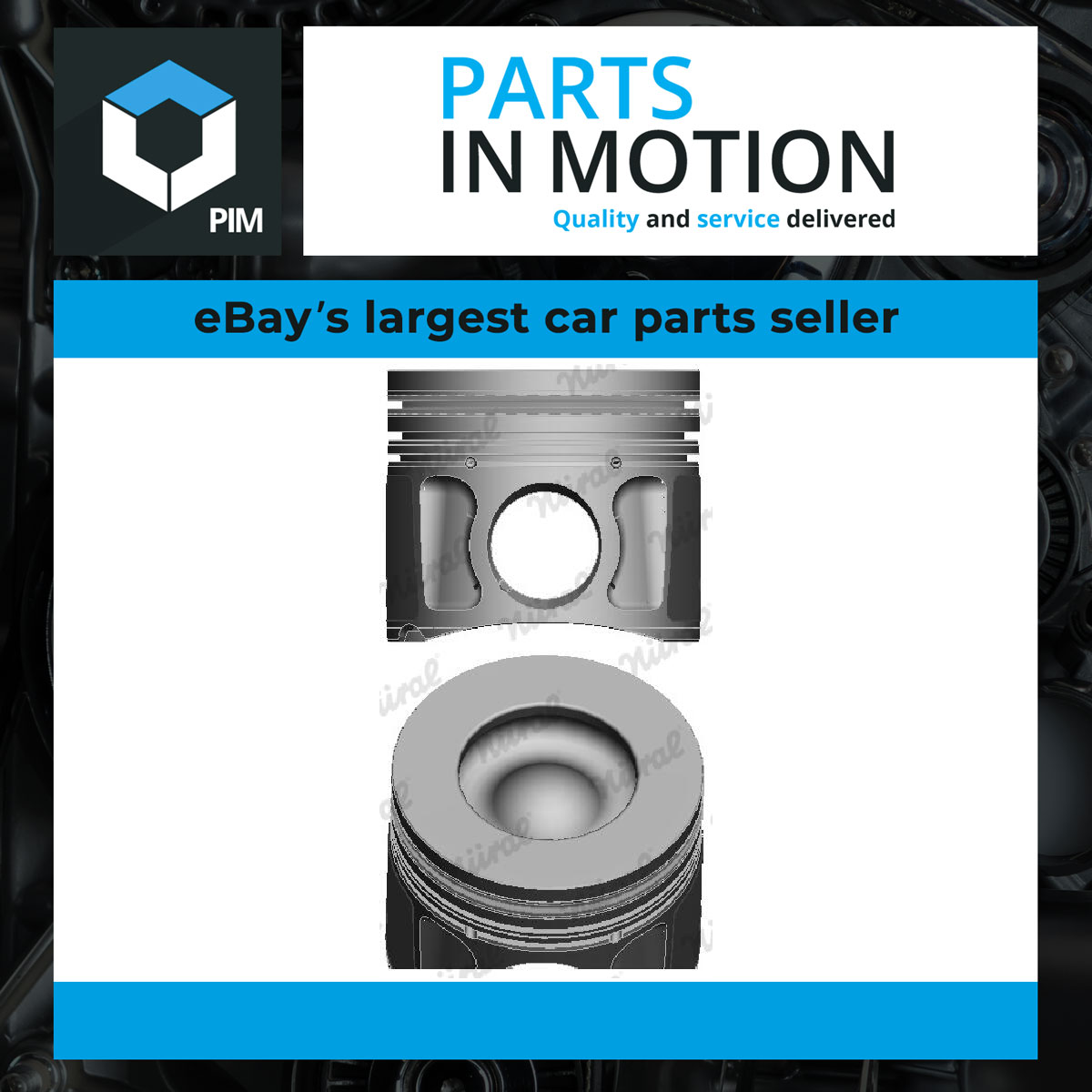

Piston 87-427707-50 Nural

PartsInMotion benefits

For any queries please contact using the contact seller link provided.

Description

Piston 87-427707-50 Nural

Brand	Nural
Part Number	87-427707-50
Height	74.8 mm
Additional Information 2	with cooling duct, with piston ring carrier, for keystone connecting rod
Component Number	08-427707-00
Cylinder Bore	86.5 mm
Bolt Diameter	30 mm
Oversize	0.5 mm
Compression Height	48.42 mm
Bolt length	66.85 mm
Recess Depth 1	16.17 mm
Recess Diameter	49.04 mm
Machined	with cut-out for oil jet
Production Number	08683-607
Type	Piston

Documents / Graphics

Information

Technical Information

*** CAUTION - CHECK BOWL DIAMETER ***

Cross references

KOLBENSCHMIDT	41 765 620
MAHLE	013 PI 00137 002

Compatible with the following OEM references

FORD

BK2Q6105

Passenger/LCV Vehicles

Vehicle	Body	Fuel	From	To	Drive	Valves	BHP	KW
CITROËN RELAY III Bus 2.2 HDi 110	Bus	Diesel	07/2011	12/2020	FWD	16	110	81
Engine Code: 4HG (P22DTE)
CITROËN RELAY III Bus 2.2 HDi 130	Bus	Diesel	07/2011	on	FWD	16	130	96
Engine Code: 4HH (P22DTE)
CITROËN RELAY III Bus 2.2 HDi 150	Bus	Diesel	07/2011	on	FWD	16	150	110
Engine Code: 4HJ (P22DTE)
CITROËN RELAY III Platform/Chassis 2.2 HDi 110	Platform/Chassis	Diesel	07/2011	12/2020	FWD	16	110	81
Engine Code: 4HG (P22DTE)
CITROËN RELAY III Platform/Chassis 2.2 HDi 130	Platform/Chassis	Diesel	07/2011	on	FWD	16	130	96
Construction Year from: 07/2011; Engine Code: 4HH (P22DTE)
CITROËN RELAY III Platform/Chassis 2.2 HDi 150	Platform/Chassis	Diesel	07/2011	on	FWD	16	150	110
Engine Code: 4HJ (P22DTE)
CITROËN RELAY III Van 2.2 HDi 110	Van	Diesel	07/2011	12/2020	FWD	16	110	81
Engine Code: 4HG (P22DTE)
CITROËN RELAY III Van 2.2 HDi 130	Van	Diesel	07/2011	on	FWD	16	130	96
Engine Code: 4HH (P22DTE)
CITROËN RELAY III Van 2.2 HDi 150	Van	Diesel	07/2011	on	FWD	16	150	110
Engine Code: 4HJ (P22DTE)
FORD RANGER (TKE) 2.2 TDCi	Pickup	Diesel	04/2011	on	RWD	16	125	92
Engine Code: GBVAJQW
FORD RANGER (TKE) 2.2 TDCi	Pickup	Diesel	04/2011	on	RWD	16	120	88
Engine Code: GBVAJPF
FORD RANGER (TKE) 2.2 TDCi	Pickup	Diesel	11/2011	on	RWD	16	150	110
Engine Code: GBVAJQJ
FORD RANGER (TKE) 2.2 TDCi	Pickup	Diesel	05/2015	on	RWD	16	160	118
Engine Code: GBVAJQJ
FORD RANGER (TKE) 2.2 TDCi 4x4	Pickup	Diesel	04/2011	on	AWD	16	125	92
Engine Code: GBVAJQW
FORD RANGER (TKE) 2.2 TDCi 4x4	Pickup	Diesel	04/2011	on	AWD	16	150	110
Engine Code: GBVAJQJ
FORD RANGER (TKE) 2.2 TDCi 4x4	Pickup	Diesel	05/2015	on	AWD	16	160	118
Engine Code: GBVAJQJ
FORD TOURNEO CUSTOM V362 Bus (F3) 2.2 TDCi	Bus	Diesel	09/2012	12/2015	FWD	16	125	92
Engine Code: CYF4.; Also fits:- ;Engine Code: CYFF
FORD TOURNEO CUSTOM V362 Bus (F3) 2.2 TDCi	Bus	Diesel	09/2012	12/2015	FWD	16	155	114
Engine Code: CVFF
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi	Bus	Diesel	10/2011	08/2014	FWD	16	100	74
Engine Code: DRFA.; Also fits:- ;Engine Code: DRFB.; Also fits:- ;Engine Code: DRFC
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi	Bus	Diesel	10/2011	08/2014	FWD	16	125	92
Engine Code: CYFA.; Also fits:- ;Engine Code: CYFB.; Also fits:- ;Engine Code: CYFC.; Also fits:- ;Engine Code: CYFD
FORD TRANSIT CUSTOM V362 Bus (F3) 2.2 TDCi	Bus	Diesel	09/2012	12/2015	FWD	16	125	92
Engine Code: CYF4.; Also fits:- ;Engine Code: CYFF
FORD TRANSIT CUSTOM V362 Bus (F3) 2.2 TDCi	Bus	Diesel	09/2012	12/2015	FWD	16	155	114
Engine Code: CVFF
FORD TRANSIT CUSTOM V362 Van (FY, FZ) 2.2 TDCi	Van	Diesel	09/2012	12/2023	FWD	16	125	92
Engine Code: CYF4.; Also fits:- ;Engine Code: CYFF
FORD TRANSIT CUSTOM V362 Van (FY, FZ) 2.2 TDCi	Van	Diesel	09/2012	12/2015	FWD	16	155	114
Engine Code: CVFF
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.2 TDCi	Platform/Chassis	Diesel	10/2011	08/2014	FWD	16	100	74
Engine Code: DRFA.; Also fits:- ;Engine Code: DRFB.; Also fits:- ;Engine Code: DRFC
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.2 TDCi	Platform/Chassis	Diesel	10/2011	08/2014	FWD	16	125	92
Engine Code: CYFA.; Also fits:- ;Engine Code: CYFB.; Also fits:- ;Engine Code: CYFC.; Also fits:- ;Engine Code: CYFD
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.2 TDCi RWD	Platform/Chassis	Diesel	10/2011	08/2014	RWD	16	155	114
Engine Code: CVRA.; Also fits:- ;Engine Code: CVRB.; Also fits:- ;Engine Code: CVRC
FORD TRANSIT TOURNEO Bus 2.2	Bus	Diesel	10/2011	08/2014	FWD	16	125	92
Engine Code: CYFA.; Also fits:- ;Engine Code: CYFB.; Also fits:- ;Engine Code: CYFC.; Also fits:- ;Engine Code: CYFD
FORD TRANSIT V363 Bus (FAD, FBD) 2.2 TDCi	Bus	Diesel	12/2014	12/2018	FWD	16	155	114
Engine Code: CVF5
FORD TRANSIT V363 Bus (FAD, FBD) 2.2 TDCi All-wheel Drive	Bus	Diesel	08/2015	12/2018	AWD	16	155	114
Engine Code: CVR5.; Also fits:- ;Engine Code: CV24
FORD TRANSIT V363 Bus (FAD, FBD) 2.2 TDCi RWD	Bus	Diesel	08/2013	12/2018	RWD	16	155	114
Engine Code: CVR5.; Also fits:- ;Engine Code: UYR6.; Also fits:- ;Engine Code: CV24
FORD TRANSIT V363 Platform/Chassis (FED, FFD) 2.2 TDCi	Platform/Chassis	Diesel	08/2013	12/2018	FWD	16	155	114
Engine Code: CVF5
FORD TRANSIT V363 Platform/Chassis (FED, FFD) 2.2 TDCi 4x4	Platform/Chassis	Diesel	08/2013	12/2018	AWD	16	155	114
Engine Code: CVR5.; Also fits:- ;Engine Code: CV24
FORD TRANSIT V363 Platform/Chassis (FED, FFD) 2.2 TDCi RWD	Platform/Chassis	Diesel	08/2013	12/2018	RWD	16	155	114
Engine Code: CVR5.; Also fits:- ;Engine Code: UYR6.; Also fits:- ;Engine Code: CV24
FORD TRANSIT V363 Van (FCD, FDD) 2.2 TDCi	Van	Diesel	08/2013	12/2018	FWD	16	155	114
Engine Code: CVF5
FORD TRANSIT V363 Van (FCD, FDD) 2.2 TDCi 4x4	Van	Diesel	08/2015	12/2018	AWD	16	155	114
Engine Code: CVR5.; Also fits:- ;Engine Code: CV24
FORD TRANSIT V363 Van (FCD, FDD) 2.2 TDCi RWD	Van	Diesel	08/2013	12/2018	RWD	16	155	114
Engine Code: CVR5.; Also fits:- ;Engine Code: UYR6.; Also fits:- ;Engine Code: CV24
FORD TRANSIT Van (FA_ _) 2.2 TDCi	Van	Diesel	10/2011	08/2014	FWD	16	100	74
Engine Code: DRFA.; Also fits:- ;Engine Code: DRFB.; Also fits:- ;Engine Code: DRFC
FORD TRANSIT Van (FA_ _) 2.2 TDCi	Van	Diesel	10/2011	08/2014	FWD	16	125	92
Engine Code: CYFA.; Also fits:- ;Engine Code: CYFB.; Also fits:- ;Engine Code: CYFC.; Also fits:- ;Engine Code: CYFD
FORD TRANSIT Van (FA_ _) 2.2 TDCi RWD	Van	Diesel	10/2011	08/2014	RWD	16	155	114
Engine Code: CVRA.; Also fits:- ;Engine Code: CVRB.; Also fits:- ;Engine Code: CVRC
PEUGEOT BOXER Bus 2.2 HDi 110	Bus	Diesel	03/2011	12/2020	FWD	16	110	81
Engine Code: 4HG (P22DTE)
PEUGEOT BOXER Bus 2.2 HDi 130	Bus	Diesel	03/2011	on	FWD	16	131	96
Engine Code: 4HH (P22DTE)
PEUGEOT BOXER Bus 2.2 HDi 150	Bus	Diesel	03/2011	on	FWD	16	150	110
Engine Code: 4HJ (P22DTE)
PEUGEOT BOXER Platform/Chassis 2.2 HDi 110	Platform/Chassis	Diesel	03/2011	12/2020	FWD	16	110	81
Engine Code: 4HG (P22DTE)
PEUGEOT BOXER Platform/Chassis 2.2 HDi 130	Platform/Chassis	Diesel	03/2011	on	FWD	16	131	96
Construction Year from: 03/2011; Engine Code: 4HH (P22DTE)
PEUGEOT BOXER Platform/Chassis 2.2 HDi 130	Platform/Chassis	Diesel	03/2011	on	AWD	16	130	96
Engine Code: 4HH (P22DTE)
PEUGEOT BOXER Platform/Chassis 2.2 HDi 150	Platform/Chassis	Diesel	03/2011	on	FWD	16	150	110
Engine Code: 4HJ (P22DTE)
PEUGEOT BOXER Platform/Chassis 2.2 HDi 150	Platform/Chassis	Diesel	03/2011	on	AWD	16	150	110
Engine Code: 4HJ (P22DTE)
PEUGEOT BOXER Van 2.2 HDi 110	Van	Diesel	03/2011	12/2020	FWD	16	110	81
Engine Code: 4HG (P22DTE)
PEUGEOT BOXER Van 2.2 HDi 130	Van	Diesel	03/2011	on	FWD	16	131	96
Engine Code: 4HH (P22DTE)
PEUGEOT BOXER Van 2.2 HDi 130 4x4	Van	Diesel	03/2011	on	AWD	16	131	96
Engine Code: 4HH (P22DTE)
PEUGEOT BOXER Van 2.2 HDi 150	Van	Diesel	03/2011	on	FWD	16	150	110
Engine Code: 4HJ (P22DTE)
PEUGEOT BOXER Van 2.2 HDi 150 4x4	Van	Diesel	03/2011	on	AWD	16	150	110
Engine Code: 4HJ (P22DTE)

Nüral provides an unrivalled range of 1,500 parts, covering 4,500 engines ranging from small capacity gasoline powered city cars to the latest high power diesel truck and commercial vehicles. Rapid product development and the latest production techniques enable Nüral to offer leading piston solutions.
