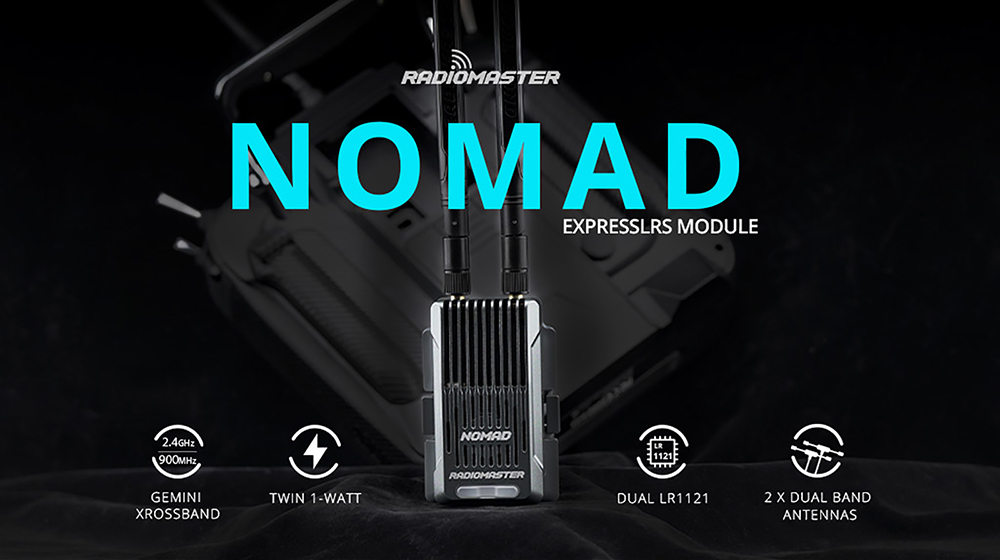

Radiomaster NOMAD Dual Band Module Built-in RGB Light Strip Semtech LR1121 x 2 RF Chip 1000mwx2 RF Output Power With Nano/Micro Module Adapter
Features:

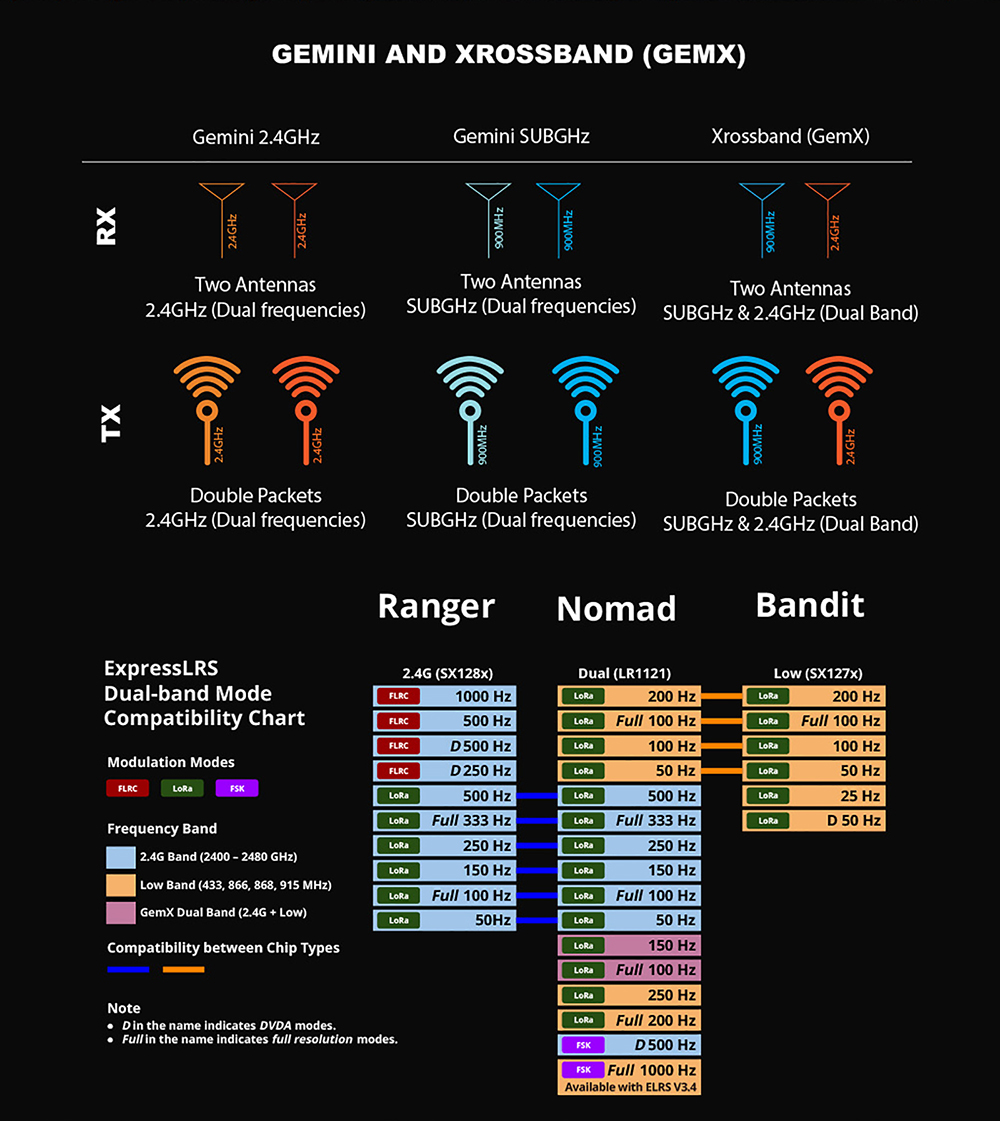

1.Compatible with all exiting 2.4ghz and 900mhz ExpressLRS receivers. (See mode compatibility chart below)
2.Compatible with 2.4ghz+900mhz Dual band (Gem-X) ExpressLRS receivers
3.Dual-band 1W transceivers
4.Experience unmatched reliability with dual-band ELRS Gemini Xrossband
5.ELRS Gemini 2.4GHz 868/900MHz

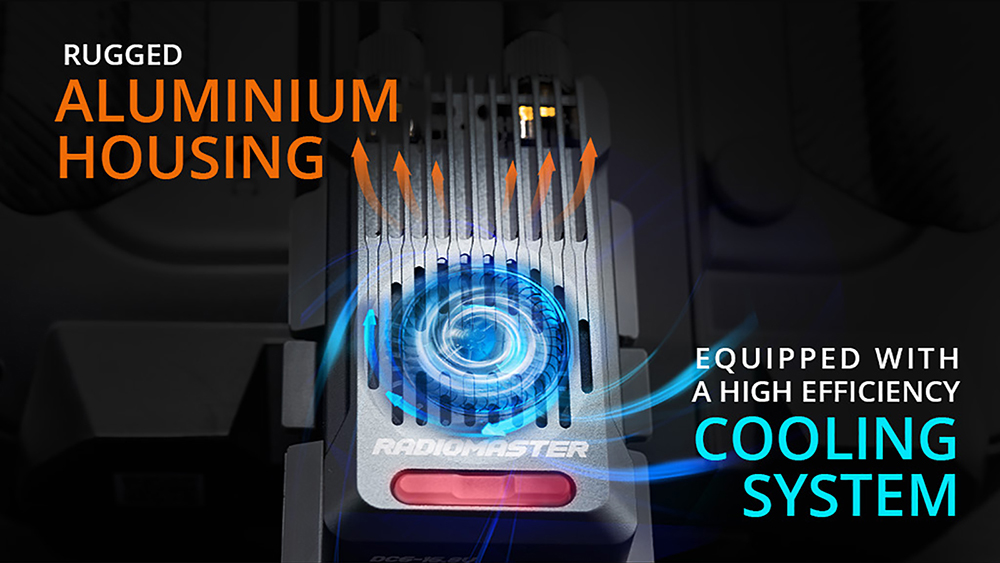

6.Powerful Cooling System with dual 1-watt transceivers

Description:
Radiomaster NOMAD dual band module Built-in RGB light strip RF chip,Powerful Cooling System with dual 1-watt transceivers, boasts serious power, complemented by an advanced cooling system to keep your module cool even on the hottest days.

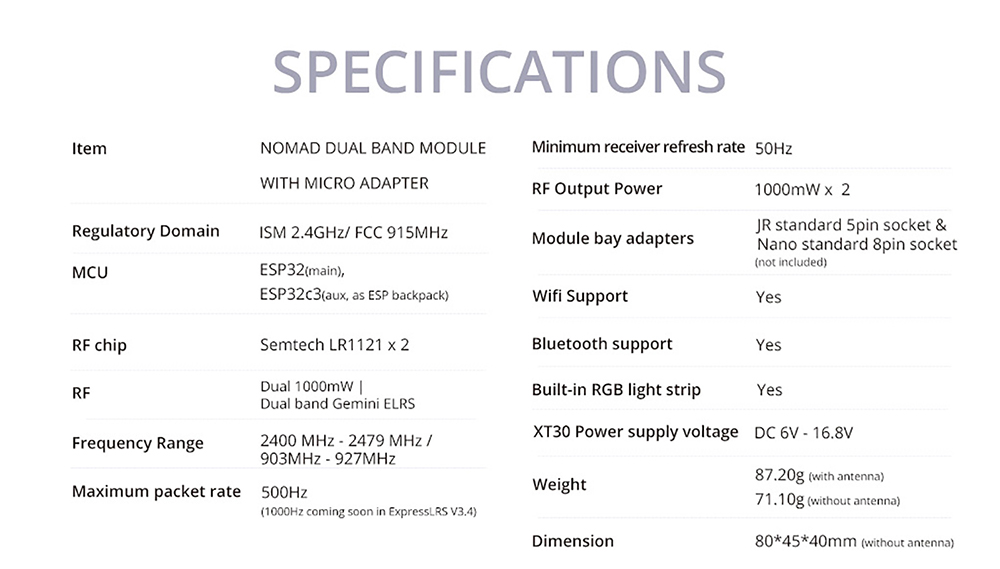

Specifications:
Item: NOMAD DUAL BAND MODULEWITH MICRO ADAPTER
Regulatory Domain: ISM 2.4GHZ/ FCC 915MHz
MCU: ESP32(main)ESP32c3aux, as ESP backpack

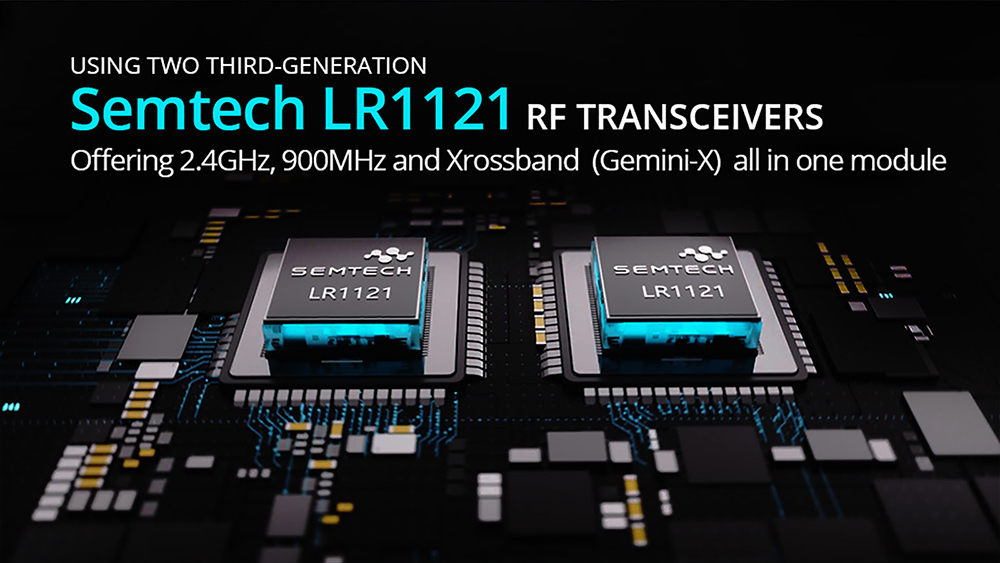

RF chip: Semtech LR1121 x 2
RF:Dual 1000mVDual band Gemini ELRS
Frequency Range: 2400 MHz*2479 MHz /903MHz-927MHz
Maximum packet rate: 500Hz(1000Hz coming soon in ExpressLR5 V3.4)
Minimum receiver refresh rate: 50Hz
RF Output Power: 1000mwx2

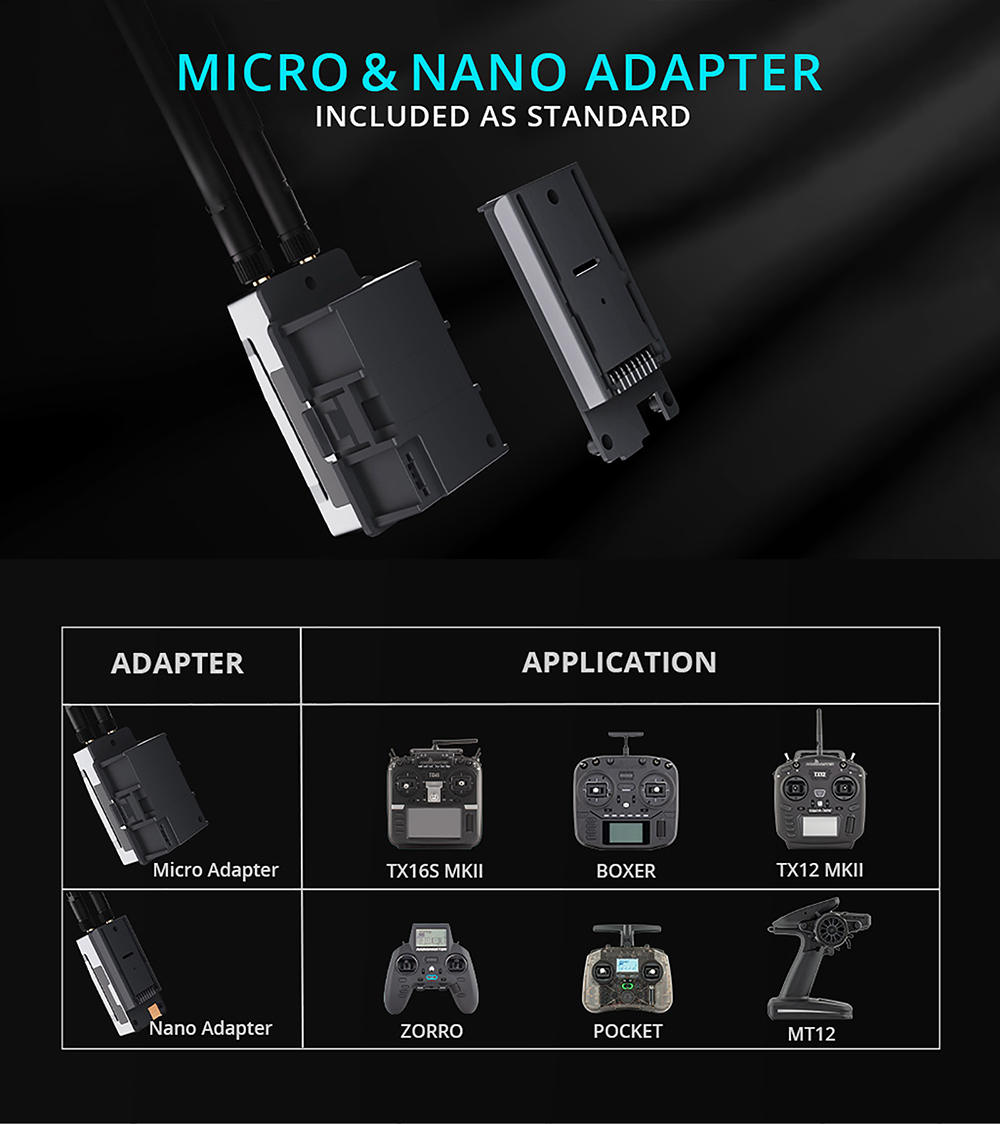

Module bay adapters: Micro standard 5pin socket &Nano standard 8pin socket

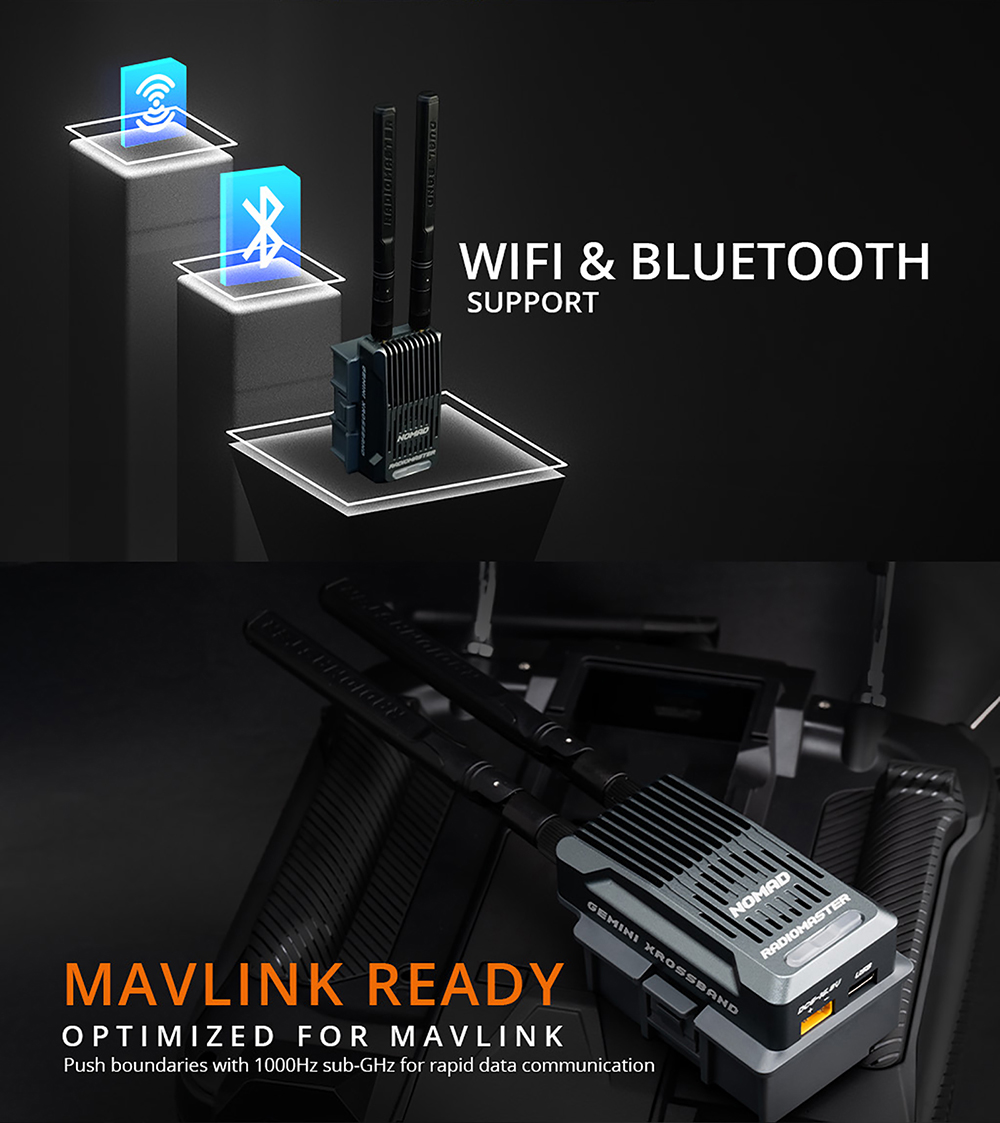

Wifi support: Yes
Bluetooth support: Yes
Built-in RGB light strip: Yes
XT30 Power supply voltage: DC 6V-16.8V
Weight: 87.20g (with antenna) / 71.10g (without antenna)

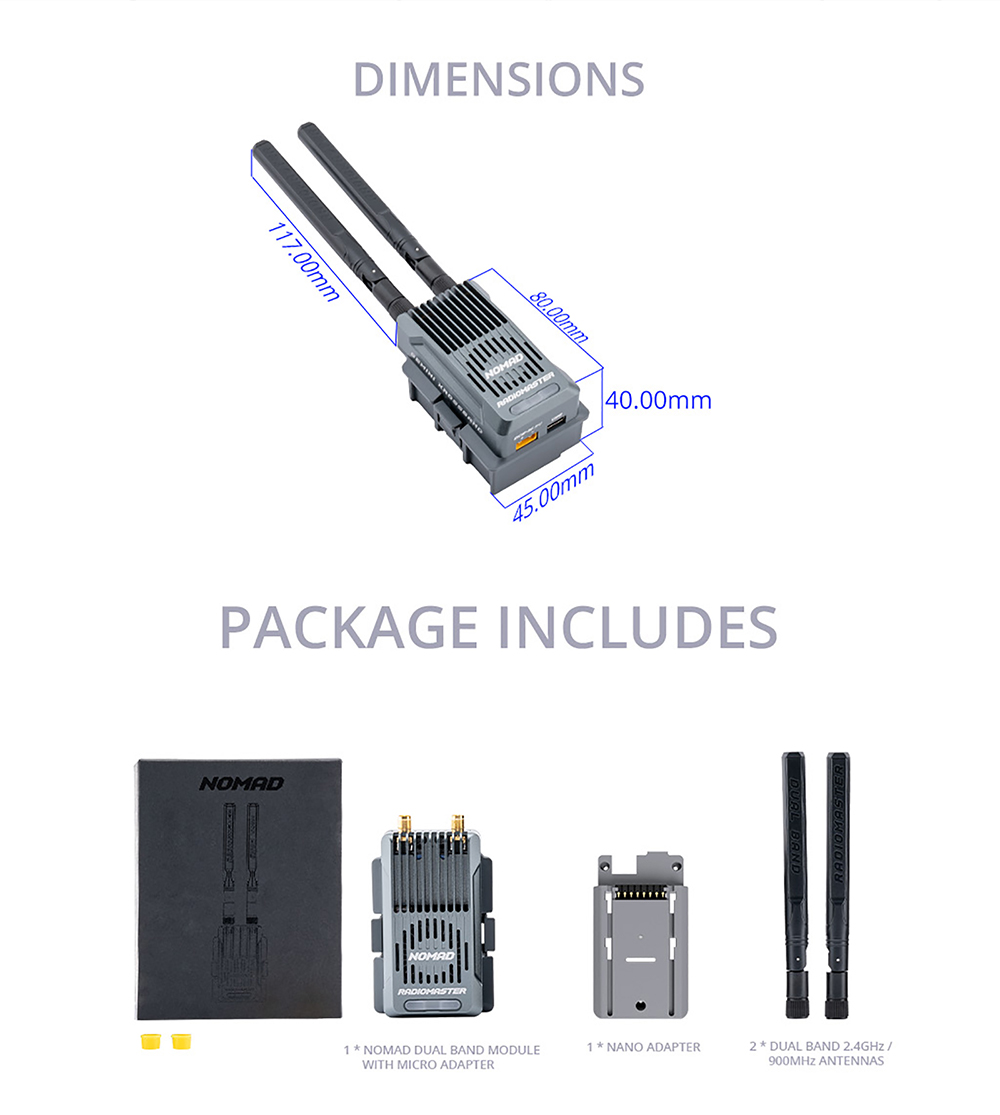

Dimension: 80*45*40mm (without antenna)


Package contents:

1 * Nomad Dual Band Module with Micro Adapter

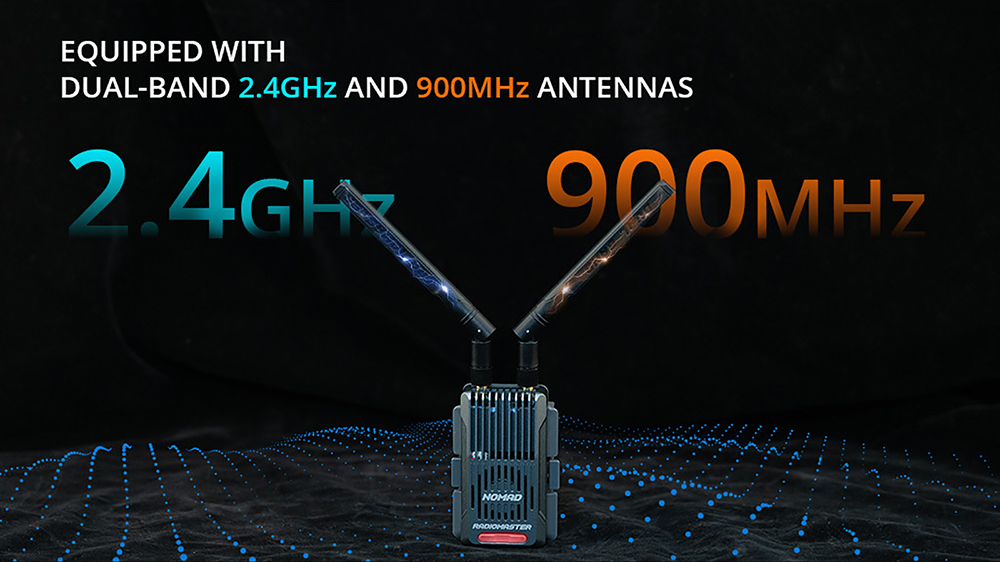

2 * Dual Band 2.4GHz / 900 MHz Antennas
1 * Nano Adapter
1 * Manual Card
