Features:
High Gain Performance: The HT6 antenna boasts a gain as high as 6dB, which is particularly impressive among wideband antennas. High gain means that the antenna can more effectively capture and transmit signals, enhancing the strength and stability of signal transmission. This is crucial for conducting precise RF measurements, field strength measurements, and measurements of peak directions of electromagnetic radiation sources, ensuring the accuracy and reliability of measurement results.
Wide Frequency Band Coverage: The operating frequency range of this antenna spans from 600MHz to 10GHz, covering signal bands for various common technologies and standards, including 2G, 3G, 4G mobile communication standards, WIFI, GPS, and more. This wide frequency band coverage allows the HT6 antenna to be suitable for multiple wireless communication environments and application scenarios, eliminating the need to change antennas to meet different testing requirements.
Strong Directionality: The HT6 antenna has very strong directionality, enabling it to more accurately locate the direction of signal sources or interference sources. In outdoor radio transmission/reception applications, directional antennas can more effectively capture signals from specific directions, reducing the impact of interference and noise, and improving communication quality.
Easy Operation and Durability: The HT6 antenna is designed simply and crafted with precision, making it easy to install and operate. Additionally, being made of PCB board, the antenna is sturdy, durable, and wear-resistant, suitable for long-term use. These characteristics of easy operation and durability make the HT6 antenna an ideal choice for outdoor radio testing and measurement.
Versatile Application Areas: The HT6 antenna can be widely used in multiple fields such as spectrum analysis, positioning, broadband measurement, and direction finding. Whether it's wireless testing, EMI antennas, energy flux density measurements, RF environment analysis, or electromagnetic environment monitoring, the HT6 antenna can provide accurate and reliable measurement results.
Meets EMC Testing Requirements: The VSWR of the HT6 antenna within the 600MHz to 10GHz frequency band is less than 2.2, providing it with the continuous high field strength requirements for EMC testing. EMC testing is an important means to ensure the electromagnetic compatibility of electronic devices, and the HT6 antenna's characteristic allows it to better meet the needs of EMC testing, providing a guarantee for the electromagnetic compatibility of electronic devices.
Specifications:

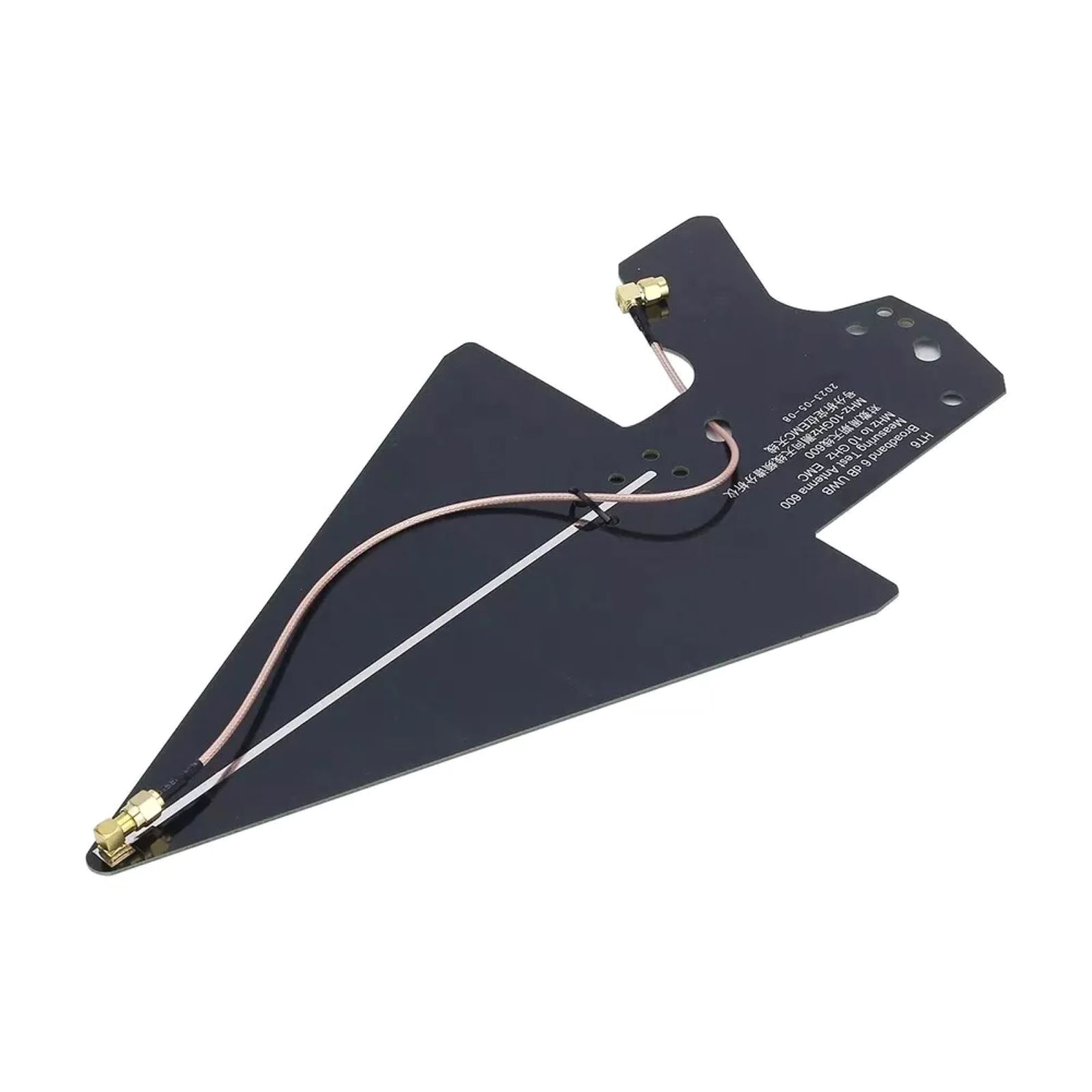

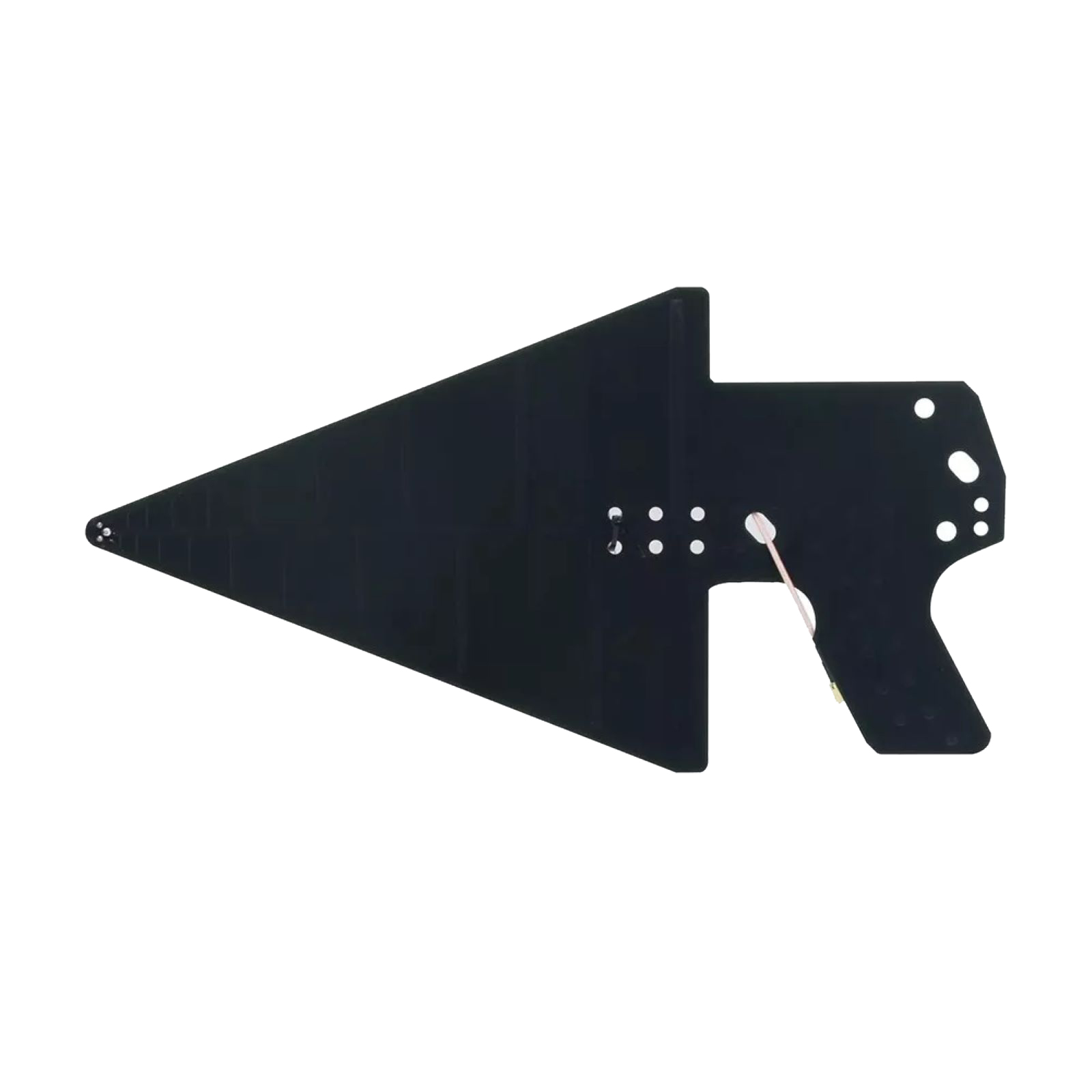

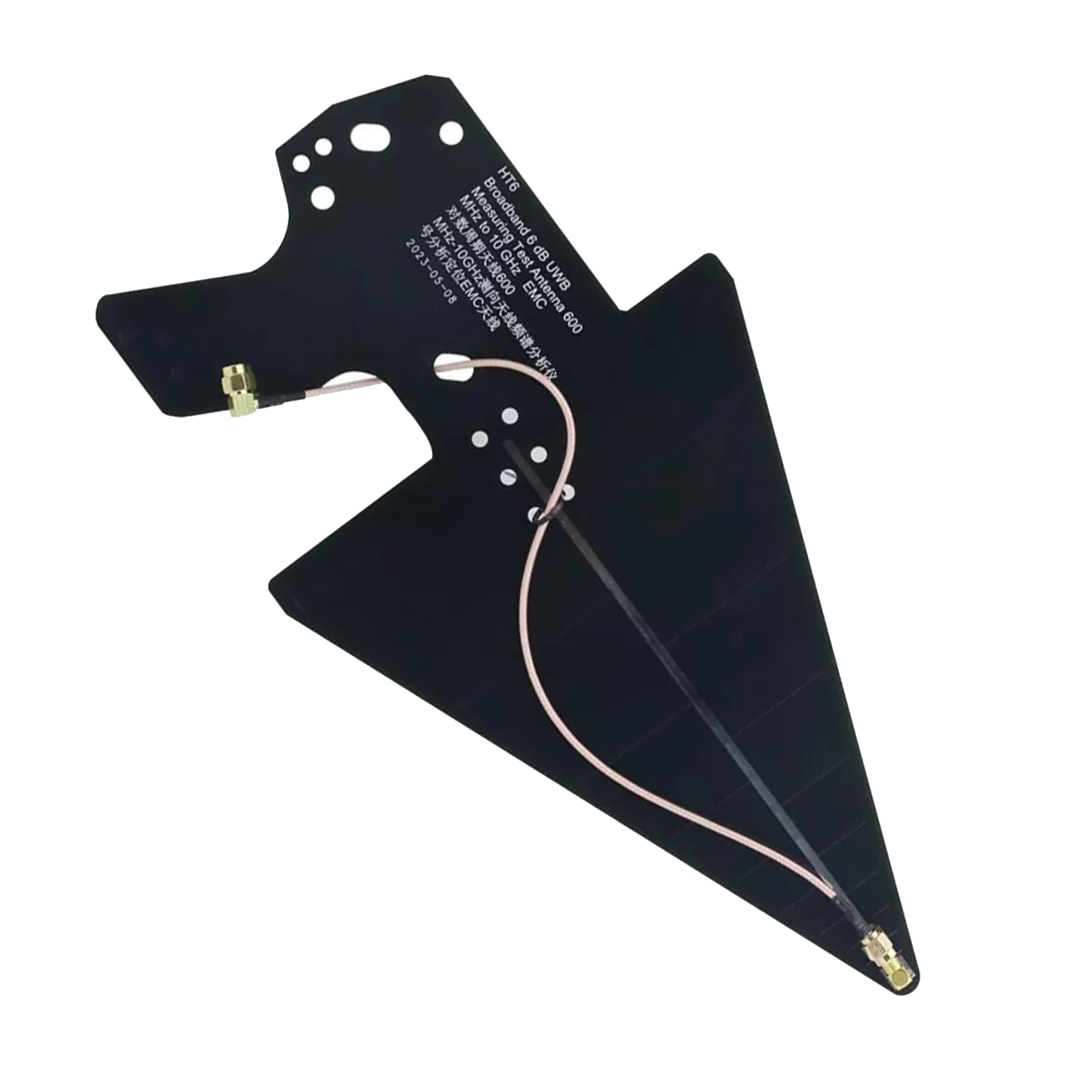

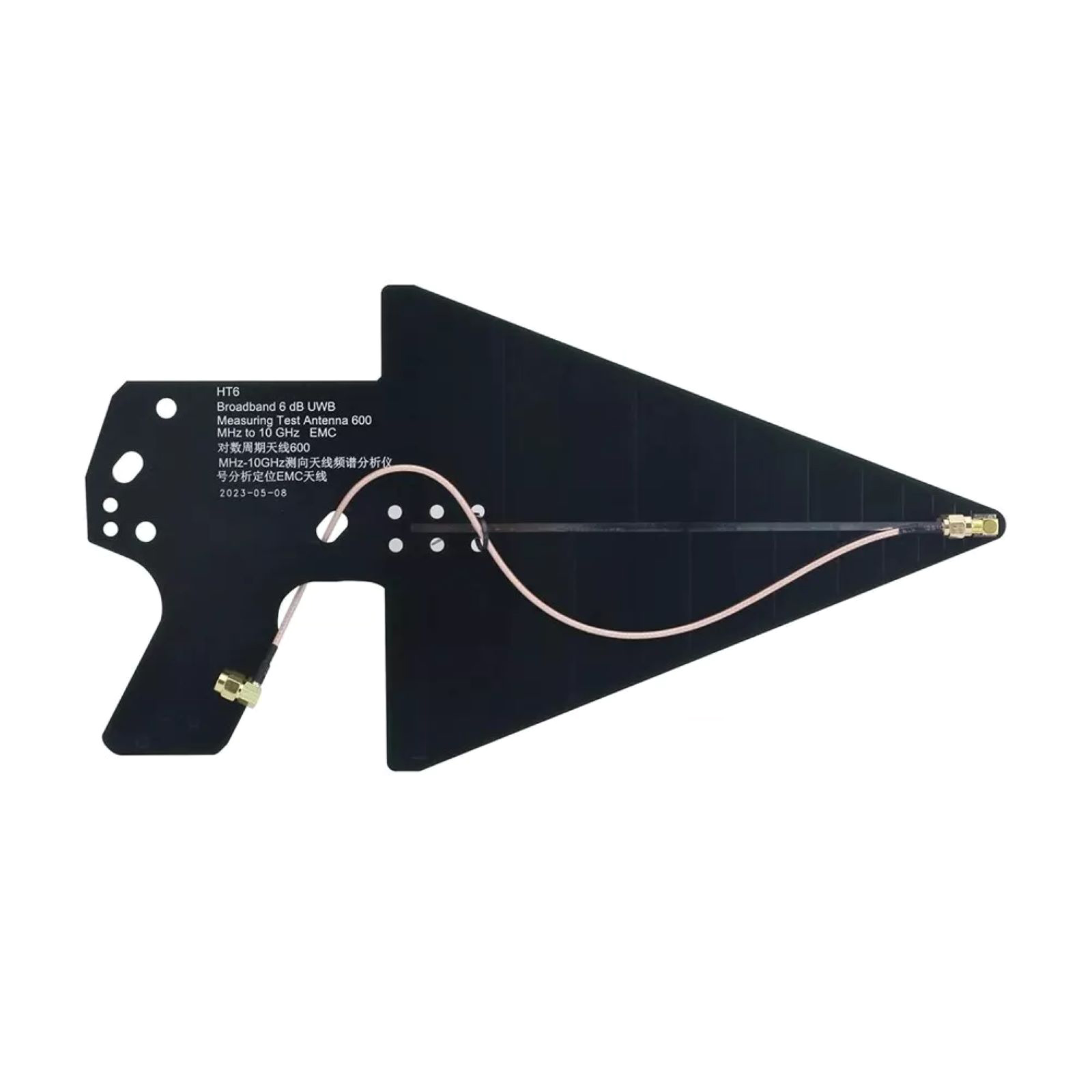

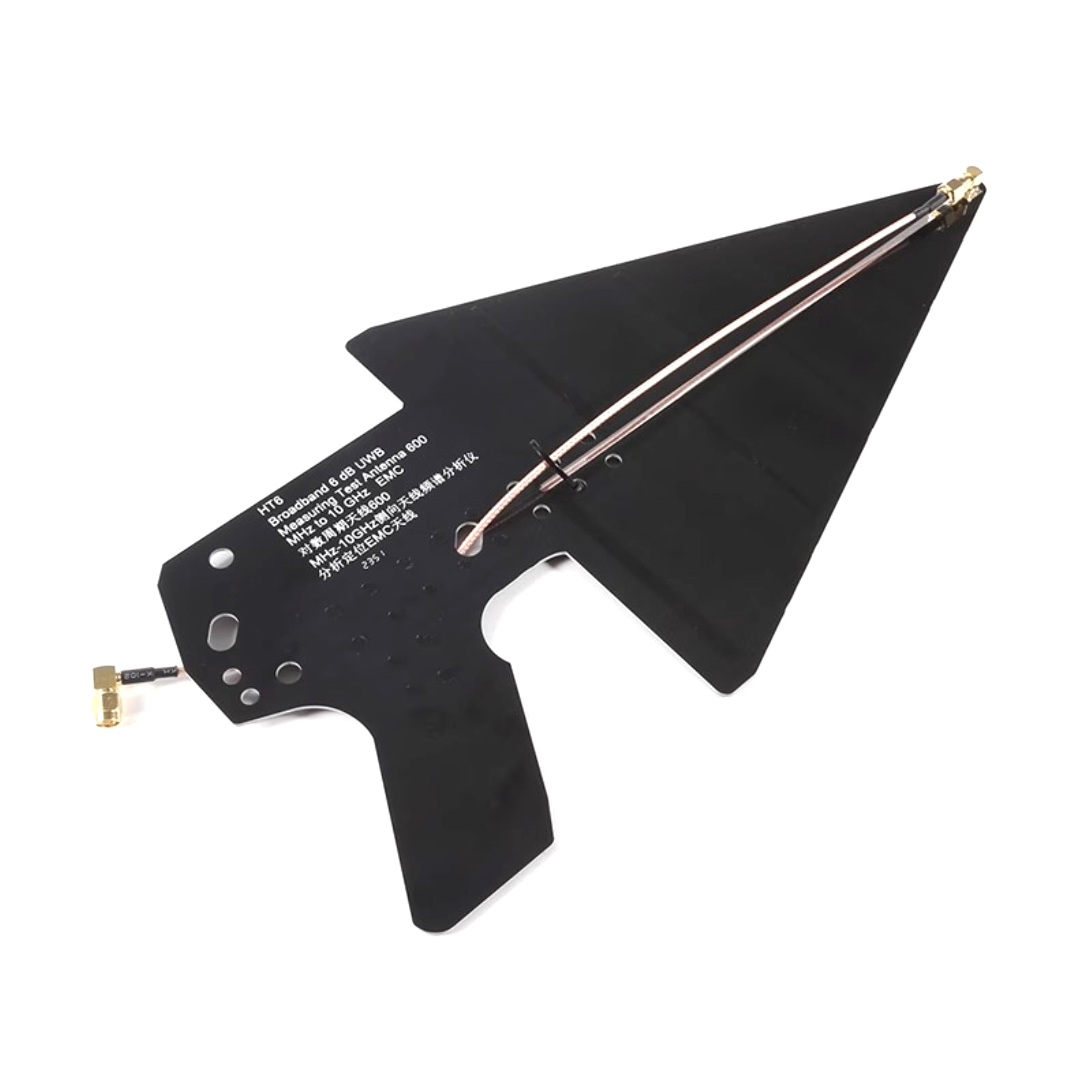

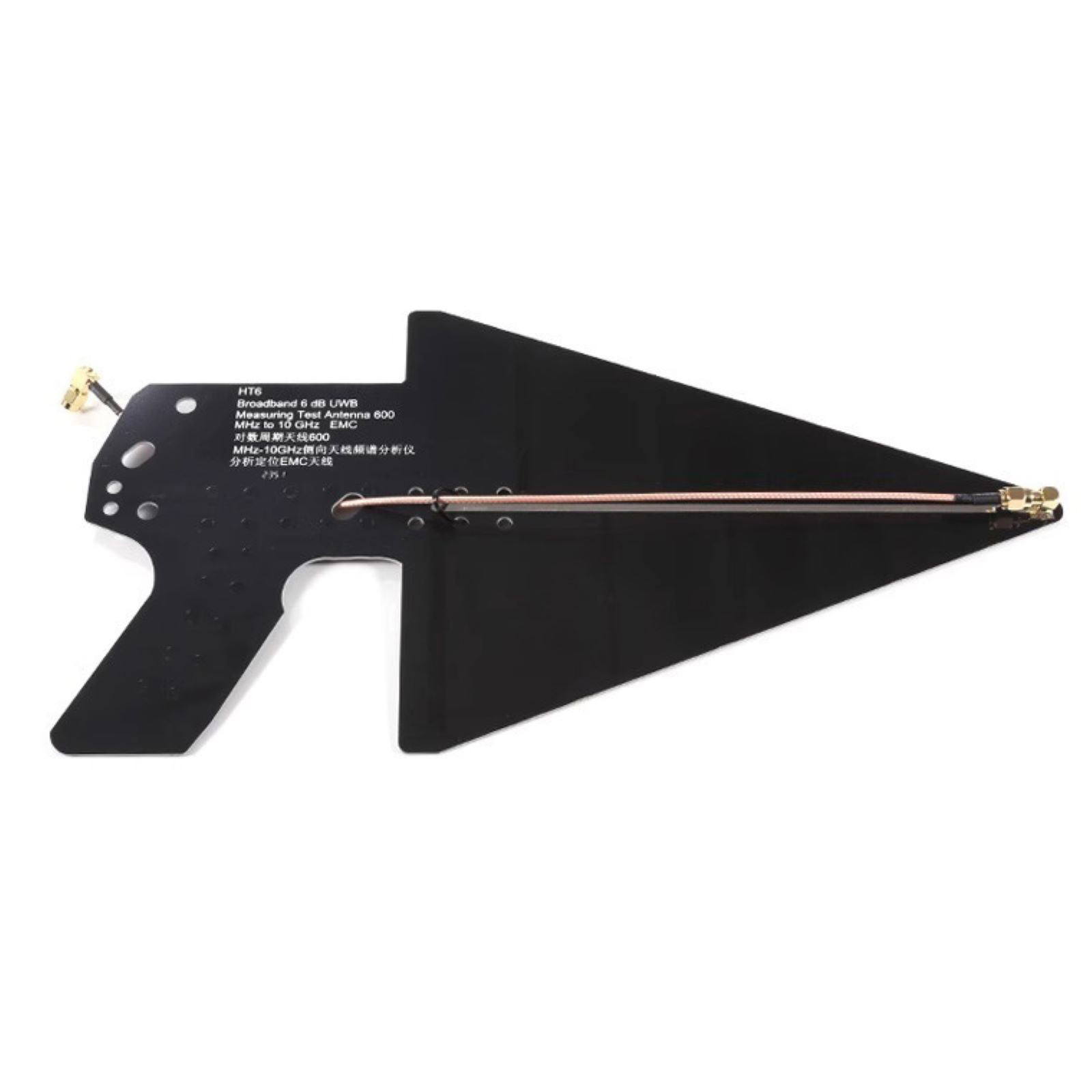

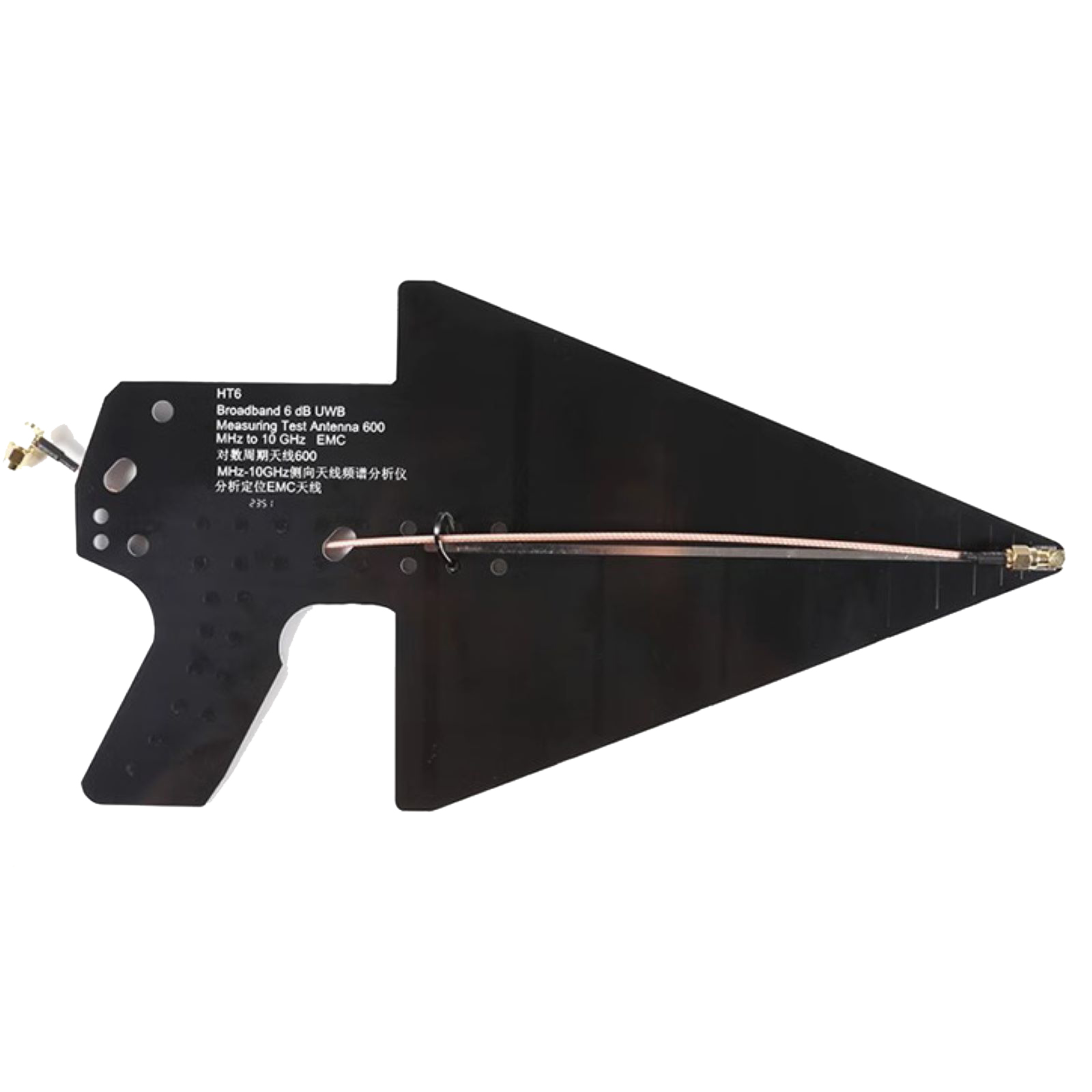

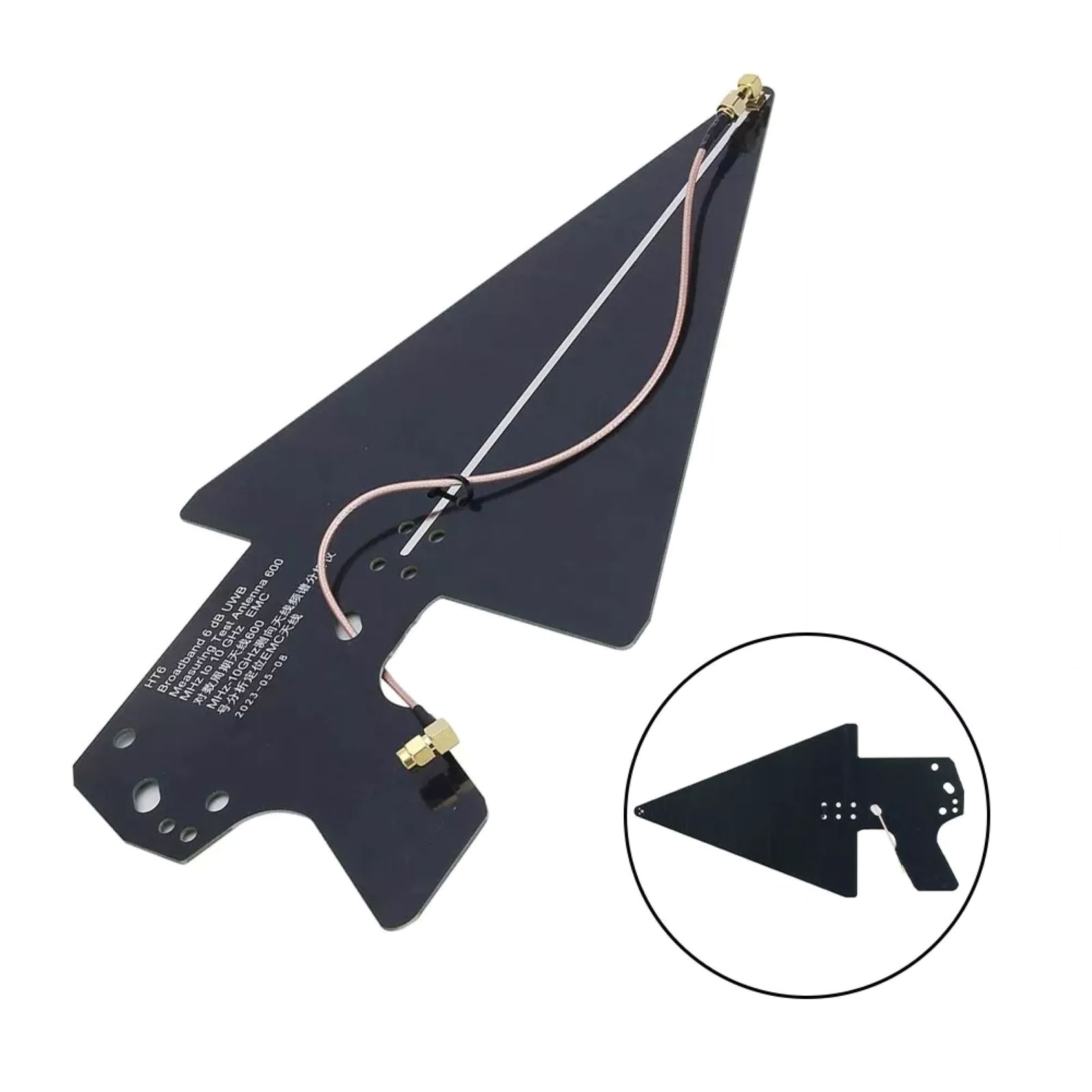

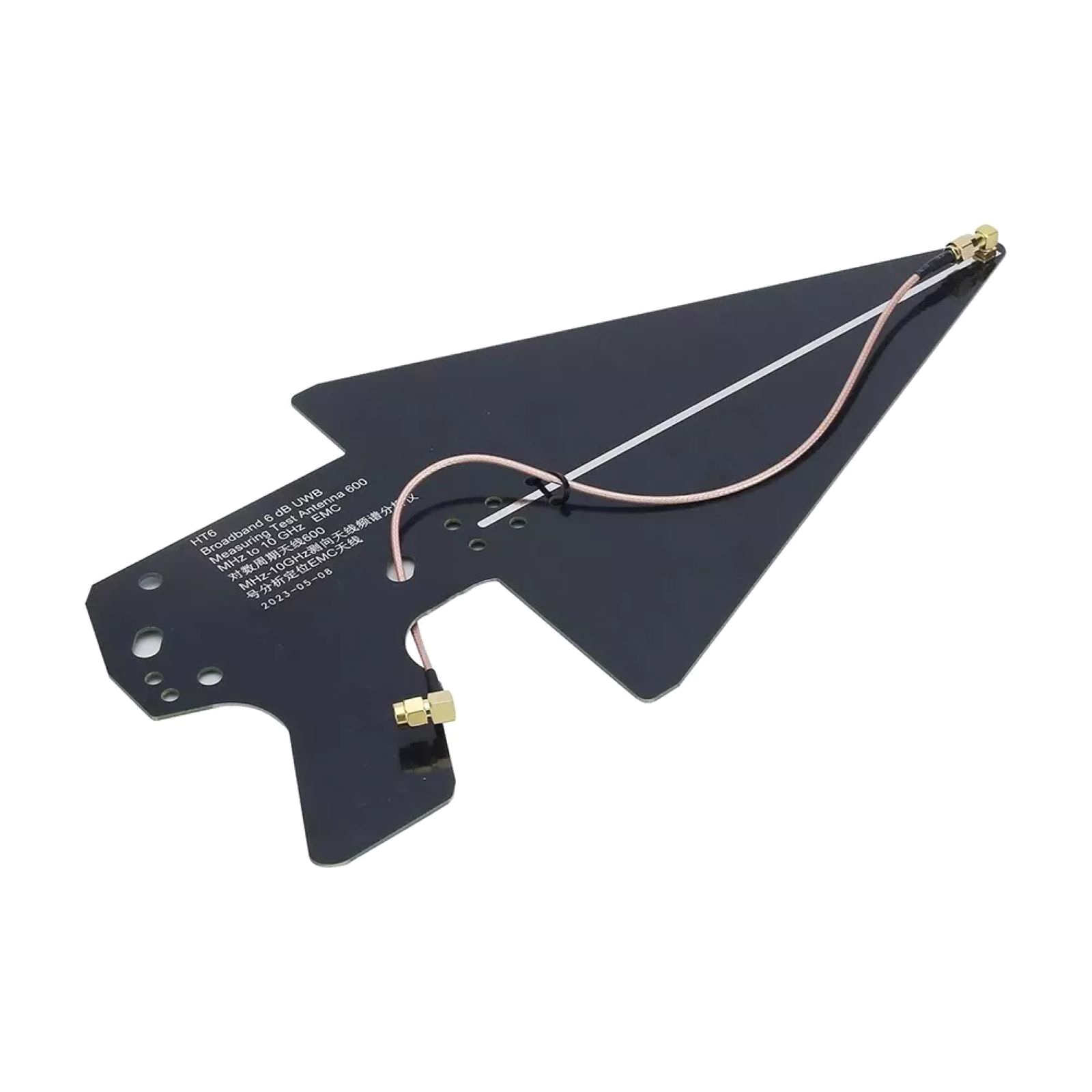

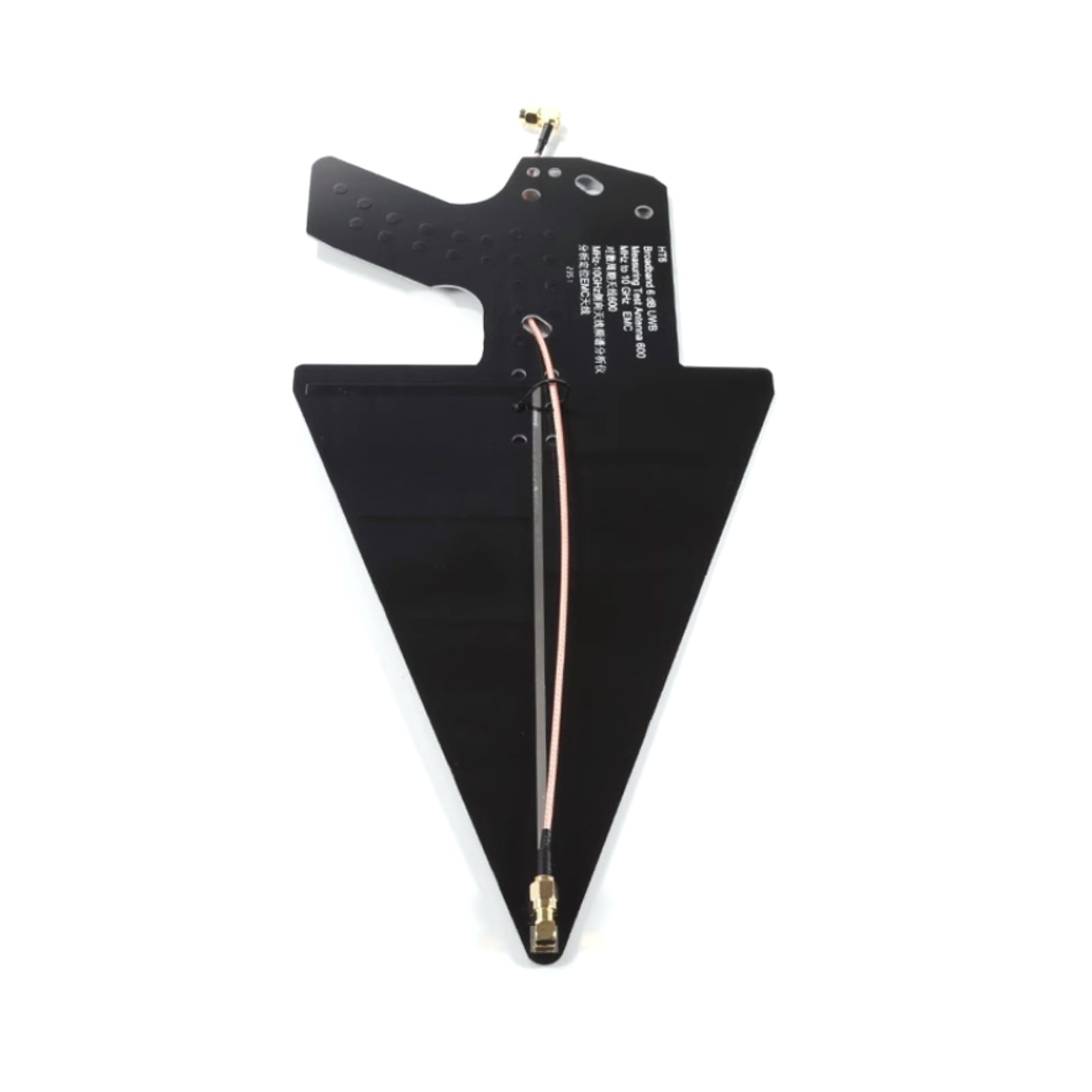

Part name: Log-periodic antenna
Model: HT6
Material: PCB
Color: Black
Frequency range: 600MHz-10GHz
Gain: 6-9dBi
VSWR:< 2.2
Standard impedance: 50 ohms
RF connection: SMA

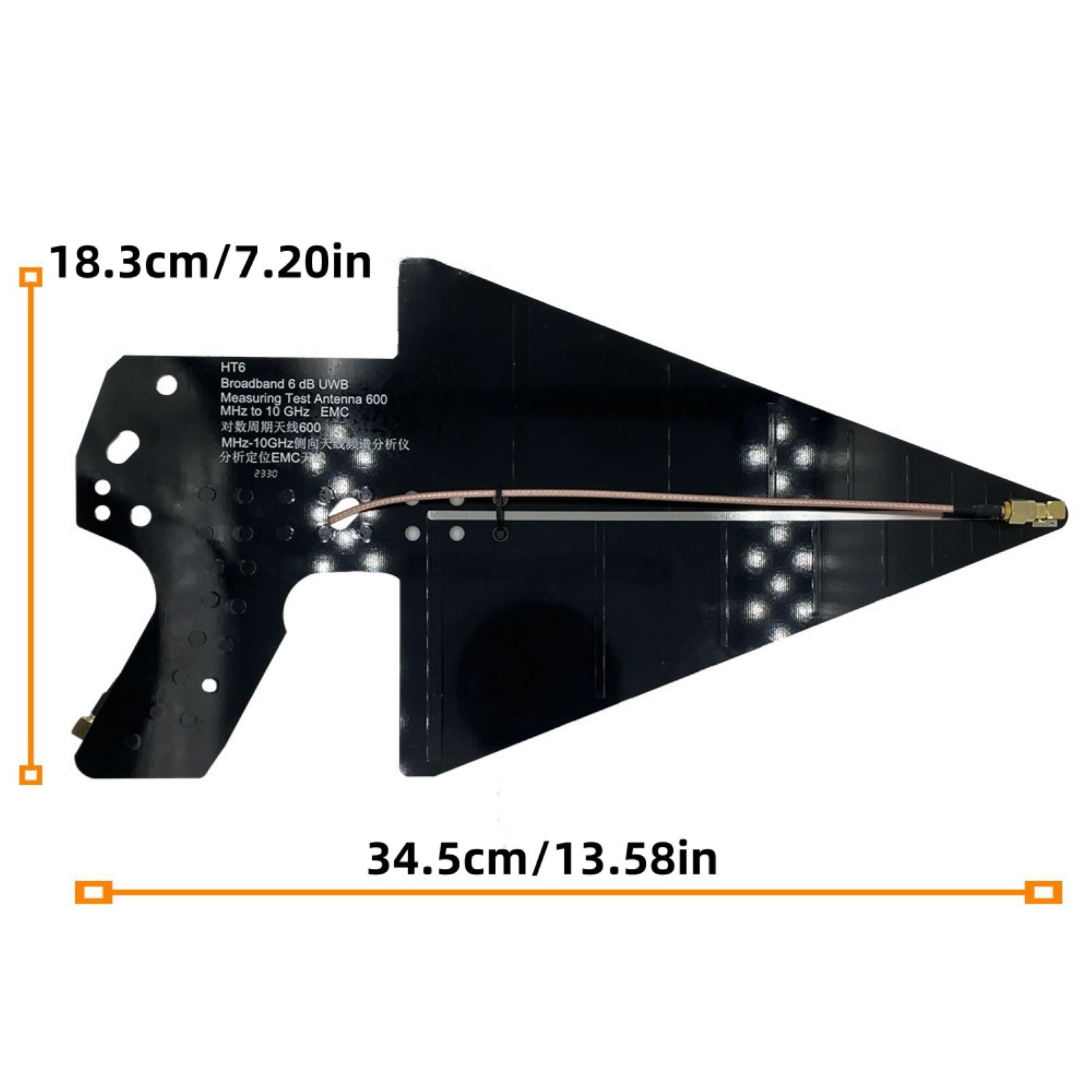

Product size: 34.5*18.3*0.15cm
Package Included:
1 x HT6 Log-periodic antenna
1 x RG316 SMA male connector high frequency connection cable
