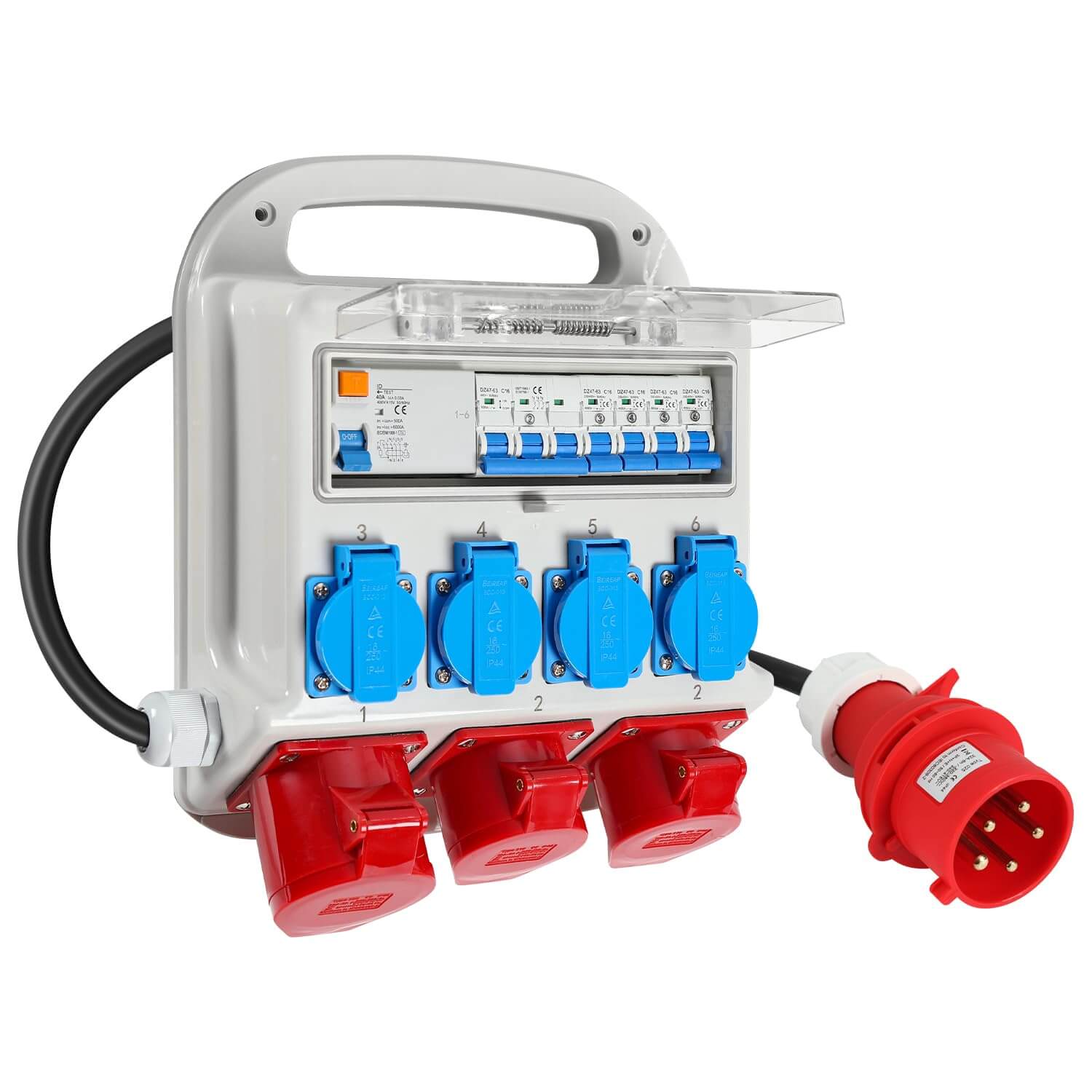

BUILDING POWER DISTRIBUTOR 4 X 230V, 2 X 400V 16A, 1 X 400V 32A WITH RCCB

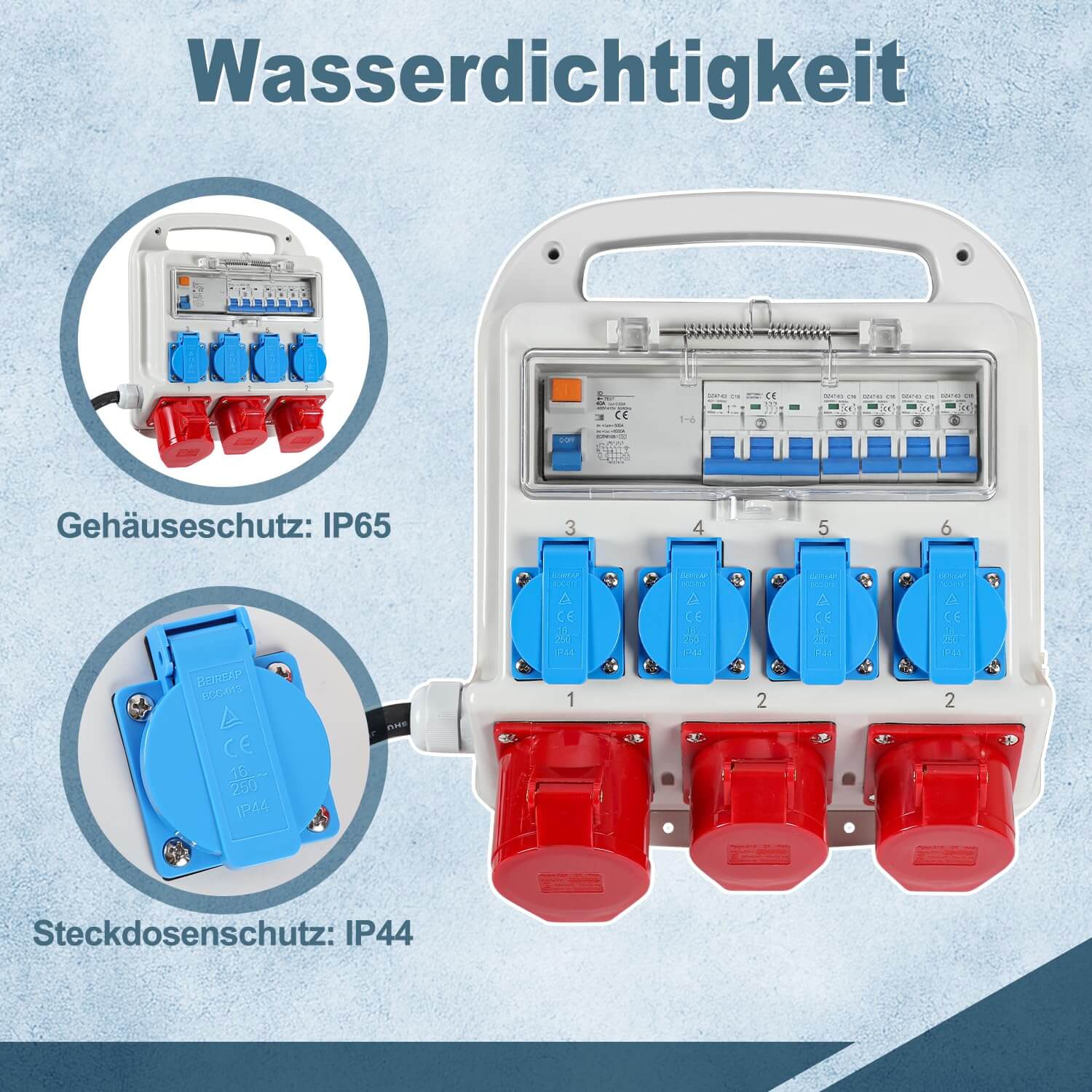

The plastic housing protects against splash water and dirt

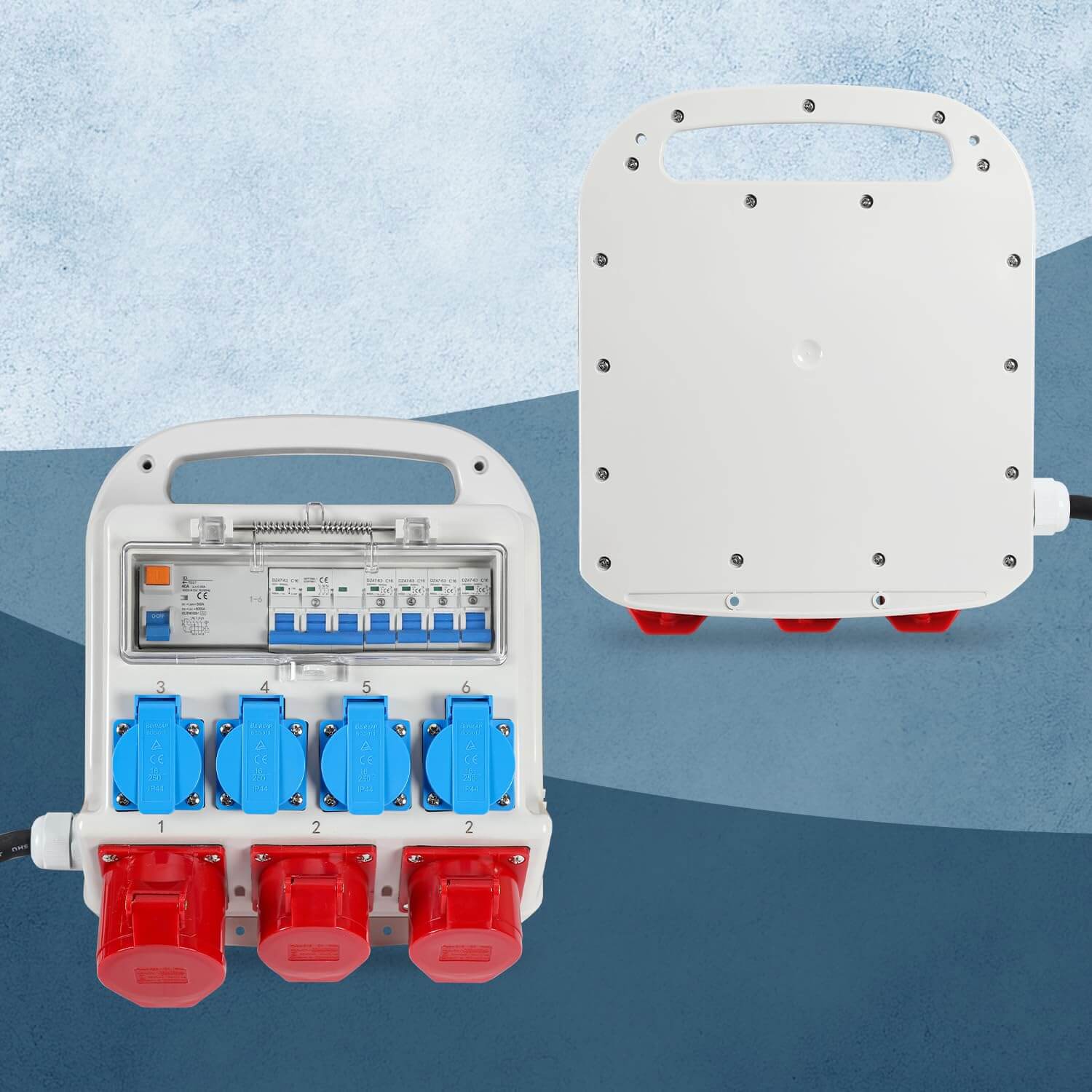

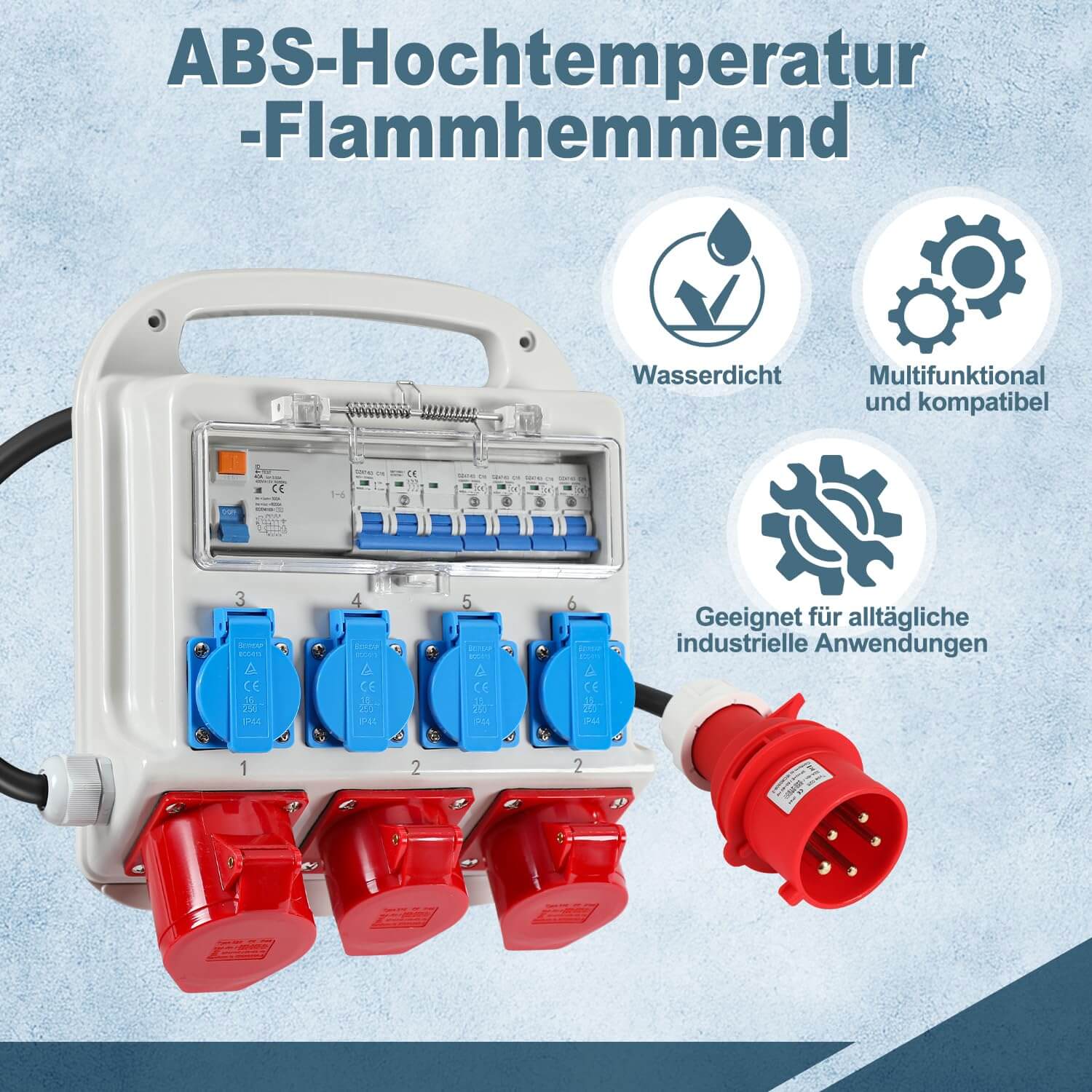

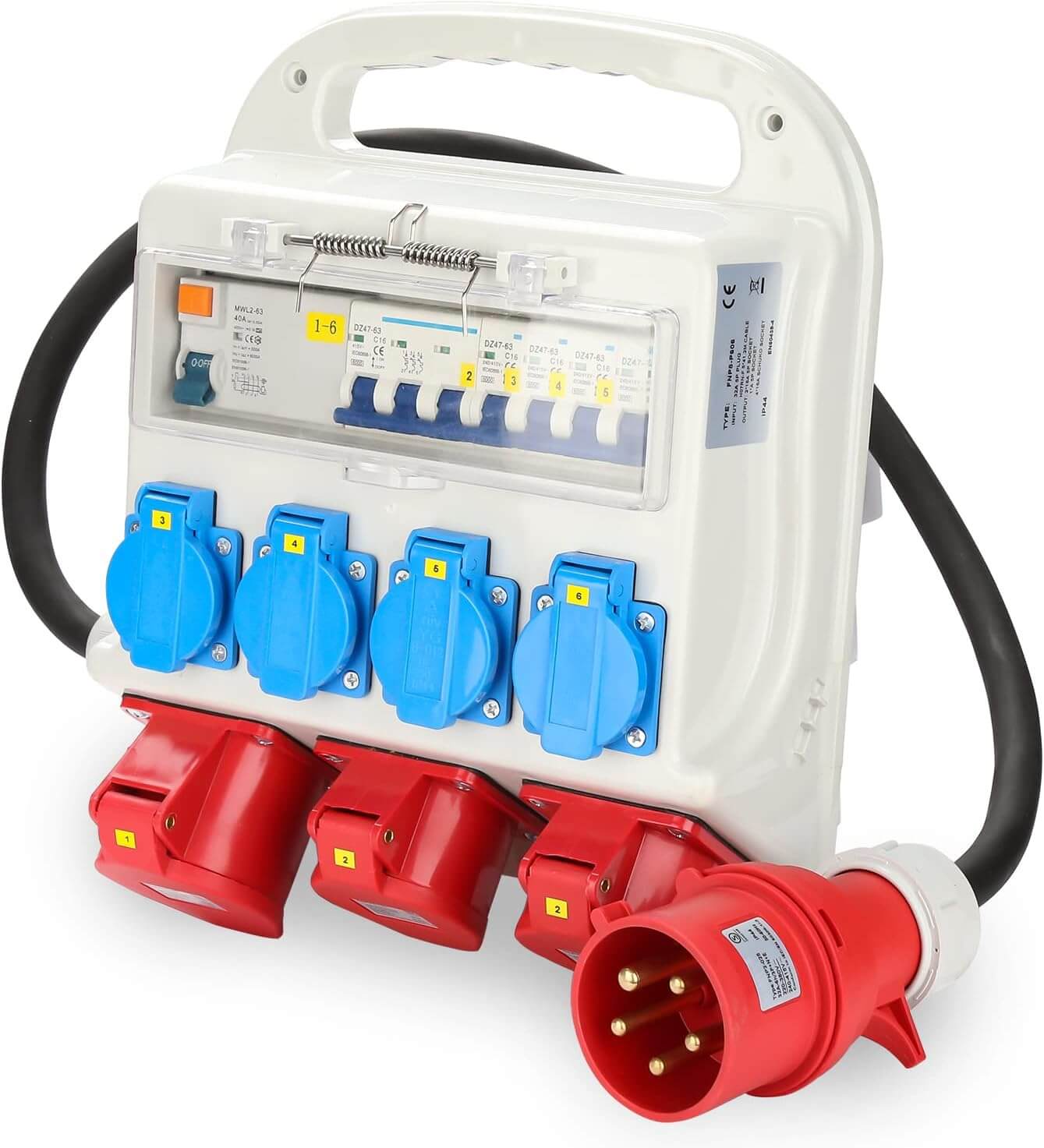

The power distributor has a sturdy housing and a carrying handle.
The power distributor has 2 x CEE400V-16A; 1 x CEE400V-32A connections and for 4 standard 230V Schuko sockets

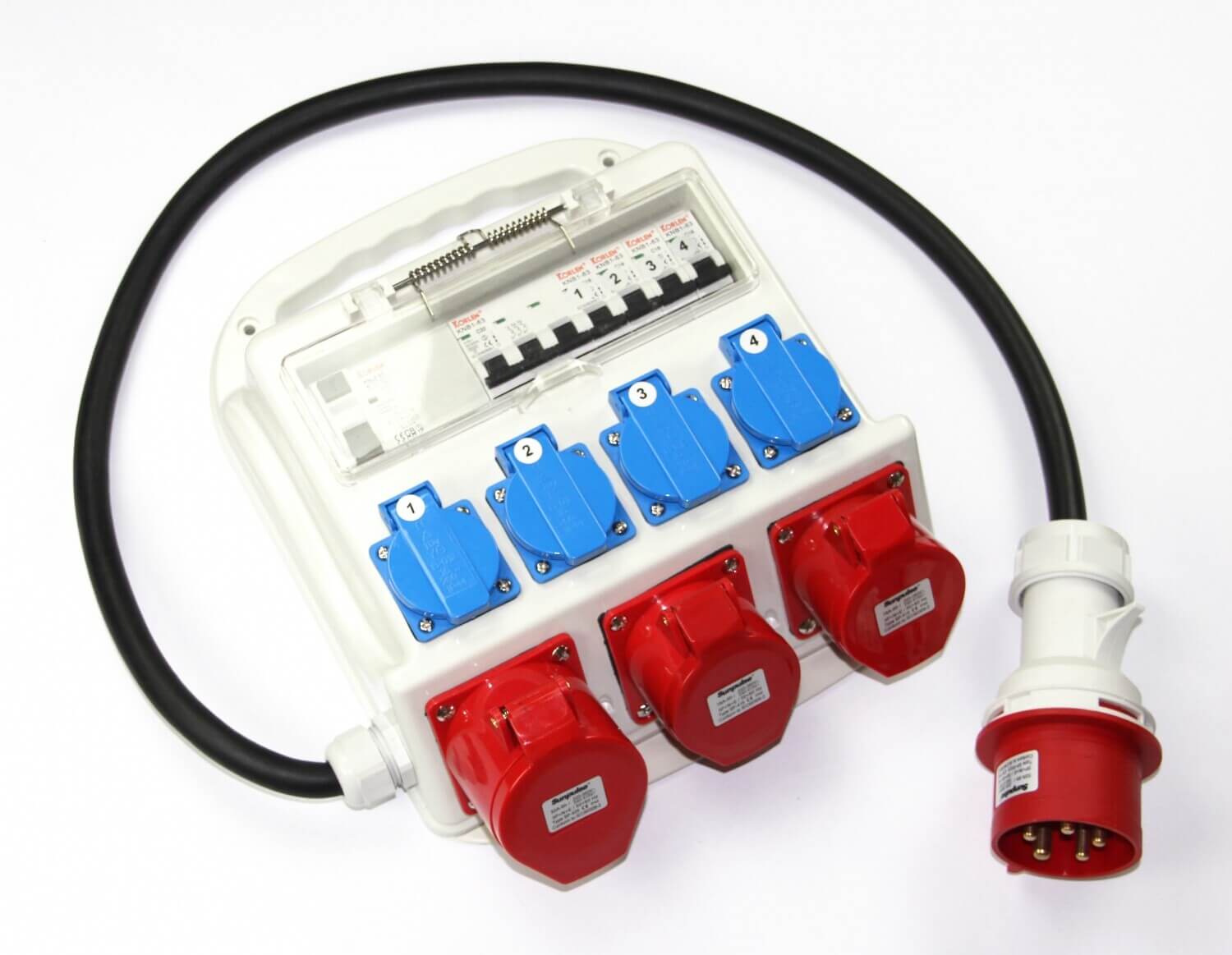

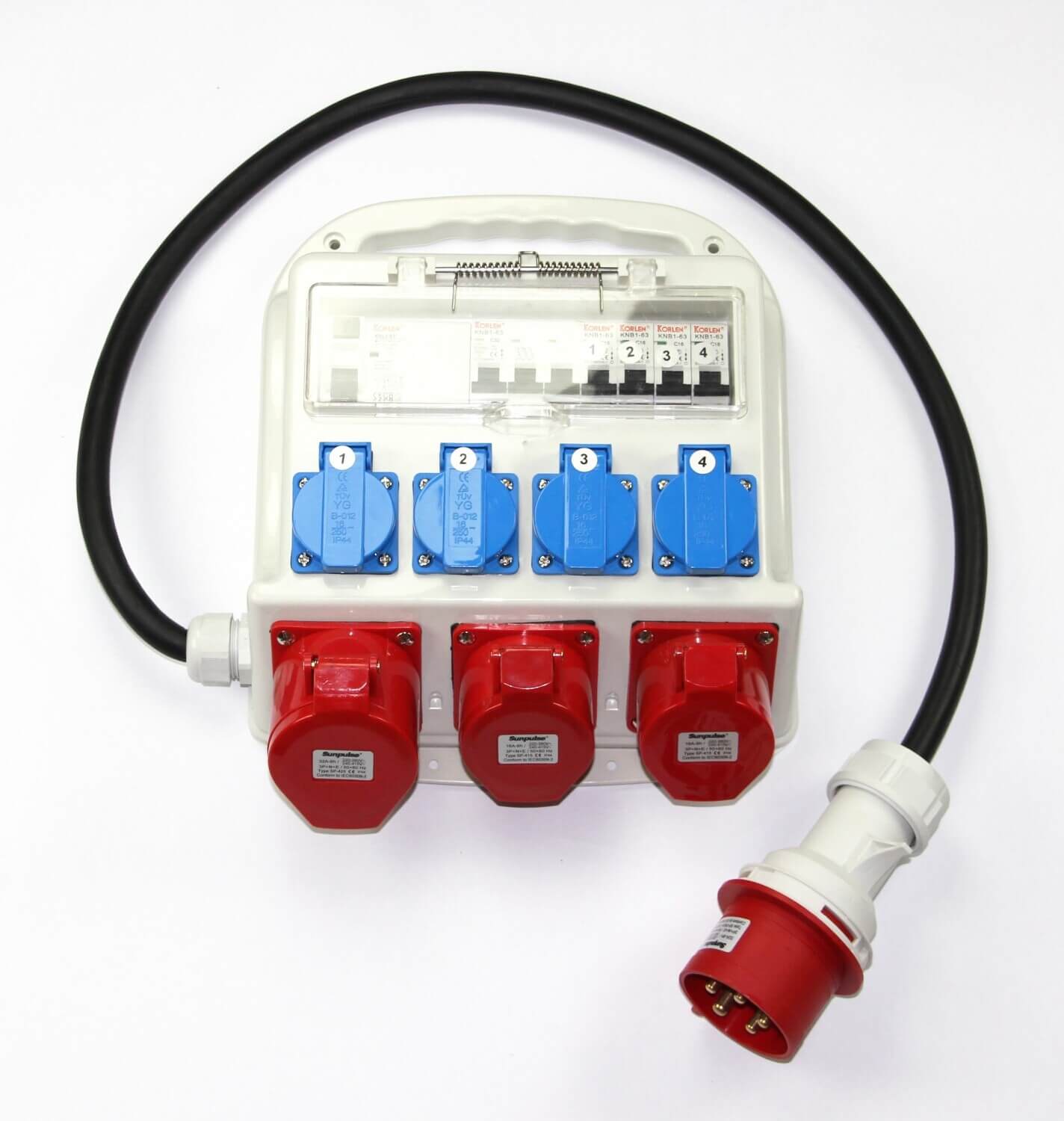

An approx. 80cm rubber connection cable with a CEE-32A plug is installed on the input side.

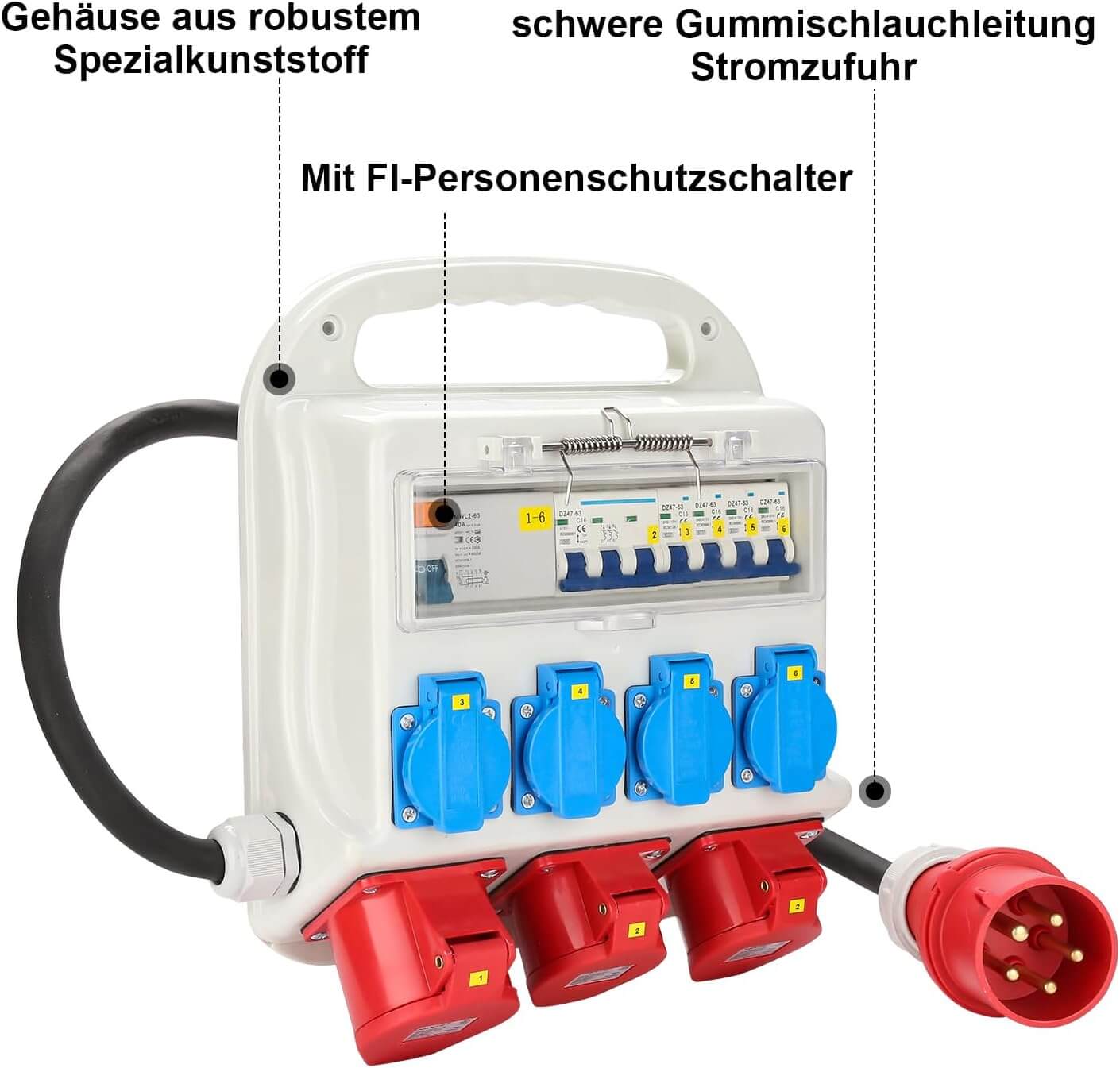

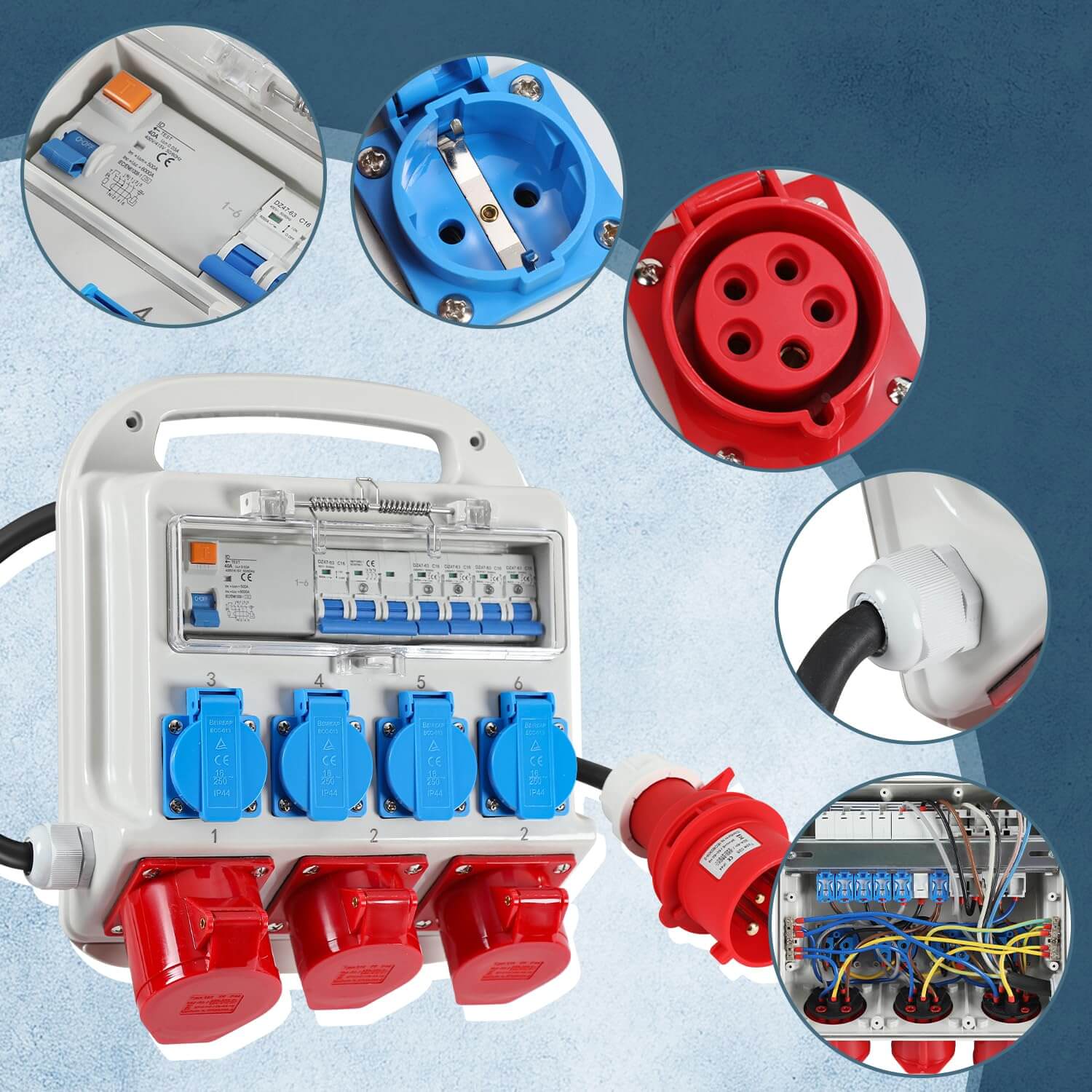

All outlets are protected with the integrated FI residual current circuit breaker.
The Schuko sockets are each individually protected with a 16A circuit breaker and the CEE 400V-16A sockets are protected together.
Residual current circuit breaker: 40a 30mA 4-pin
Circuit breaker for both CEE 400V/16A: C16A 3-pole

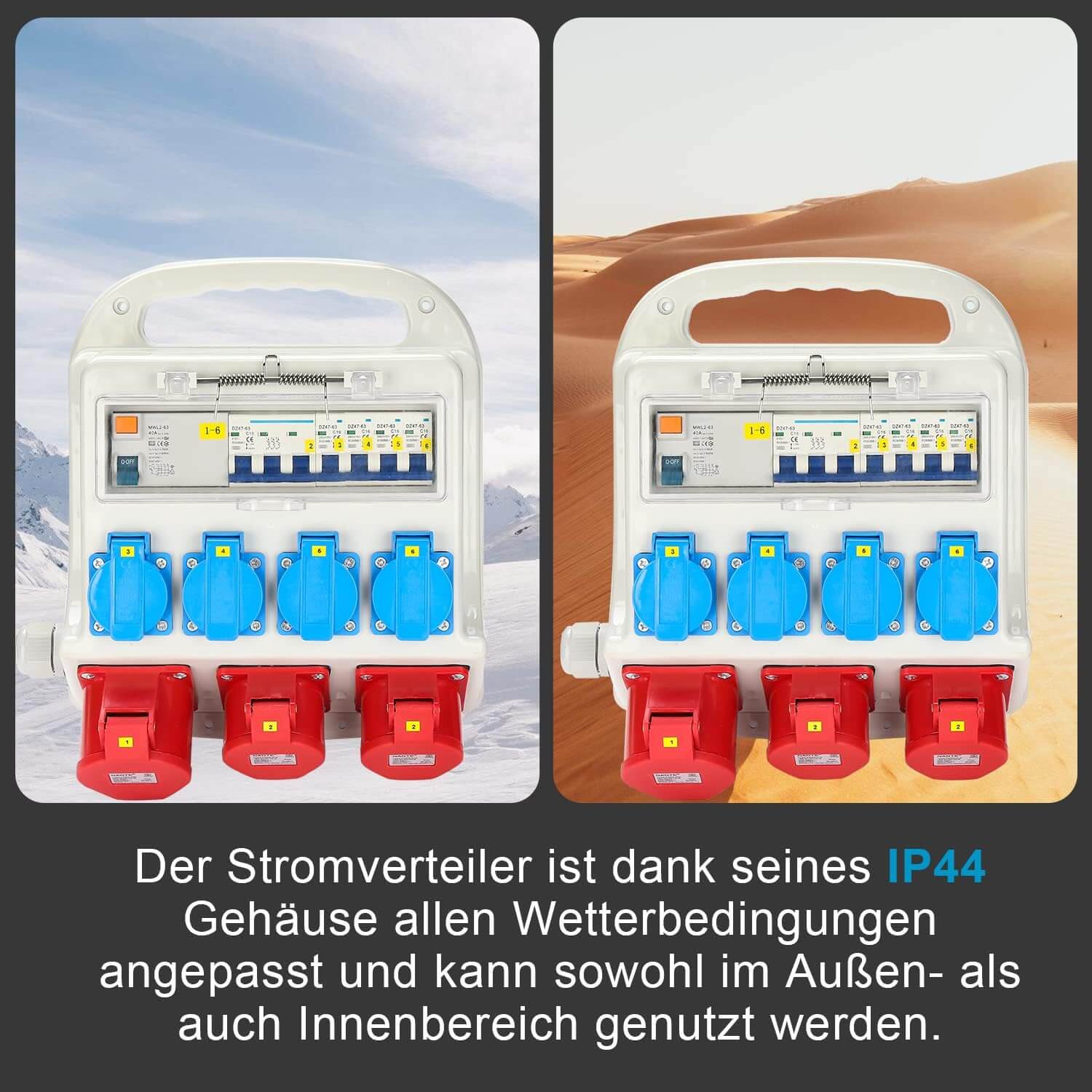

Protection class of the sockets IP 44, splash-proof
Circuit breaker per Schuko socket 230V: C16A 1-pole
Connection plug: CEE plug 400V / 32 A 5-pin

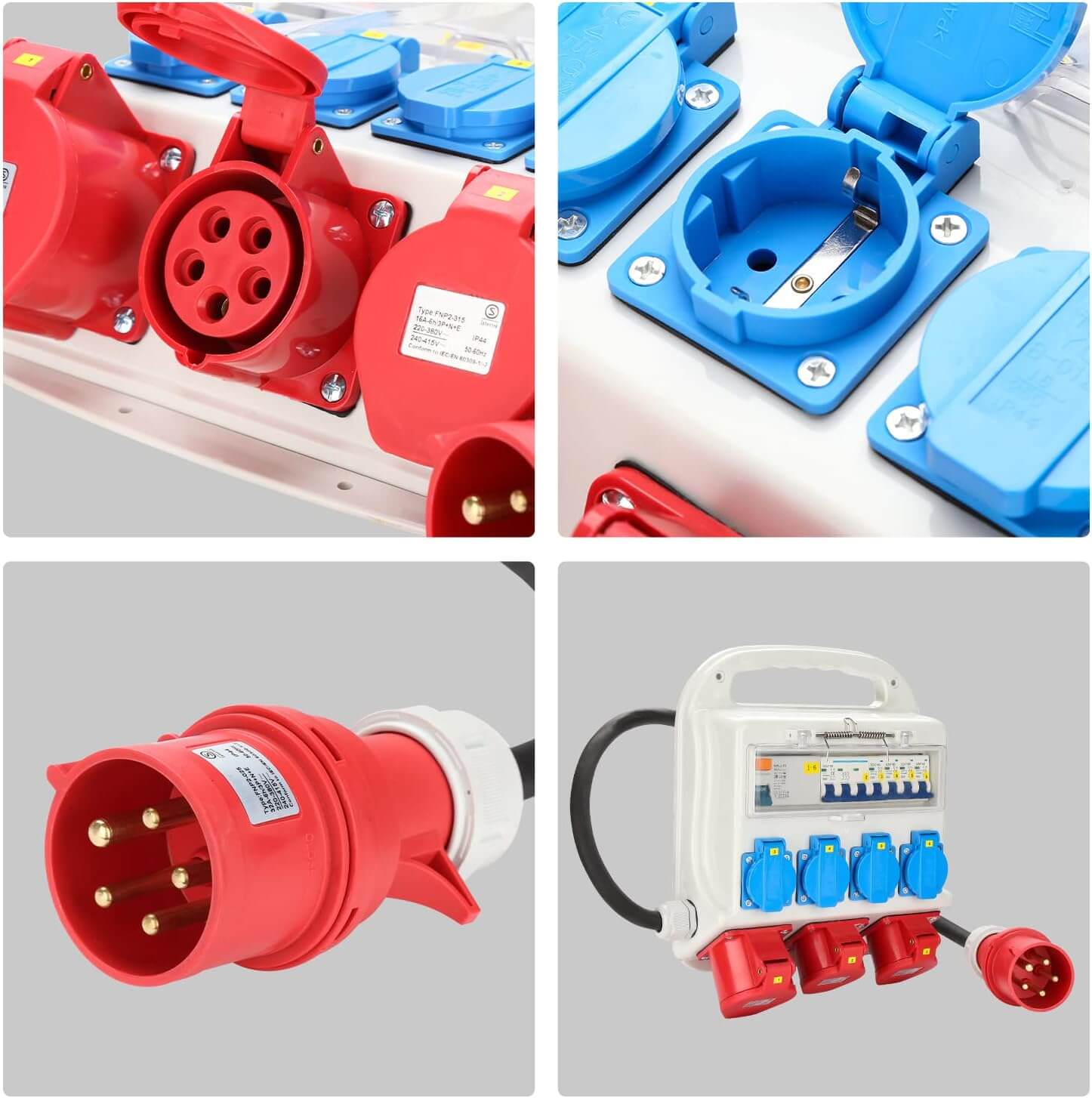

Output sockets 400V - 16A: 2 x CEE 400V / 16A 5-pole with safety hinged cover
Output sockets 400V - 32A: 1 x CEE 400 V / 32A 5-pole with safety hinged cover
Output sockets 230: 4 x 230V (Schuko) earthed contact sockets with safety hinged lid
Supply line: H07RN-F 5G 4
Product features

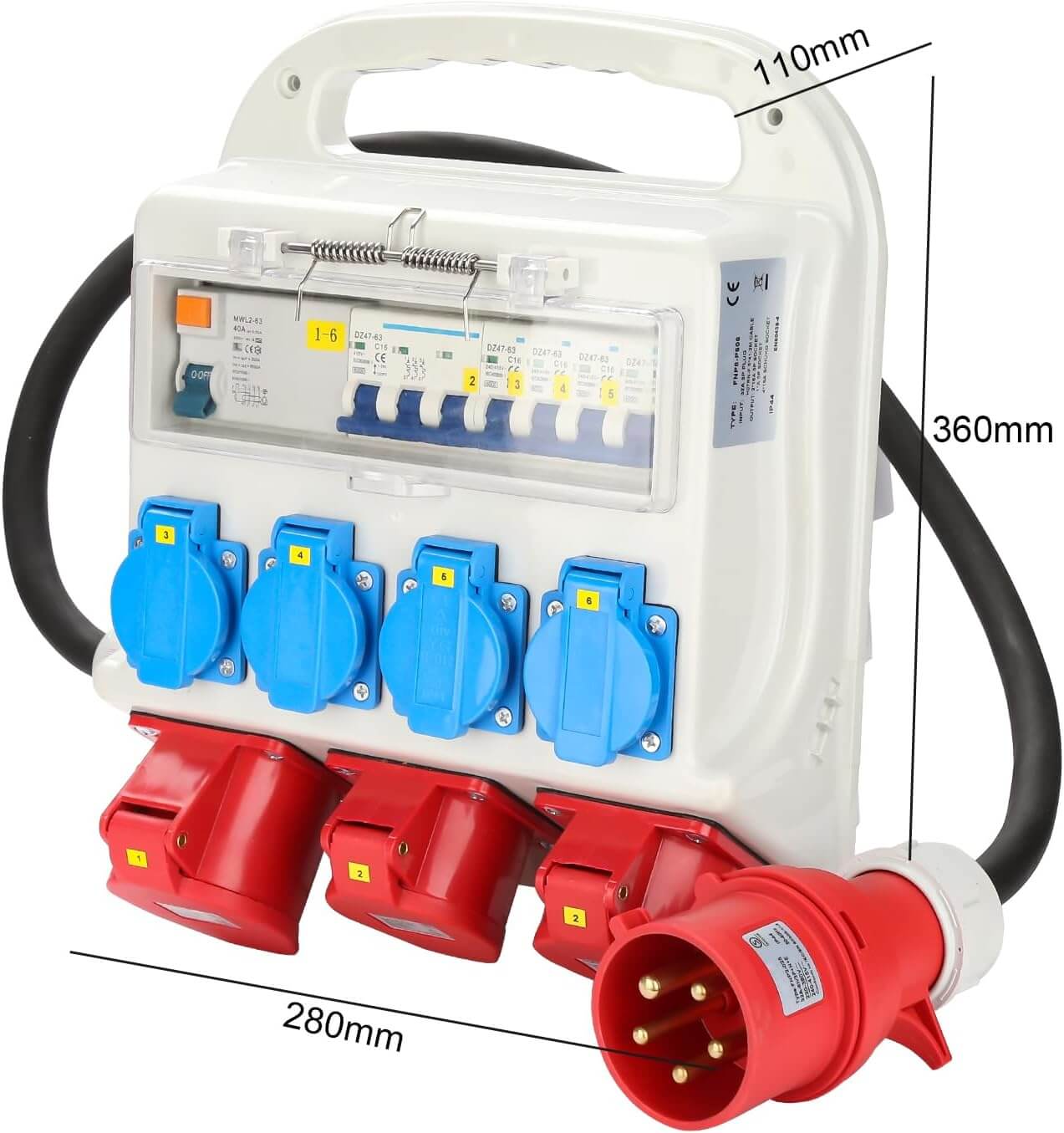

Dimensions: 360 x 300 x 130 mm
Continuous power: 400 V
