This is an updated version nema 17 stepper motor with holding torque of 59Ncm(83.55oz.in) . Based on old verstion, we have lengthened motor cable length to 1 metre, and add a 4-pin 0.1" pitch(2.54mm) Harwin female connector at the end of cable. It's good ideal for 3D printers, as well as CNC and robotics applications.
Electrical Specification
- Manufacturer Part Number: 17HS19-2004S1
- Motor Type: Bipolar Stepper
- Step Angle: 1.8deg
- Holding Torque: 59Ncm(83.55oz.in)
- Rated Current/phase: 2.0A
- Phase Resistance: 1.6ohms
- Inductance: 3.0mH±20%(1KHz)
- Insulation Class: B 130°C[266°F]

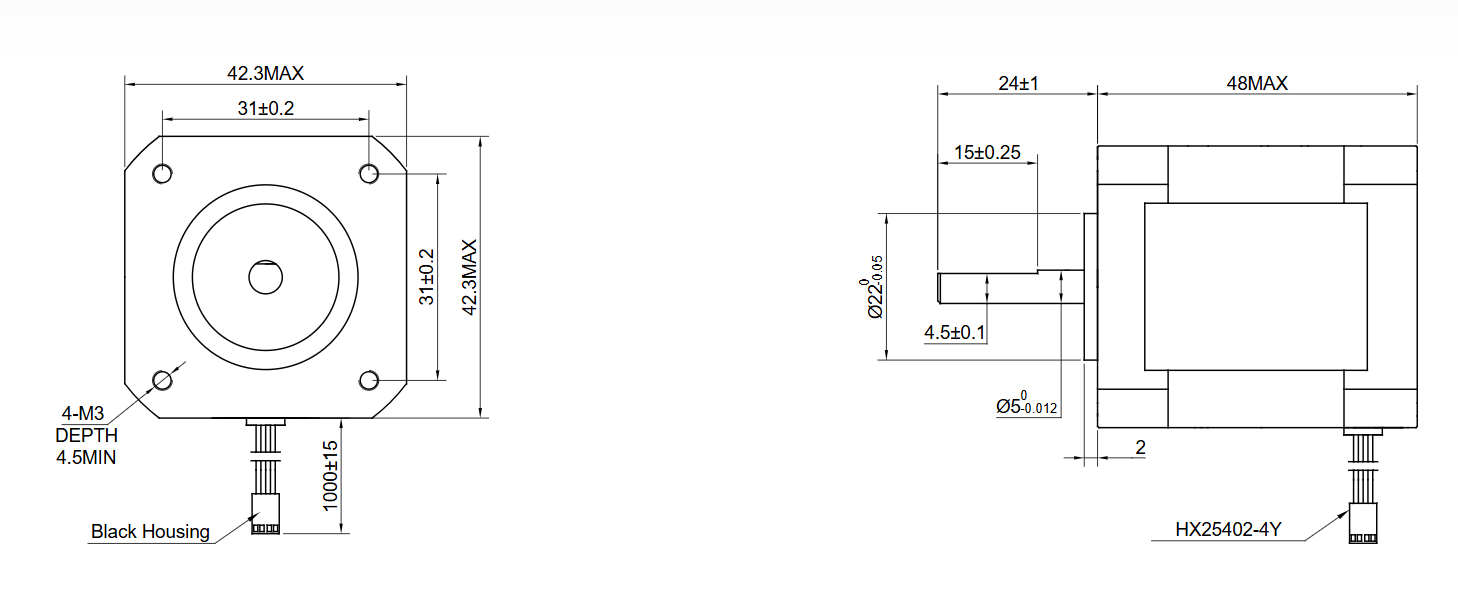

Physical Specification
- Frame Size: 42 x 42mm
- Body Length: 48mm
- Shaft Diameter: Φ5mm
- Shaft Length: 24mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 1000mm
- Weight: 390g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
