APPLICATIONS

Details

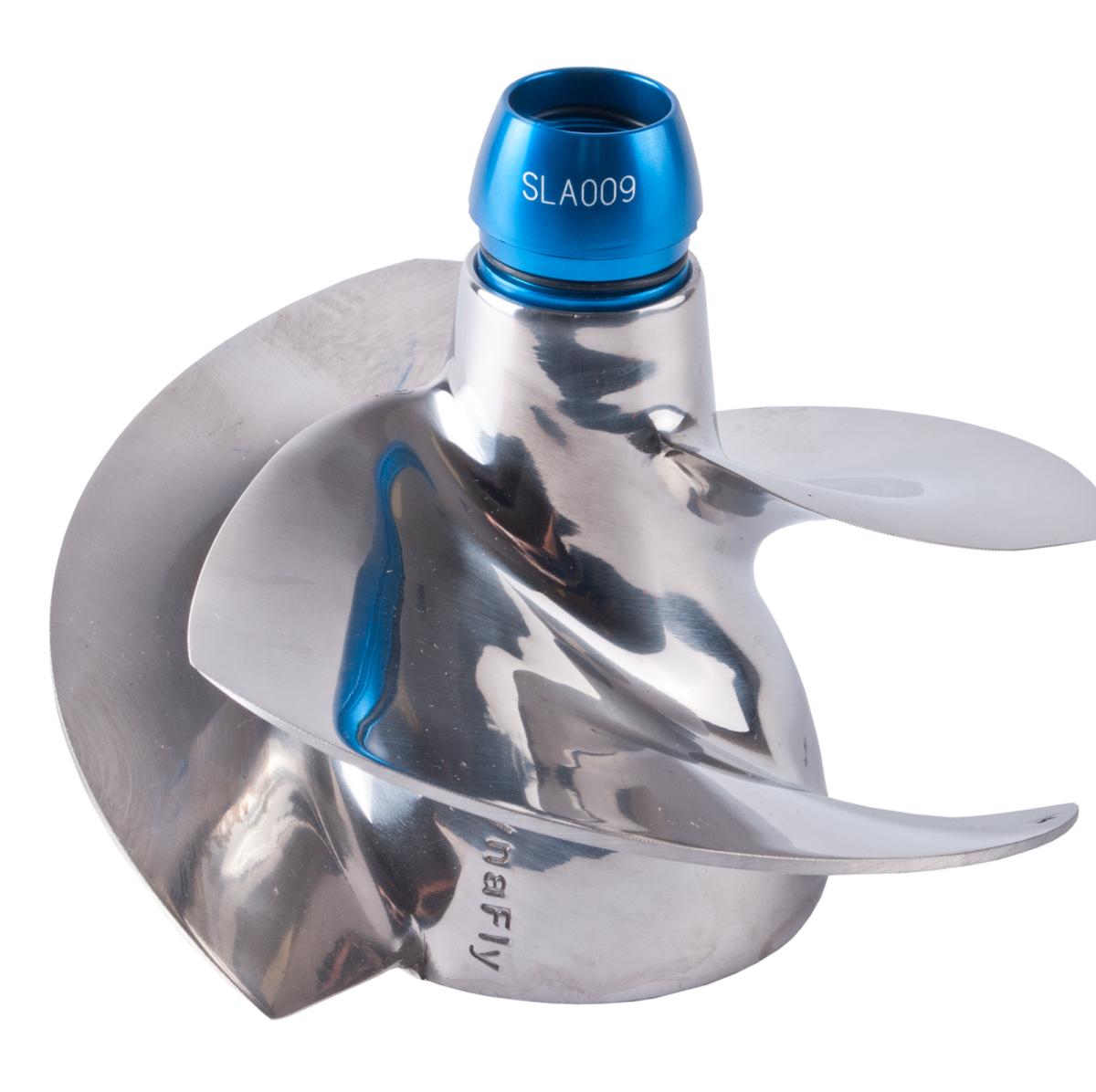

Dynafly Maximum Acceleration Our new impeller is designed to give high compression ratio pumps a stronger acceleration with less cavitation. This impeller is capable of giving your PWC an incredible boost in its performance. The SOLAS product line includes Dynafly impellers for the Ultra 150 pump and the 951 pump. SOLAS also has developed new impellers for other pumps. Please check the application chart for further details.

Applications

2003 800 SX-R

2004 800 SX-R

2005 800 SX-R

2006 800 SX-R

2007 800 SX-R

2008 800 SX-R

2009 800 SX-R

2010 800 SX-R

2011 800 SX-R

Installation

1.)Remove and separate the whole jet pump from the PWC

2.)Remove the trail cone (or cap) from the stator

3.)Hold the rear end of the shaft with a bench vise. Remove the impeller with an impeller wrench. Turning counter clockwise will loosen the impeller.

4.)Visually inspect thread on shaft and impeller for debris or damage. Apply grease or anti-seize on the thread before installation.

5.)Screw the impeller by hand; please be careful of the sharp edge of the impeller. Tighten with the impeller wrench. If the impeller feels too tight or not threaded properly, unscrew the impeller, clean and check the thread.

6.)Assemble the pump and put it back on the PWC.

*this installation guide is suggested for reference only

*please refer to your original service manual or contact your PWC dealer for detail

*guide provided by Solas

*some wrenches are optional parts and are available for purchase on our website

Impeller Series - Wrench - Seal

KA Super Camber (ABC/IJK Series) - WR001 - SLA009

KB Super Camber (ABC Series) - WR002 - SL002

KC Super Camber (ABC Series) - WR005 - Original

KD Super Camber (ABC Series) - WR001 - SLA009

KE Super Camber (ABC/IJK Series) Xprop/Concord Series KP Concord/Dynafly Series - WR001 - SLA009

KF Super Camber (IJK Series) XProp Series - WR001 - SLA009

KG Xprop/Concord Series - WR001 - SLA009

KH Dynafly Series - WR001 - SL007

KX Concord Series - WR001 - SLA009
