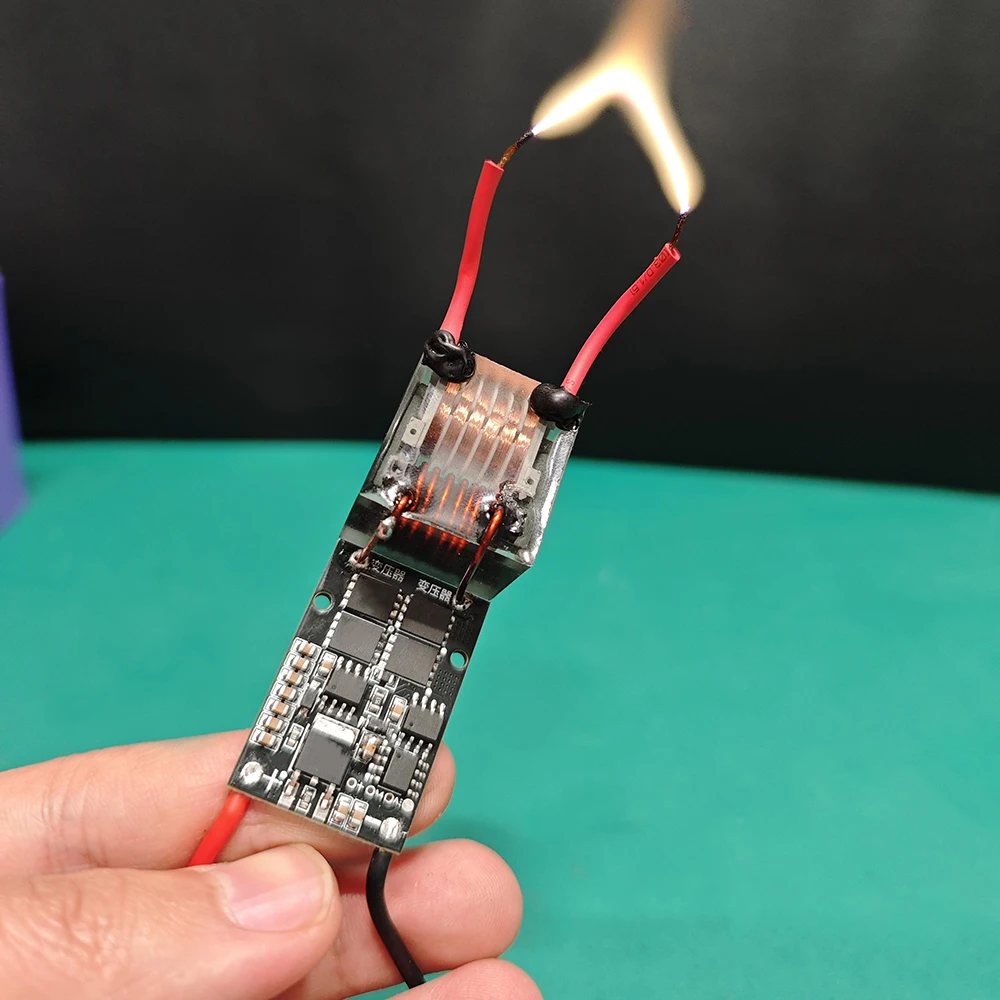

This high-voltage ignition module adopts dynamic frequency sweeping technology to realize automatic arc starting, eliminating the need for manual arc operation for effortless use. Equipped with a high-quality transformer, it supports 12V power supply and natural heat dissipation, enabling long-time continuous working performance.

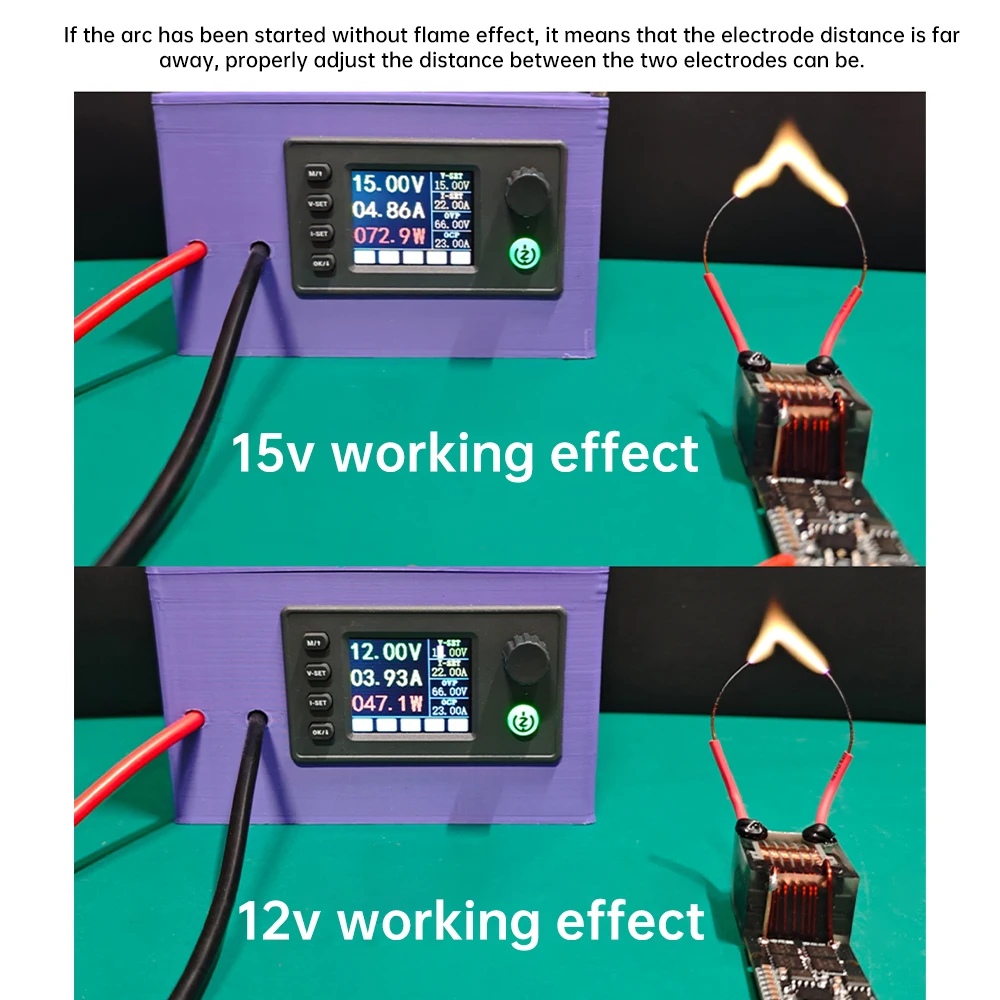

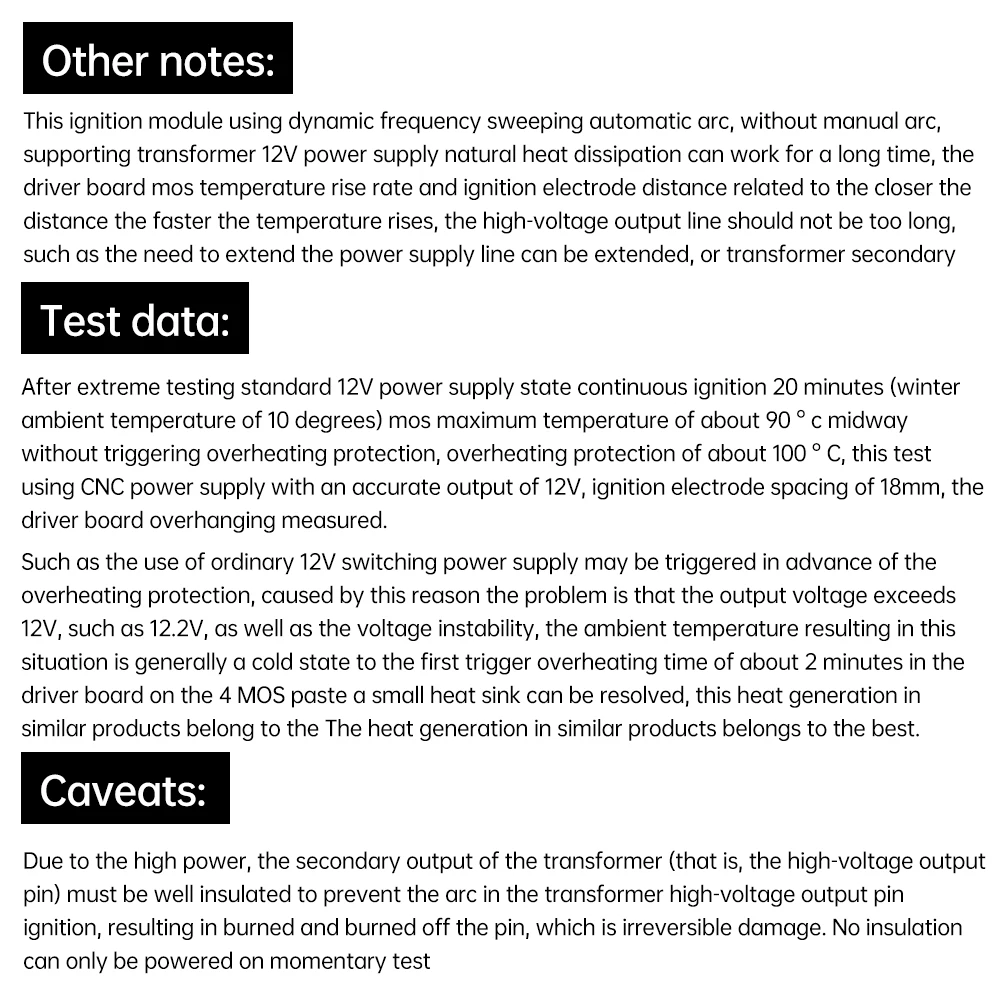

Note that the temperature rise rate of the driver board’s MOS is related to the distance of the ignition electrode: the shorter the distance, the faster the temperature rises. For optimal performance, do not use an overly long high-voltage output line—if line extension is needed, extend the power supply line or the transformer secondary line instead.

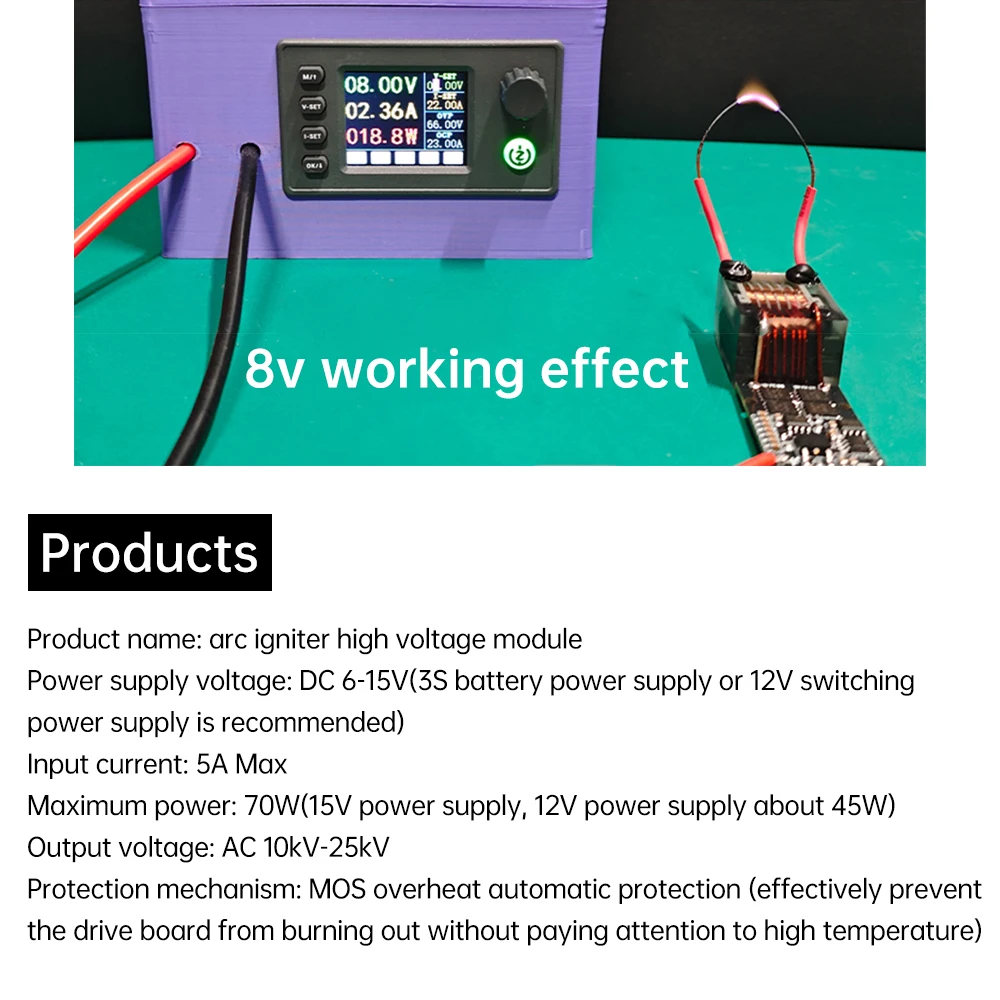

Item
Parameter
Product Name
Arc Igniter High Voltage Module
Supply Voltage
DC 6-15V (Recommended: 3S battery / 12V switching power supply)
Max Input Current
5A
Max Power
70W (15V power supply); ~45W (12V power supply)
Output Voltage
AC 10kV-25kV

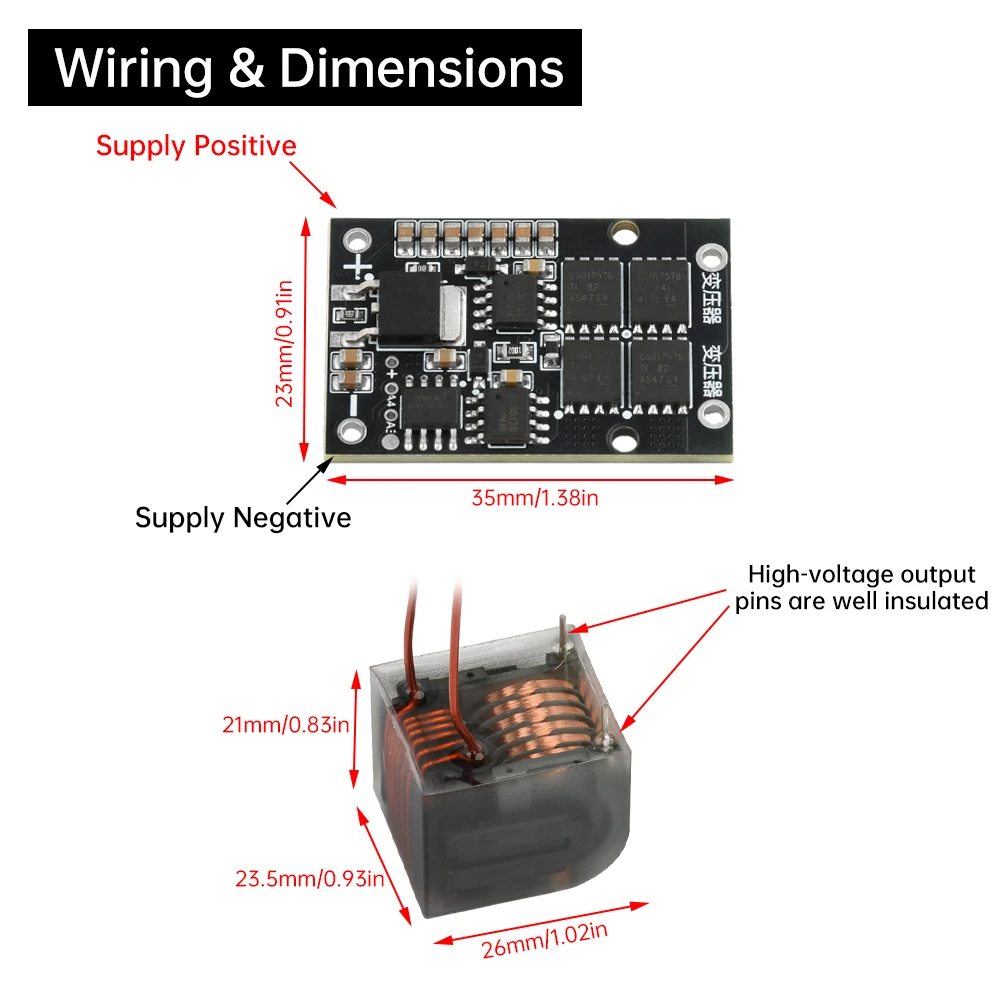

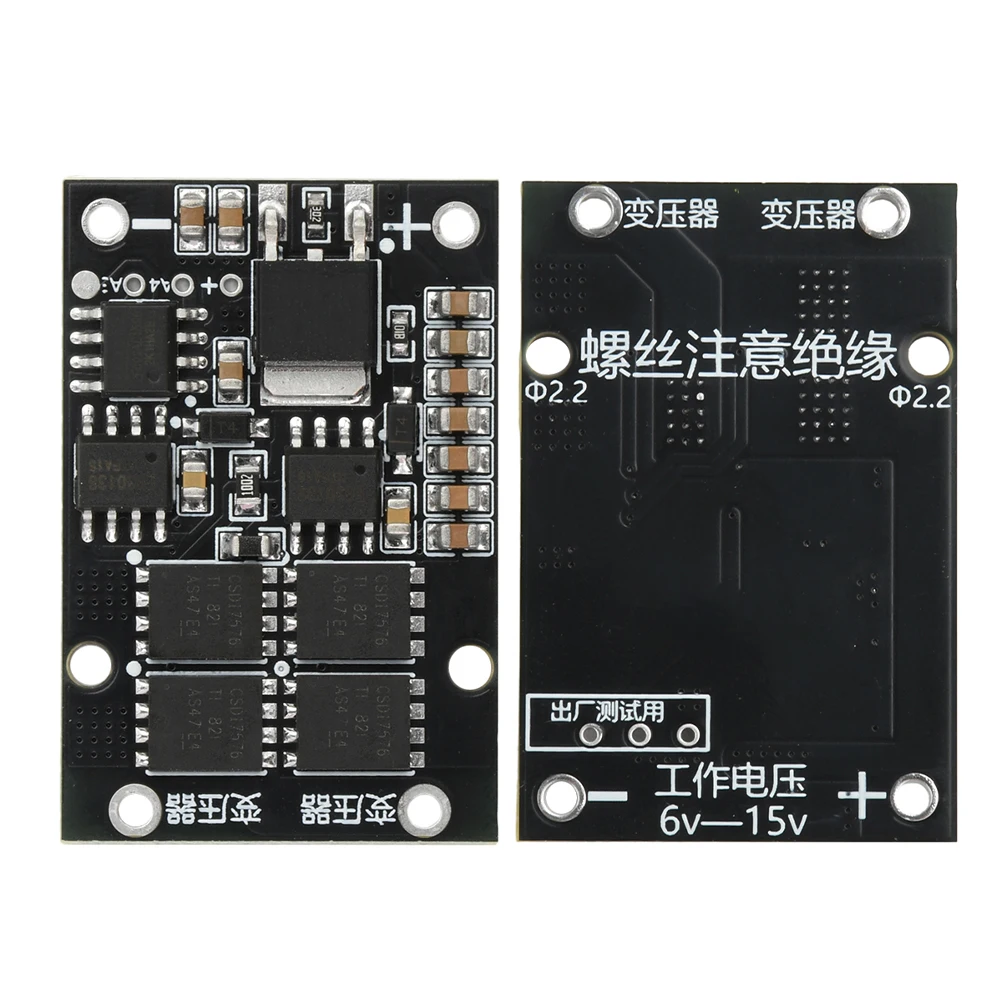

Circuit Board Size
35×23mm

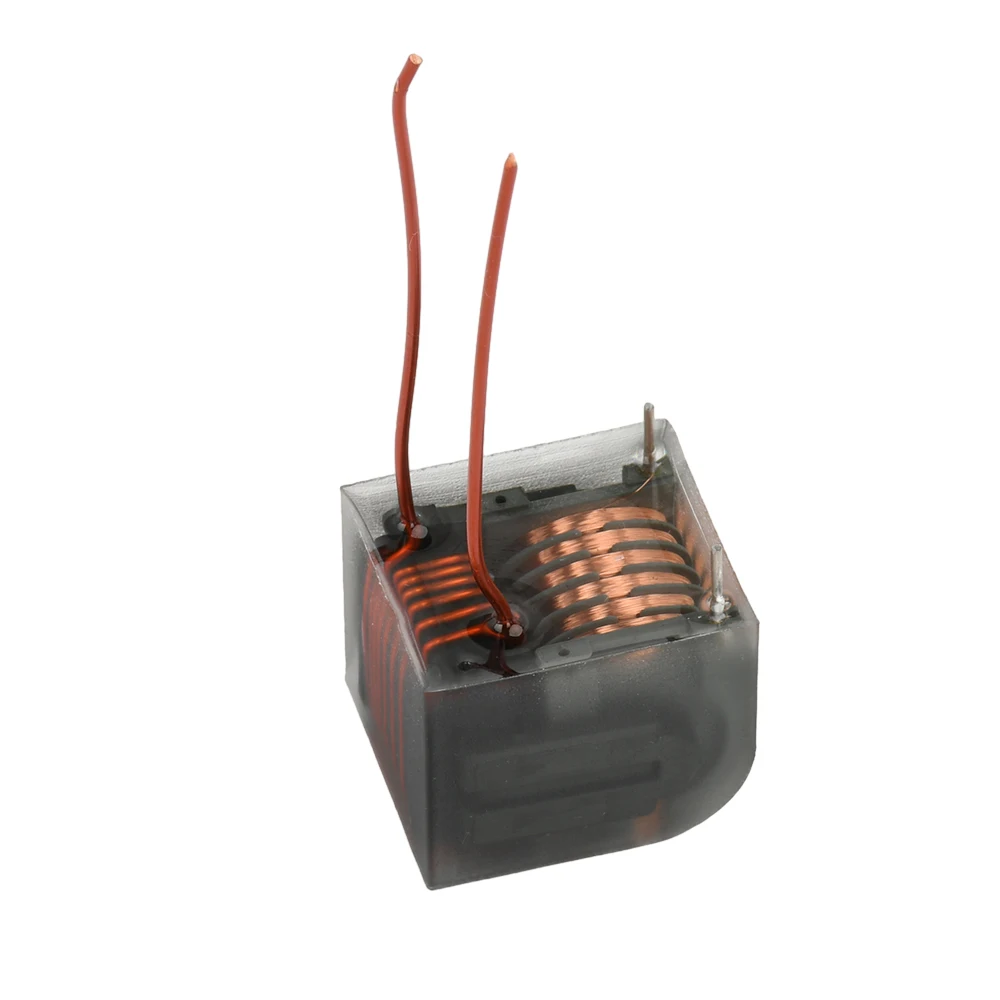

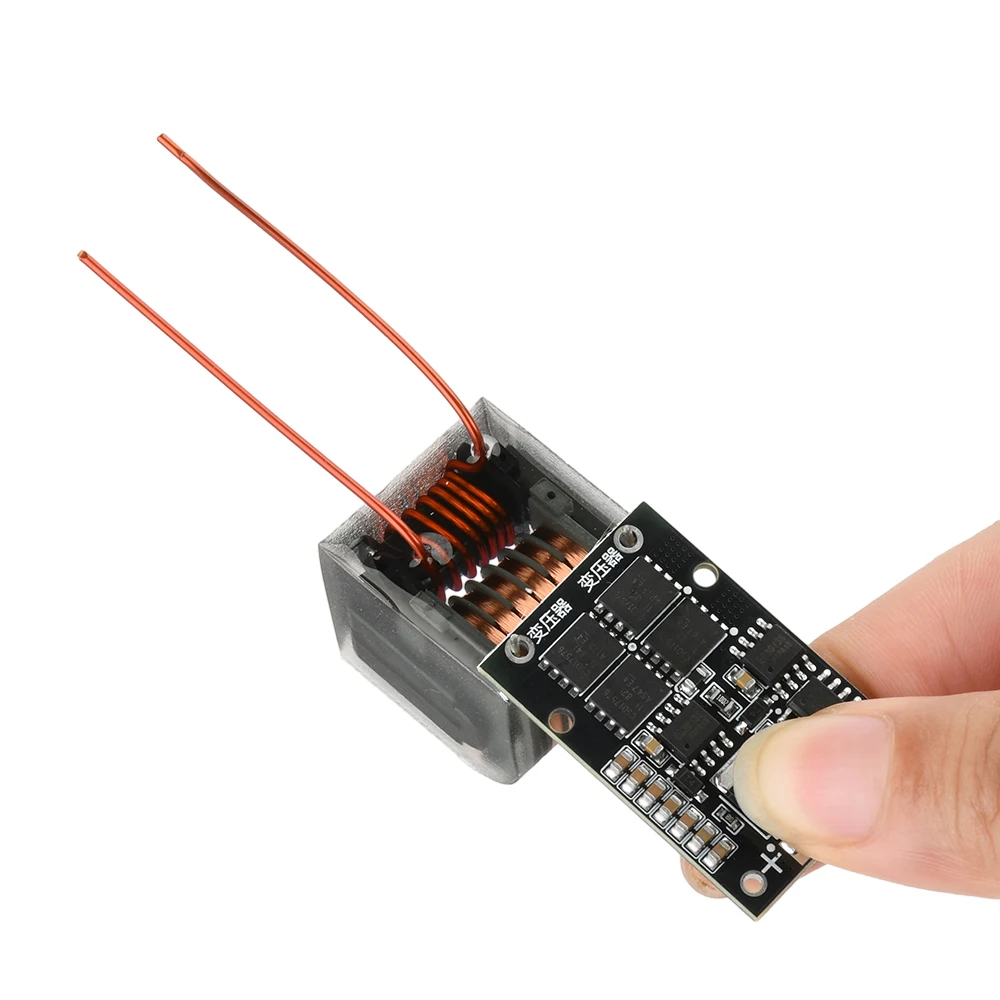

Transformer Size
26×24×21mm + 3mm high-output insulation layer
Protection System
MOS automatic overheating protection (avoids driver board burnout from high temperature)

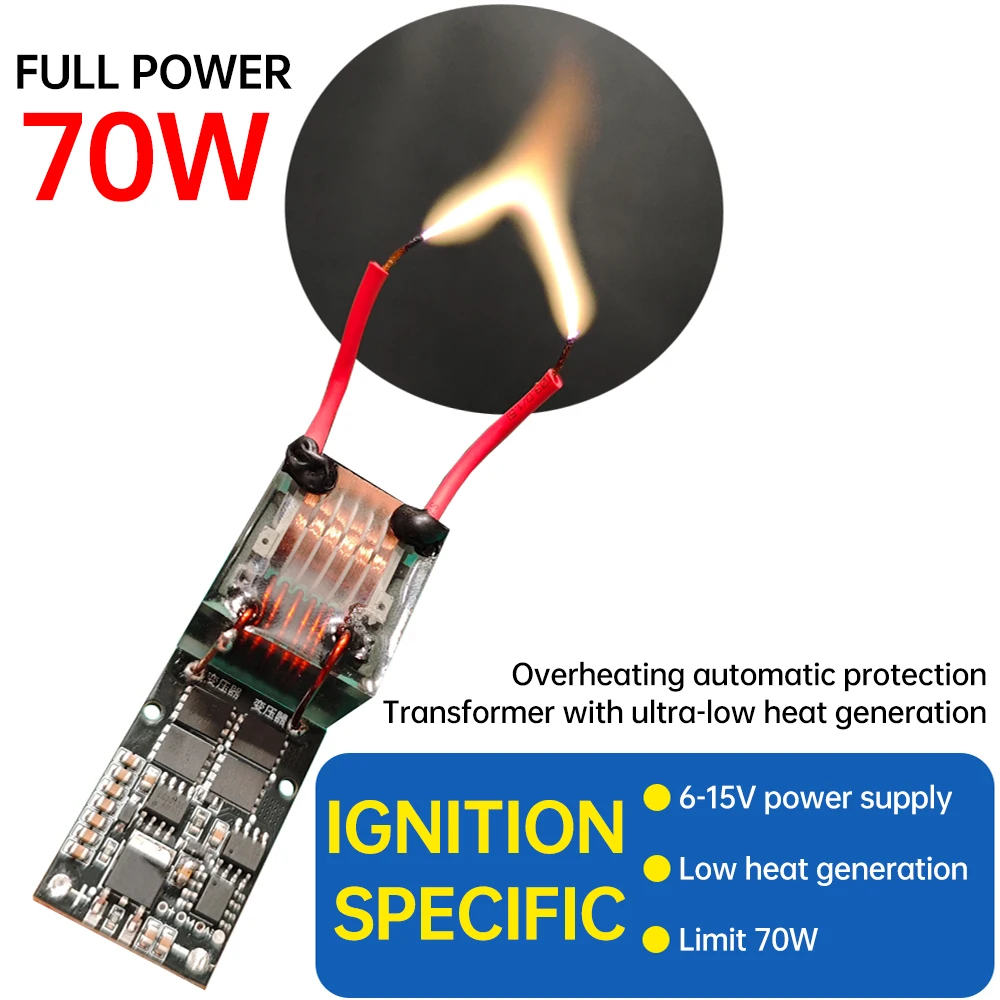

🔥 Key Features

  1. Stable High-Voltage Output - Delivers AC 10kV-25kV consistent voltage, ensuring reliable and powerful ignition effect for all matching equipment applications.
  2. Low Heat & Long-Duration Operation - Powered by 12V with natural heat dissipation design, supports non-stop continuous work without burnout or performance drop.
  3. Automatic Dynamic Sweeping Arc - One-click automatic arc starting, no manual arc operation required—ultra convenient and efficient for daily use & professional integration.
  4. Intelligent Overheating Protection - Built-in MOS automatic overheating protection mechanism, effectively prevents high-temperature damage and extends the module’s service life.
  5. Mini Compact Size - Streamlined circuit board and transformer with ultra-small dimensions, easy to embed and integrate into a variety of equipment without space constraints.


⚠️ Important Warnings

  1. This module features high power—the transformer’s secondary output (high-voltage output pin) must be fully insulated! Poor insulation will cause arc ignition at the pin, leading to irreversible damage such as pin burnout and melting.
  2. Without proper insulation, the module can only be powered on for momentary testing (do not conduct long-time power-on operation).

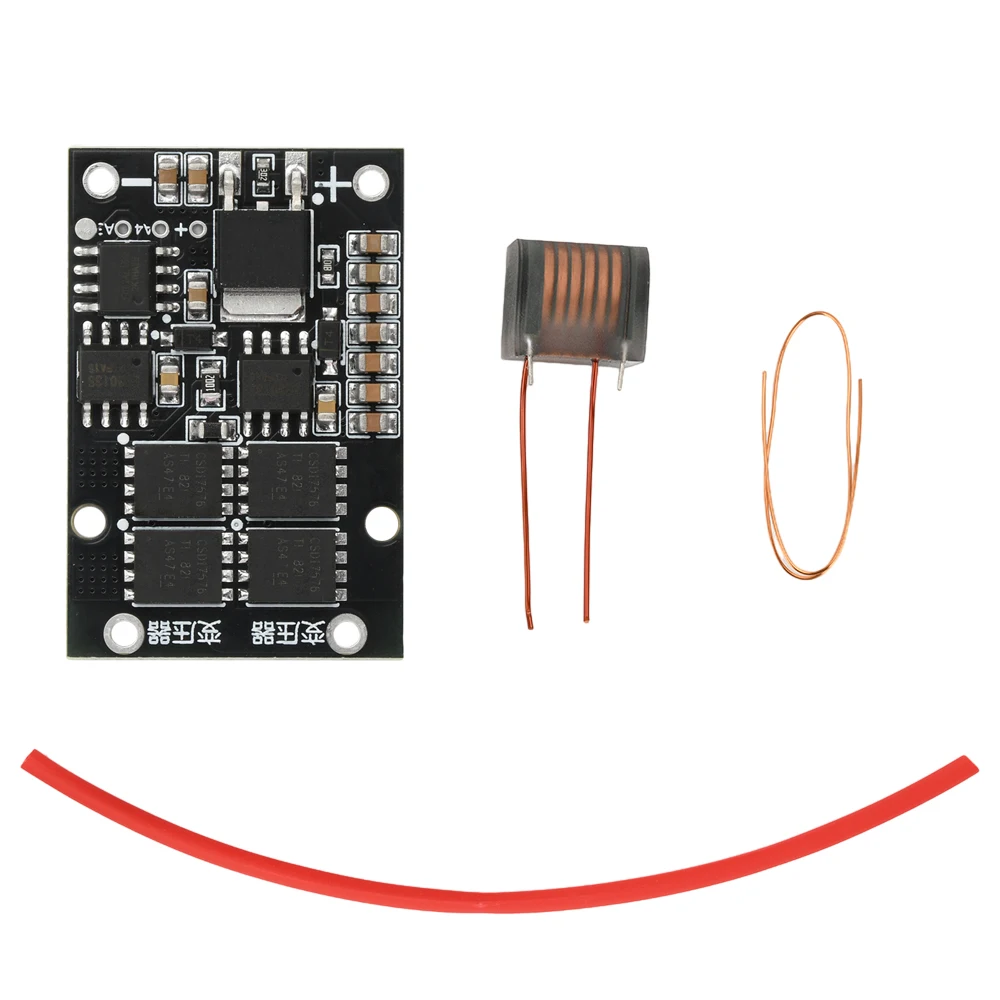

📦 Package Included

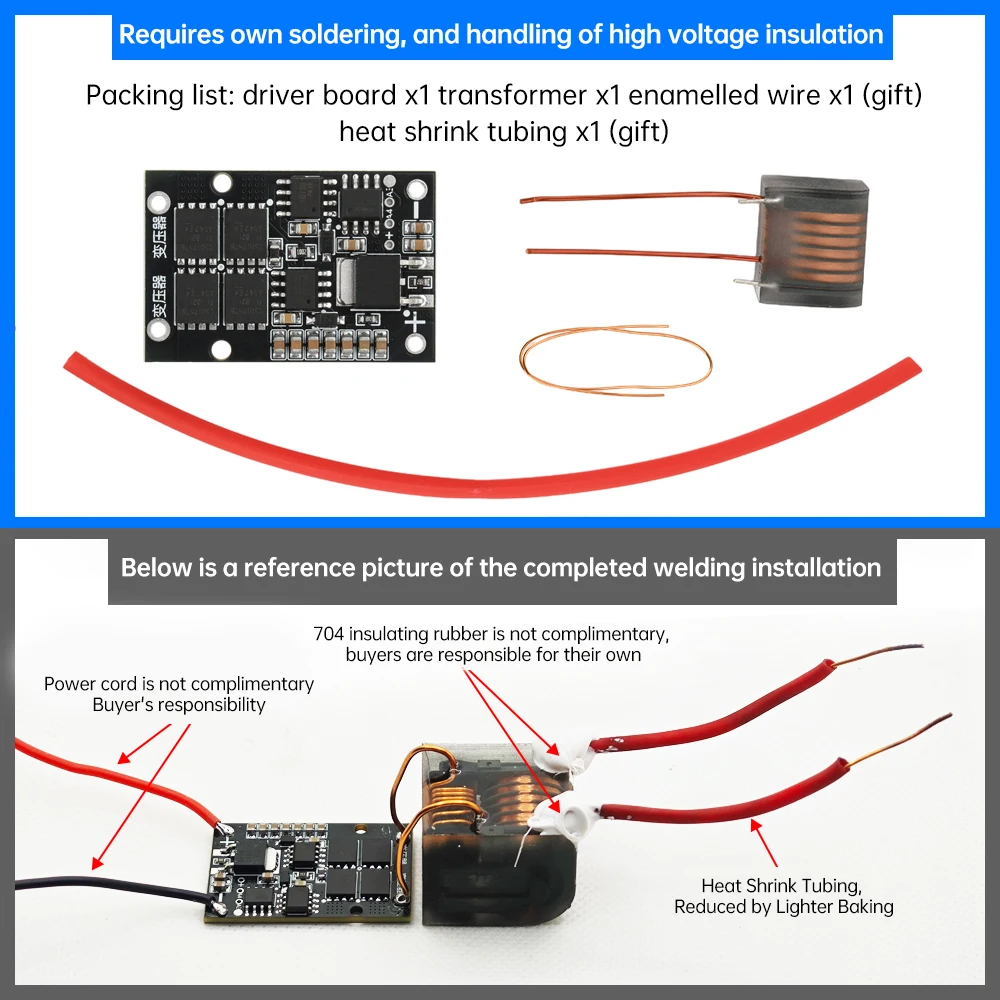

  • Driver Board × 1
  • Transformer × 1
  • Matching Accessories × 1
