VM63A Vibration Meter Specifications
I. Sensor Configuration
Vibration Sensor: Shear-type piezoelectric ceramic accelerometer
II. Measurement Range
1. Acceleration: 0.1–199.9 m/s² (peak)
2. Velocity: 0.1–199.9 mm/s (RMS)
3. Displacement: 0.001–1.999 mm (peak-to-peak); velocity and displacement ranges are limited by the 199.9 m/s² acceleration upper limit
III. Measurement Accuracy
±5% ±2 counts
IV. Frequency Range
1. Acceleration: Low Frequency (LO): 10 Hz–1 kHz, High Frequency (HI): 1 kHz–15 kHz
2. Velocity: 10 Hz to 1 kHz (LO)
3. Displacement: 10 Hz to 1 kHz (LO)
V. Display Parameters
Refresh Rate: 1 second
Display: 3½-digit LCD
VI. Signal Output
Single-channel AC output: 2 V peak at full scale; load impedance ≥ 10 kΩ; external headphones supported
VII. Electrical Parameters

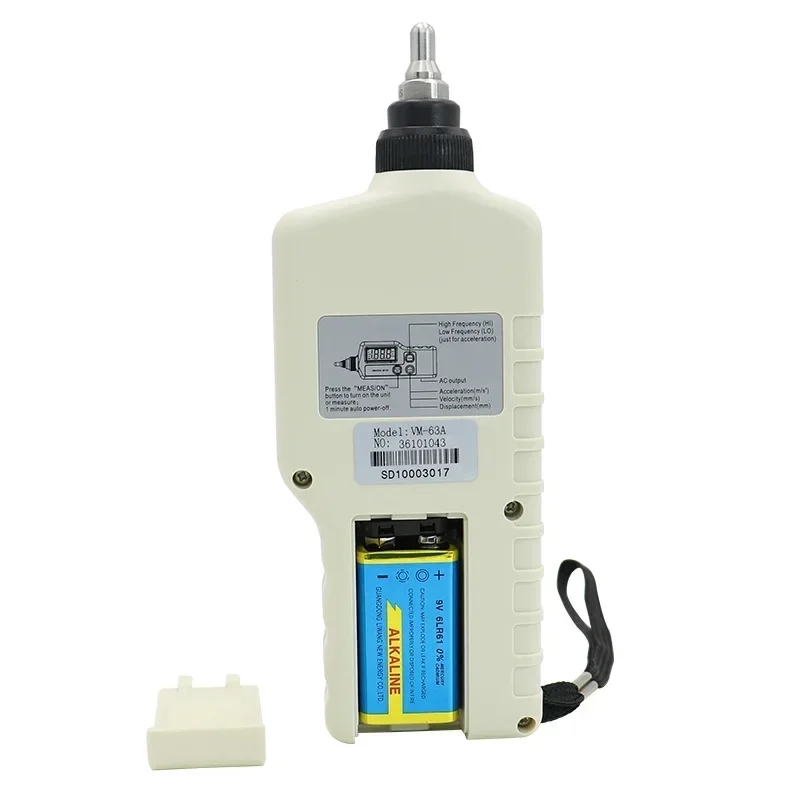

Power Supply: 9V alkaline battery
Standby Current: ≤20 μA
Operating Current: ≤25 mA
Continuous Run Time: 20 hours
Auto Shutdown: Automatically powers off after 60 seconds of inactivity
Backlight Duration: 7 seconds
Low Voltage Alarm Threshold: 6.9 V ± 0.2 V
VIII. Environmental Parameters
Operating Temperature: 0–40°C
Operating Humidity: 30%–90% RH
IX. Dimensions and Weight
Dimensions: 67 × 30 × 183 mm
Weight: 182 g (including battery)
Additional Product Features
1. Features high- and low-frequency ranges to accommodate different vibration conditions; one-button switching between three measurement modes: acceleration, velocity, and displacement
2. Comes standard with two interchangeable probes (pointed and round) for measuring flat surfaces and narrow, hard-to-reach points
3. Features an LCD backlight, low-battery alert, and auto-shutdown; includes an AC data output port for connecting external devices to export data
4. High-sensitivity probe; compact and portable design
