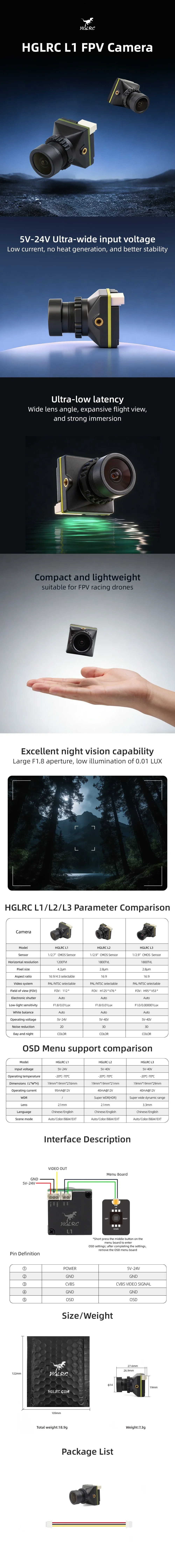

HGLRC L1 Camera This camera is a small, lightweight product designed for FPV drones,delivering high-definition, low-latency video.

Features
1、Excellent night vision,low illumination down to F1.8/0.01LUX
2、Outstanding night vision performance
3、Ultra-wide input voltage range of 5V-24V
4、Ultra-low latency,wide lens angle for expansive flight visibility and strong immersion.

Thermal imaging
Sensor: 1/2.7” CMOS Sensor
Horizontal Resolution: 1200TVl
Pixel Size: 4.2μm
Aspect Ratio: 16:9/4:3 selectable
Video System: PAL/NTSC selectable
Field of View (FOV): 112°
Electronic Shutter: Auto
Low Illumination: F1.8/0.01Lux
White Balance: Auto
Operating Voltage: 5V-24V
Noise Reduction: 2D
Day/Night Mode: COLOR
OSD Menu: Supported
Operating Temperature: -20℃-70℃
Dimensions: 19mm19mm27.6mm
Operating Current: 95mA@12V
Lens: 2.1mm
Language: Chinese/English
Scene Mode: Auto:Color:B&W:EXT

Package Contents
HGLRC L1 Camera
Camera Ribbon Cable
L-Shaped Tool(Hex wrench)

Button Head Black Hex Socket Screw M2 x 4
Button Head Black Hex Socket Screw M2 x 5
Button Head Black Hex Socket Screw M2 x 6
Button Head Black Hex Socket Screw M2 x 7

Button Head Black Hex Socket Screw M1.4 x 4.5
Spacer

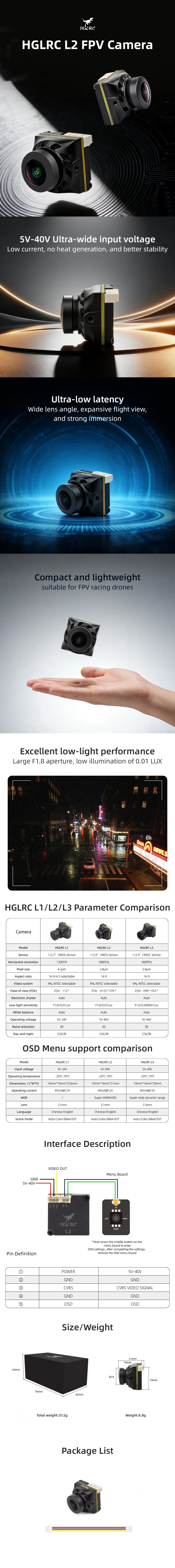

HGLRC L2 Camera This camera is a small, lightweight product designed for FPV drones,delivering high-definition, low-latency video.

Features
1、Excellent night vision,low illumination down to F1.8/0.01LUX
2、Ultra-low latency,wide lens angle for expansive flight visibility and strong immersion.
3、Ultra-wide input voltage range of 5V-40V
4、With WDR, it allows you to see the surrounding environment even in complex, backlit conditions.
5、Low current, no heat generation, and better stability.

Technical Specifications
Sensor: 1/2.9” CMOS Sensor
Horizontal Resolution: 1800TVl
Pixel Size: 4.2μm
Aspect Ratio: 16:9
Video System: PAL/NTSC selectable
Field of View (FOV): H125° V76°
Electronic Shutter: Auto
Low Illumination: F1.8/0.01Lux
White Balance: Auto
Operating Voltage: 5V-40V
Noise Reduction: 3D
Day/Night Mode: COLOR
OSD Menu: Supported
Operating Temperature: -20℃-70℃
Dimensions: 19mm19mm21mm
Operating Current: 40mA@12V
WDR: Super WDR(HDR)
Lens: 2.1mm
Language: Chinese/English
Scene Mode: Auto/Color/B&W/EXT

Package Contents
HGLRC L2 Camera
Camera Ribbon Cable
L-Shaped Tool(Hex wrench)

Button Head Black Hex Socket Screw M2 x 4
Button Head Black Hex Socket Screw M2 x 5
Button Head Black Hex Socket Screw M2 x 6
Button Head Black Hex Socket Screw M2 x 7
Button Head Black Hex Socket Screw M1.4 x 4.5
Spacer

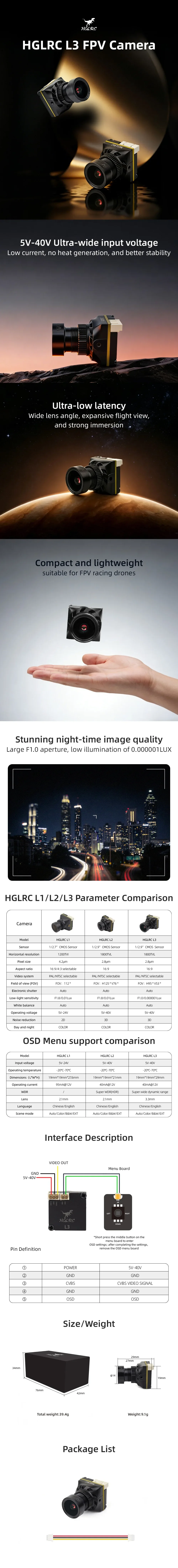

HGLRC L3 Camera This camera is a small, lightweight product designed for FPV drones,delivering high-definition, low-latency video.

Features
1、Excellent night vision,low illumination down to F1.0/0.000001LUX
2、Ultra-low latency,wide lens angle for expansive flight visibility and strong immersion.
3、Ultra-wide input voltage range of 5V-40V
4、With WDR, it allows you to see the surrounding environment even in complex, backlit conditions.
Low current, no heat generation, and better stability.

Technical Specifications
Sensor: 1/2.9” CMOS Sensor
Horizontal Resolution: 1800TVL
Pixel Size: 4.2μm
Aspect Ratio: 16:9
Video System: PAL/NTSC selectable
Field of View (FOV): H125° V76°
Electronic Shutter: Auto
Minimum Illumination: F1.0/0.000001Lux
White Balance: Auto
Operating Voltage: 5V-40V
Noise Reduction: 3D
Day/Night Mode: COLOR
OSD Menu: Supported
Operating Temperature: -20℃-70℃
Dimensions: 19mm19mm29mm
Operating Current: 40mA@12V
WDR: Super WDR(HDR)
Lens: 3.3mm
Language: Chinese/English
Scene Mode: Auto/Color/B&W/EXT

Package Contents
HGLRC L3 Camera
Camera Ribbon Cable
L-Shaped Tool(Hex wrench)

Button Head Black Hex Socket Screw M2 x 4
Button Head Black Hex Socket Screw M2 x 5
Button Head Black Hex Socket Screw M2 x 6
Button Head Black Hex Socket Screw M2 x 7
Button Head Black Hex Socket Screw M1.4 x 4.5
Spacer
