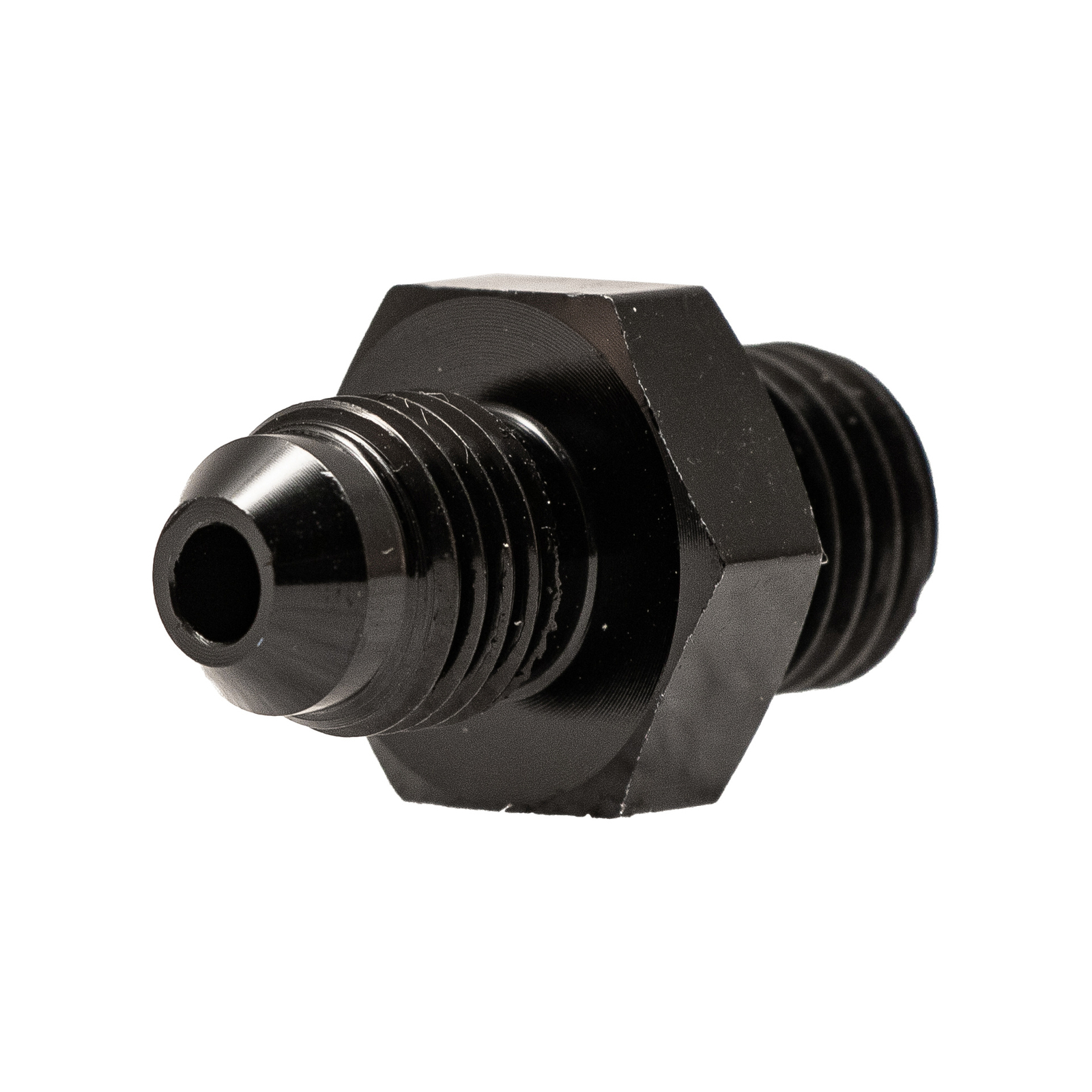

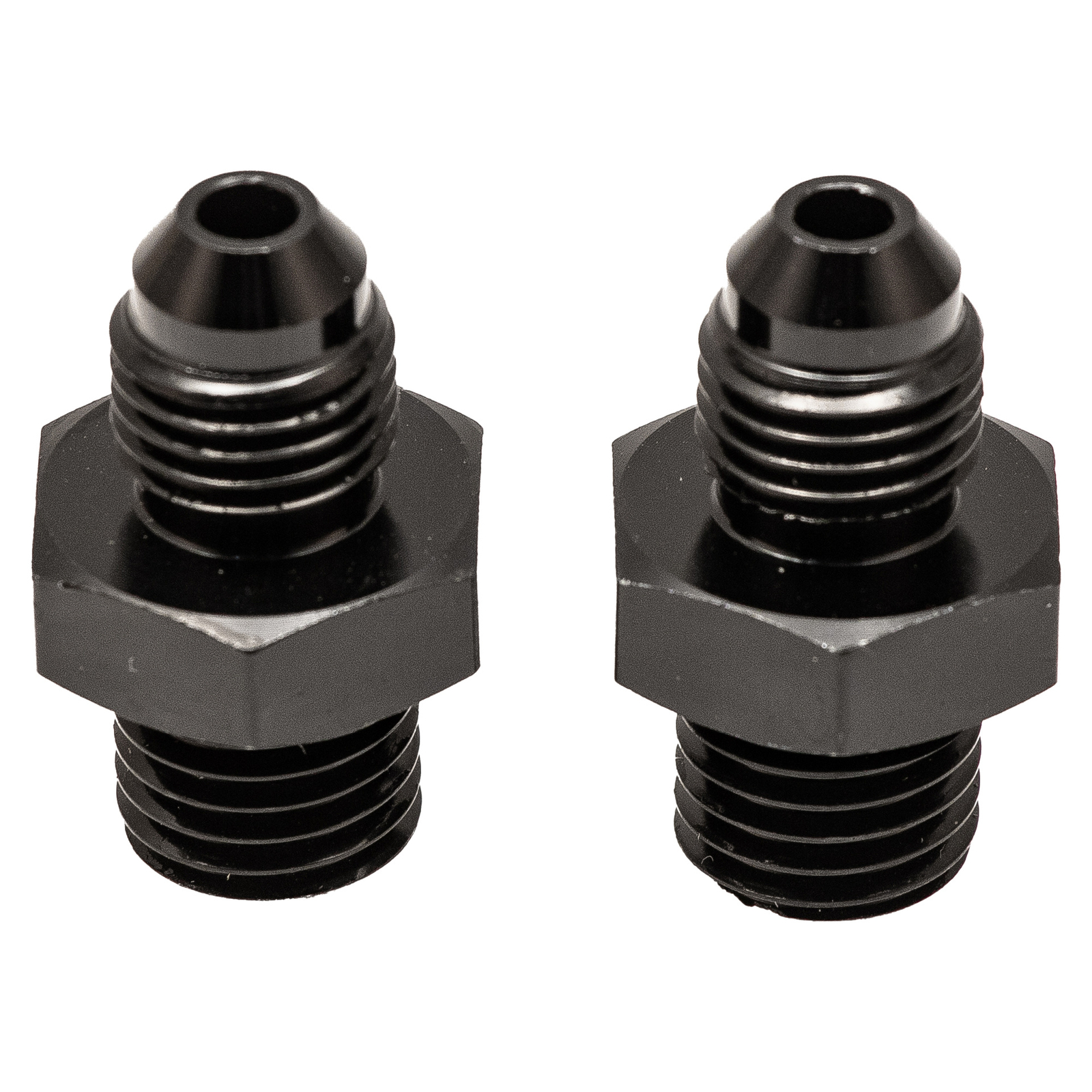

Size: 4AN to M12*1.5
Material: Aluminum
Color: Black
Connector Type: Flare
Thread Size: 4AN-M12*1.5
Exterior Finish: Aluminum
Thread Type: UNF
Size: The thread size of 4AN is 7/16-20 UNF and that of metric side is M12*1.5mm.
Sealing: The AN side of the flare is sealed by a 37 degree angle and the metric thread side is sealed by an o-ring.
Parameter: Working pressure: 1500PSI; Working temperature: -4°F-212°F (-20°-100°).
Material: Made of aluminum alloy 6061-T6 body and NBR rubber o-ring.
Application: Widely used in transmission oil coolers, fuel filters, fuel lines,etc.
