Product Description:
1. Mechanical design with high output torque.
2. Strong power transmission.
3. Equipped with an electrical control box to protect the motor from overload damage.
4. Easy to install; users can install it themselves.
5. The gearbox features an overload safety clutch to protect the internal gears, ensuring a long service life.
6. The gearbox uses an oil-immersed gear transmission system, providing smooth operation, low noise, and excellent lubrication.
7. Compact gearbox design; supports manual feed with a smooth, lightweight operation.
8. Specifications
Model: 186
Milling Machine Type: Vertical
Control Type: Vertical
Main Motor Power: 180 W (kW)
Spindle Speed Range: 30–750 (rpm)
Torque: 186 N·m
Motor Input Voltage: 380 V
Noise Level: ≤50 dB

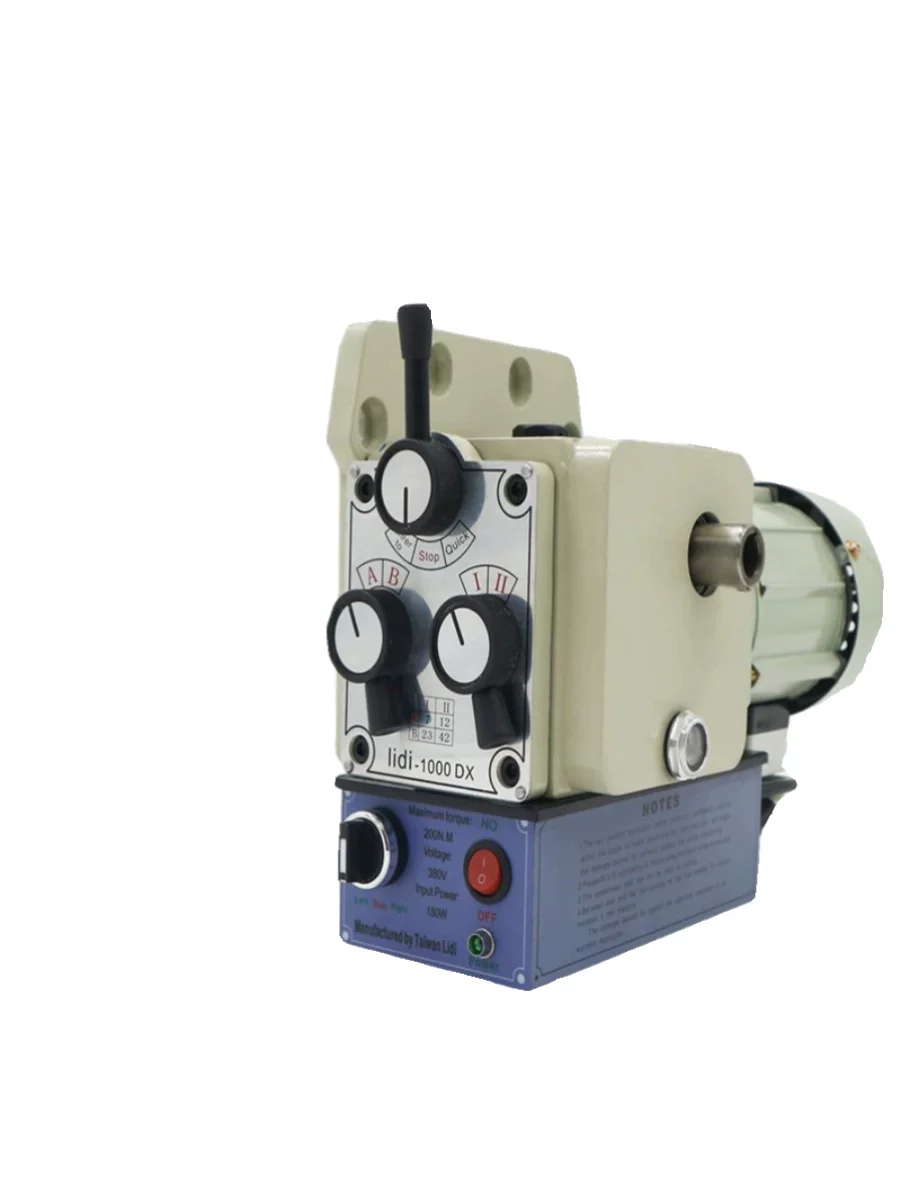

Name: Feed Drive
Model: 1000DX
Control Type: Vertical
Application: Milling machine X-axis; compatible with lead screws featuring a standard 16mm bore; if the lead screw is not 16mm, modification is required
Motor: 180W, 50Hz
Motor Input Voltage: 380V
Speed Range (rpm): 3, 12, 24, 36, 205
Torque Range: 5.6–225 N·m
Net Weight: 12 kg
Gross Weight: 13 kg
Noise Level: ≤50 dB

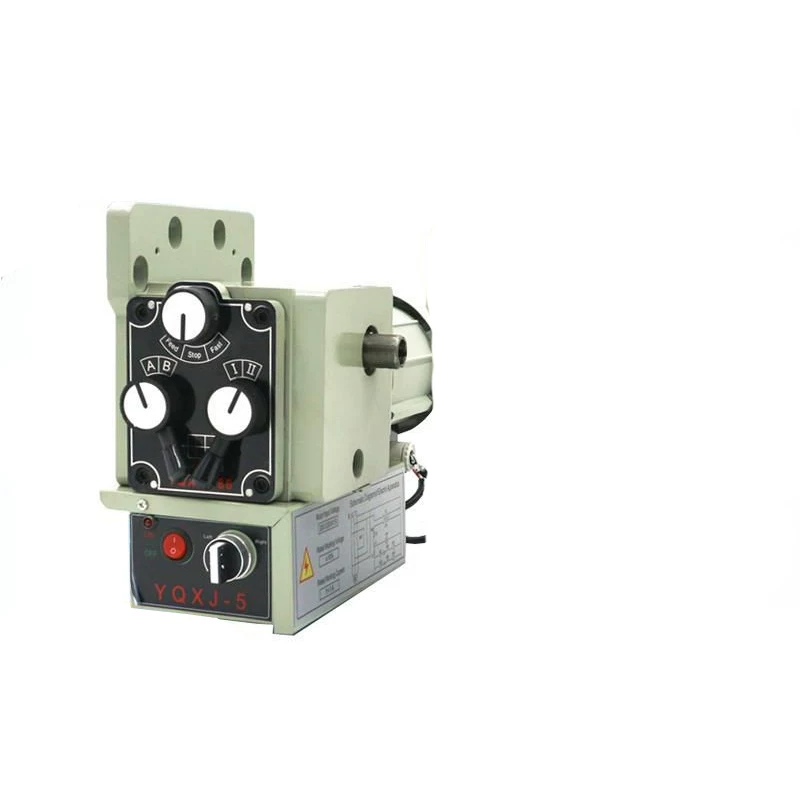

Name: 186 Feed Drive
Model: YQXJ-5
Motor: YTSC711-2, 1/2 HP (0.25 kW), 380 V, 50/60 Hz, 1440 RPM
Speed range (r/min): 5, 12, 23, 42, 160
Torque Range: 5.6 N·m, 225 N·m
Net Weight: 12 kg
Gross Weight: 13 kg
Packaging Dimensions: 450 mm × 300 mm × 350 mm
