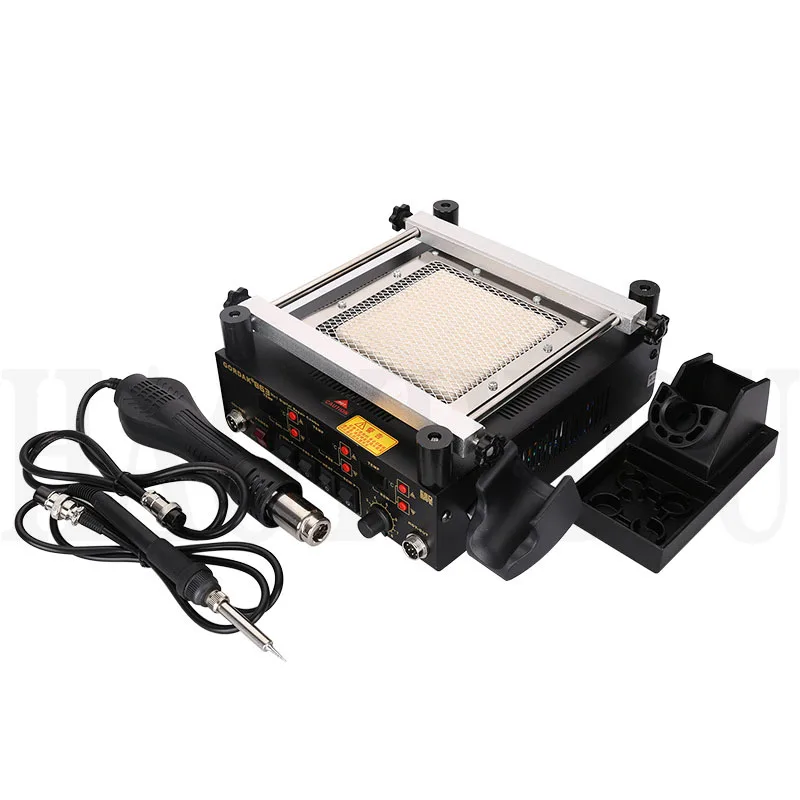

863 3-in-1 Preheater and Repair Station
The 8633 combines a hot air station, soldering station, and preheater into a single unit, delivering professional-grade performance for electronics repair and rework. Featuring an anti-static design, intelligent control circuitry, and an LED display, it offers precise and user-friendly operation. The high-power preheater, adjustable hot air, and ergonomic handle make it ideal for reworking large-area BGAs, computer motherboards, and other delicate components, while protecting adjacent parts from heat damage.
Features
3-in-1 Functionality—Integrates hot air, soldering, and preheating into a single compact unit.
High-Power Preheater—A 120mm x 120mm far-infrared heater provides fast, even heating for large-area printed circuit boards.
Precision Hot Air Control—Adjustable gentle airflow and a brushless fan design ensure low noise and stable performance.
Energy-Efficient Hot Air Handle—Touch-sensitive buttons and an automatic cool air function extend the heater’s lifespan and conserve energy when idle below 100°C.
ESD-Safe Design—Protects sensitive electronic components during rework.
Lightweight, Ergonomic Handle—Comfortable even during extended use.
Insulated design—reduces heat loss and expands the effective temperature zone.
Specifications
Model 863
Hot Air Station
Rated Voltage: 230 V AC, 50/60 Hz
Power Consumption: 450 W
Fan: Brushless, gentle airflow
Airflow: 120 L/min
Temperature Control: 100°C–500°C
Noise Level: <45 dB
Soldering Station
Power Consumption: 60W
Output Voltage: 24V AC
Temperature Control: 100°C–500°C
Ground Resistance: <2Ω
Heater: Ceramic
Preheater
Power: 600W
Heater Type: Infrared Heater
Temperature Control: 100°C–500°C
Heating Area: 120mm x 120mm
Dimensions: 221 mm x 251 mm x 112 mm
