Description
JS-50B DC5-24V 0.8-45RPM Metal Gear Swing Synchronous Motor Cross Drilled Tapped
Specification:
Note: Please leave a message if you require a directional version (CW, CCW), but the 3RPM, 4.8RPM, 9RPM, 29RPM, 45RPM can't be made directional.
Product Name: Synchronous Motor
Product Model: JS-50B(PM-CDT)
Shaft Type: Cross Drilled Tapped
Optional Voltage: DC5V, DC6V, DC9V, DC12V, DC24V
Optional Speed: 0.8PRM, 1.3RPM, 1.8RPM, 3RPM, 4.8RPM, 9RPM, 29RPM, 45RPMM (The slower the speed, the greater the torque.)
Speed Error: ±10%
Inverter Output Frequency: 50Hz
Internal Gear Material: Metal and Plastic
Features: This DC Synchronous motor shares the same physical dimensions and mounting specifications as the TYC-50 synchronous motor. Like the TYC-50, it is a non-directional motor. Owing to connect a DC to AC inverter box, it can be connected to the DC power supply. When powered on, connect the red wire to the positive (+) terminal and the black wire to the negative (-) terminal. It will not operate if the polarity is reversed. The motor automatically reverses when the load reaches the rated torque.
Applications: Primarily used for the air guide and oscillating mechanisms of DC electric fans; angle adjustment for heaters, fan heaters, and radiant heaters. It is also suitable for various display racks, crafts, lighting fixtures, toys, as well as air vane guide motors for all kinds of air conditioners and turntable motors for microwave ovens.

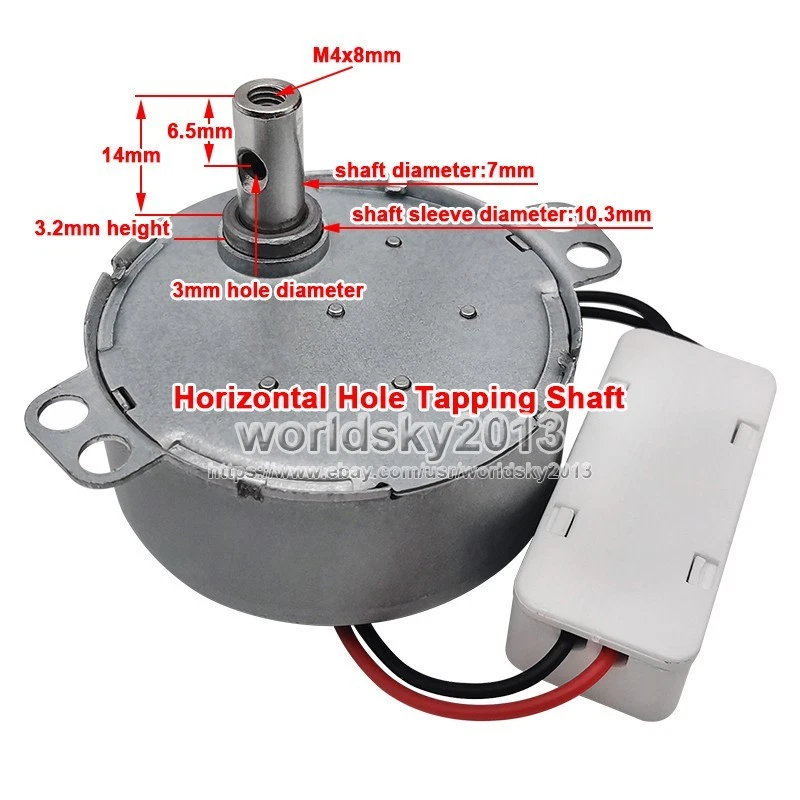

Parameters and Dimensions: (Note: The 3RPM, 4.8RPM, 9RPM, 29RPM, 45RPM can't be made directional.)
Package Included:
Motor x 1
