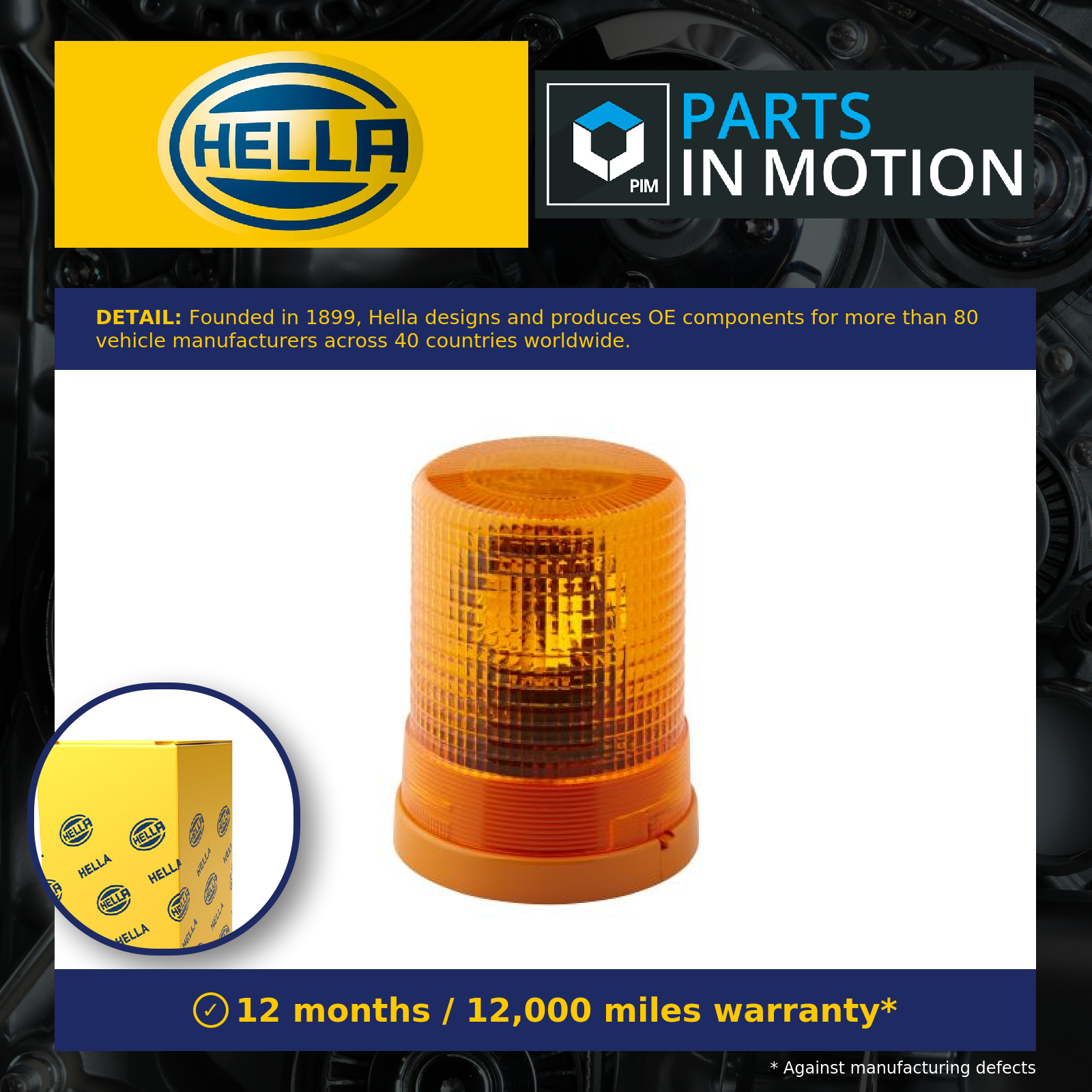

Rotating Beacon 2RL004958-101 Hella


PartsInMotion benefits

For any queries please contact using the contact seller link provided.
Description

Rotating Beacon 2RL004958-101 Hella

BrandHELLA
Part Number2RL004958-101
Weight950 g
Height210 mm
Additional Informationwith bulb
Additional Information 2Electromagnetic Compatibility (EMC)
Voltage12 V
Bulb TypeH1
Light FunctionWith rotating warning signal
Housing ColourOrange
Outer diameter 1165 mm
Shape/FormRound
Light DesignHalogen
Mounting Typemounting, Bolted
Quantity1
Lens Colouryellow (amber)
Registration TypeECE approved
Plug TypeBlade Terminal
Power Consumption55 W
Protection Type (IP Code)IPX9K, IP5K4K
Diffusing Lens MaterialPMMA (Polymethylmethacrylate)
Fulfils ECE normR65, R10
Housing materialPlastic
Temperature range from-40 °C
Temperature range to+60 °C
Extra DescriptionKL 700
Rotating beacon RPM [1/min]160 1/min
NoteAssy. / Disassy. by qualified personnel required!
Light colouryellow (amber)
TypeRotating Beacon

This kit includes the following parts:

  • 1x Hella Lens, rotating beacon (9EL856418-001)
  • 1x Hella Timing Belt Kit (9XR854840-001)
  • 1x Hella Bulb (8GH002089-133)
  • 1x Hella Base, rotating beacon (9GD856562-001)
  • 1x Hella Reflector, rotating beacon (9DX859560-001)


Cross references

BOSCH7 782 322 002, 7 782 322 005, 7 782 322 011, RKLE 200 B1 12V gelb
HELLA004 958-101, 004958101, 2RL 003 130-121, 2RL 004 958-017, 2RL 004 958-101, 2RL 004 958-106, 2RL 004 958-107, 2RL 004 958-108, E2 88072, K 8652
HERTH+BUSS ELPARTSD016.0002.002
JOHNSON CONTROLS13755/12
JOKON16.0002.002
MOLJ029.0002.3
MOTOMETER072.740.2
TRWLBB 171

Compatible with the following OEM references

AGRIFAC7788810
ATLAS COPCO0471521
AUDI2D0941087, KDWHL09429, KDWHLO9429
BMW1370579, 1385322, 63171370579
BUCHER1375512, 76533936
CASE IH3134961R91, 727402
CLAAS06822160
FAUN5231371
FENDTX830180060
HAKO90263559
LANGENDORF1134616
LINDE5762034
MAFI0005800596
MERCEDES-BENZ0008206858, A0008206858
O&K727402
OPEL1777306, 90487916, J03040039
OTOKAR72B1836062AA
PUTZMEISTER065894002
REFORM900530145
ROSENBAUER046318, 950356
SCHMITZ CARGOBULL1084
STILL1001331
TEREX0471521
VAN HOOL10565571
VDL10565571
VW2D0941087, KDWHLO9429

Other references

E2 88072
K 8652

Hella is a global supplier of automotive components supplying both OE and the aftermarket with quality products.
