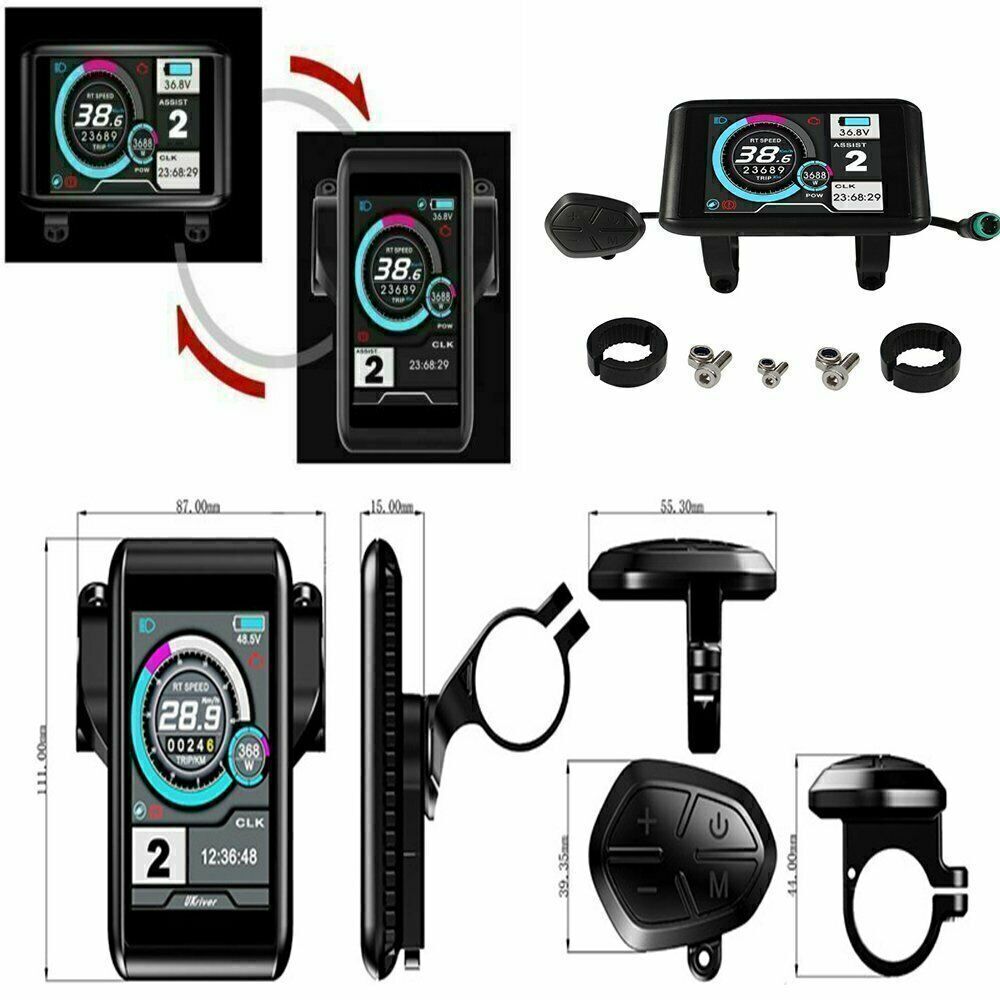

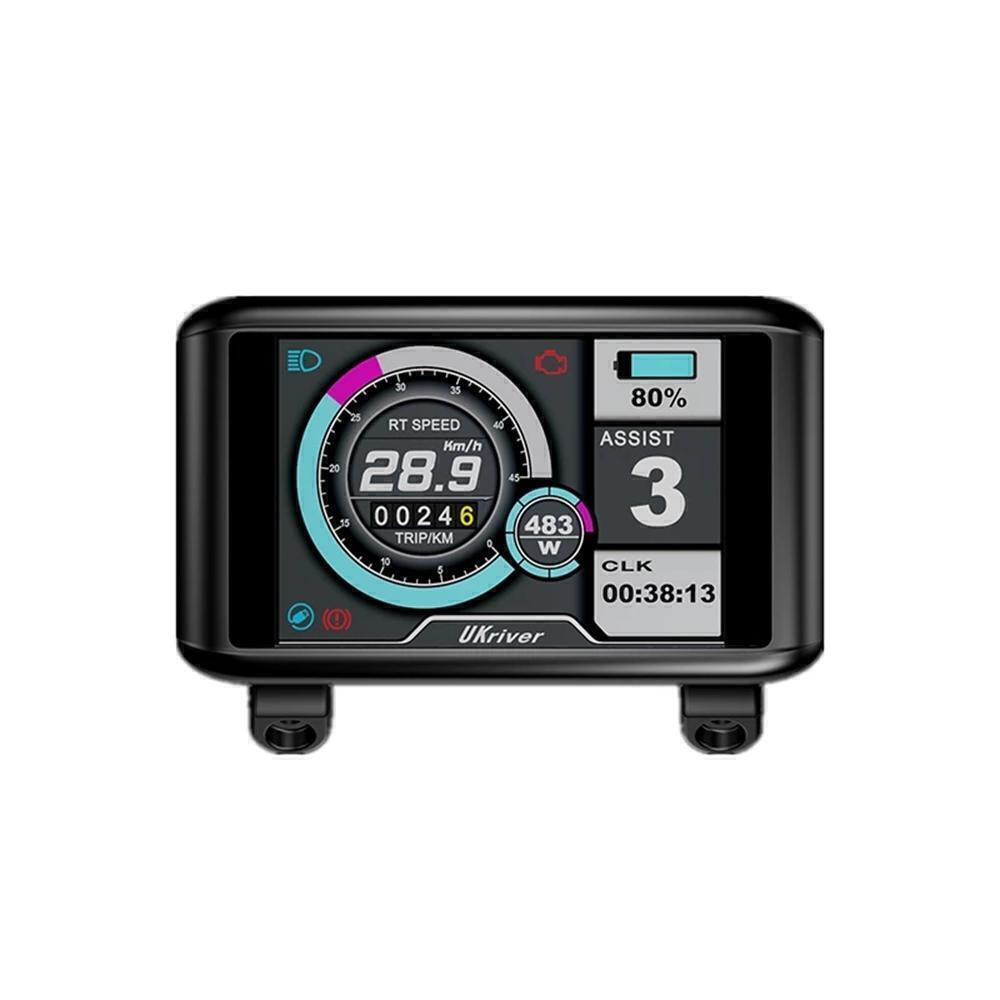

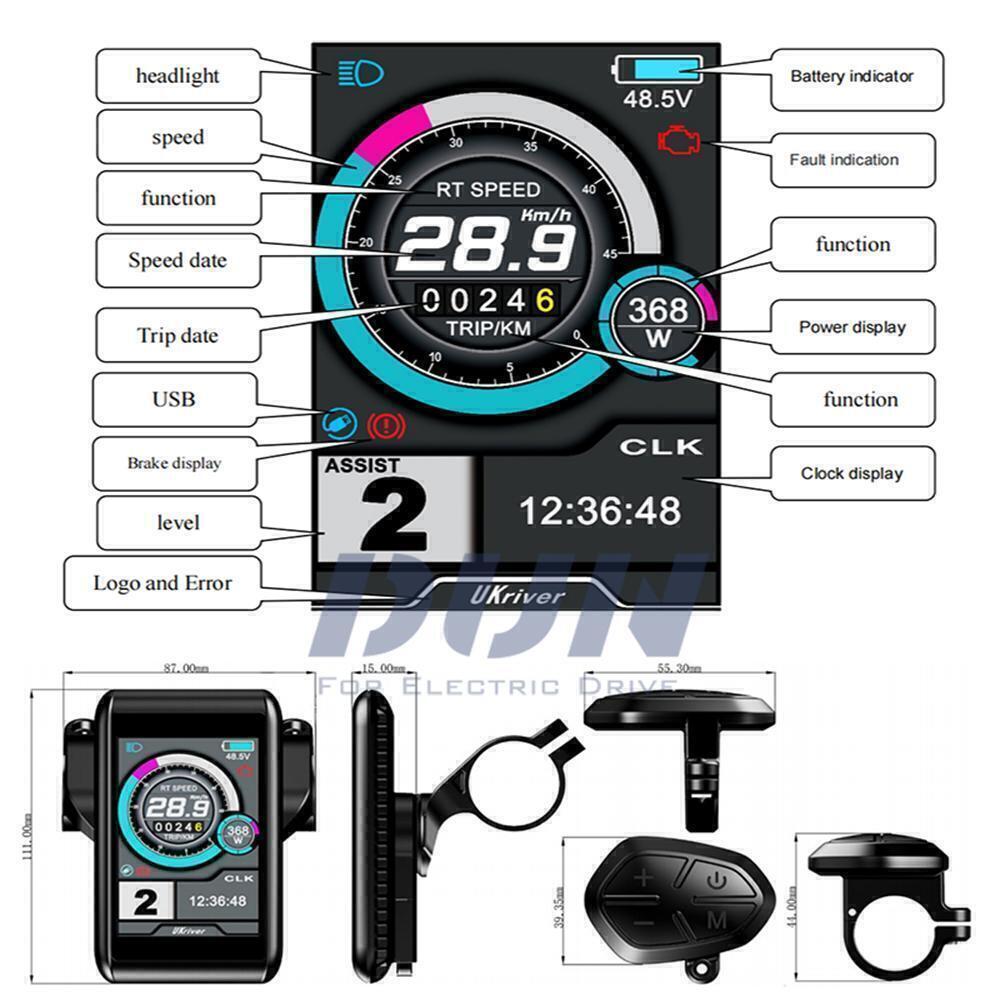

UKC1 color screen
1 x 3.5 inch high contrast IPS colorful matrix screen.
2 suitable for low temperature, max -20℃.
3 The screen can be freely switched horizontally and vertically.
4 speed display: AVG speed, maximum speed, speed (Real time).
5 km/mile: can be set according to the habits of customers.
6 5-level backlight brightness adjustment: 1st level is the darkest, 5th is the lightest.
7 9-level support: 3-level/5-level/6-level/9-level is optional.
8 Mileage indicator: odometer / trip distance / clock / driving time.
9 Error code indicator.
10-speed limited speed can be set.
72V 100A 3000W V2 Controller:
Specification:
1 Model: SVMC72100-UKC1 V2
2 available battery rated voltage: 36V/48V/60V/72V
3 maximum battery voltage: 95V
4 Available Motor Power: 2kW-3kW
5 maximum phase current: 250A
6 maximum DC current: 100A
7 Operation Communication: Hall Sensor

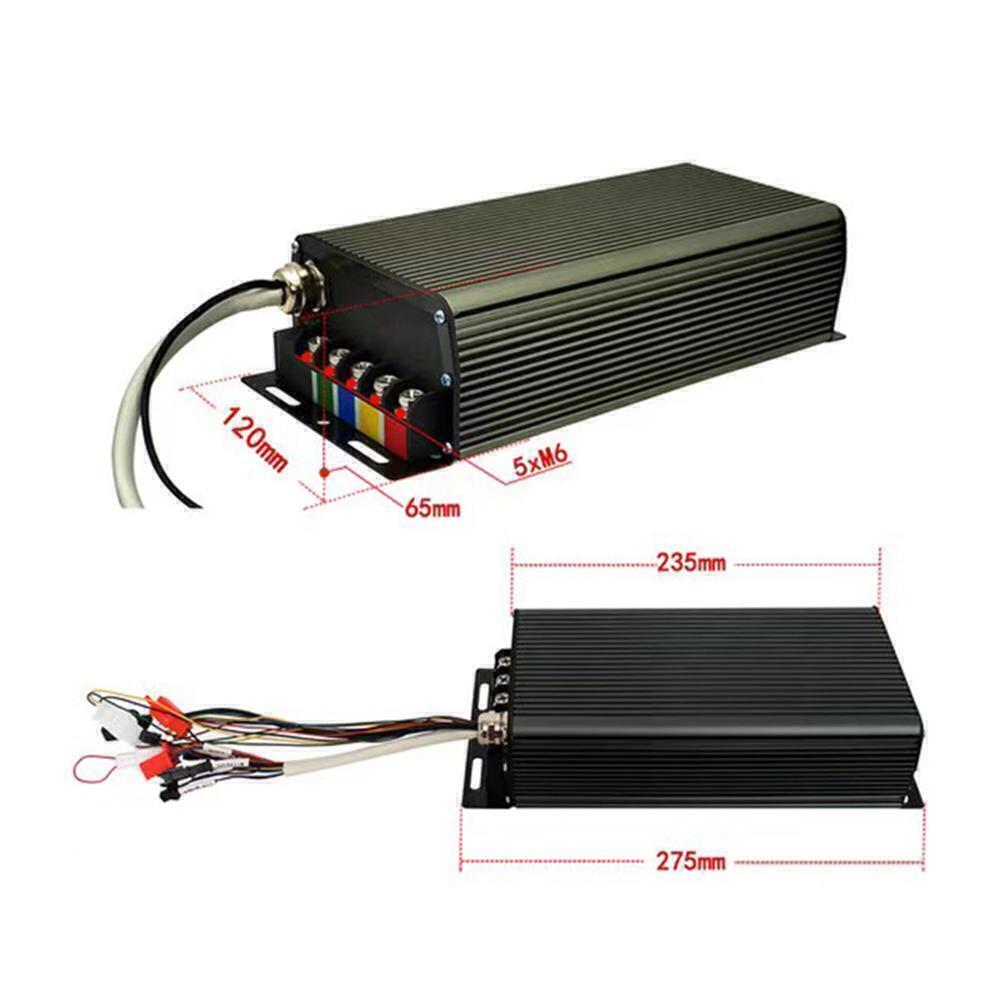

8 size: 275mm x 120mm x 65mm
9 Weight: 2.05kg
10 throttle operating voltage: 0V - 5V
11 MOSFET detail: 24 FET
12 Housing Material/Colour: Aluminum/Grey
13 controller design: DC brushless sine wave
14 programmable support by PC and phone
15 suitable for spoke/wheel motors with 120° Hall angle. May not work properly with mid drive motor
16. Waterproof Grade: IP65

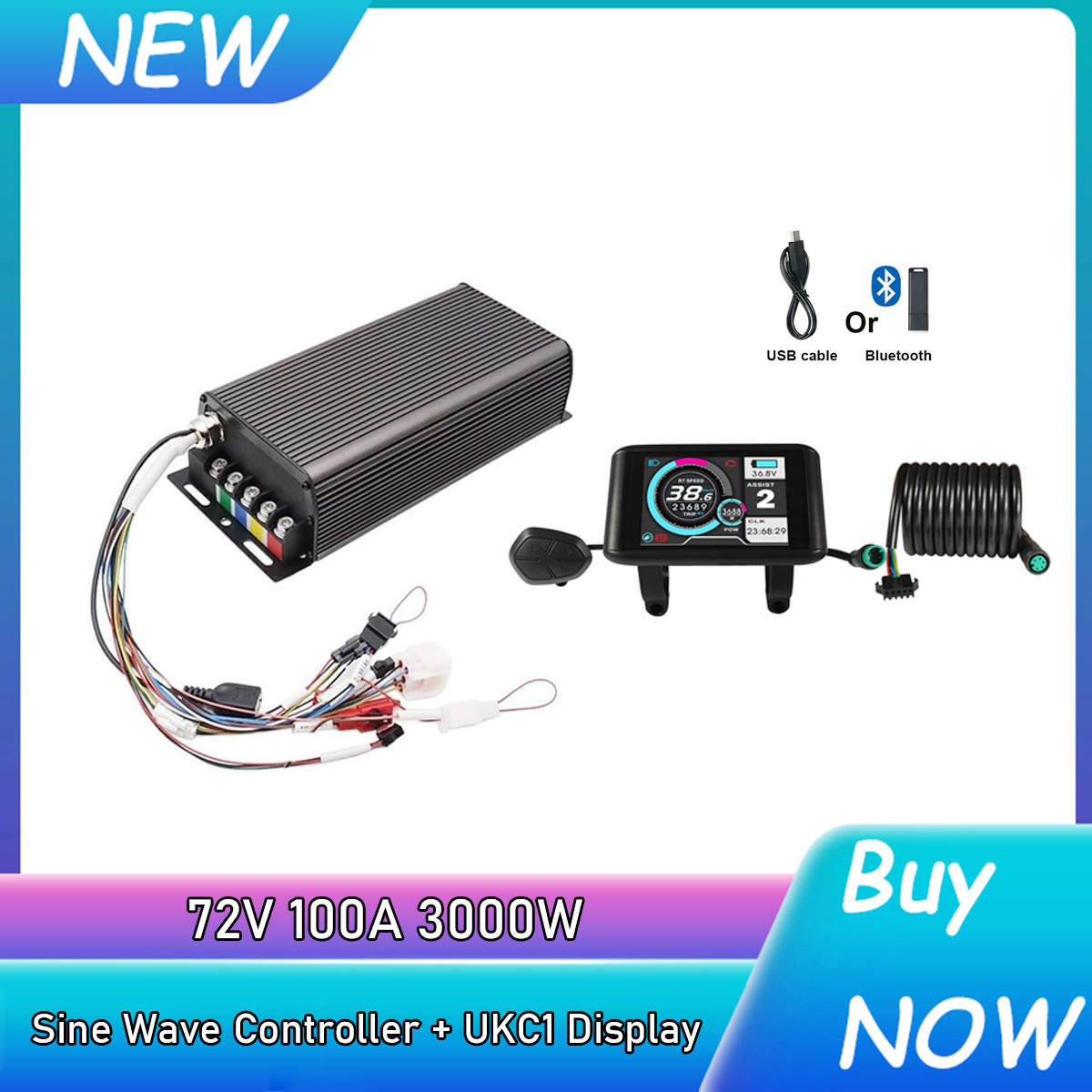

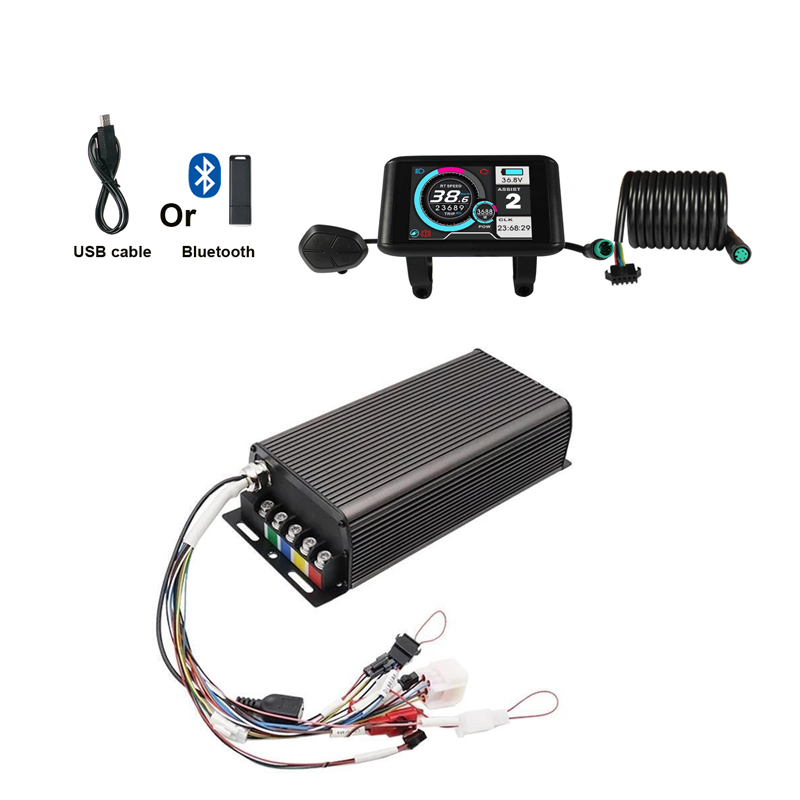

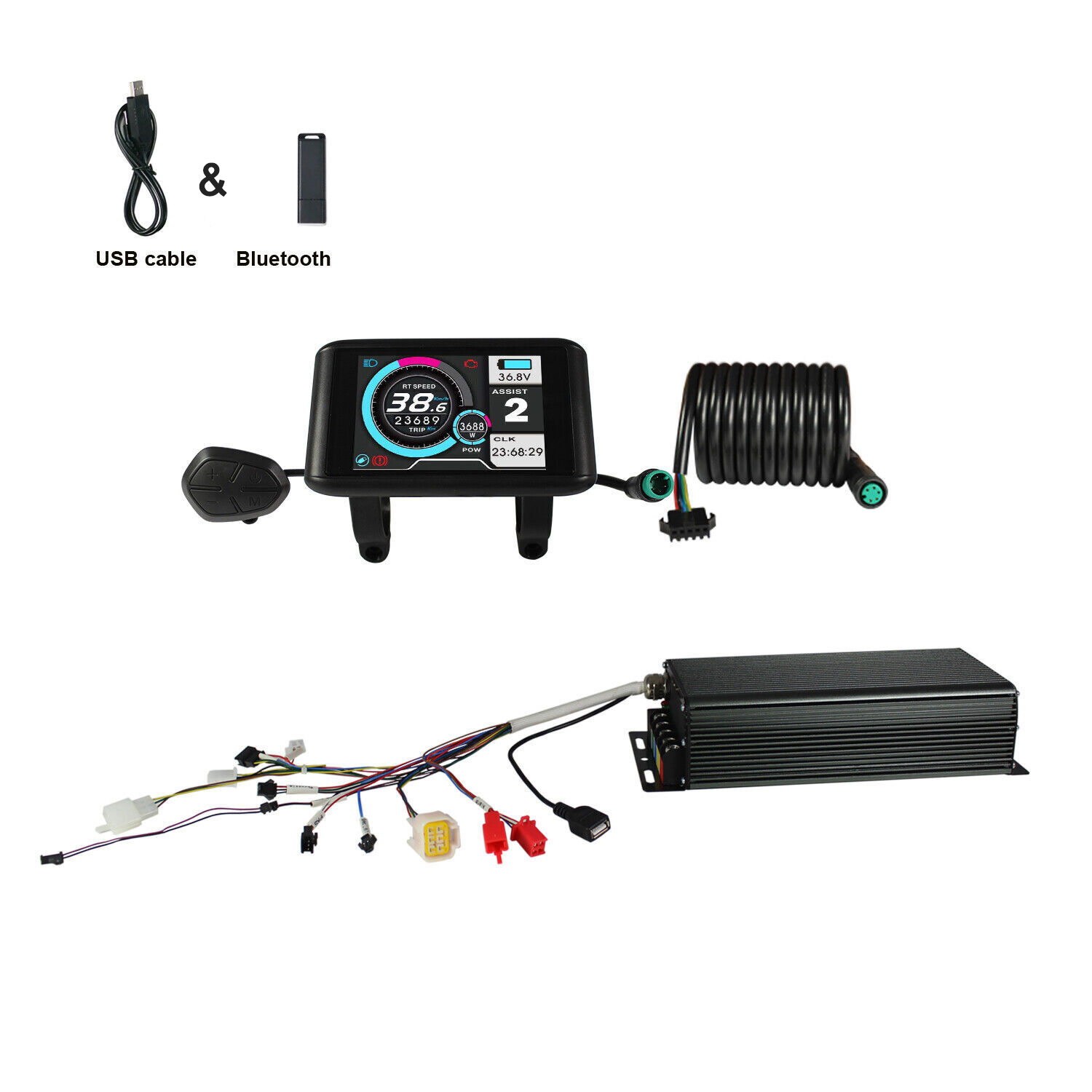

Package includes:
1*72V 100A 3000W V2 Controller
1*UKC1 color screen
1*Bluetooth and USB cable for programming
