Please use the make model tool above to check the part fits your vehicle. If you are still unsure please contact us to ask about fitment.

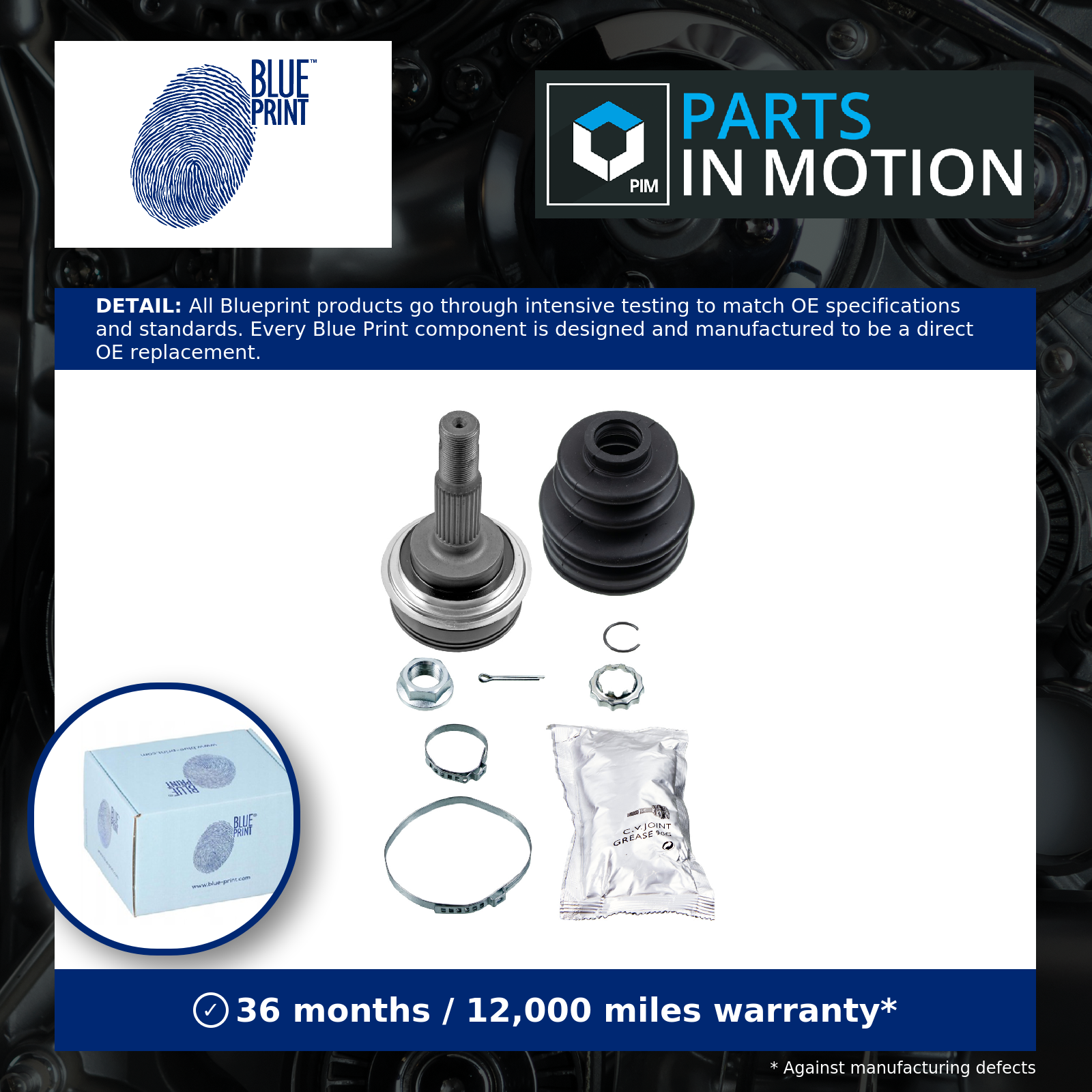

Blue Print CV Joint Front Outer ADT38919 [PM112881]
CV Joint fits TOYOTA COROLLA E9 1.8D Front Outer 87 to 93 1C C.V. Driveshaft


PartsInMotion benefits

For any queries please contact using the contact seller link provided.
Description

CV Joint fits TOYOTA COROLLA E9 1.8D Front Outer 87 to 93 1C C.V. Driveshaft

BrandBlue Print
Placement on VehicleWheel Side, Front Axle
Length152 mm
Outer diameter85 mm
External Teeth, Wheel Side26
Seal Diameter56 mm
Internal Teeth, wheel side24
NoteObserve service information
External Thread SizeM22 x 1,5
ReplacesADT38907; ADT38911; ADT38912; ADT38935
TypeJoint Kit, drive shaft

Documents / Graphics

Information

General Information

These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.


Cross references

4X4 ESTANFIEST-12-090203, EST-12-090212, EST-12-090215, EST-12-090225, EST-12-090255, EST-62-02-252
A.Z. MeisterteileAZMT-43-030-1083
APECACV1214, ACV1215
ASHIKA62-02-204, 62-02-209, 62-02-252
ASPART1DSH1171
ASVATY-09, TY-25A48, TY-27, TY-27A48
ATI48130
AUTEX820341, 820595, 821078, 821182, 821988, 830919
AUTOTEAMG400405, G400406, G400420
B-RINGBOC8916A
BGACV9103A
BORG & BECKBCJ1447, BCJ1488, BCJ1505
CARGTY2740K, GTY5780K, GTY7300K
CEVAM6409, 6656, 7160, 7165, GA6409, GA6656, GA7160, GA7165, OL6409, OL6656, OL7160, OL7165
CIFAM607-070, 607-339, 607-346
COMLINECTY45003E, CTY45004E
DA SILVAJ3050, J3296, J3375, J3399, J3558, J7454
DELCO REMYDRC35023, DRC35023K, DRDS35026
DEPA3481300
DJ PARTSVD1081, VJ1089
Dr!ve+DP2110.10.1461, DP2110.10.1462, DP2110.10.1476
DYNAMATRIXDCV859001, DCV859018, DCV859019, DCV859020, DCV859120, DDS259195
EAIT98304, T98336
ERA BeneluxDA92124
FEBEST0110-009, 0110-009A48, 0110-027A48
FORMPART42398001/S, 42398003/S
FRIESENFDS2269, FDS2274, FVJ0215
GENERAL RICAMBITY1001, TY1001K, TY3062
GMBGJ02470A
GMB OceaniaGJ02470A
GSP859001, 859018, 899122
GSP-BR859001, 859019, 859020, 899122
HART418 413, 464 377
HERTH+BUSS JAKOPARTSJ2822110
IBERISIB6106, IB6118
INDECOTO030, TO070, TO346, TO351, TTY4013, TTY4013N
IOTO10101-20501, 10102-20502
IPD31-2304, 31-2573, 31-2580
JAPANPARTSGI-204, GI-209, GI-252
JAPKO62204, 62209, 62252
JAPOCATMCV-5T00, MCV-5T05, MCV-8204, MDS-5T30
JIKIUCD00001, CD21001, CD21005, CD21030, CD28009, JC21004, JC21072L, JC21072R
JP GROUP4843300210
JPN10P2002-JPN
KAGER13-1051, 13-8391
KAISHIN3120006
KAMOKA6100, 6592
KAVO PARTSCV-9004, CV-9005
KRAFTVOLL GERMANY01020098, 01020169
LIZARTECVJ0401, CVJ0402
LÖBRO301992, 302110, 303587
LPRKTY274, KTY394, KTY462, KTY465
LYNXautoCO-7508, CO-7509A, CO-7537
MAGNETI MARELLI302015100278, 302015100282, 302015100366, 302015100367
MAPCO16227, 16562
MASTER-SPORT GERMANY302110-SET-MS
MASUMATO-09, TO-09A48, TO-25A48
MAXGEAR49-0213, 49-0215, 49-1611
MDRGSP-259195, GSP-859001, GSP-859018, GSP-859019, GSP-859020, GSP-859059, GSP-859120, GSP-899122, MCV-8202, MCV-8204, MCV-8209, MCV-8252, MCV-8253
METELLI15-1070, 15-1339, 15-1346
MEYLE30-14 498 0002, 30-14 498 0015, 30-14 498 0030, 30-14 498 0041
MILESGA20462, GA20464, GA20482, GA20618
Multiparts12-090203, 12-090212, 12-090215, 12-090225, 12-090255
NAPANCV1214, NCV1215, NCV1378, NCV1445, NCV1446
NeocomJN-1070, JN-1346, JN-1351, TOY180
NIPPARTSJ2822005, J2822010, J2822016, J2822110, N2822176
NK514501, 514507, 514515
NPST281A07, T281A14, T281A28
NTYNPZ-TY-001
ODMTO-1-1008, TO-1-1010, TO-1-1011, TO-1-1011A, TO-8-8049A
OPEN PARTSCVJ5067.10, CVJ5336.10, CVJ5341.10
OPTIMALCW-2556, CW-2585, CW-2684, CW-2828
OSSCA10362, 13968, 20629
PARTQUIPPJ859001
PASCALG12001PC, G12032PC
PATRONPCV1070, PCV1346, PCV1351, PCV9658
PEMEBLAJAPGI-204, JAPGI-209, JAPGI-252
POINT GEARPNG70014
PROFIT2710-1346
PROTECHIT2344
PROTECHNICPRJ064, PRJ241, PRJ641, PRJ875
QH TalbrosQVJ1027, QVJ1028, QVJ1218
RCA FRANCETO102A
RED-LINE45TO022
RIDEX5J0113, 5J0132, 5J0275
RRTRTO-280004, RTO-280005, RTO-280016
SAMKO32K274, 32K394, 32K462, 32K465
SATO techCV30394
Schaeffler FAG771 0178 30, 771 0185 30, 771 0186 30, 771 0605 30
SERATO226, TO229
SERCORE21041
SHAFTECJCV816AN, JCV816N, TO140R, TO140RSF
SNROJK69.003
SNRAT2229, TO2226
SPIDAN21765, 22307, 22311
SRLINES40-1027, S40-1267
StarkSKJK-0200073, SKJK-0200104, SKJK-0200257, SKJK-0200434
STARTCAR304ST89, 336ST89
STELLOX150 1070-SX
TATSUMITDA1119, TDA1127, TDA1146, TDA1158, TDA1160
TEKNOSATO5911
TrakMotive40-0405, 40-0406, 40-0417, 40-0420
TRISCAN8540 13103, 8540 13110, 8540 13112, 8540 13119
URWMS21220, MS212E0, MS212Q0, MS214A0, UR204S1
VEKATO-1011, TO-1102A
WXQP63471, 63472
ZEKKERTGS-3315, GS-3317, GS-3326, GS-3344, GS-4050, GS-5071
zentpartsZ21566

Compatible with the following OEM references

TOYOTA4341005040, 4341005040SK1, 4341005140, 4341005140SK1, 4341012100, 4341012100SK1, 4341012101, 4341012101SK1, 4341012150, 4341012150SK1, 4341012151, 4341012151SK1, 4341012220, 4341012220SK1, 4341012221, 4341012221SK1, 4341012240, 4341012240SK1, 4341012350, 4341012350SK1, 4341012351, 4341012351SK1, 4341020040, 4341020040SK1, 4341020160, 4341020160SK1, 4341020161, 4341020161SK1, 4341020170, 4341020170SK1, 4341020180, 4341020180SK1, 4341020181, 4341020181SK1, 4341020340, 4341020340SK1, 4341020341, 4341020341SK1, 4341020540, 4341020540SK1, 4341020580, 4341020580SK1, 4341032170, 4341032170SK1, 4341032171, 4341032171SK1, 4342005040, 4342005040SK1, 4342005041, 4342005041SK1, 4342005100, 4342005100SK1, 4342012110, 4342012110SK1, 4342012111, 4342012111SK1, 4342020130, 4342020130SK1, 4342020131, 4342020131SK1, 4342020170, 4342020170SK1, 4342020290, 4342020290SK1, 4342020291, 4342020291SK1, 4342020380, 4342020380SK1, 4347019645, 4347019645SK1, 4347019646, 4347019646SK1, 4347019647, 4347019647SK1, 4347019648, 4347019648SK1, 4347019655, 4347019655SK1, 4347019656, 4347019656SK1, 4347019657, 4347019657SK1, 4347019658, 4347019658SK1, 4347019659, 4347019659SK1, 4347029225, 4347029225SK1, 4347029226, 4347029226SK1, 4347029227, 4347029227SK1, 4347029228, 4347029228SK1

Passenger/LCV Vehicles

VehicleBodyFuelFromToDriveValvesBHPKW
TOYOTA CAMRY (_V2_) 2.0 (SV21_, SV21)SaloonPetrol11/198605/1991FWD1612894
Vehicle Identification Number (VIN) from: **********0321704; Transmission Type: Automatic Transmission
TOYOTA CAMRY (_V2_) 2.0 (SV21_, SV21R)SaloonPetrol11/198602/1993FWD1612189
Vehicle Identification Number (VIN) from: **********0321704; Transmission Type: Automatic Transmission
TOYOTA CAMRY Estate (_V2_) 2.0 (SV21_, SV21)EstatePetrol11/198605/1991FWD1612894
Vehicle Identification Number (VIN) from: **********0321704; Transmission Type: Automatic Transmission
TOYOTA CAMRY Estate (_V2_) 2.0 (SV21_, SV21RG)EstatePetrol11/198602/1993FWD1612189
Vehicle Identification Number (VIN) from: **********0321704; Transmission Type: Automatic Transmission
TOYOTA CARINA E VI (_T19_) 2.0 D (CT190)HatchbackDiesel04/199201/1996FWD87354
Braking/Driving Dynamics: for vehicles without ABS
TOYOTA CARINA E VI (_T19_) 2.0 GLI (ST191)HatchbackPetrol04/199209/1997FWD1613398
Number of Teeth on input shaft: 24
TOYOTA CARINA E VI (_T19_) 2.0 i (ST191)HatchbackPetrol12/199309/1997FWD1612693
Number of Teeth on input shaft: 24
TOYOTA CARINA E VI Saloon (_T19_) 2.0 (ST191)SaloonPetrol01/199309/1997FWD1613398
Number of Teeth on input shaft: 24
TOYOTA CARINA E VI Saloon (_T19_) 2.0 D (CT190)SaloonDiesel08/199201/1996FWD87354
Braking/Driving Dynamics: for vehicles without ABS
TOYOTA CARINA E VI Saloon (_T19_) 2.0 i (ST191)SaloonPetrol12/199209/1997FWD1612693
Number of Teeth on input shaft: 24
TOYOTA CARINA E VI Sportswagon (_T19_) 2.0 D (CT190_, CT190R)EstateDiesel01/199309/1997FWD87354
Braking/Driving Dynamics: for vehicles without ABS
TOYOTA CARINA E VI Sportswagon (_T19_) 2.0 GLI (ST191_, ST191R)EstatePetrol01/199309/1997FWD1613398
TOYOTA CARINA E VI Sportswagon (_T19_) 2.0 i (ST191_, ST191R)EstatePetrol05/199509/1997FWD1612693
Number of Teeth on input shaft: 24
TOYOTA CARINA IV (_T15_) 2.0 D (CT150_, CT150R)HatchbackDiesel02/198405/1988FWD86850
TOYOTA CARINA IV (_T15_) 2.0 D (CT150)HatchbackDiesel12/198511/1987FWD86951
Vehicle Identification Number (VIN) from: **********0023603
TOYOTA CARINA IV Saloon (_T15_) 2.0 D (CT150_, CT150R)SaloonDiesel02/198405/1988FWD86850
Vehicle Identification Number (VIN) from: **********0023603
TOYOTA CARINA V (_T17_) 2.0 D (CT170_)HatchbackDiesel03/198806/1992FWD87354
TOYOTA CARINA V (_T17_) 2.0 GLi (ST170)HatchbackPetrol12/198703/1992FWD1612894
TOYOTA CARINA V (_T17_) 2.0 GLI (ST171)HatchbackPetrol12/198703/1992FWD1612189
TOYOTA CARINA V Estate (_T17_) 2.0 (ST171_, ST171R)EstatePetrol12/198704/1992FWD1612189
TOYOTA CARINA V Saloon (_T17_) 2.0 (ST170)SaloonPetrol12/198703/1992FWD1612894
TOYOTA CARINA V Saloon (_T17_) 2.0 D (CT170_, CT170)SaloonDiesel03/198806/1992FWD87354
TOYOTA CARINA V Saloon (_T17_) 2.0 GLI (ST171)SaloonPetrol12/198703/1992FWD1612189
TOYOTA COROLLA (_E9_) 1.8 D (CE90_, CE90R)SaloonDiesel11/198906/1993FWD86749
TOYOTA COROLLA (_E9_) 1.8 D (CE90_, CE90R)SaloonDiesel07/198706/1993FWD86447
TOYOTA COROLLA Compact (_E9_) 1.6 GTi (AE92, AE93)HatchbackPetrol08/198710/1994FWD1611685
TOYOTA COROLLA Compact (_E9_) 1.8 D (CE90)HatchbackDiesel08/198704/1992FWD86447
TOYOTA COROLLA Compact (_E9_) 1.8 D (CE90)HatchbackDiesel08/198904/1992FWD86749
TOYOTA COROLLA Liftback (_E10_) 2.0 D (CE100_, CE100R)HatchbackDiesel07/199204/1997FWD87253
TOYOTA COROLLA Liftback (_E9_) 1.6 GTI (AE92_, AE92R)HatchbackPetrol07/198706/1993FWD1612592
TOYOTA COROLLA Liftback (_E9_) 1.8 D (CE90)HatchbackDiesel08/198704/1992FWD86447
TOYOTA COROLLA Liftback (_E9_) 1.8 D (CE90)HatchbackDiesel08/198904/1992FWD86749
TOYOTA COROLLA Station Wagon (_E9_) 1.8 D (CE90)EstateDiesel12/198706/1992FWD86447
TOYOTA COROLLA Station Wagon (_E9_) 1.8 D (CE90)EstateDiesel08/198906/1992FWD86749
TOYOTA CORONA Hatchback (_T19_) 1.8 (ST190)HatchbackPetrol02/199212/1995FWD1612592
Construction Year to: 12/1995
TOYOTA CORONA Saloon (_T19_) 1.8 (ST190_)SaloonPetrol02/199212/1995FWD1612592
Construction Year from: 02/1992; Construction Year to: 12/1995
TOYOTA PICNIC (_XM1_) 2.0 (SXM10_, SXM10G)MPVPetrol06/200012/2001FWD1612290
TOYOTA PICNIC (_XM1_) 2.0 16V (SXM10_, SXM10G)MPVPetrol08/199609/2000FWD1612894
TOYOTA RAV 4   (_A1_) 2.0SUVPetrol09/199709/2000FWD1612995
Transmission Type: Automatic Transmission
TOYOTA RAV 4   (_A1_) 2.0 4WD (SXA10, SXA11)SUVPetrol06/199406/2000AWD1612995
Braking/Driving Dynamics: for vehicles without ABS
TOYOTA RAV 4   (_A1_) 2.0 4WD (SXA10, SXA11)SUVPetrol07/199606/2000AWD1612894
Braking/Driving Dynamics: for vehicles without ABS

Blue Print is a brand of high quality parts for use in the servicing and repair of cars and vans. Blue Print parts are a great value alternative to expensive replacement parts from the vehicle manufacturer’s dealership. They are designed and specified to be an exact replacement for the original part that is removed from the car and to perform to high standards when fitted.
