BLDC Motor Driver 500W High Power 6-60V 20A Hall Brushless Motor Speed Control Board PWM DC Three-phase Motor Drive Module


Specification:

Working voltage: 6-60V (60V limit remaining)

Working current: rated 16A Peak 20A

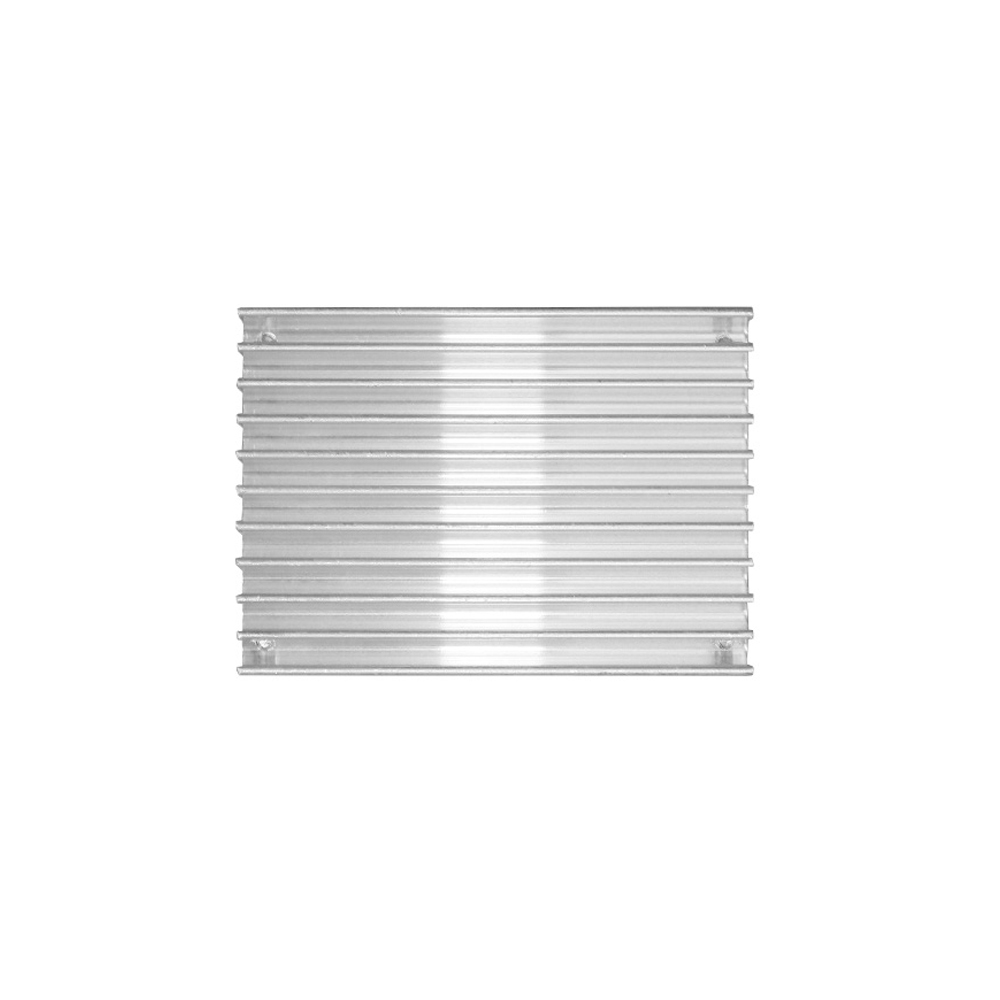

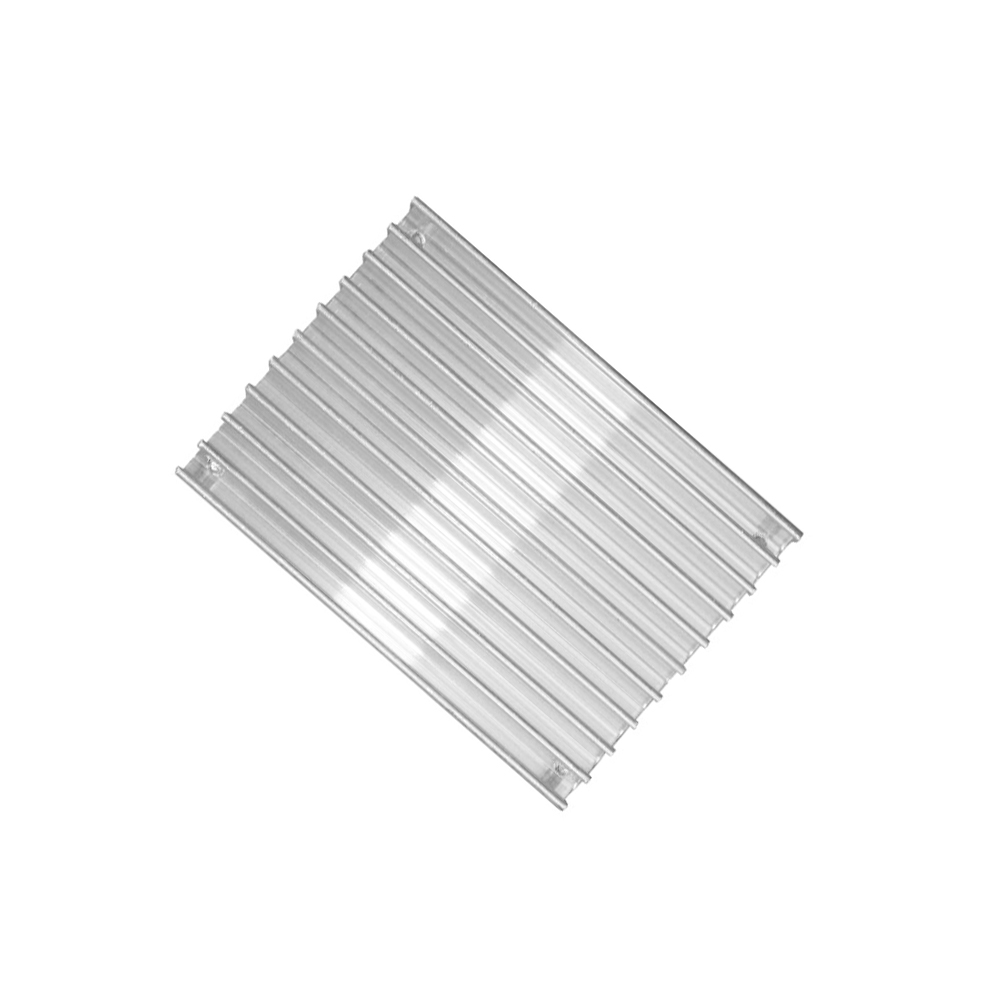

Power: rated 200-300W Peak 500W (leave enough to strengthen heat dissipation when using high power)

Overcurrent protection: yes

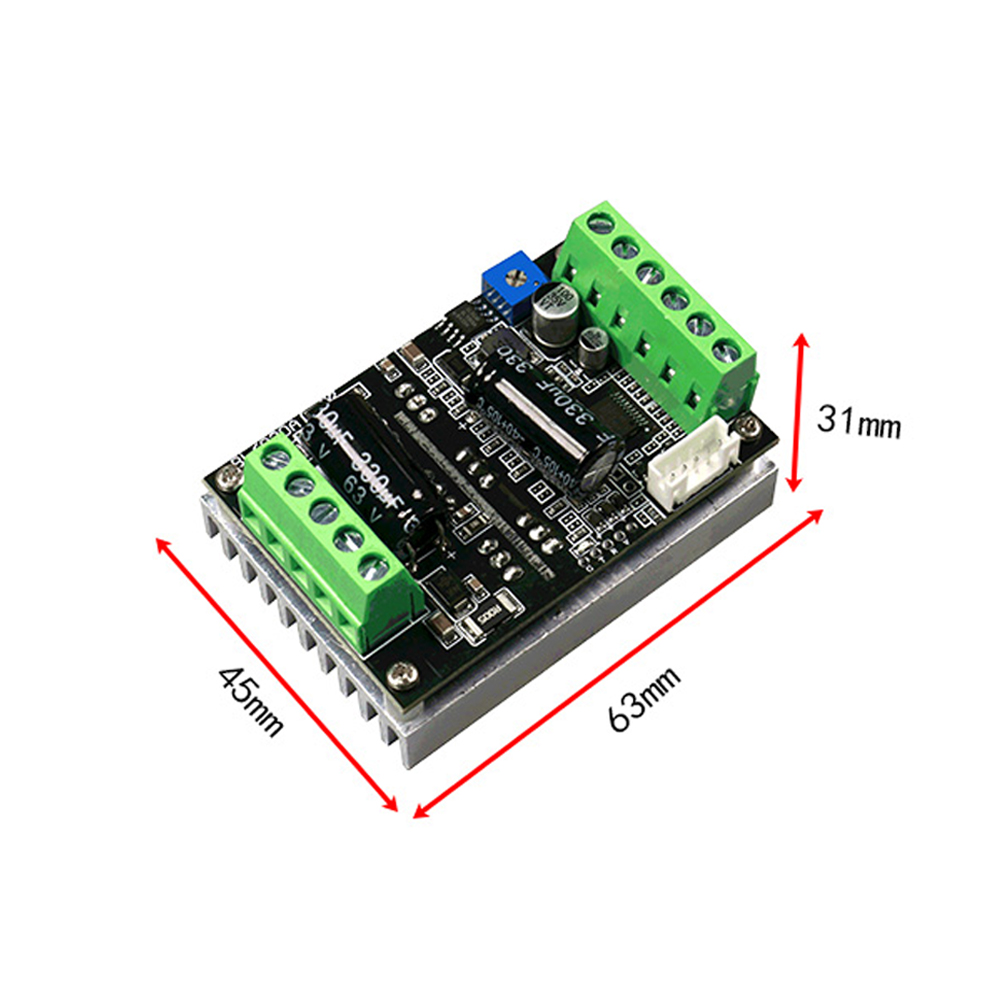

Product size: length 63MM*45MM*31MM

Weight: about 77g


Attention:

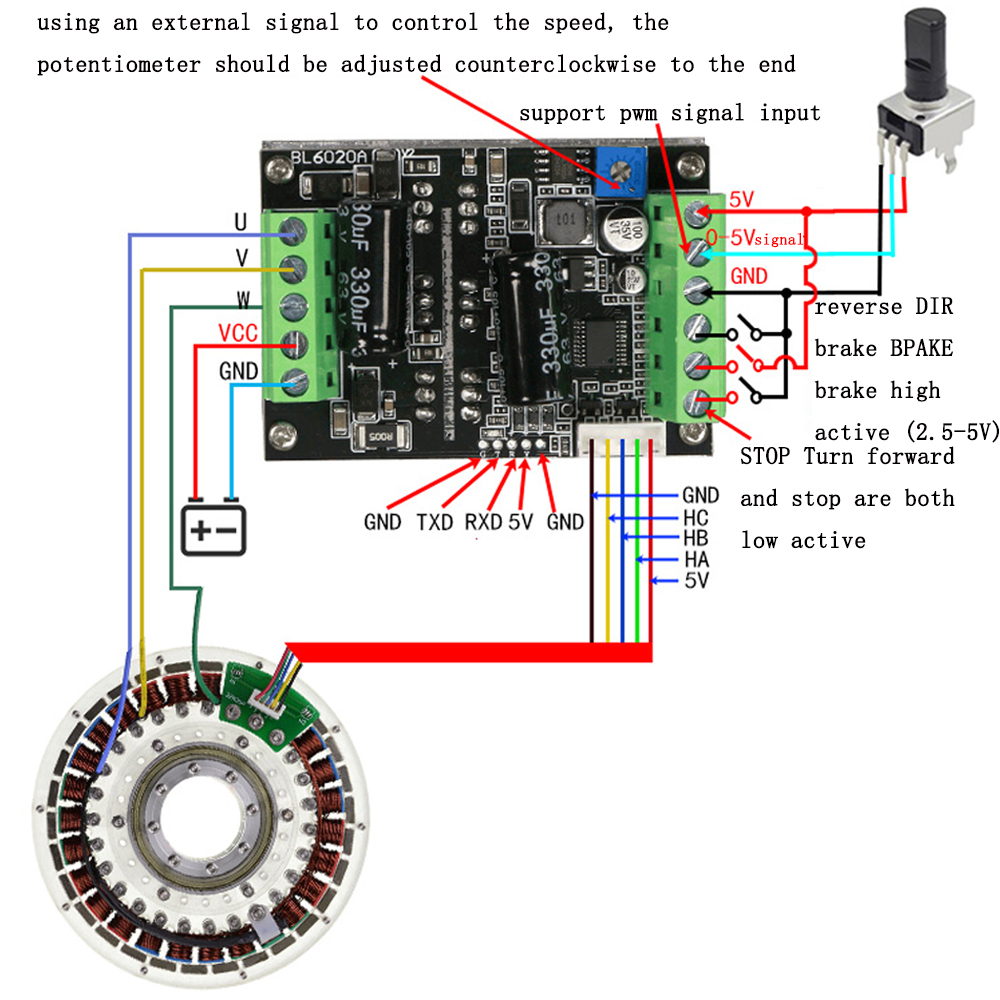

This drive is a DC three-phase brushless control board, which requires the motor to have Hall in order to work normally.

This drive is only suitable for DC brushless Hall motors with an electrical Angle of 120 degrees.

Support PLC 0-5V analog control.

Support PWM control amplitude 2.5-5V.


Note:

1. Due to the light and screen difference, the item's color may be slightly different from the pictures.

2. Please allow 1mm-1cm differences due to manual measurement.


Package Included:

1x Motor Drive Board
