Description:
Application: This delay time relay is designed with a 0.1-10d and has 10 settings and can meet your different needs.
Suitable device: This delay time relay can control a household appliance, industrial machine, etc.

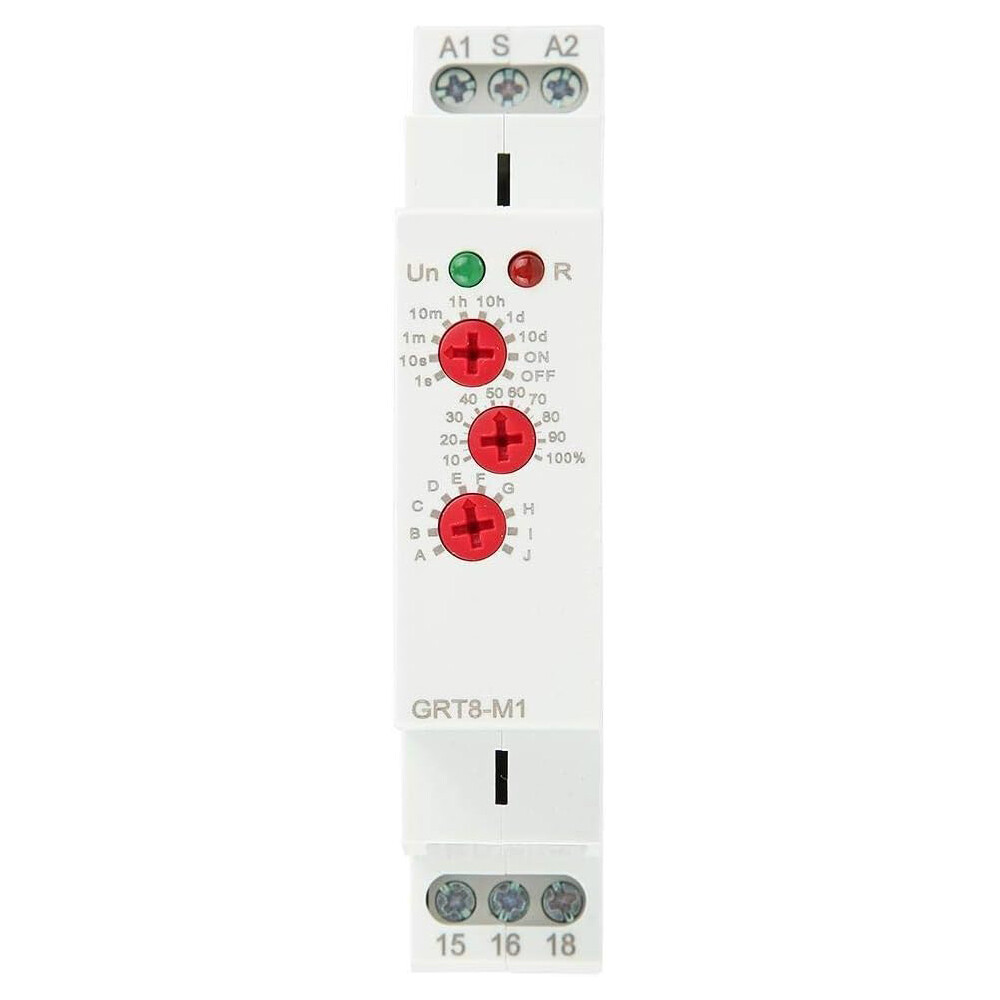

User-friendly: This adjustable delay timer relay is designed with green and red LED to show working status.
Easy to Set: This delay timer control relay is equipped with two buttons that allow you to easily adjust the delay time.
Specification:
Voltage range: AC230V
- Output: 16A 1SPDT
-10 functions:
5 time functions controlled by supply voltage
4 time functions controlled by control input E F G H)
1 Function of interlock relay number I)
-Time scale 0.1 s.10 days divided into 10 areas, adjustment by potentiometer.
0.1-1s, 1-10s, 6-60s, 1-10min, 6-60min, 1-10h, 0.1-1day, 1-10day, only on, only off
-1-MODULE 18mm, DIN rail mounting, convenient installation.

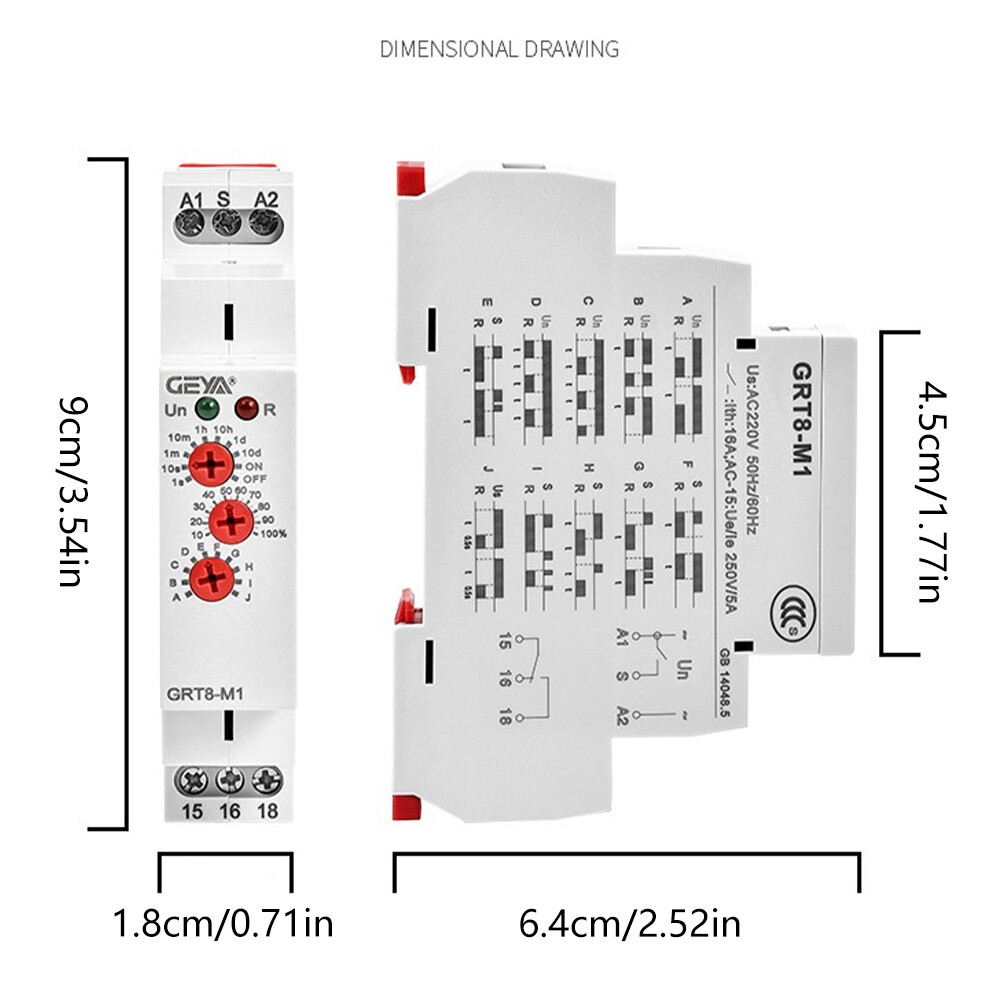

Size (LxWxH): approx. 90x18x64mm/3.54x0.71x2.52 inches.
The package includes:
1 x Timer Delay
Annotation:
There may be color distortions due to different computer resolutions.
Due to different hand measurements, there may be a slight error.
