Power: 150W
Voltage: 220V
Motor: 7500 rpm
Speed: 7500–8000 rpm

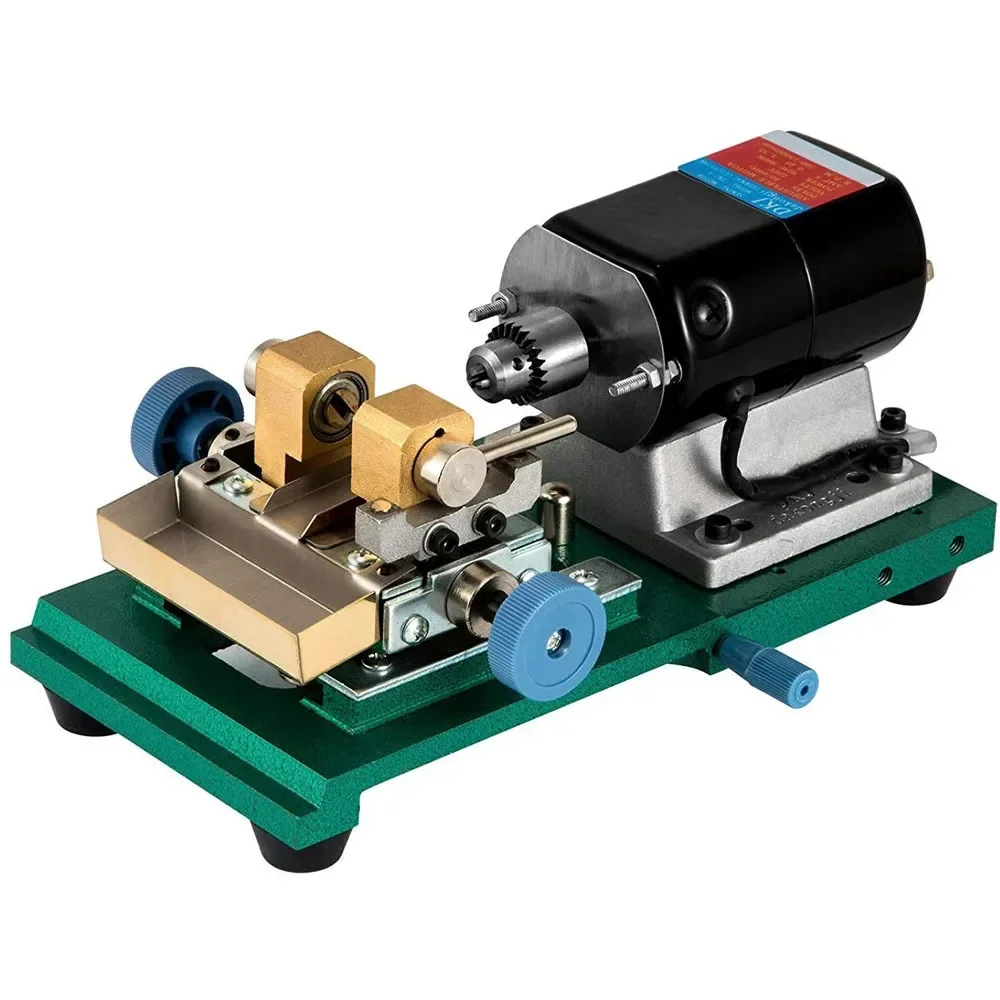

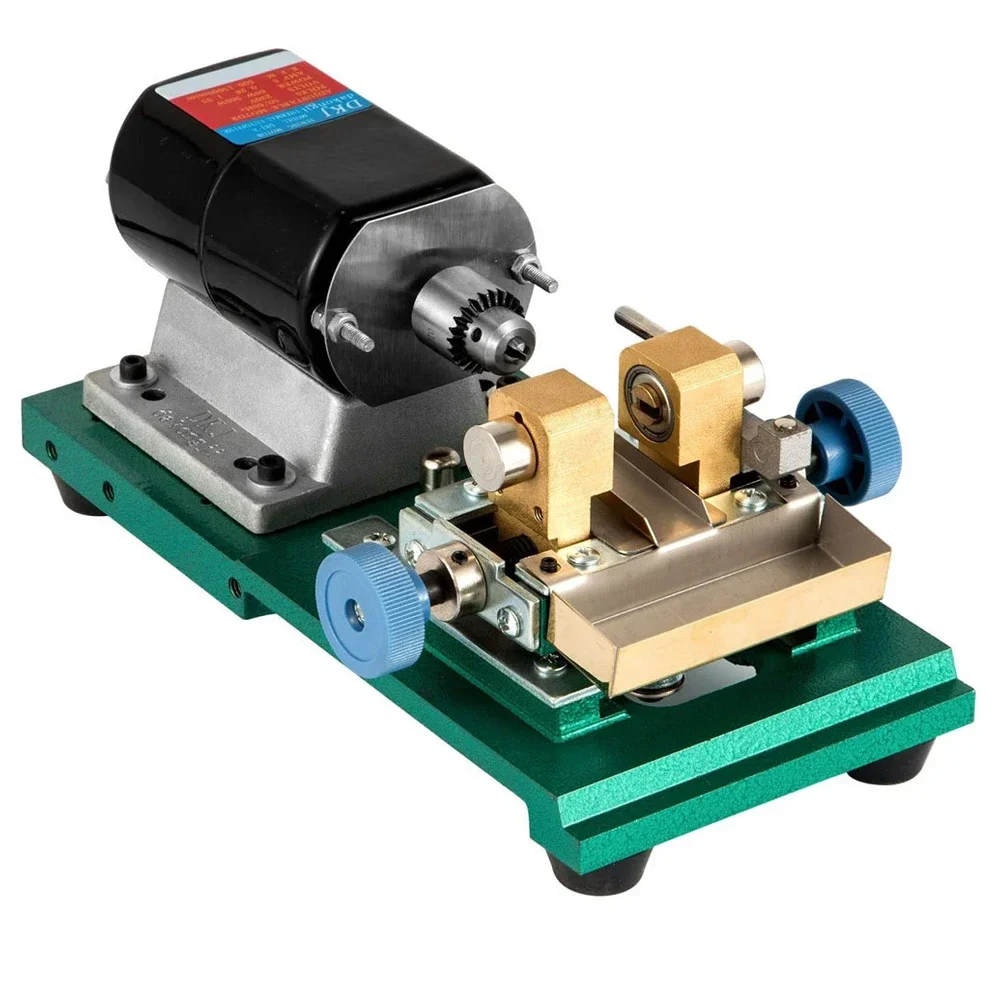

Features of the Pearl Drilling Machine
1. Designed for precise drilling of pearls, wooden beads, coral, amber, and other gemstones, as well as jewelry components made of gold, silver, copper, and other materials.
2. This machine comes equipped with 9 sets of specialized chucks, suitable for round, rice-shaped, and irregular pearls of various sizes and shapes.
3. The machine’s chucks are made of ABS, a material known for its wear resistance and smooth cutting surface—it is also used in the brake systems of high-end automobiles. As a result, the chucks are not only durable but also prevent scratches or damage to the pearls.
4. Capable of drilling pearls of various diameters ranging from 3 to 25 mm (suitable for freshwater pearls, saltwater pearls, South Sea pearls, Tahitian black pearls, shell beads, coral, and amber).
5. Comes with specialized twist drills in various diameters for pearl drilling.
6. Drilling depth is adjustable.
7. Equipped with a foot switch to control the motor, ensuring convenience and efficiency.
8. Features a power-assist handle for effortless and convenient operation.
9. Includes one needle sharpener for sharpening the drilling needle as needed.
10. The base of the vise has a dust-exhaust port, enabling batch drilling (since batch drilling generates a large amount of pearl dust that can easily clog the workpiece inside the vise). The dust-exhaust port eliminates the need for frequent cleaning of pearl dust shavings, ensuring the machine remains in good working order over the long term.
11. Control the chuck and the vertical rotation of the pearl using the handwheel for convenience and efficiency.
12. Compact size, lightweight, and elegant appearance, suitable for use in any setting.
13. The DK copper-core motor operates quietly and is durable.
14. This machine comes with a large-capacity waste tray.
Precautions
1. Ensure the power supply is connected correctly.
2. Make sure the drill chuck is securely clamped and the drill bit is properly aligned before drilling.
3. Ensure the pearl is securely clamped before drilling.
4. When drilling, clamp the pearl firmly and turn the rotation handle; confirm the pearl has rotated 180° before completing the hole.
5. If the drill bit fails to align with the center of the pearl, contact a professional to calibrate the machine.
6. Sharpen the drill bit regularly and replace it with a new one to ensure drilling quality.
7. If any screws are loose, tighten them before use.
8. Due to the layered structure of pearls, drilling directly through from one side may cause the pearl to crack. When using this machine, typically drill half the hole from one side of the pearl first, then drill the other half from the opposite direction along the same axis.
9. This is a precision instrument. To maintain accuracy, do not disassemble the machine unless you possess the necessary technical expertise.
