Power	10Kw
Transmission Ratio	1:3.8
PTO shaft	Male, Femal
Input speed	540rpm
Input torque	159Nm
Output torque	42

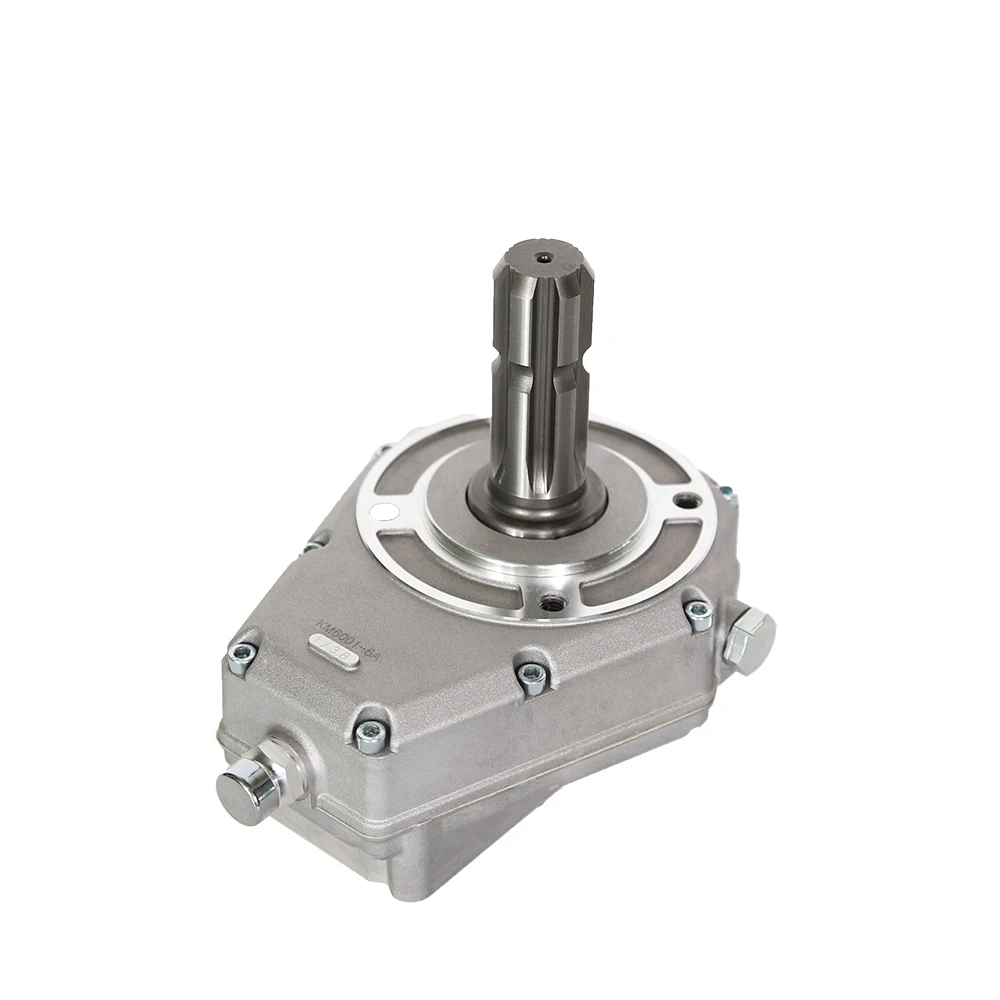

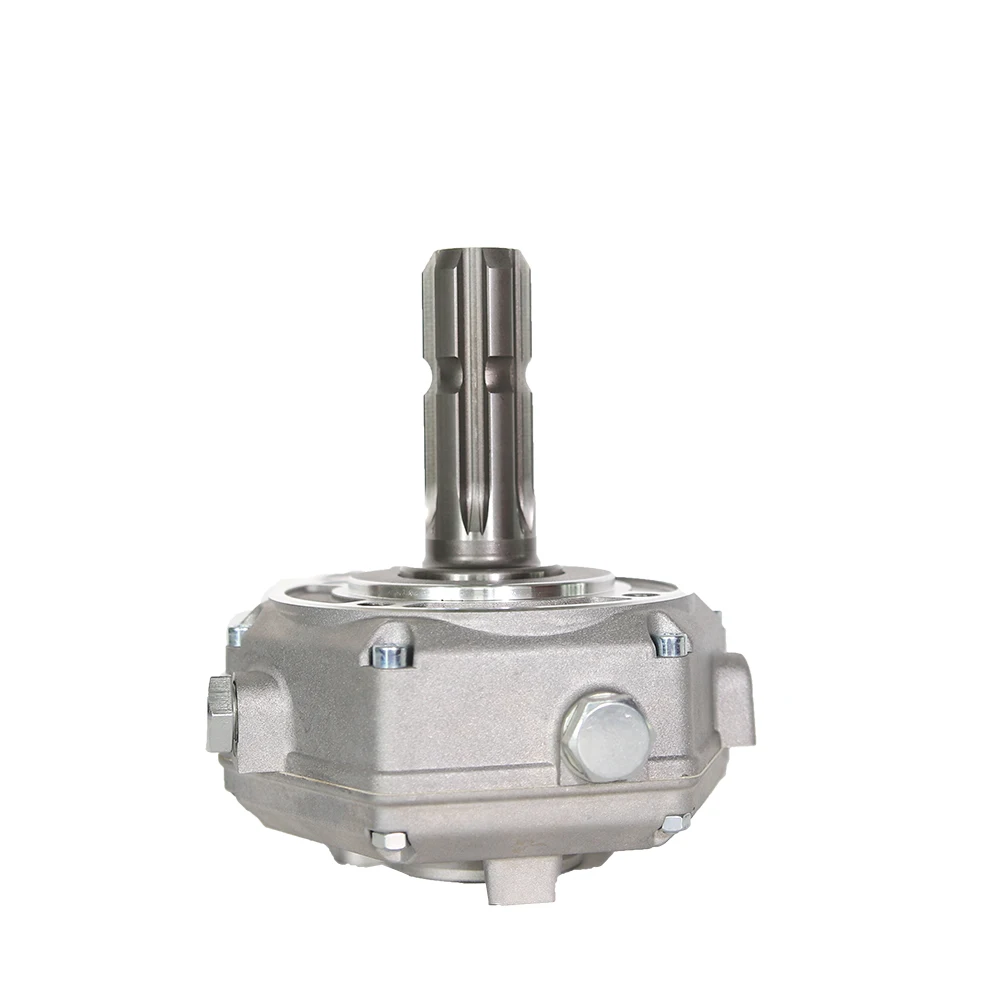

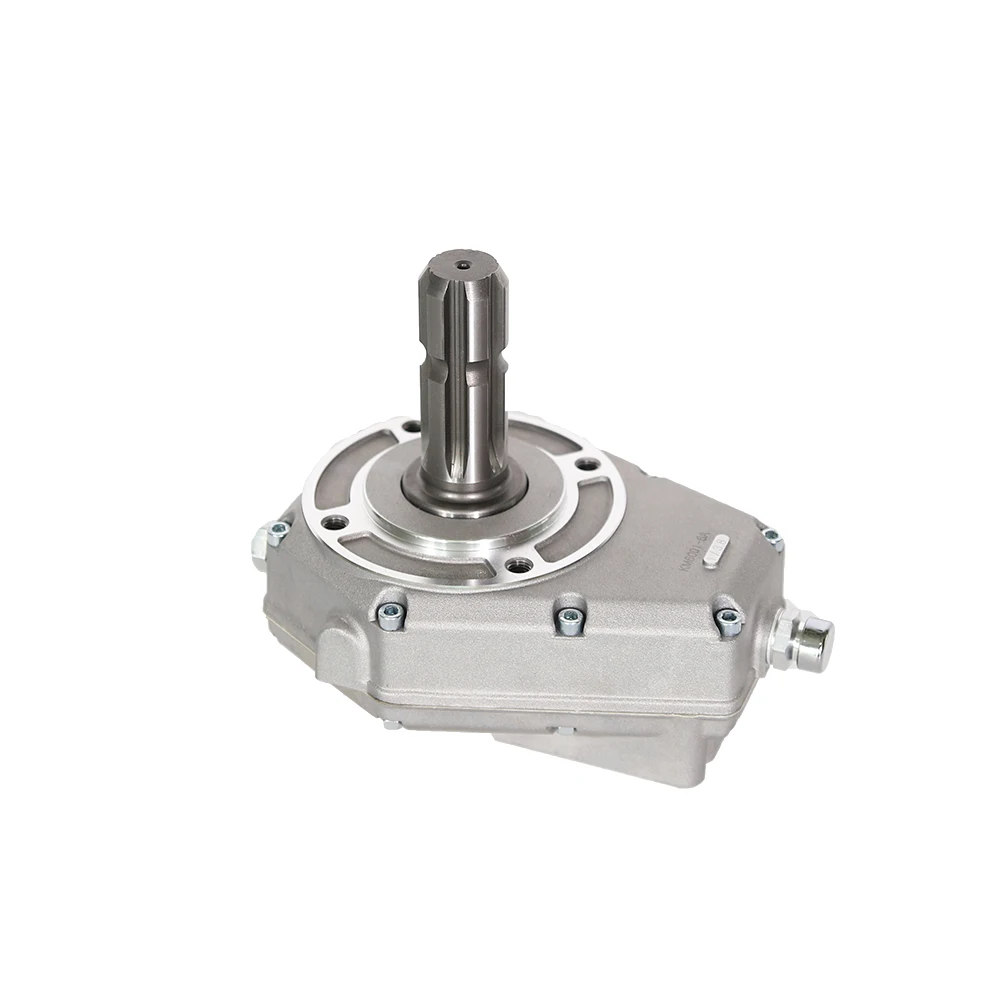

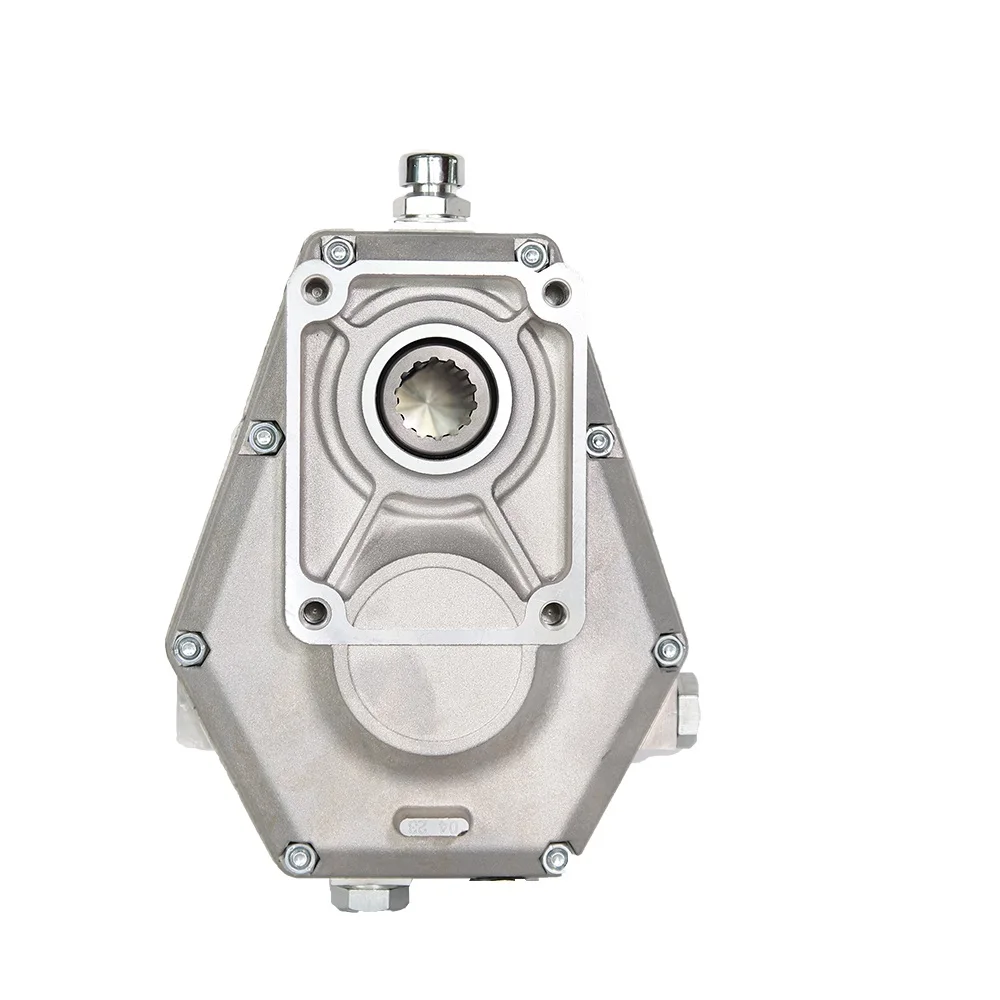

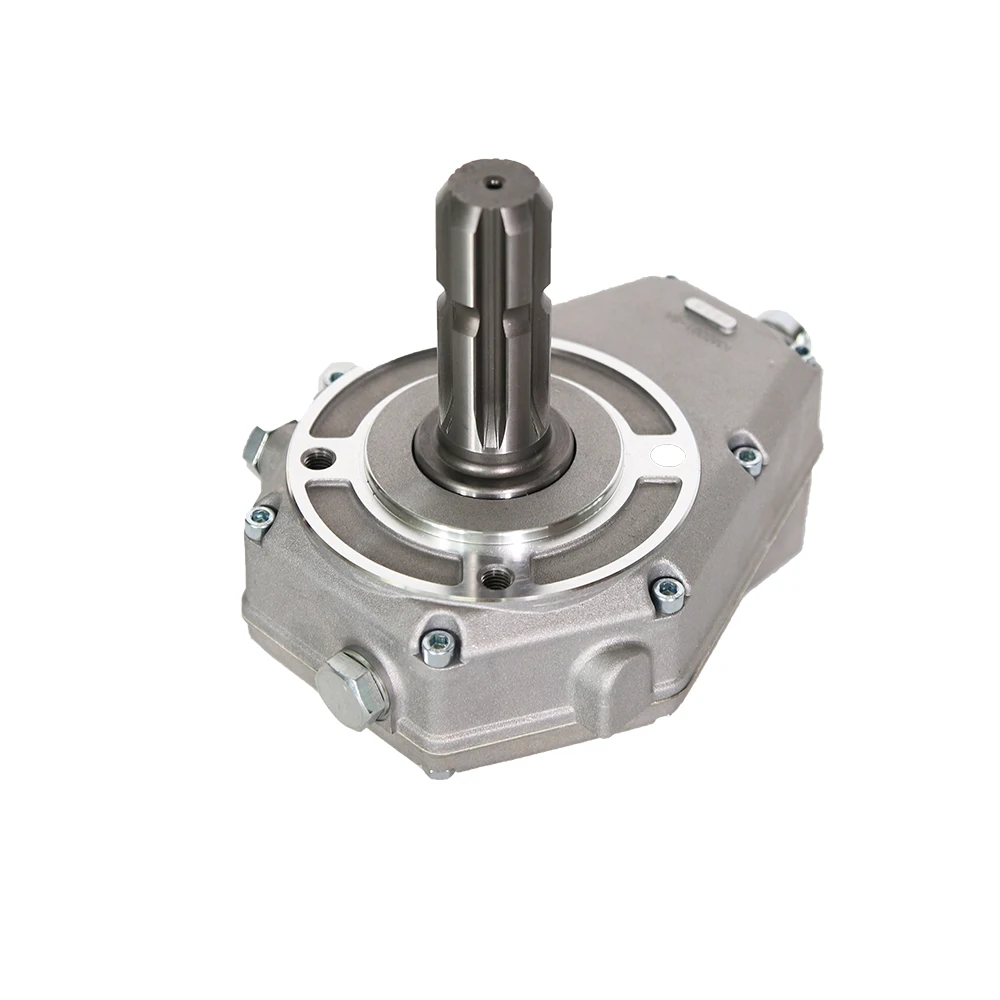

The  Gearboxes are designed for connecting gear pumps to farm tractor power take offs (PTO). Output speed of power take offs is 540rpm which can be compared with the proper running speeds of hydraulic pumps. Different input running speeds can also be suitable, provided that the PTO gearbox output speed does not exceed 3000 rpm.HousingMade in shell-cast aluminum or in high mechanical resistance cast iron.GearsMade in Steel UNI 18 PCR M03.Stub teeth guarantee very high resistance and run very quietly.ShaftsMade in steel UNI 16 CRN4.They are coupled with splined gears and are designed to stand the torque values stated in the catalogue.TorquesThe torque figures mentioned in the technical charts of all the PTO Gearboxes refer to continuous cycles. Torques under intermittent working conditions can be exceeded by 20%.LubricationSAE 90 gear oil must be put in the pto gearbox prior to use-please note we do not supply the gear oil and will not accept responsibility for customers not putting oil in. Change the oil after the first 60-80 hours and then every 12 months or 1500 hours which ever falls first.MaintenancePlease check the oil level via the special oil window every 50 hours. Working temperatures should not exceed 120 degrees celcius under continuos  cycle..
