**WARRANTY**: 3 YEARS

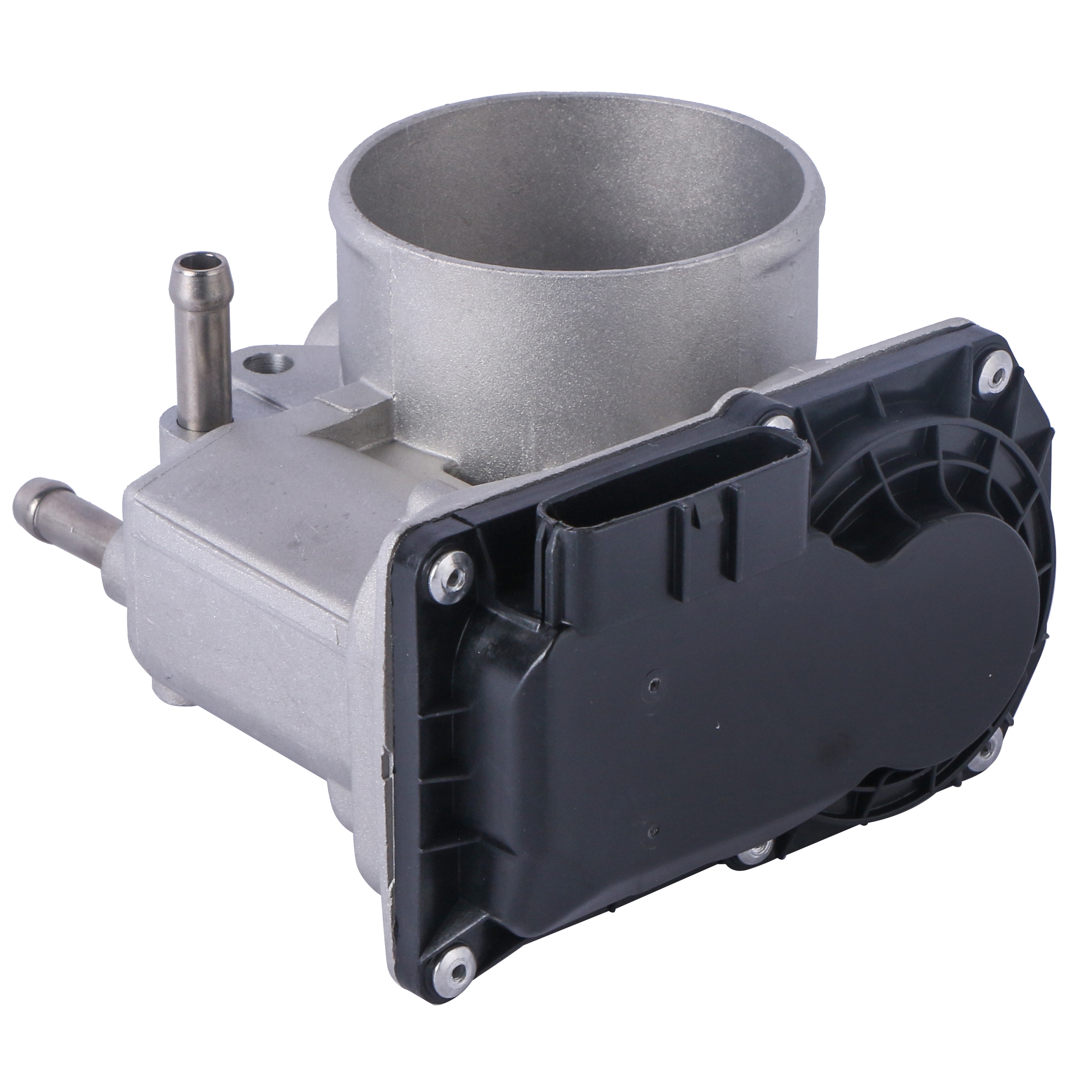

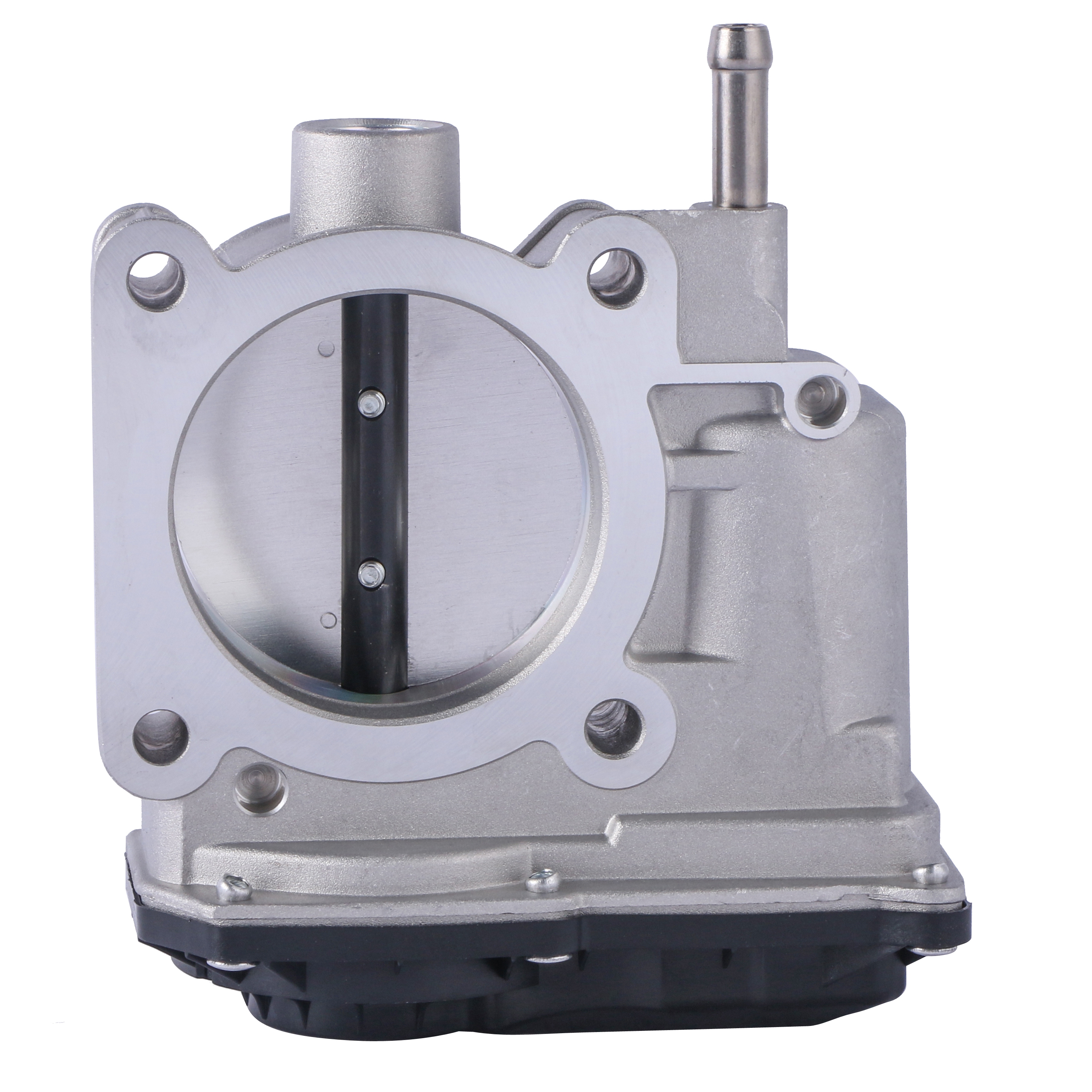

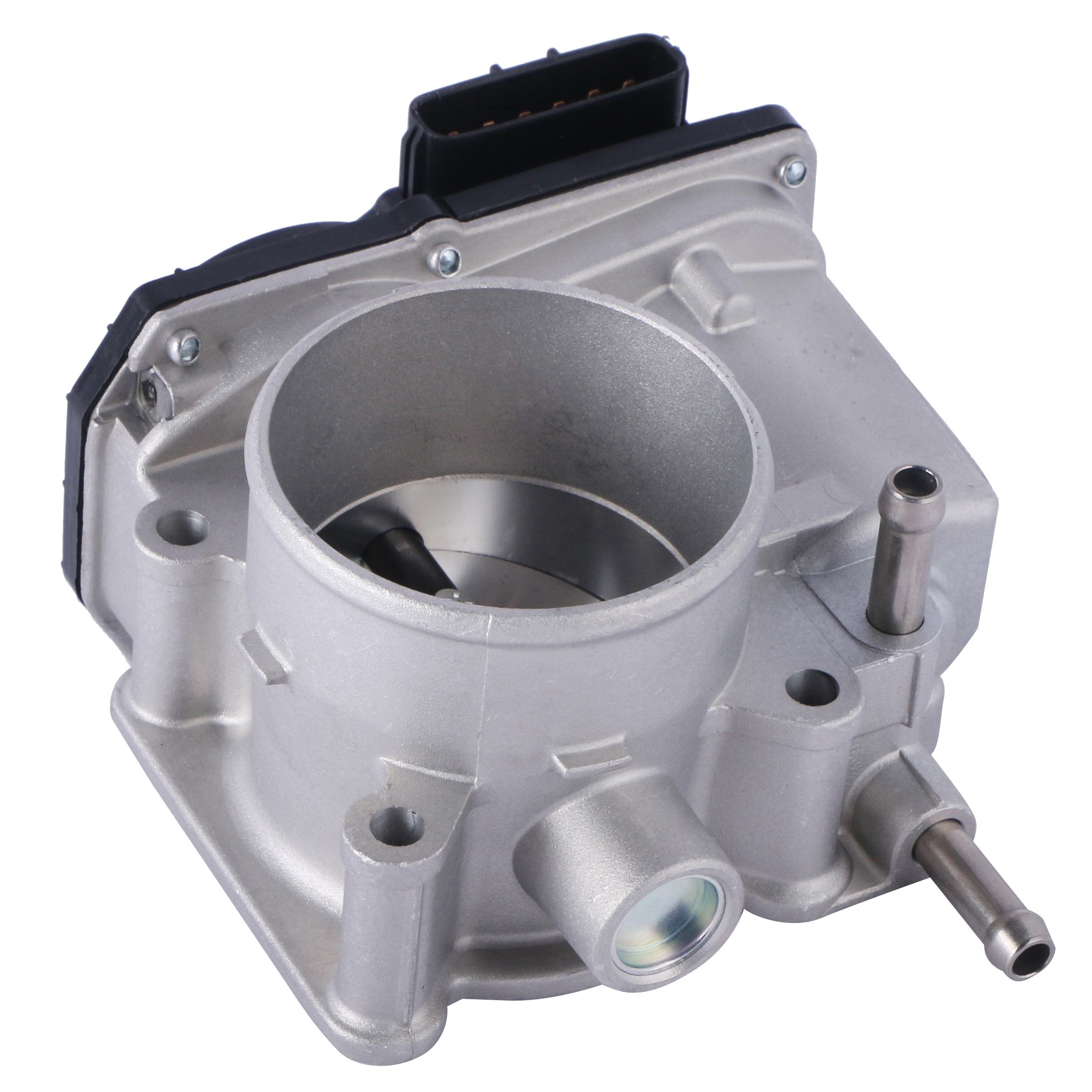

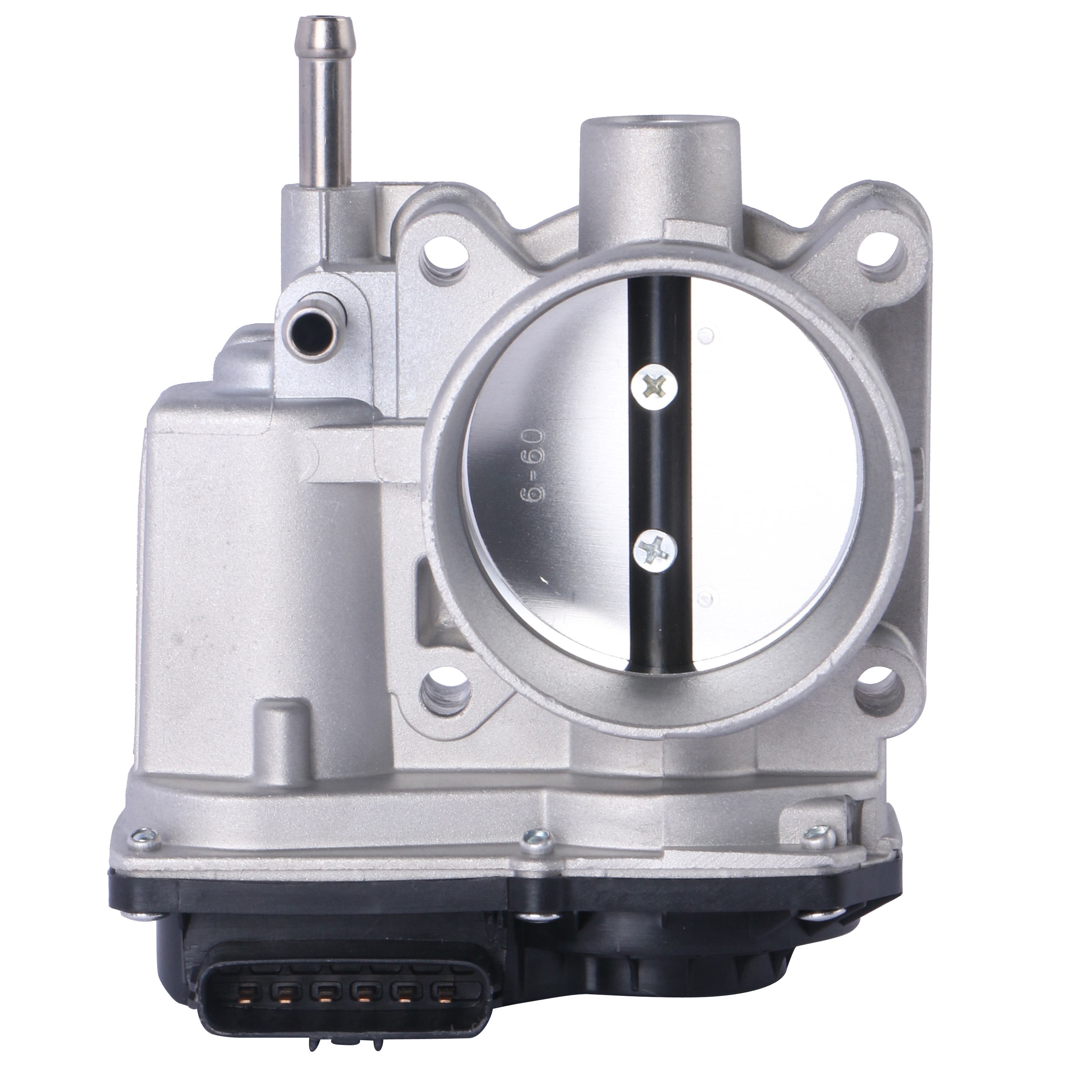

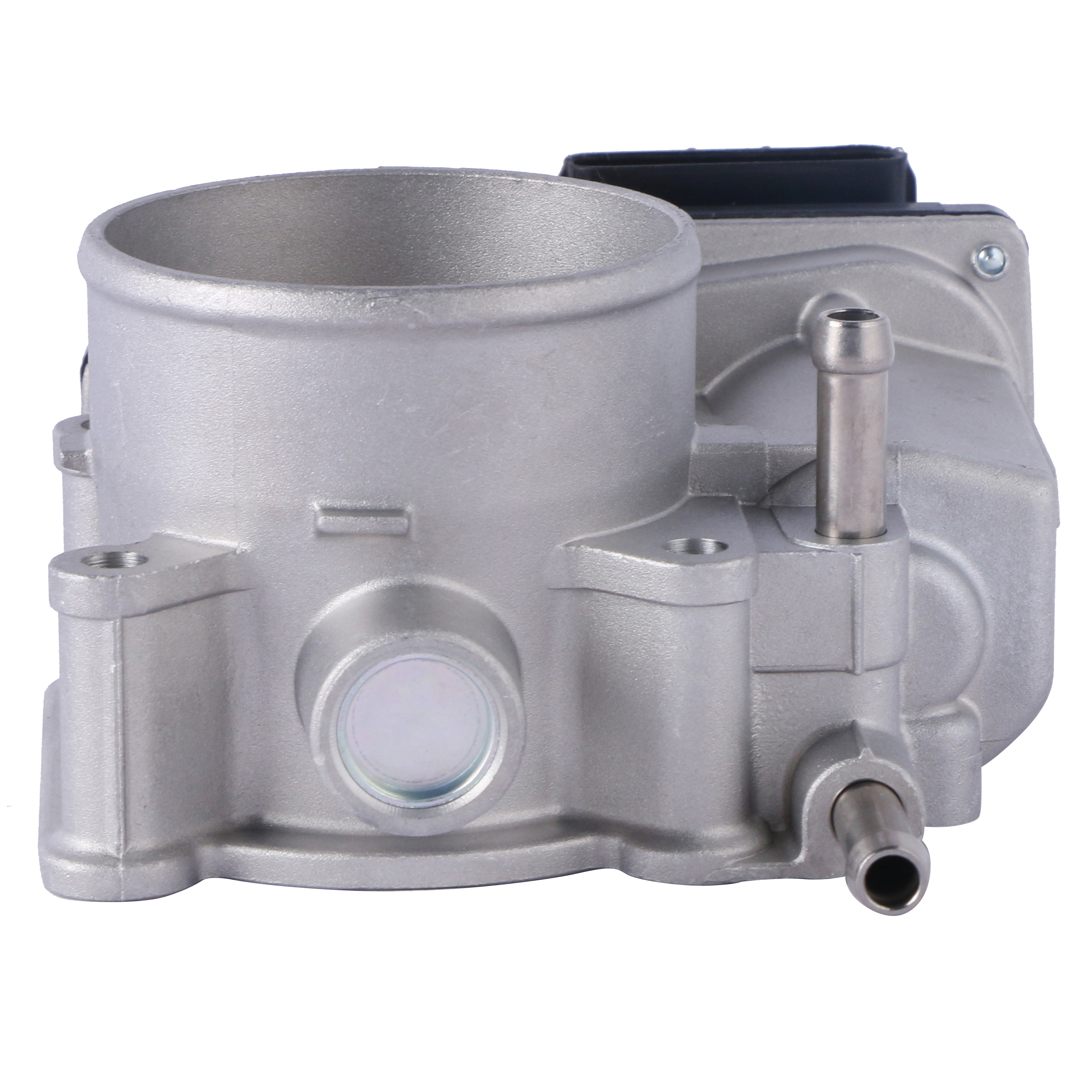

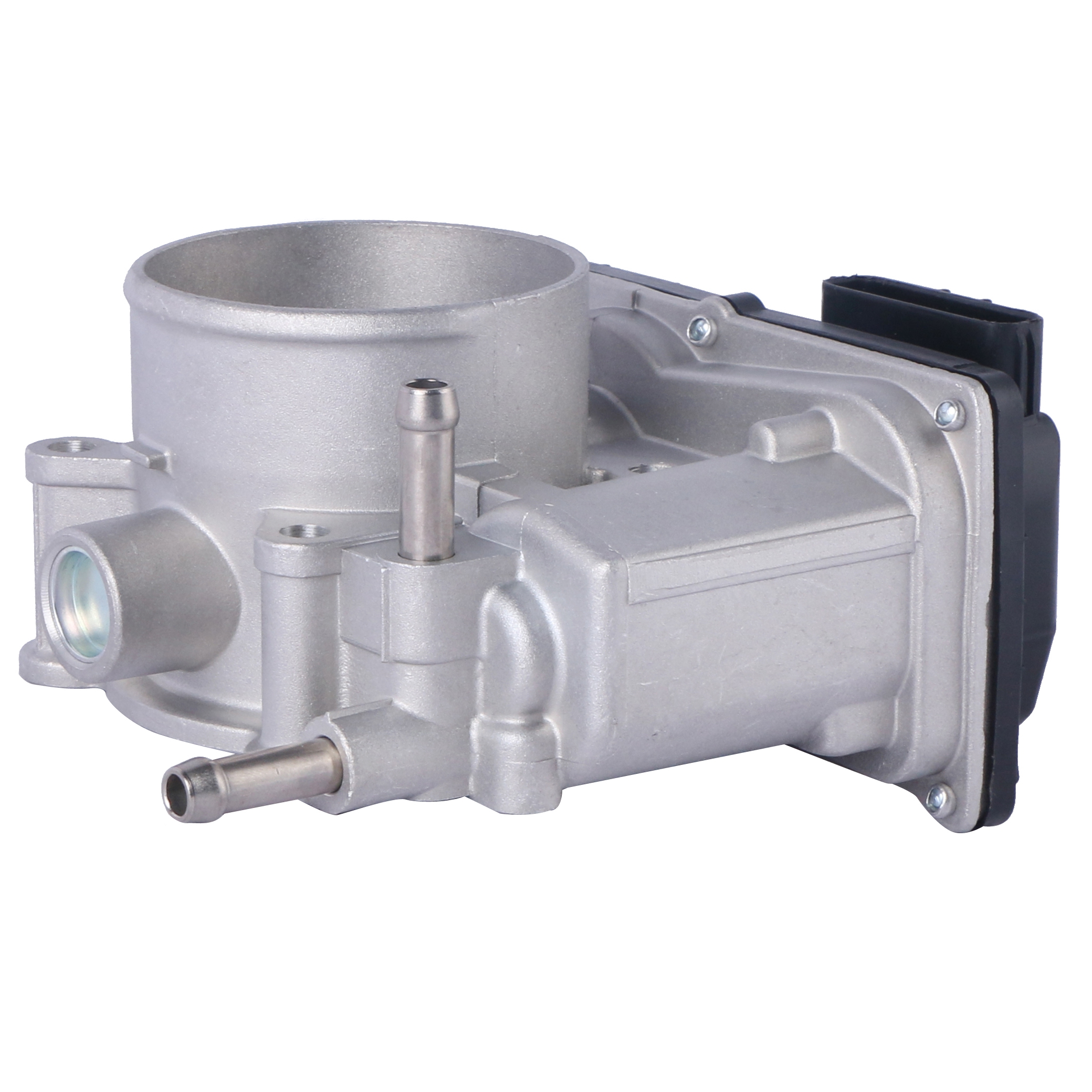

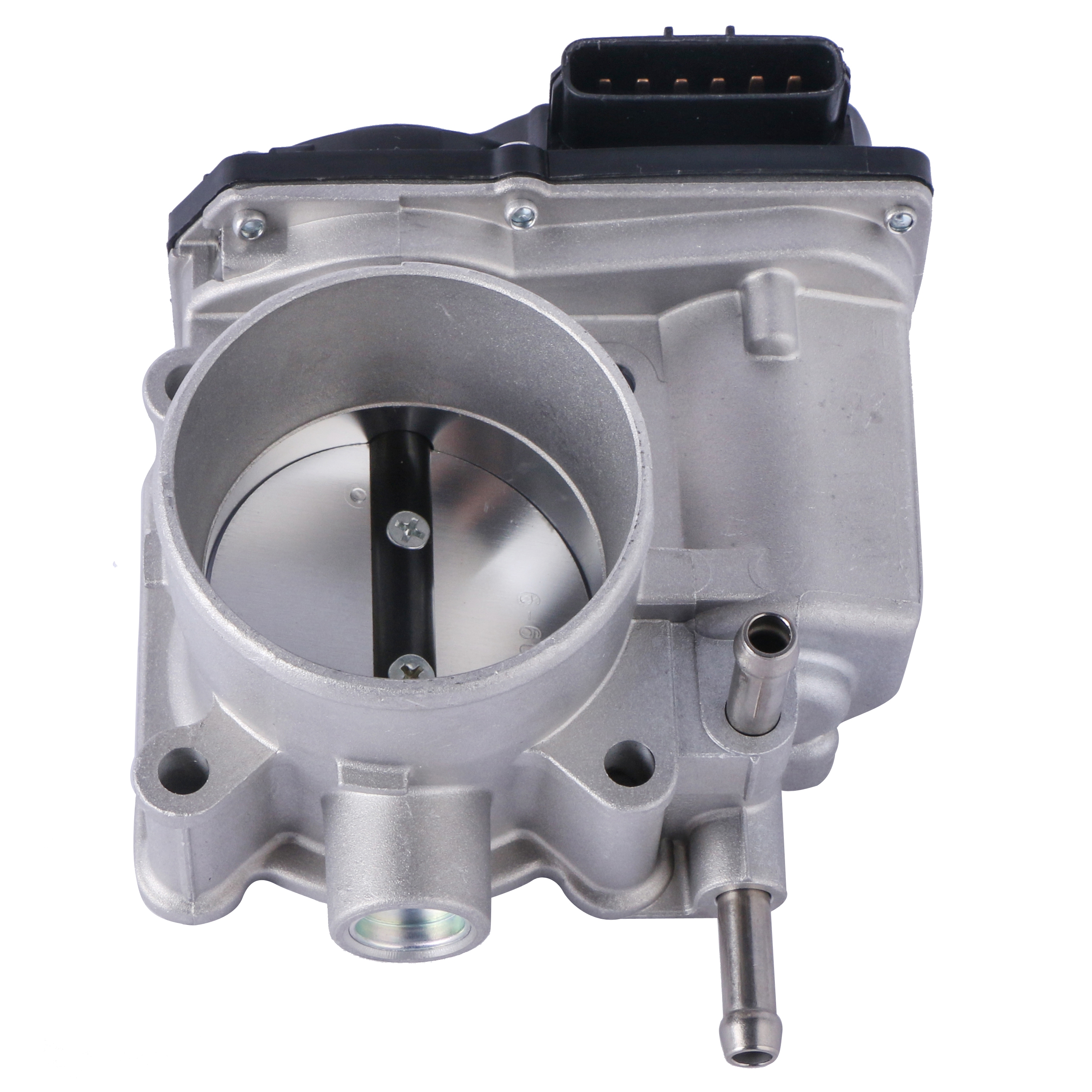

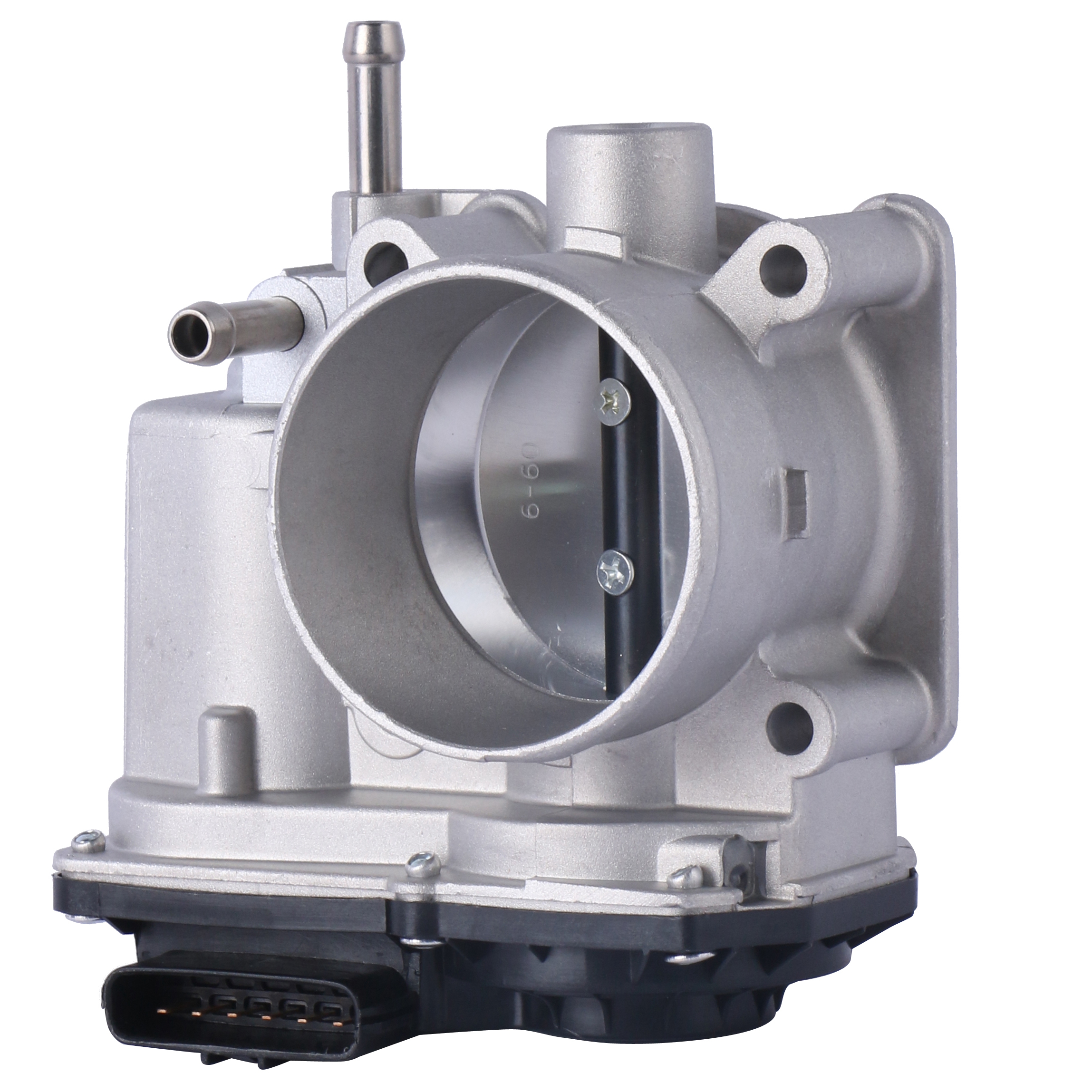

The throttle body is the part of the engine that mixes air with the fuel to allow combustion to take place. When a throttle body gets clogged with carbon, the vehicle may suffer from issues ranging from a lack of fuel mileage, loss in efficiency or may even become totally inoperable.
**Installation**:
Step 1: Remove the air cleaner and duct hose assembly using the common screwdriver. Disconnect the electrical connector on the mass air flow by pulling out the plug. Disconnect the intake air temperature sensor found in the air duct.
Step 2: Disconnect the idle air control on the side of the throttle body by pulling the electrical connector out. Disconnect the throttle position sensor opposite the throttle cable levers.
Step 3: Disconnect the throttle cables by turning the throttle lever on the throttle body all the way open by hand and then removing the now slackened cables from the throttle lever.
Step 4: Remove the heated water hoses from the bottom of the throttle body if there are any (this is vehicle dependent). Use the needle nose pliers to remove the clamps by squeezing the clamps and pulling them off. Pull the hoses off. Not all vehicles have these, although there are a few that do.
Step 5: Remove the four bolts running through the throttle body and into the intake manifold. Use appropriate ¼-inch drive socket and ratchet. Lift the throttle body off the intake manifold. Protect the metal gasket that is in between the throttle body and intake. This gasket must be reused. Install the new throttle body and components in reverse order of removal.
**Features**:
Material: Aluminum
Interchange Part Number: 16119ET000 161199SE0A 67-0014,161193RC0A,161194AF0A,16119ET00A,16119ET00B,16119ET00C,67-002
Manufactured under strict quality control
Mounting Hardware Included: No
**Fitment**:
For Nissan Cube 1.8L 2009-2014
For Nissan Nv200 2.0L 2013-2018
For Nissan Sentra 1.8L 2013-2019
For Nissan Versa 1.8L 2007-2012
