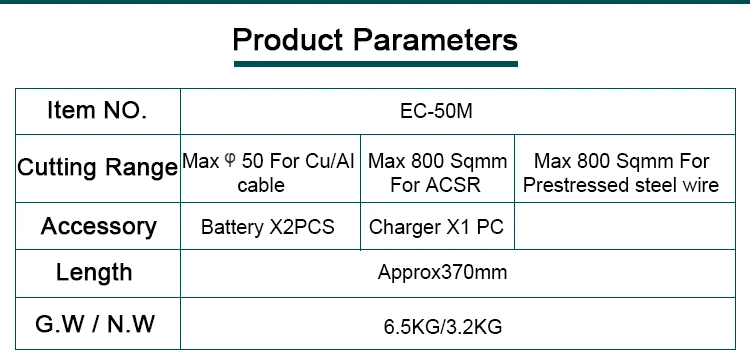

Item No.

EC-50M

EC-65M

EC-75M

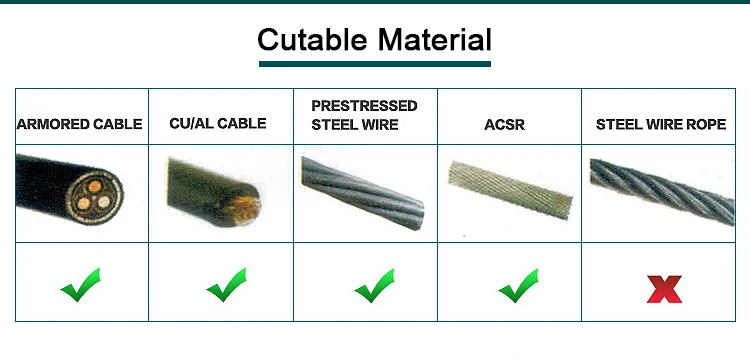

Cutting range

Max φ50mm For Cu/Al cable

Cu cables 3×120mm2

Cutting Cu/Al

cables upto

3×150mm2

Max 800Sqmm for ACSR

ACSR cable

1440mm2

Max 100Sqmm for prestressed Steel wire

Al conduct φ65mm

Ambient

Temperatur

-10-40℃

-10-40℃

-10-40℃

Voltage

DC18V

DC18V

DC18V

Cut/Once

Depends on the size

of cable

Depends on the size

of cable

Depends on the size

of cable

Charger/O

Approx. 100times

Approx. 100times

Approx. 70times

Charging

Approx. 2hours

Approx. 2hours

Approx. 2hours

G.W/N.W

6.5kGS/3.2KGS

7kGS/4KGS

8kGS/4.75KGS

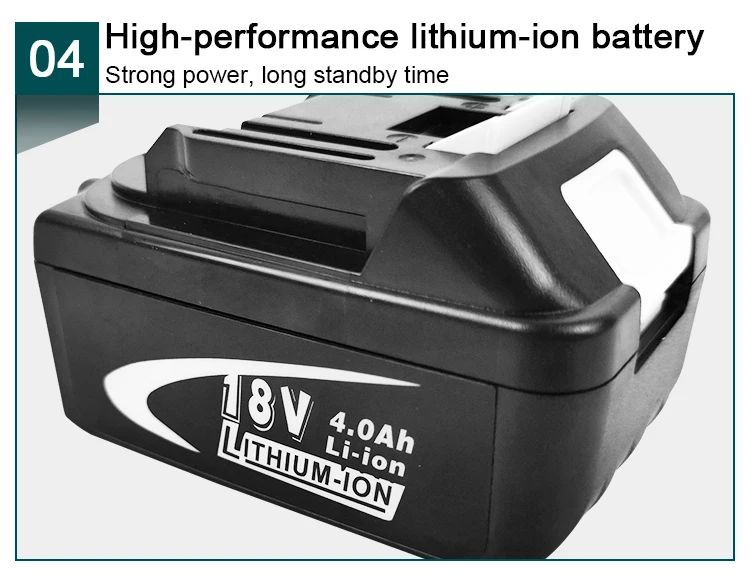

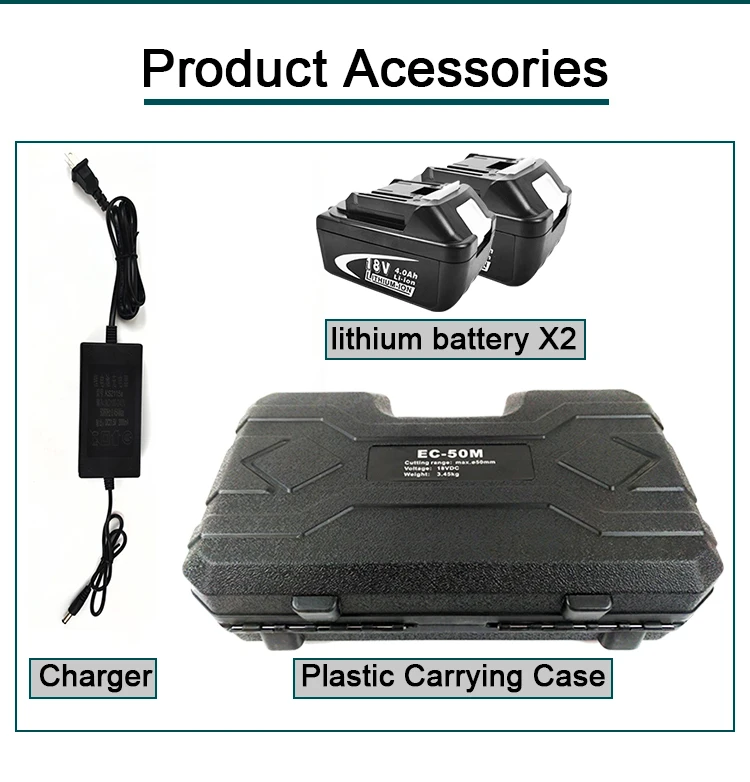

Battery/Charger

2pcs/1pc

2pcs/1pc

2pcs/1pc
