Find a place with a strong signal outdoors and install the outdoor antenna here to collect external signals.
Products Description
Application&Note

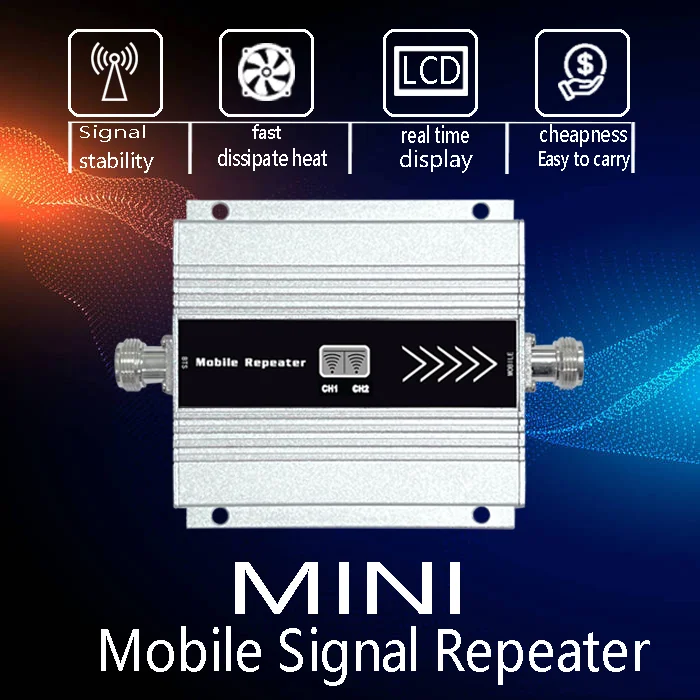

Product Introduction of mobile phone signal amplifier:

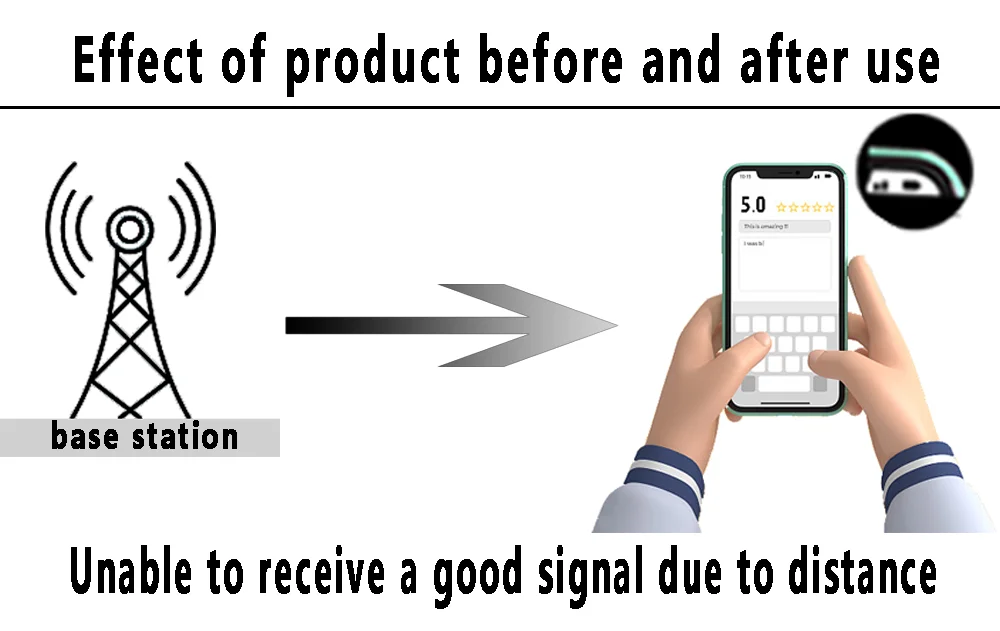

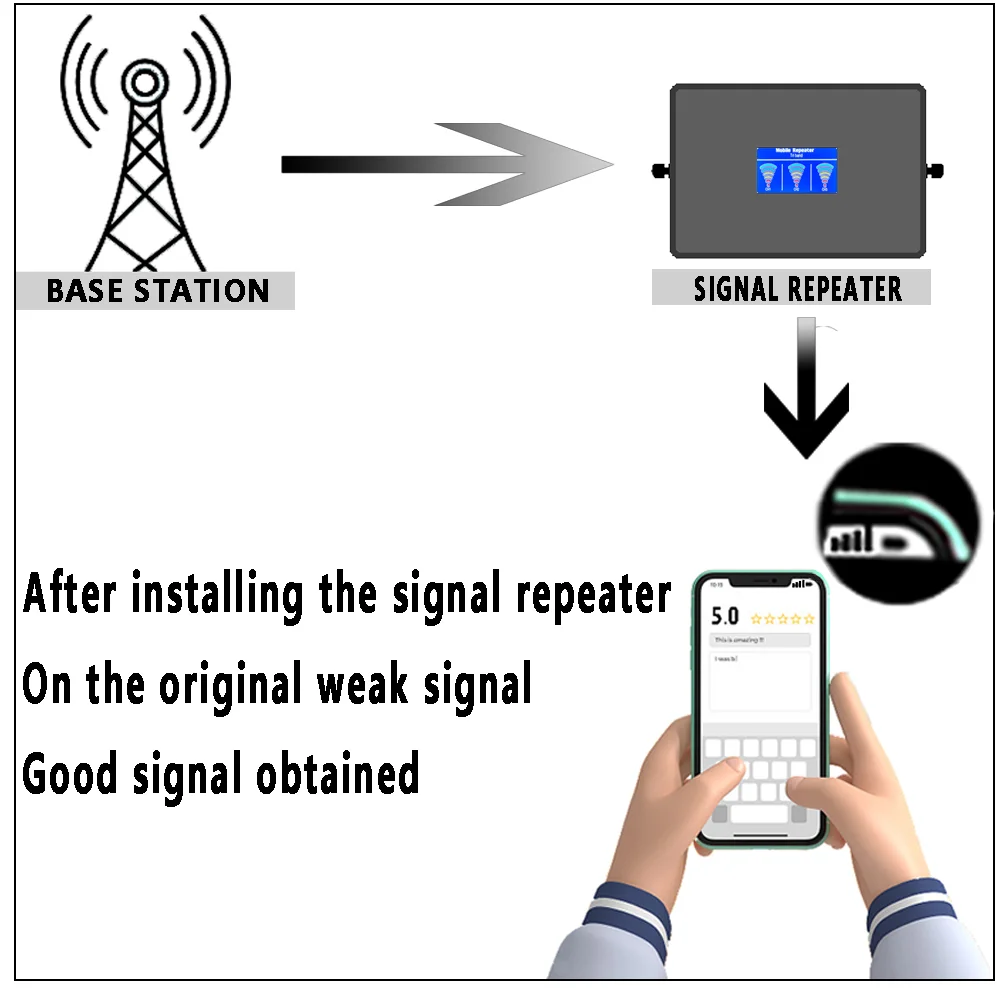

The product can be used in mountain areas, urban areas, towns, villages in the city,undergroundwarehouse, basement, underground parking lot without signal area.The function is to draw (absorb) the stable signals outside to the room and then amplify and diffuse the signals to cover the wholeeffective area, so as to provide stable and high-quality signals to the equipment in need of signals.
Please note before purchasing
（1）.Please confim that the operator base station frequency band of your SlM card is suitable for the effectiverequency of this device （2）.Make sure you get a good signal outside your house that you want to amplify.3-5 bar signal can be displayed onyour phone (at least -70dB-90dB is captured).Otherwise. the signal amplifier will not improve your signal
Product Paramenters
|
Technique Specification
|
|
|
|
|||
|
|
|
|
|
|||
|
Model No
|
|
SS70-GD
|
|
|||
|
Parameter data
|
|
Uplink
|
Downlink
|
|||
|
Frequency Range
|
CDMA
|
824~849 MHz
|
869~894 MHz
|
|||
|
|
PCS
|
1850~1910 MHz
|
1930~1990 MHz
|
|||
|
Output Power
|
|
15 ±2dBm
|
17 ±2dBm
|
|||
|
Gain
|
|
55±2 dB
|
60±2dB
|
|||
|
Power Supply
|
|
AC:100~240V, 50/ 60Hz;DC:5V 1A
|
|
|||
|
Power Comsumption
|
|
< 5W
|
|
|||
|
Mechanical Specification
|
|
|
|
|||
|
RF Connector
|
|
N-Female
|
|
|||
|
Operating Temperature
|
|
-10℃ ~ 55℃
|
|
|||
Product Usage

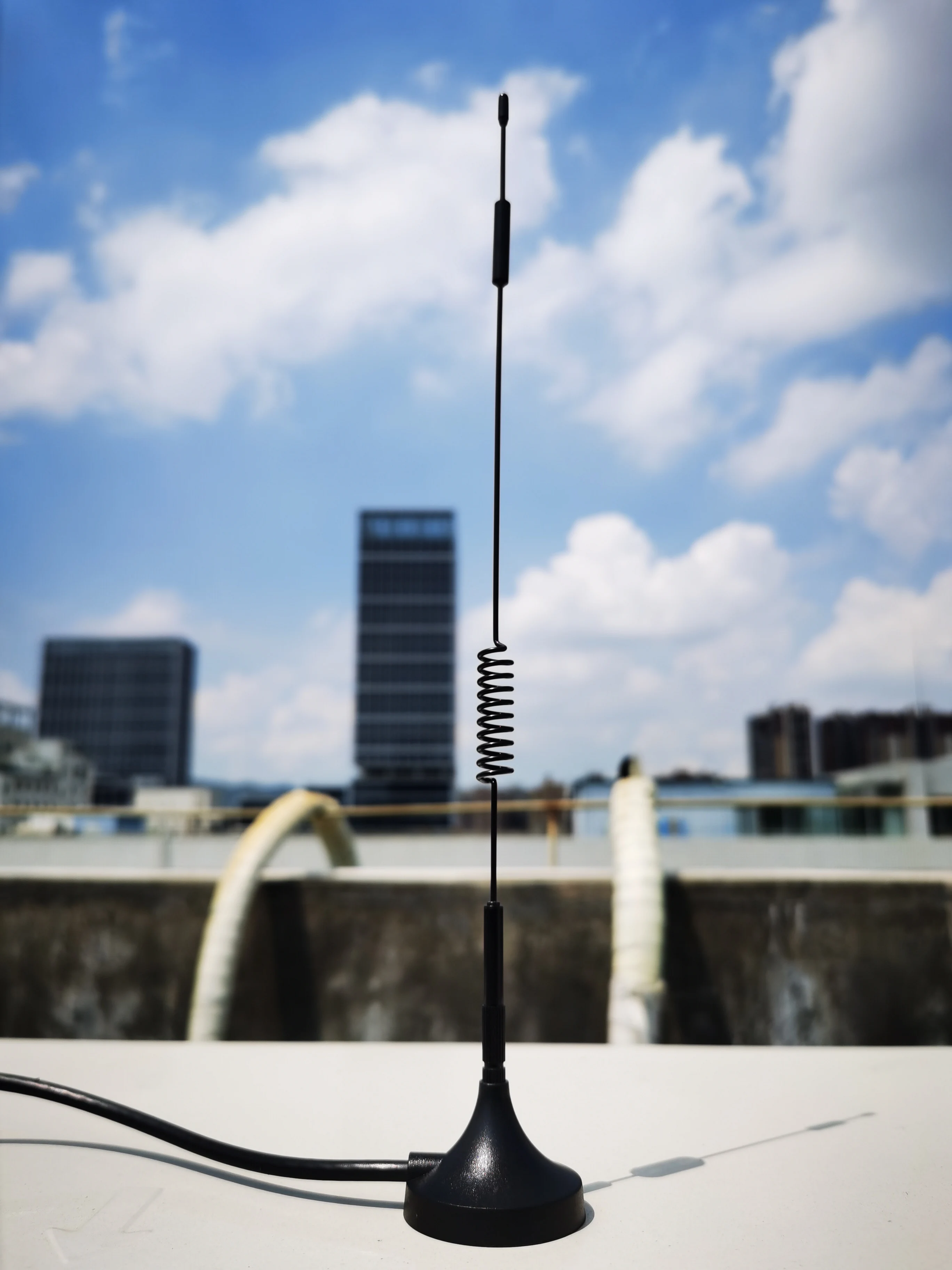

Find a place with a strong signal outdoors and install the outdoor antenna here to collect external signals.
Step2：

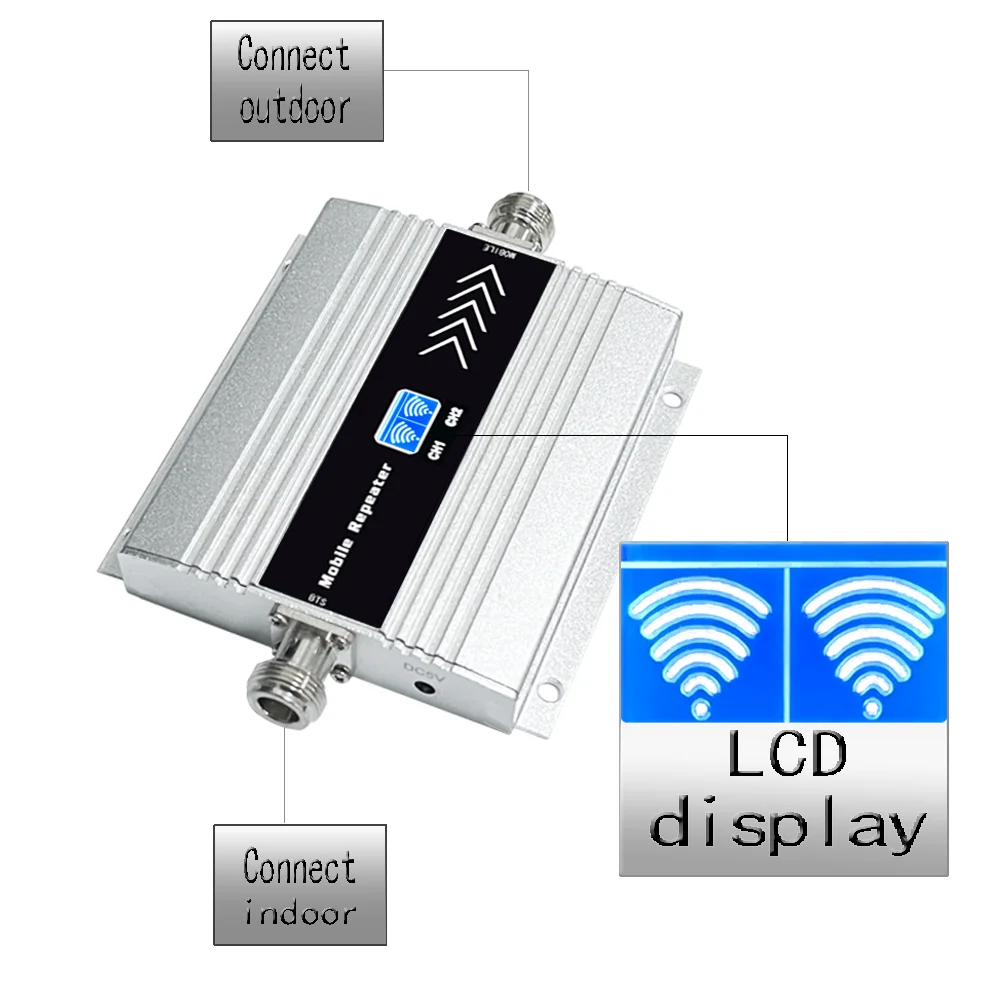

Connect the outdoor antenna to the "BTS" port on the signal repeater.
Step3：
Find a suitable place indoors to install the indoor antenna, and then connect the indoor antenna to the "mobile" interface on the signal repeater.
Step4：
After checking that there is no problem with the installation of each interface, connect the power to the signal repeater and the installation is complete.
Attention!
The indoor and outdoor antennas and other accessories involved in the installation method are only for installation instructions and are not included in the product. The product only contains the signal repeater host and power adapter.If you need other accessories, you can contact us or enter other links in the store to purchase.
