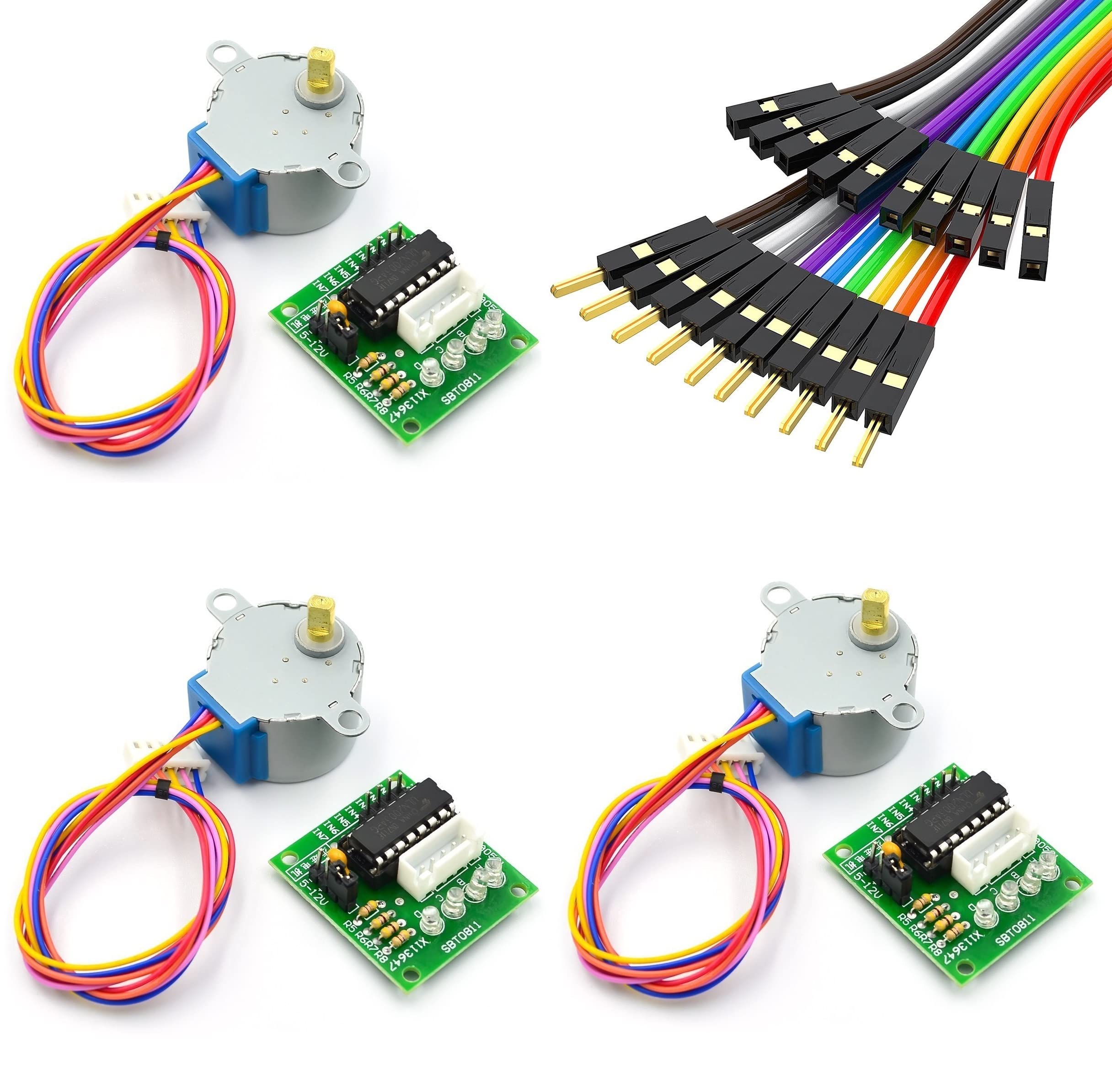

WWZMDiB 28BYJ-48 ULN2003 5V Stepper Motor and 3 Pcs, Driver

Product Details

• 28BYJ-48 ULN2003 5V Stepper Motor + ULN2003 Driver Board: A, B, C, D four-phase LED indicates the status of the stepper motor work
• Supply Voltage: 5V 4-phase
• Torque: >34.3mN.m
• Step angle: 5.625 x 1/64
• Reduction ratio: 1/64

WWZMDiB 28BYJ-48 ULN2003 5V Stepper Motor + ULN2003 Driver Board for Arduino PI PIC Raspberry Pi28BYJ-48 ULN2003 5V Stepper Motor + ULN2003 Driver Board: A, B, C, D four-phase LED indicates the status of the stepper motor work.Supply Voltage: 5V 4-phaseTorque: >34.3mN.mStep angle: 5.625 x 1/64Reduction ratio: 1/64Specification- A, B, C, D four-phase LED indicates the status of the stepper motor work.- Stepper motor with a standard interface, when used directly pluggable.- 5 line 4 phase can be used for ordinary ULN2003 chip driver, connect to the 2 phase , support the development board, with convenient use, direct docking.- Rated Voltage: DC5V 4-phase- Insulation Resistance: >10MΩ (500V)- Dielectric Strength: 600V AC / 1mA / 1s- Step angle: 5.625 x 1/64- DC Resistance: 200Ω±7% (25C)- Reduction ratio: 1/64- Insulation Grade: A- No-load Pull in Frequency: >600Hz- No-load Pull out Frequency: >1000Hz- Pull in Torque: >34.3mN.m(120Hz)- Detent Torque: >34.3mN.m- Temperature Rise: <40K(120Hz)-Package Included:3Pcs 28BYJ-48 ULN2003 5V Stepper Motor3Pcs ULN2003 Driver Board10Pin 21cm/8 in Male to Female Jumper Wires.
