Table router kits

Transform your trim router into a portable or fixed compact router table and expand your woodworking skills and opportunities.

This versatile router table setup is ideal for professionals seeking a portable solution for on-site projects, those needing a space-saving option for their vehicle, or hobbyists eager to unlock the full potential of their trim routers.

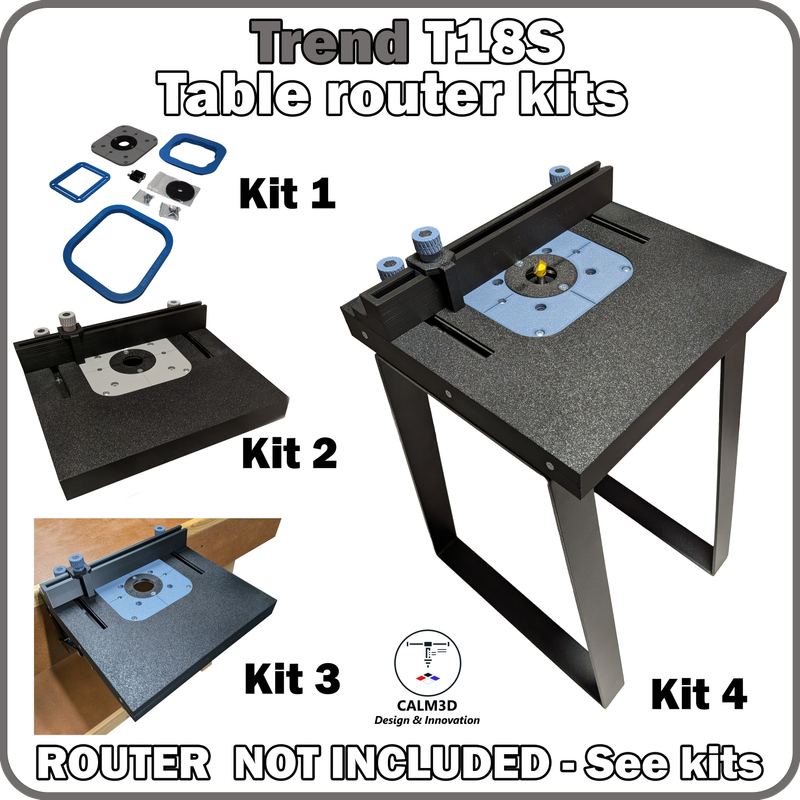

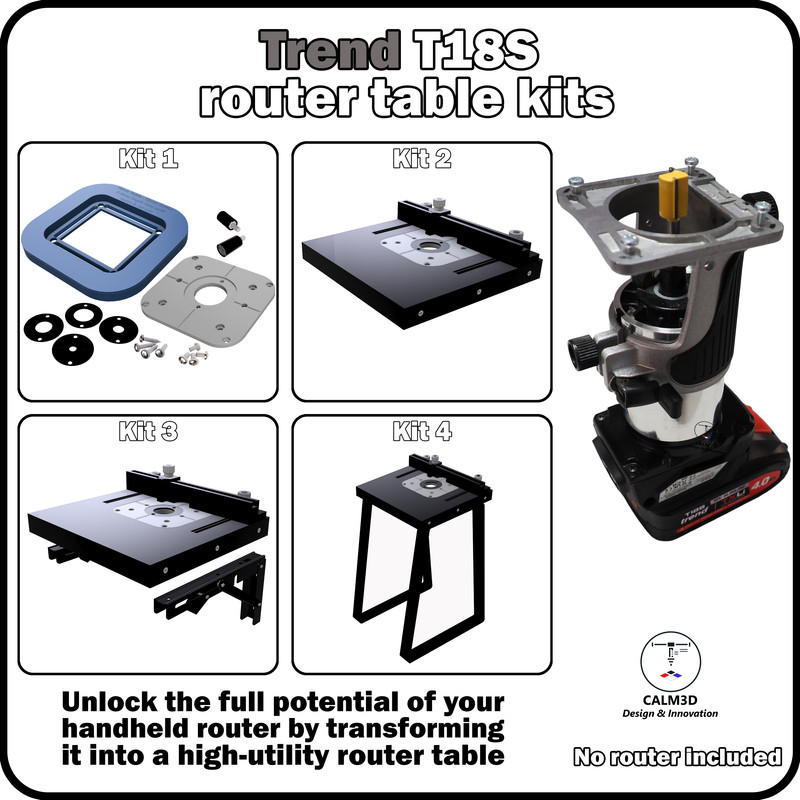

There are four kit options available to choose from.

Kit 1 – is a DIY tailored kit aimed at people who already have a workbench or intend on building their own work bench/worktop and would like to fit their trim router into their environment.

Kit 2 – is a pre-assembled composite finished worktop with  fence.

Kit 3 - is a pre-assembled composite finished worktop with fence and the addition of two foldable hinged wall brackets and fixings.

Kit 4 – is a pre-assembled composite finished worktop with fence and the addition of two trapezoid legs.

Worktop composition

Expanding on from the current MDF table router solutions is a new composite worktop which is comprised of a 25mm MDF block which is cut, sanded and routed. The MDF core has rear channels slots for the rear fence included. The fence, t-track and MDF assembly are produced using 3D printed material giving the workbench a refined and durable finish.

Please read the kit options available carefully so you understand what is included in each kit.

Kit 1 includes..

·         3 Templates to attach to your worktop to ensure the worktop is cut correctly to accept the router mounting plate.

·          A router mounting plate designed specifically for your trim router with 4 screws to secure to worktop.

·         4 centre hole inserts with 2 fix screws (10mm, 16mm, 24mm, 30mm)

·         2 Starter pins (to assist with introducing material to the cutter)

ITEMS REQUIRED

·         Trim router that can fit a 16mm guide bush.

·         A 16mm guide bush!

·         A 12mm or 12.7mm straight cutter

·         A drill and jigsaw (* jigsaw optional & only required if not routing the centre cut-out with your trim router)

·         A workbench or worktop to fit this kit.

Kit 2 includes..

·         A pre-assembled router worktop with rear fence & knobs.

·         Adjustable material stop (on the rear fence)

·         4 centre hole inserts with 2 fix screws (10mm, 16mm, 24mm, 30mm)

·         2 Starter pins (to assist with introducing material to the cutter)

Kit 3 includes..

·         A pre-assembled router worktop with rear fence & knobs.

·         Adjustable material stop (on the rear fence).

·         2 Folding wall brackets with fixings.

·         4 centre hole inserts with 2 fix screws (10mm, 16mm, 24mm, 30mm)

·            2 Starter pins (to assist with introducing material to the cutter)

·

Kit 4 includes..

·         A pre-assembled router worktop with rear fence & knobs.

·         Adjustable material stop (on the rear fence).

·         2 trapezoid 406mm legs with fixings (*supplied flat-pack)

·         4 centre hole inserts with 2 fix screws (10mm, 16mm, 24mm, 30mm)

·         2 Starter pins (to assist with introducing material to the cutter)

Looking for a tidy addition?

Why not add a larger format rear fence with integrated dust porting and material guide.

See the options available on the listing.



IMPORTANT

Each router table is made my hand and therefore there can be slight tolerances differentials during the manufacturing processes. If you have any bespoke requirements, please message me and I will do my best to assist. Please also take a look at the radius/chamfer set available and see my other listings for interesting additions to make your woodwork projects.
