✔Foxwell GT65 Main Features:

PROFESSIONAL BI-DIRECTIONAL Diagnostic TOOL: Foxwell GT65 diagnostic tool gives you what snap-on scanner offers. It features Bi-Directional Control (Active Test) to request information or command a actuator to perform specific tests, such as turning the fuel pump on and off, cycling the a/c clutch on and off, performing an evaporative emissions leak test, fast troubleshooting your car, not simply by reading codes, reading live data.

2 YEARS FREE UPGRADE + MULTI-LANGUAGE MENU: connect with WIFI, you can free update multi-language car software with just one-click, and use this frequently-upgraded scanner to diagnose the newest vehicles on the market. We provides 5 YEARS warranty after sale date on Foxwell GT65 scan tool. If you have any problem, please feel free to contact us.

ALL RESET + INITIATION + ADAPTATION + MATCHING + CODING: Foxwell GT65 supports Auto VIN Detect, ECU Coding, Gear Reset, SAS Reset, TPMS Reset, DPF REG., Key Coding, BMS Reset, Throttle Matching, Oil Reset, ABS Bleeding, Brake Reset, Injector coding etc all of special functions, helping you safely and effectively access to the vehicle systems to reset partial parameters status after repair and maintenance work.

ALL SYSTEMS DIAGNOSTICS For OVER 160 CAR MAKES: Foxwell GT65 diagnostic scanner works on over 160 car makes and 10000 models to read/erase codes, view live data, do bi-direction active test and service functions in all vehicle systems, including ECM, TCM, ABS, SRS, BCM, IMM, BMS, TPMS, SAS, Fuel System, Light System, Wiper System, etc, gives your car a full detection.

BEST HAREWARE + MODULAR DIAGNOSIS: Compared with THINKTOOL,this upgraded version Foxwell GT65 has more advanced hardware，including but not limited to Android system version,battery,bluetooth version,screen size.Besides,this upgraded scan tool Support 8 optional modules: printer, work light, videoscope, battery tester, scope box, thermal imager, moudledock, wireless TPMS tool

STAR SERVICE USE EXPERIENCE:Foxwell GT65 offers you Remote Tech Diagnostic, 1to1 diagnostic feedback and respond, Data Stream record and playback, Vehicle Health Report, Maintenance Help etc customer star care.

Foxwell GT65 OBD Professional Diagnostic Scanner(For ALL BRANDS, As Launch X431 v+)

ECU Coding:

The ECU Coding of this diagnostic tool can work on most vehicle makes. It is used to reprogram adaptive data for vehicle control modules after repairs or replacements of vehicle parts.

Active Test:

Active Tests, also known as Actuator Tests, are bi-directional diagnostic tests on vehicle systems and component. The tests let you to use the scanner temporarily activate or control a vehicle system or component, and when you exit the test, the system/component returns to normal operation. Some tests display a command to the operator. For example, if “Press Brake Pedal” displays, the operator has to press and hold the brake pedal and then continue. The sequence, number and type of tests are dictated by the control module. On some systems, the actuator tests cannot be restarted until the ignition key is switched off for some time. Alternatively, briefly start and run the engine, shut down, turn the ignition to the run position, then re-initiate the actuator tests.

The tests activate a component, but they do not check if the component is working correctly. Make sure the components to be tested are in good condition and correctly mounted.

A bi-directional:

A bi-directional scan tool is a unique diagnostic tool that can both send and receive information.

With bidirectional control, these devices can send information to and receive information from a vehicles control module.

With these advanced tools, you can perform functional tests, actuator tests, inspection tests, system tests or work with reinitialization and reprogramming.

Car ALL Systems' Diagnoses

Besides classical 4 systems, you are able to use this diagnostic tool to diagnose your car in complete systems, such as Fuel system, Emission system, Body, Powertrain and more electronic systems. You are capable of reading DTCs when there are some issues with your vehicle’s systems, clearing the trouble codes after handling malfunctions. To make sure all the systems performs well, you can view live data stream before driving out.For instance:

Engines/Auto Transmission/Airbags/Immobilizer/Key Coding/ABS/Cruise Control/Instruments/ Self Leveling Suspension systems/Seats/Doors/Gateway/Steering Angle/Air Suspension/Body Systems/Electronic Power Steering & Motor Assisted/Power Steering/Tyre Pressure/Rain Sensors/4WD System/Stabilizer/Intelligent Parking Assist/Door Motors/Audio Systems/Air Conditioning/Tiptronic/Anti Theft/Soft Top/Headlamp Leveling/Central Locking/Automatic Clutch/ DPF Reset/Electric Windows/Plip Programming/Heated Rear Window/Xenon Headlights/Wash Wipe/Fuel Burning Heater/Transfer Box/Seat Memory/Oil Life Service Reset/Sliding Doors/Electronic Throttle/Navigation System/Rollover Sensor/Cruise Control/ Multi Functios.

Auto VIN read Function :

It can read VIN information automanually when you connect Car , fast get the inforamtion .

Quick Check

It adopts smart detection mode. After the vehicle is connected, the system will automatically recognize the vehicle information, automatically check the vehicle, and automatically generates a report.

Quick print diagnostic reports：

Thermal printer, work with the main unit, also can work with module dock. Quick print diagnostic reports anytime and anywhere.

Graphical display：

Combine: Displayed in graph merge status for data comparison.

Customize:

Customize the data stream option to be viewed. Tap the button, a pull-down list of the data stream items appears on the screen. Select the desired items (max12 items), and then screen will display the waveforms corresponding to these items immediately. If need to remove any items, just deselect them.

Diagnostic Feedback：

If you encounter an unresolved problem or diagnostic software bug during diagnosis, you can revert the most recent 20 test records to Team. When we receive your feedback, we will analyze and troubleshoot it in a timely manner, to improve the quality of our products and user experience.

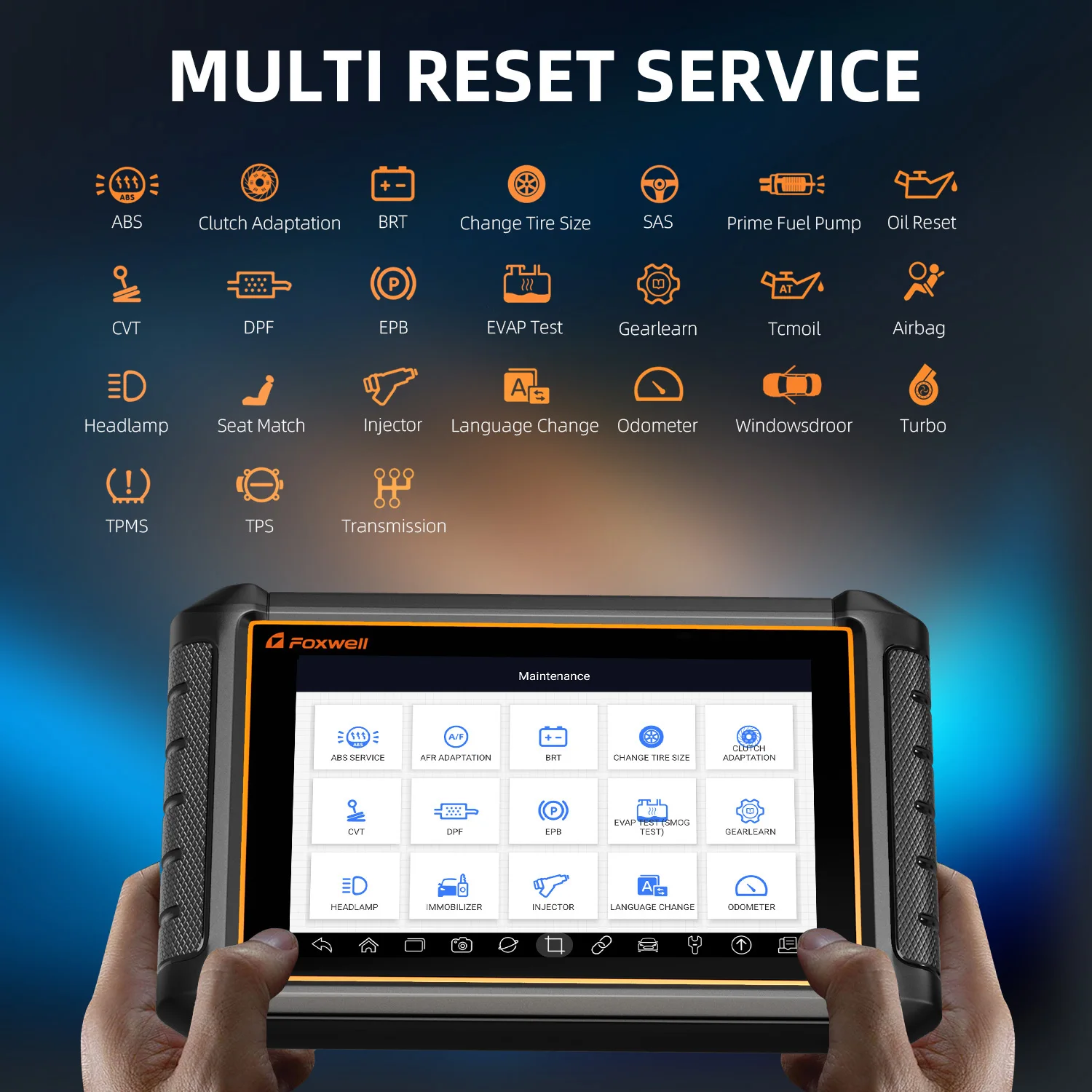

30 Service Reset Special Functions :

(There are only 24 reset services now, and will be upgraded to 30 soon)

Foxwell GT65 can program and code the electronic control system of prevailing vehicle models, also perform 30 special functions, including:

1 -Oil Reset The lightening of the car maintenance light indicates that the vehicle needs maintenance.Reset themileage or driving time to zero after the maintenance, so the maintenance light will go out and the systemwill start a new maintenance cycle.

2 -Elec.Throttle Adaption Elec. Throttle Adaption is to utilize the car decoder to initialize the throttle actuator so that the learningvalue of the ECU returns to the initial state.By doing these, the movement of the throttle (or idle motor)can be more accurately controlled, thus adjust the intake volume.

3 -Steering Angle Reset To reset the steering angle, first find the relative zero point position for the car to drive in straight line.Taking this position as reference, the ECU can calculate the accurate angle for left and right steering.After replacing the steering angle position sensor, replacing steering mechanical parts (such as steeringgearbox, steering column, end tie rod, steering knuckle), performing four-wheel alignment, or recoveringcar body, you must reset the steering angle.

4 -Battery Matching This function enables you to perform a resetting operation on the monitoring unit of vehicle battery, inwhich the original low battery fault information will be cleared and battery matching will be done.

5 -ABS Bleeding When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system torestore ABS brake sensitivity. lf the ABS computer,ABS pump, brake master cylinder, brake cylinder, brakeline, or brake fluid is replaced, the ABS bleeding function must be performed to bleed the ABS.

6 -Break-pad Reset lf the brake pad wears the brake pad sense line, the brake pad sense line sends a signal sense line to theon-board computer to replace the brake pad.After replacing the brake pad, you must reset the brake pad.Otherwise, the car alarms.

7 -DPF Regeneration DPF regeneration is used to clear PM (Particulate Matter) from the DPF filter through continuouscombustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reducePM ignition combustion) to stabilize the filter performance.

8 -Gear Learning The crankshaft position sensor learns crankshaft gear machining tolerance and saves to the computerto more accurately diagnose engine misfires. lf gear learning is not performed for a car equipped withDelphi engine, the MlL turns on after the engine is started.The diagnostic device detects the DTC P1336'gear not learned'. In this case, you must use the diagnostic device to perform gear learning for the car.After gear learning is successful, the MIL turns off. After the engine ECU, crankshaft position sensor, orcrankshaft flywheel is replaced, or the DTC 'gear not learned" is present, gear learning must be performed.

9 -IMMO Service To prevent the car being used by unauthorized keys, the anti-theft key matching function must beperformed so that the immobilizer control system on the car identifies and authorizes remote control keysto normally use the car. When the ignition switch key, ignition switch, combined instrument panel,ECu,BCM, or remote control battery is replaced, anti-theft key matching must be performed.

10- Injector Coding Write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder soas to more accurately control or correct cylinder injection quantity. After the ECU or injector is replaced,injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identifyinjectors to accurately control fuel injection.

11- TPMS Reset After the tire pressure MIL turns on and maintenance is performed, the tire pressure resetting functionmust be performed to reset tire pressure and turn off the tire pressure MIL.Tire pressure resetting mustbe performed after maintenance is performed in the following cases: tire pressure is too low, tire leaks, tirepressure monitoring device is replaced or installed, tire is replaced, tire pressure sensor is damaged,andtire is replaced for the car with tire pressure monitoring function.

12- Suspension Matching This function can adjust the height of the body. When replacing the body height sensor in the airsuspension system, or control module or when the vehicle level is incorrect, you need to perform thisfunction to adjust the body height sensor for level calibration.

13- AFS Reset This feature is used to initialize the adaptive headlamp system.According to the ambient light intensity, theadaptive headlamp system may decide whether to automatically turn on the headlamps, and timely adjustthe headlamp lighting angle while monitoring the vehicle speed and body posture.

14- A/T Learning This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox isdisassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impactproblem. In this case, this function needs to be done so that the gearbox can automatically compensateaccording to the driving conditions so as to achieve more comfortable and better shift quality.

15- Sunroof Initialization This function can set the sunroof lock off, closed when it rains,sliding / tilting sunroof memory function,temperature threshold outside the car etc.

16- EGR Adaption This function is used to learn the EGR (Exhaust Gas Recirculation) valve after it is cleaned or replaced.

17 -ODO Reset a) ODo reset is to copy,write, or rewrite the value of kilometers in the chip of odometer by using a car diagnostic computer and data cable, so that the odometer shows the actual mileage. b)Usually when the mileage is not correct due to the damaged vehicle speed sensor or odometer failure, it is necessary to do ODo reset after maintenance.

18- Airbag Reset This function resets the airbag data to clear the airbag collision fault indicator. When the vehicle collidesand the airbag deploys, the corresponding fault code of the collision data appears, the airbag indicatorlights up, and the fault code cannot be cleared. Since the data inside the airbag computer is disposable,it is required that all new accessories must be replaced, but after performing this function, the data of theairbag computer can be recovered and the fault code can be cleared, the airbag light will go out, and theairbag computer can continue to use.

19- Transport Mode ln order to reduce power consumption, the following functions may be disabled,including limiting thevehicle speed, not waking up the door opening network, and disabling the remote control key, etc. At thistime, the transport mode needs to be deactivated to restore the vehicle to normal.

20- A/F Reset This function is applied to set or learn Air/Fuel ratio parameters.

21- Stop/Start Reset This function is used to open or close the automatic start-stop function via setting the hidden function inECU(provided that the vehicle has a hidden function and supported by hardware).

22- NOx Sensor Reset NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) in engine exhaust. lf theNOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalyticconverter learned value stored in the engine ECu.

23- AdBlue Reset (Diesel Engine Exhaust Gas Filter) After the diesel exhaust treatment fluid (car urea) is replaced or flled up, urea reset operation is required.

24- Seat Calibration This function is applied to match the seats with memory function that are replaced and repaired.

25- Coolant Bleeding Use this function to activate the electronic water pump before venting the cooling system.

26- Tyre Reset This function is used to set the size parameters of the modified or replaced tire.

27- Windows Calibration This feature is designed to perform door window matching to recover ECU initial memory, and recover theautomatic ascending and descending function of power window.

28- Language Change This function is used to change the system language of the vehicle central control panel.

.......

Additional Features ofFoxwell GT65:

Android System Diagnosis: make you smooth operation, this diagnostic tool will be capable of speedier, more accurate diagnoses.

10 hours of mixed-use battery life: Compatible With up to 10 hours of mixed-use battery,gives you a flexible operation experience.

Maintenance Help: Including How-to Videos, operation skills, and user manual, Q&A, Quick start guide, etc.

Maintenance Report: Create vehicle files for all repaired vehicles, integrate all repair data including diagnostic reports, real-time data stream reports and other diagnostic data into one, so that the technician can know the condition of the car.

Two-year free update: Support online smart one-click upgrade of car software. After two year, if you don't plan to update, the scanner can continue to diagnose

Support more than 150 Car Brands

Covering more than 150 car series and ten thousands of car models.

·Aisa: Compatible with Changcheng, Daewoo, Huachen, Zhongxing, Indian Tata, JAC, Maruti, Perodua, Chery, Isuzu, Jinlong, Suzuki, Saipa, HM, Hmazda, Ikco, Malaysia Proton, Luxgen, Toyota, Changan, Futian, Honda, Wuling, V-class, Jpisuzu, Kia, Indian Maruti, Indian Mahindra, Malaysia Perodua, Hafei, Lifan, Mahindra, Nissan, Xiali, Zhongshun, Tata, Changhe, China GM, Saicmg, Mazda, Zhongtai, Daihatsu, BYD Flyer, Hyundai, Proton, Subaru, Ssangyong, Joylong, Mitsubishi,Gonow, Qoros, Maxus, Mvm

·Europe: Compatible with Vaz, Porsche, Maserati, BMW, Seat, VW, Audi, Citroen, Landrover, Smart, Renault, Skoda, Sprinter, Land Rover, Benz, Fiat, Opel, Volvo, Peugeot, Ferrari, Saab, Gaz, DR

·USA: Compatible with Gm, USAFord, Chrysler, Willy; Australia: Compatible with Austford, Holden; Brazil: Compatible with BXFiat, BXGM

How To Register Foxwell GT65:

Step1 :Setting language & Time Zone , Connect WIFI

Step2 :Agree the Register term

Step3 :Register an account with your Email box

Step4 :VCI Activate - Enter the serial number and Password to activate

How To Update Foxwell GT65:

Foxwell GT65 is with2 years free Update Click "Update" to One-Click Update

How To Printer the Diagnostic Report :

Two Ways Print : 1. Share the Diagnostic Report out via USB , then print . 2. Use Think Printer to print directly ( need buy Think Printer additional )

High-end hardware configuration of Foxwell GT65:

Operating System: Android

Memory:2G

Storage:32G

Network:Wi-Fi, WL AN 802. 11b/g/n

Battery: 8000mAh/7.6V

Screen: 8 inches Storage

Working Temperature: 0°C ~ 50°C

Temperature:-20°C ~ 60°C
