DMX Control Channel Table
| Channel 1 | (000-007)White Light, (800-079)Colour 1-9, (080-151)Half-Color Effect 1-9, (152-207)The Color Wheel Rotates Forward, (208-255)The Color Wheel Reverses |
| Channel 2 | (000-009, 250-255)Turn Off Strobe, (010-249)Strobe, Speed From Slow To Fast |
| Channel 3 | (000-255)LED Linear Total Dimming, Brightness 0-100% |
| Channel 4 | (000-005)Circular Pattern, (006-083)Pattern 1-13, (084-161)Pattern 13-1 Shake, Slow To Fast, (162-207)The Pattern Rotates Forward,(208-255)The Pattern Rotates In Reverse |
| Channel 5 | (000-099)Prism Off, (100-127)Prism On (18 Prism), (128-255)The Prism Rotates 360 |
| Channel 6 | (000-126)Colourful Close, (127-255)Colorful Open |
| Channel 7 | (000-255)Clarity Adjustment |
| Channel 8 | (000-255)Horizontal Position |
| Channel 9 | (000-255)X-Axis Fine Adjustment And Fretting |
| Channel 10 | (000-255)Vertical Position |
| Channel 11 | (000-255)Y-Axis Fine Adjustment And Fretting |
| Channel 12 | (000-255)X/Y Moving Speed, From Fast To Slow |
| Channel 13 | (000-009)Other Channels Have A Role, (010-014)Fast Self-Propelled, (015-194)Slow Self-Propelled, (195-255)Sound |
| Channel 14 | (000-249)No Function, (250-255)Automatic Reset After Waiting For 5S |
Specification

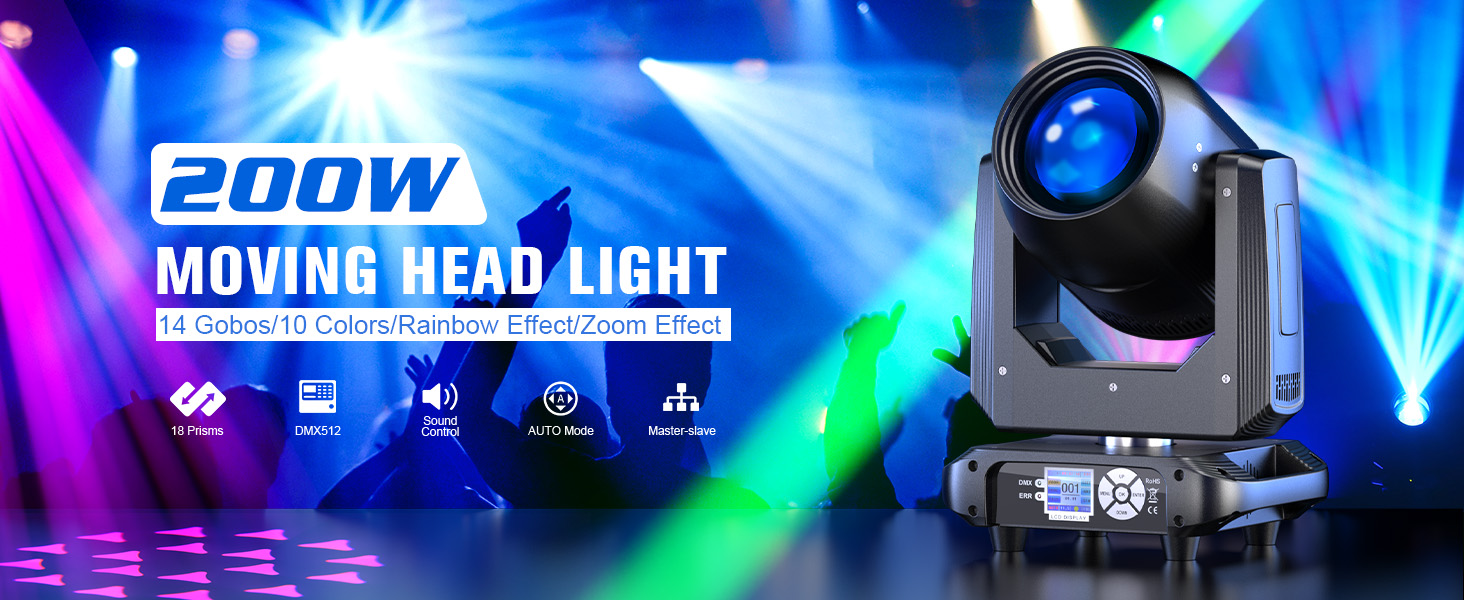

| Light Source | 200W LED With Strip |
| Prism FX | 18-facet |

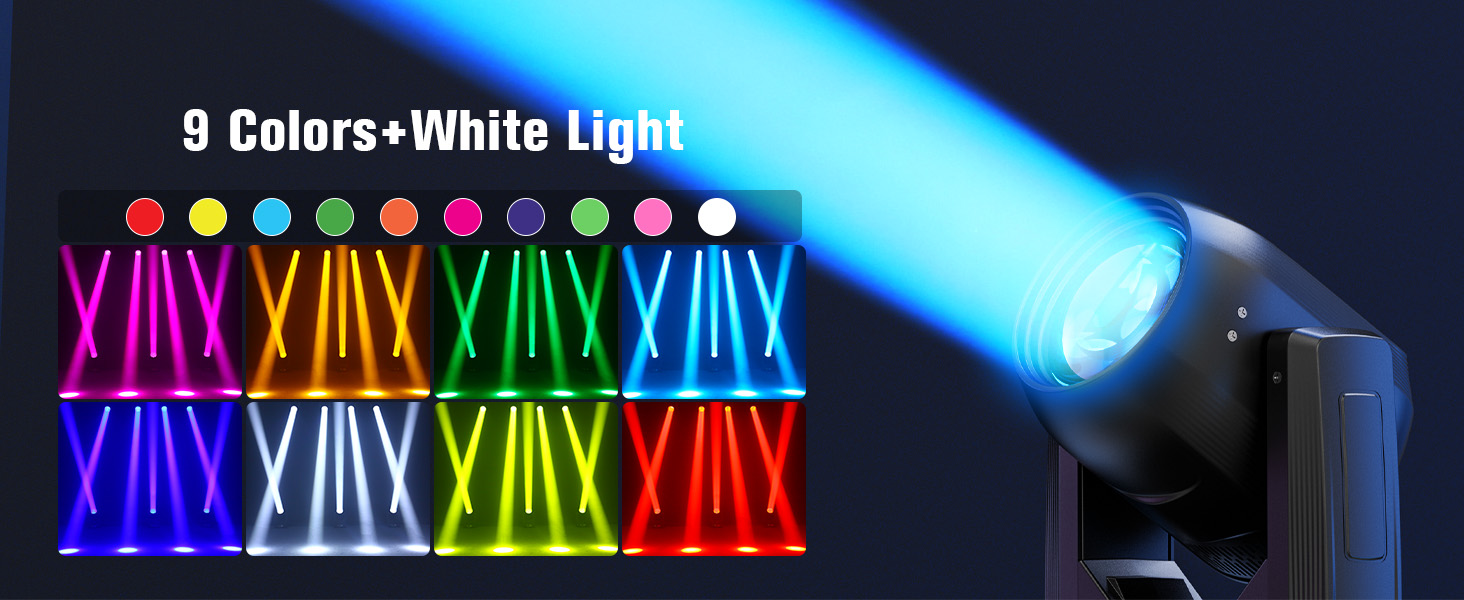

| Color Wheel | 9+1 color wheel |
| GOBO Wheel | 13+1 pattern wheel |
| DMX Channel Modes | 14CH |
| display | LCD Display |
| Control Mode | automatic, voice control, DMX,master-slave mode |
| Material | Aluminum construction+plastic shell |

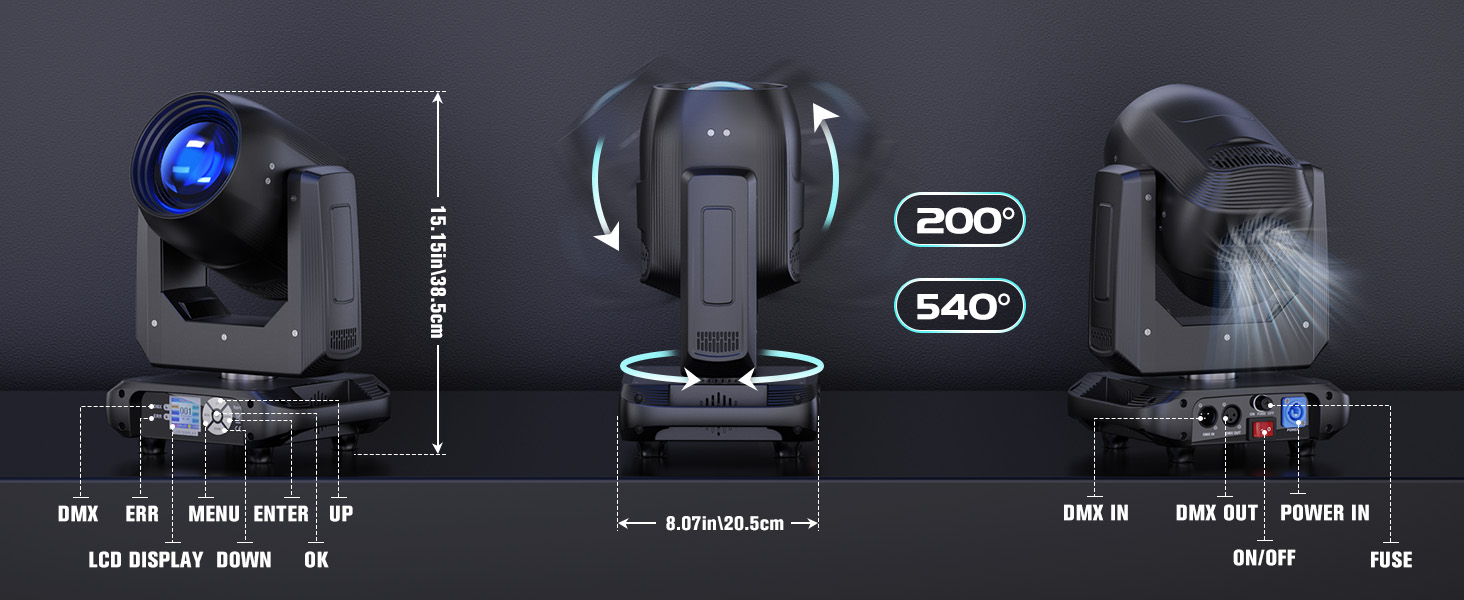

| Pan/Tilt | Pan: 540 degrees / Tilt: 200 degrees |
| DMX Connections | 3-pin XLR In/Out |
| Power Connections | Power In/Out |
| Multi-voltage operation | AC100V-240V 50/60Hz |
| Dimensions | 10.14in（26cm）x 7.8in (20cm) x 14.82in（38cm） |
| Weight | 16.5lbs (7.5kg) |
| Output Light Angle | 4° |
| Strobe | 1-20Hz |
Features :
1.【High brightness】 Built-in a 200W LED module light source, provides a strong beam and long lifespan and supports 0-100% linear dimming.

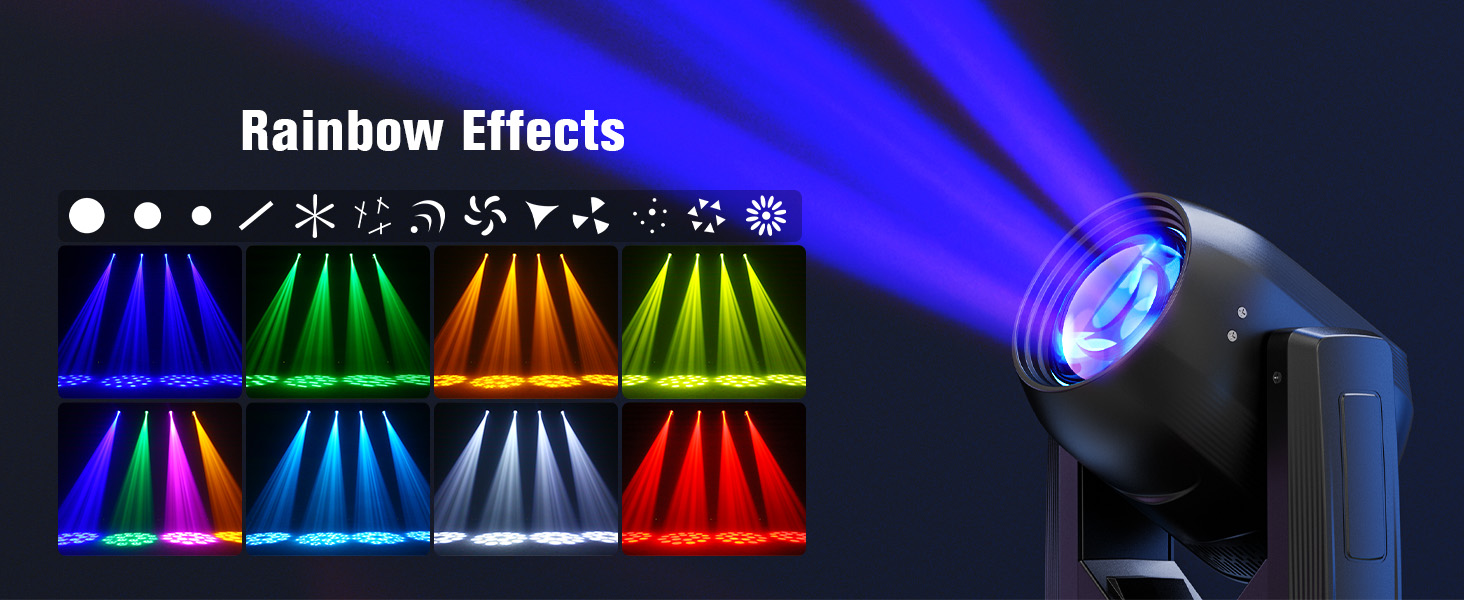

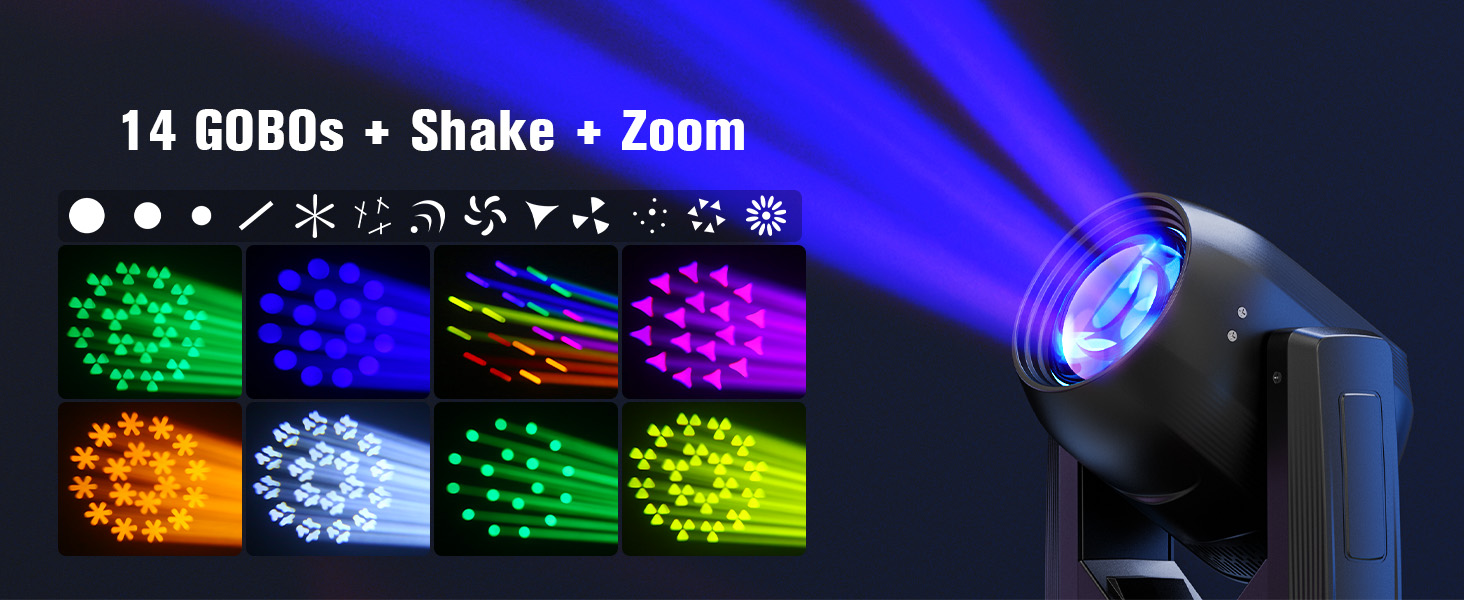

2.【Mutiple lighting effect】Comes with a 9+1 color wheel, 13+1 gobo wheel, 18 prism, and rainbow effect, allowing for various combinations of effects. Also it can create half-color,shaking effect.
3.【Control Modes】Supports multiple control modes including auto, sound activated, scene, master-slave, and DMX; features electronic focus function to present clear patterns and spotlights at any distance.
4.【Intelligent Reset】Equipped with RDM function, intelligent reset function on the XY axis, adjustable sensitivity for sound activation, and ability to manually control (scene mode) and store up to 10 scenes; high precision with horizontal scan of 540° and vertical scan of 200°;
5.【Easy to Use】 With 1.9-inch LCD display screen in both Chinese and English, clearly showing function layout and status.
