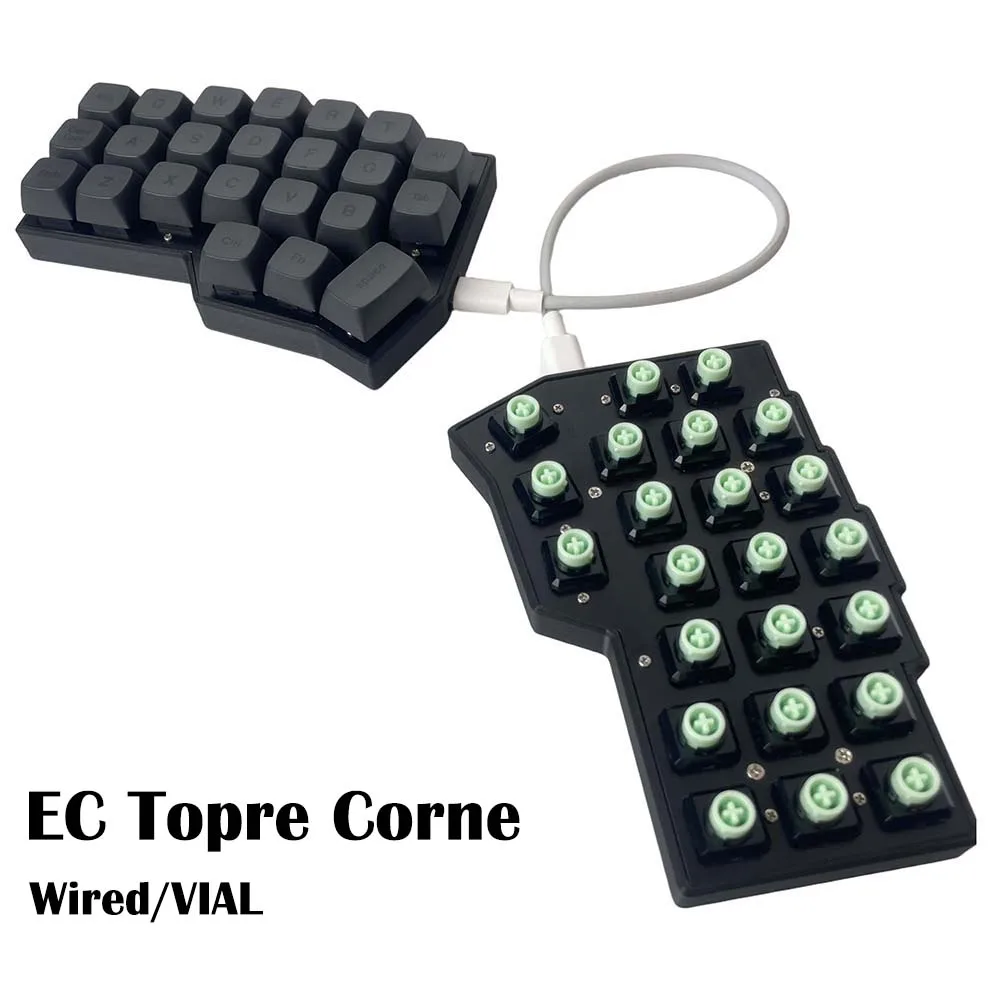

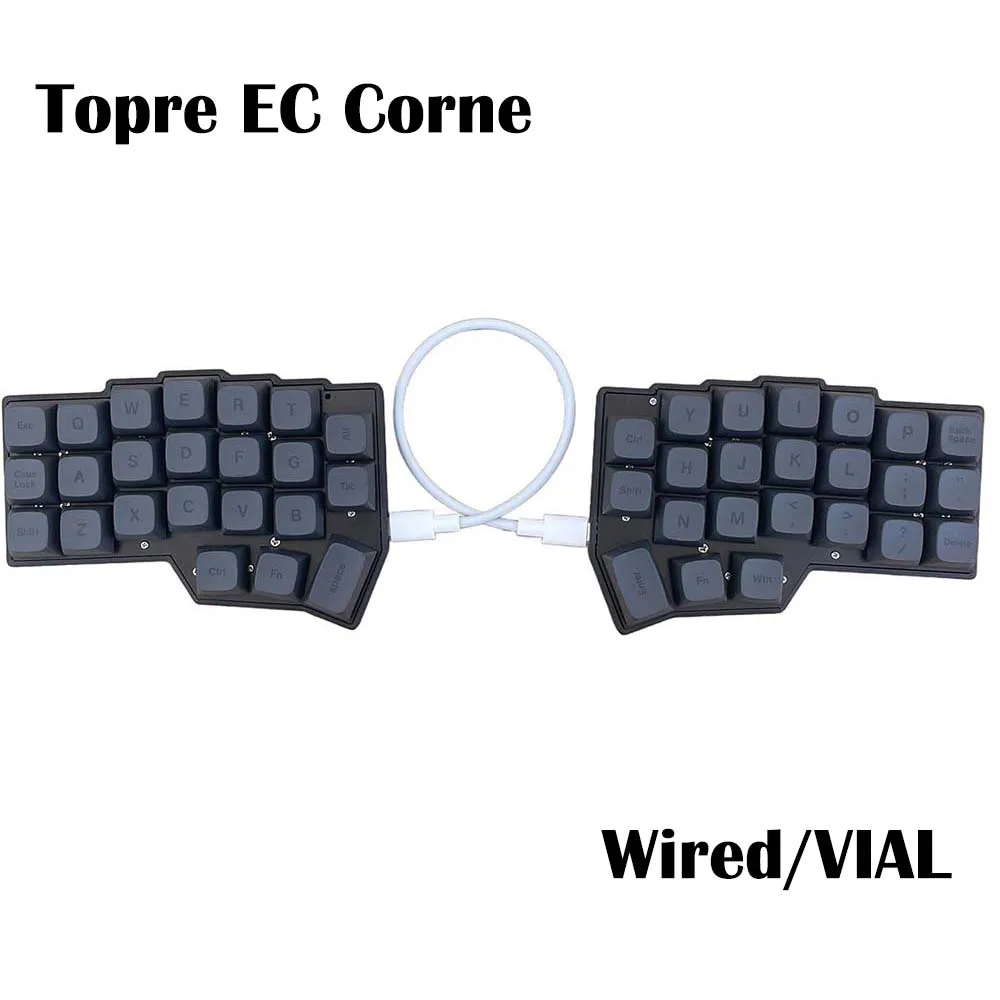

⌨️ Topre EC Corne Split Ergonomic Keyboard

Premium Capacitive Switch Technology with VIAL Support

⚠️ Assembly Requirements

PLA 3D Printed Case: This keyboard features a 3D printed case with visible layer lines - this is part of the manufacturing process and normal for this product type. If you require a flawless finish, please consider purchasing the pre-assembled version or be prepared for DIY assembly work.

✨ Key Features

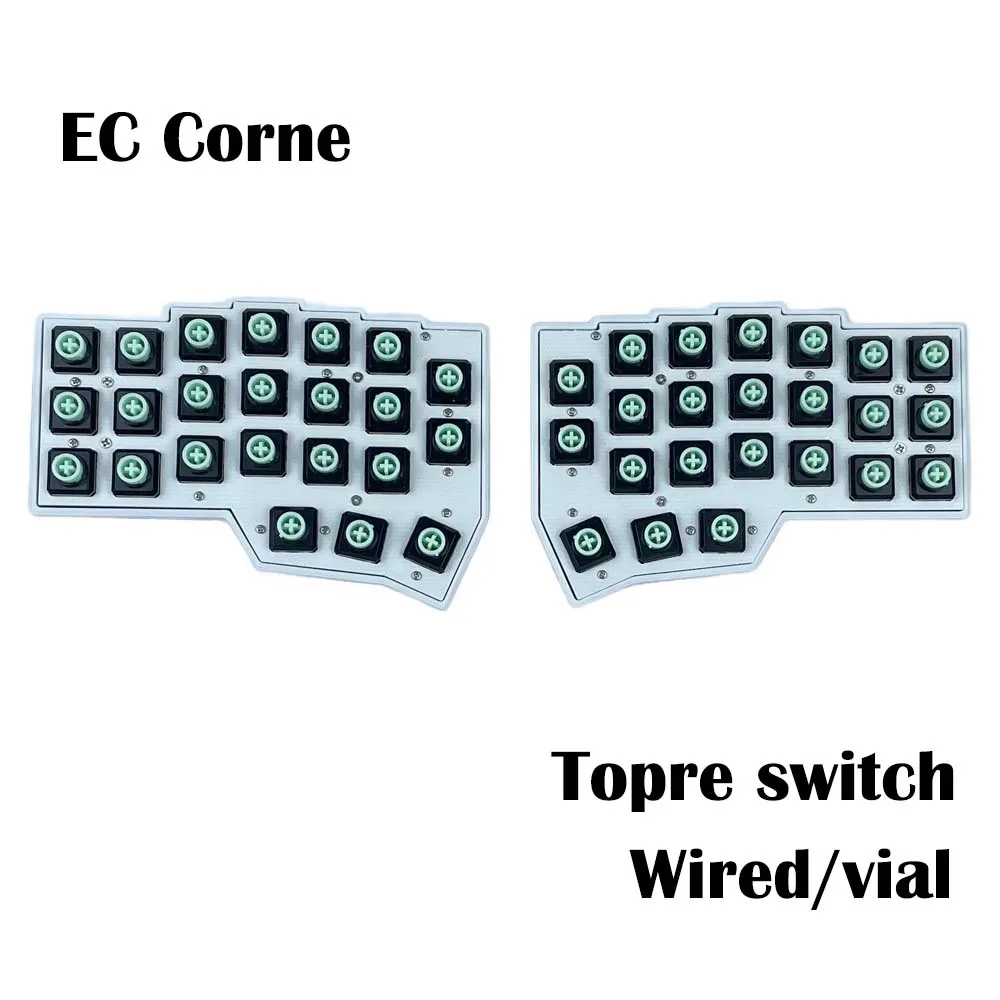

🔌 Topre Capacitive Switches

Premium electro-capacitive technology with choice of 35g or 45g actuation force for customized typing feel

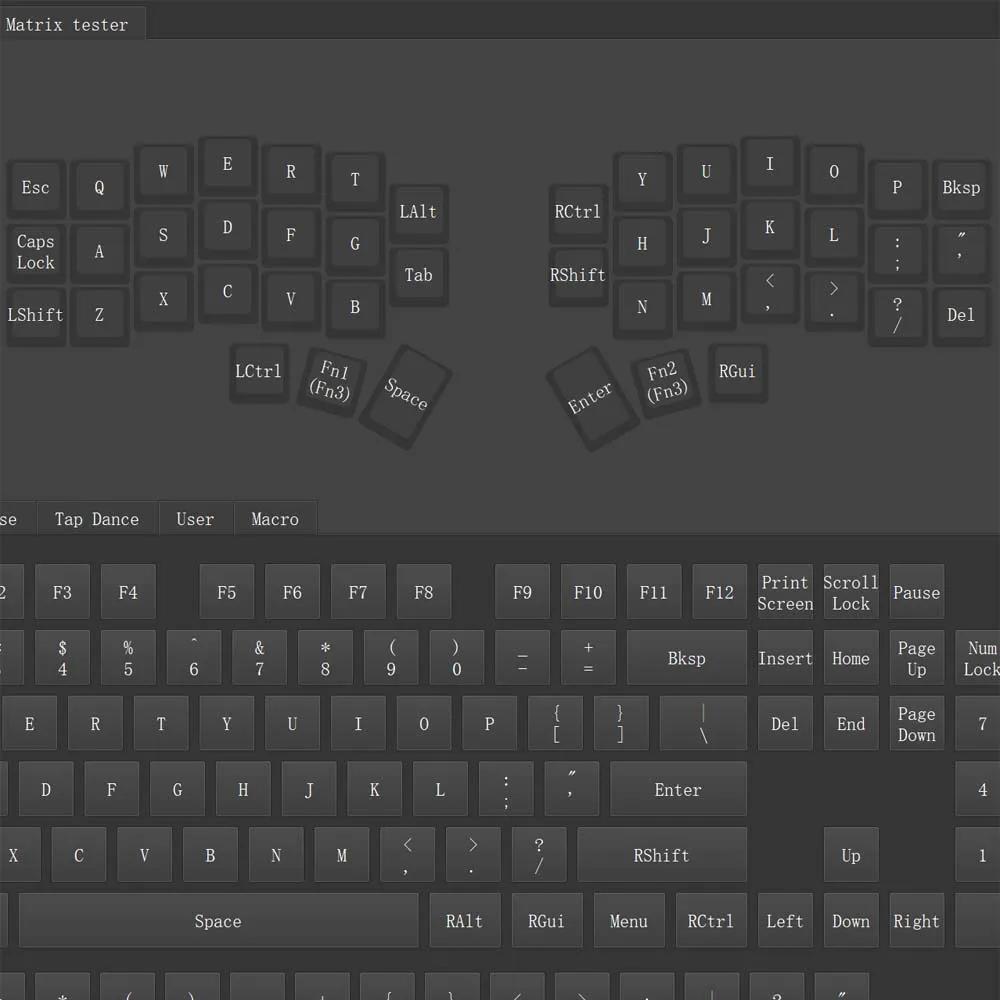

⚡ VIAL Programmable

Fully programmable layout with VIAL firmware support - customize every key to match your workflow

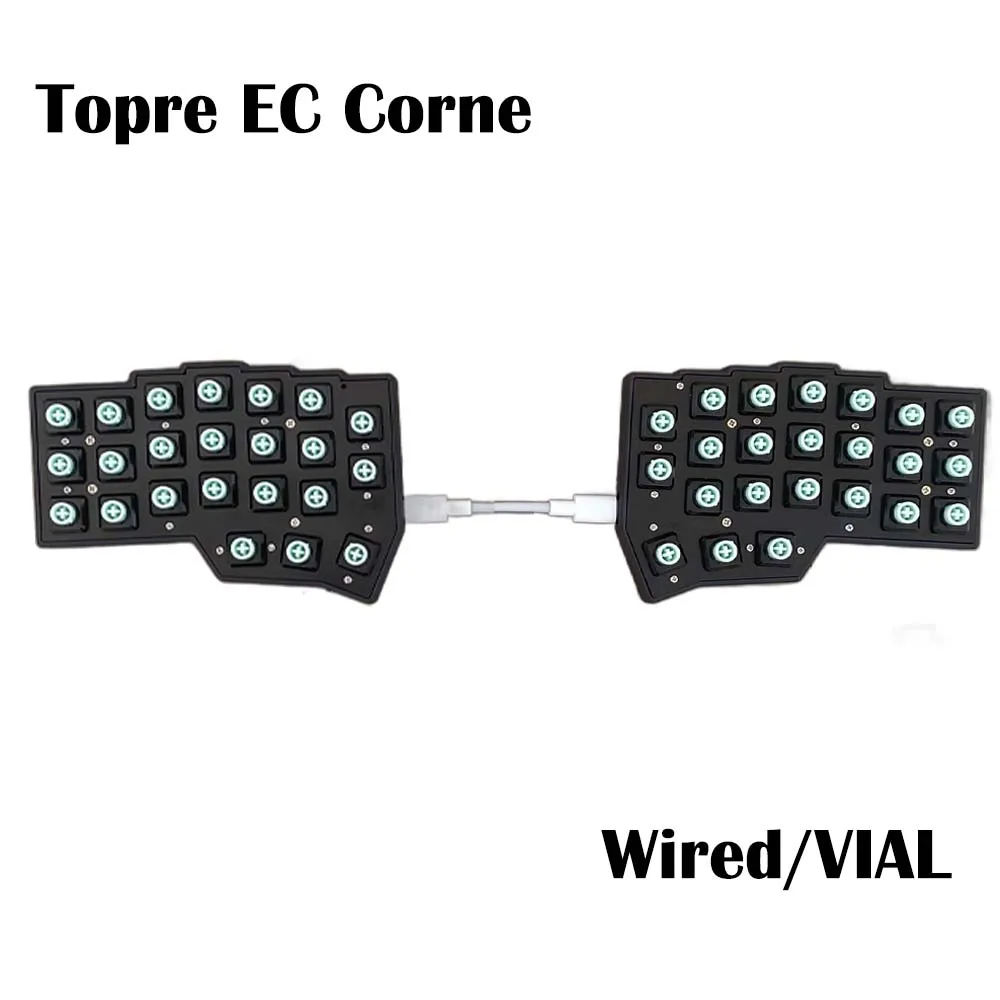

🎯 Ergonomic Split Design

Corne layout with split configuration reduces strain and promotes natural hand positioning for comfortable typing

🔧 MX Slider Compatible

Includes MX slider adapters allowing use of standard Cherry MX compatible keycaps

📦 Kit Options Available

Self-Assembly Kit	Includes Case + PCB + Plate + Domes (35g/45g) + Housing/Sliders/Springs/Screws and accessories - ideal for experienced builders
No Keycap Kit	Fully assembled keyboard ready to use - just add your own keycaps (Cherry MX compatible)

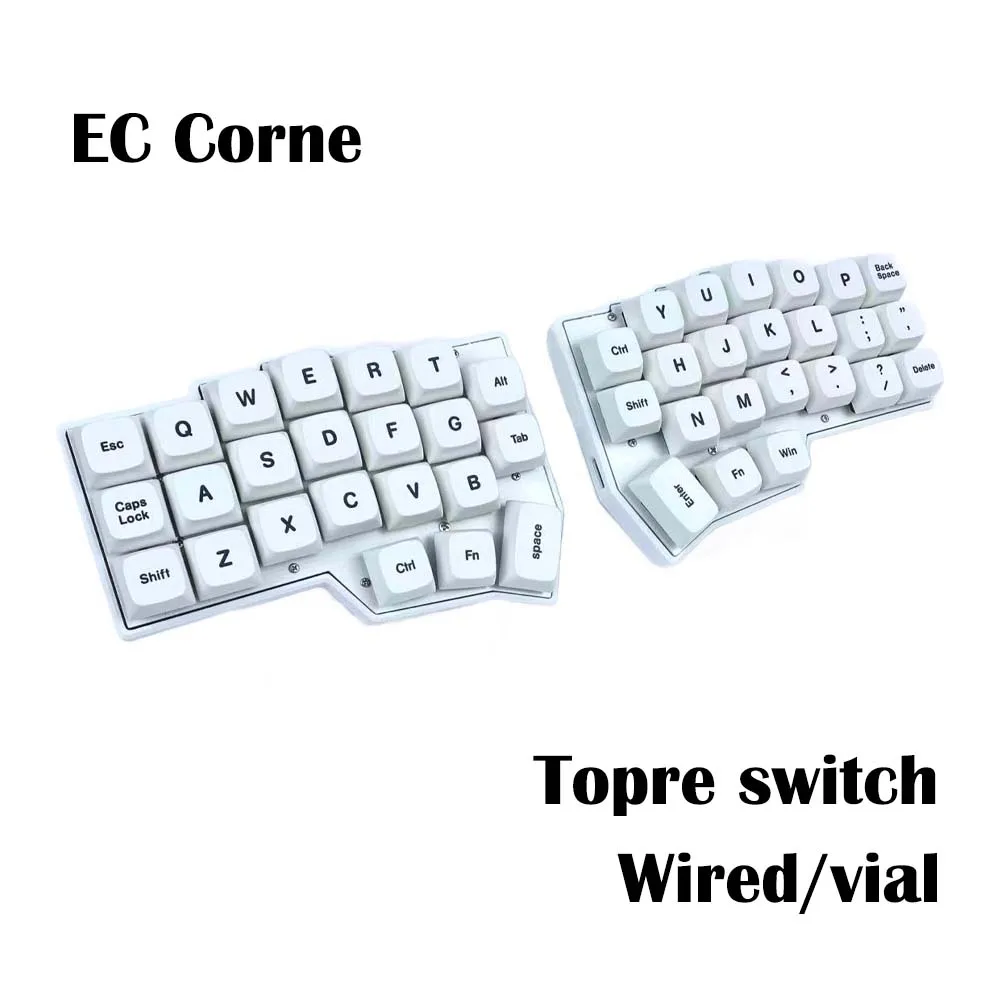

Complete Kit	Fully assembled with PBT XDA profile keycaps in white or black - ready to use out of the box

🔧 Technical Specifications

Switch Type	Topre Electro-Capacitive (EC)
Actuation Force	35g or 45g (select variation)
Layout	Corne Split Ergonomic
Firmware	VIAL (Fully Programmable)
Connection	Wired USB
Case Material	PLA 3D Printed
Keycap Compatibility	Cherry MX (via included adapters)
Included Keycaps	PBT XDA Profile (Complete Kit only)

📸 Product Images

❓ Frequently Asked Questions

Q: What's the difference between 35g and 45g switches?

A: The number indicates actuation force. 35g switches are lighter and require less pressure (ideal for fast typing), while 45g switches provide more tactile feedback and resistance (preferred by those who like a firmer feel).

Q: Do I need soldering experience for the Self-Assembly Kit?

A: The kit requires moderate technical skill for assembly. If you're new to mechanical keyboards or Topre switches, we recommend the pre-assembled "No Keycap" or "Complete" options.

Q: What keycaps are compatible with this keyboard?

A: Any Cherry MX compatible keycaps will work thanks to the included MX slider adapters. The Complete Kit includes PBT XDA profile keycaps in your choice of black or white.

Q: Can I customize the key layout?

A: Yes! The keyboard supports VIAL firmware allowing full remapping of every key, macros, and layers without additional software installation.

Q: What is the Corne layout?

A: The Corne (also known as Crkbd) is a popular 40-42 key split ergonomic layout designed to minimize finger movement and promote better typing posture.
