1. It supports a wide voltage input of DC 10-55V, is compatible with various DC power supply environments, and has strong compatibility

2. With a continuous output current of up to 20A, it stably drives high-power brushed motors

3. It adopts an H-bridge circuit design to achieve seamless switching between forward and reverse rotation of the motor, providing flexible control

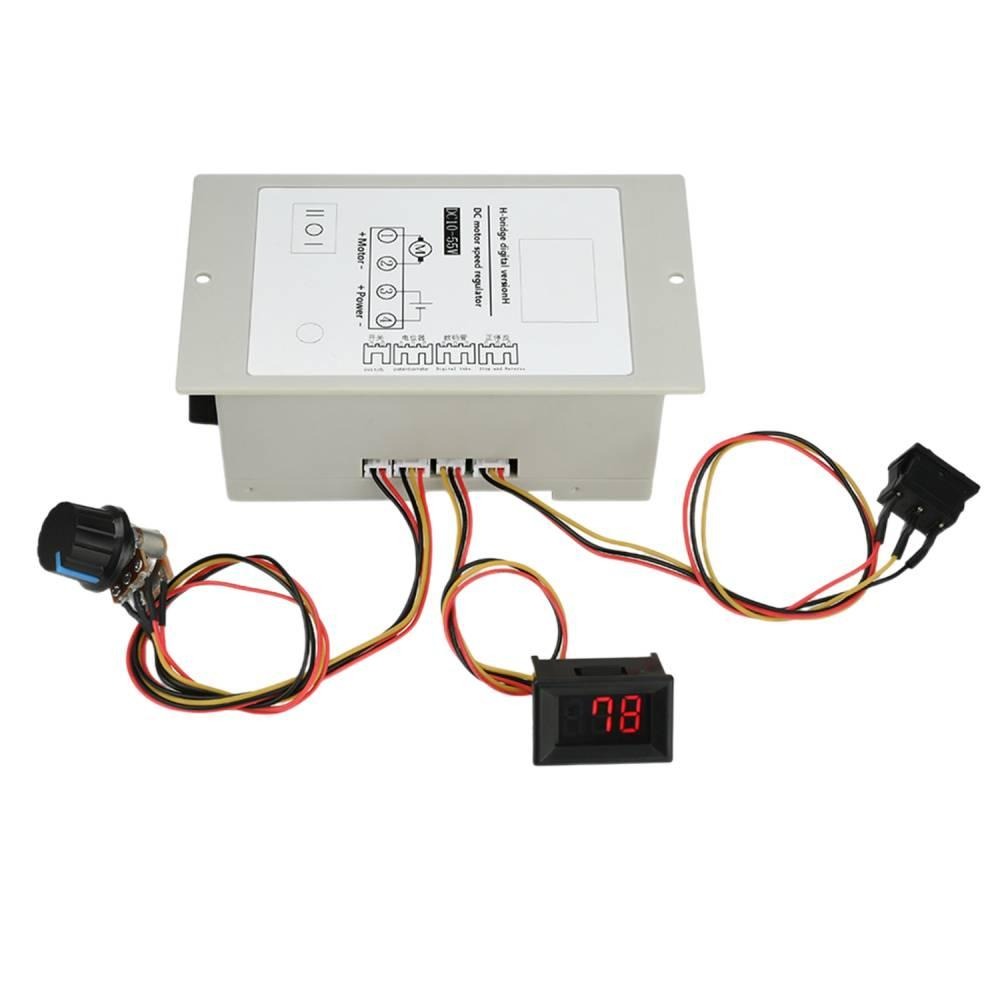

4. Digital percentage tachometer, facilitating users to precisely adjust and monitor the motor speed status

5. It is easy to install and maintain, and is suitable for rapid integration and testing in industrial Settings

Specification:

Input voltage: DC10-55V

Three gears: forward, stop and reverse

Supported load: DC brushed motor

Output voltage: linear under load

Reversing method: H-bridge reversing

Fixed installation: built-in or guide rail

Peak current: 40A

Continuous current: 20A

Speed regulation method: potentiometer

Speed regulation type: current regulation

Operating frequency: 15KHZ

Precautions:

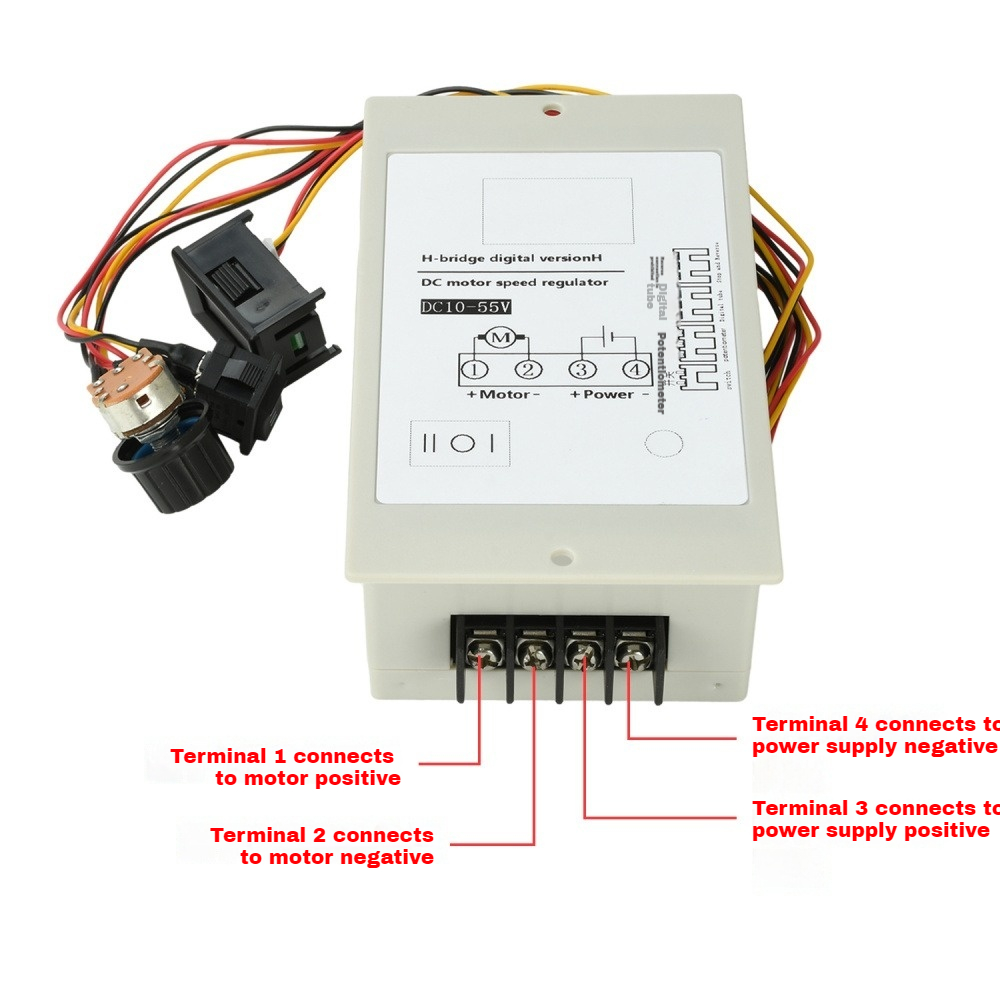

1. The product has no reverse connection protection, and the input must be divided into positive and negative

2. The input voltage should be equal to the rated voltage of the motor, within DC10-55V. For example, if the rated voltage of the motor is 12V, input 12V to the speed regulator; if the rated voltage of the motor is 36V, input 36V to the speed regulator

2. Do not input AC220V

3. Do not connect wires with power on

The 4.0-100 digital display only shows the rotational speed percentage and cannot display the actual rotational speed of the motor

5. Both the forward and reverse rotation lines and the potentiometer lines are weak electrical signals directly input to the MCU main control. They must not be accidentally touched or come into contact with high voltage or strong current

Note:

1.Due to the light and screen difference, the item's color may be slightly different from the pictures.

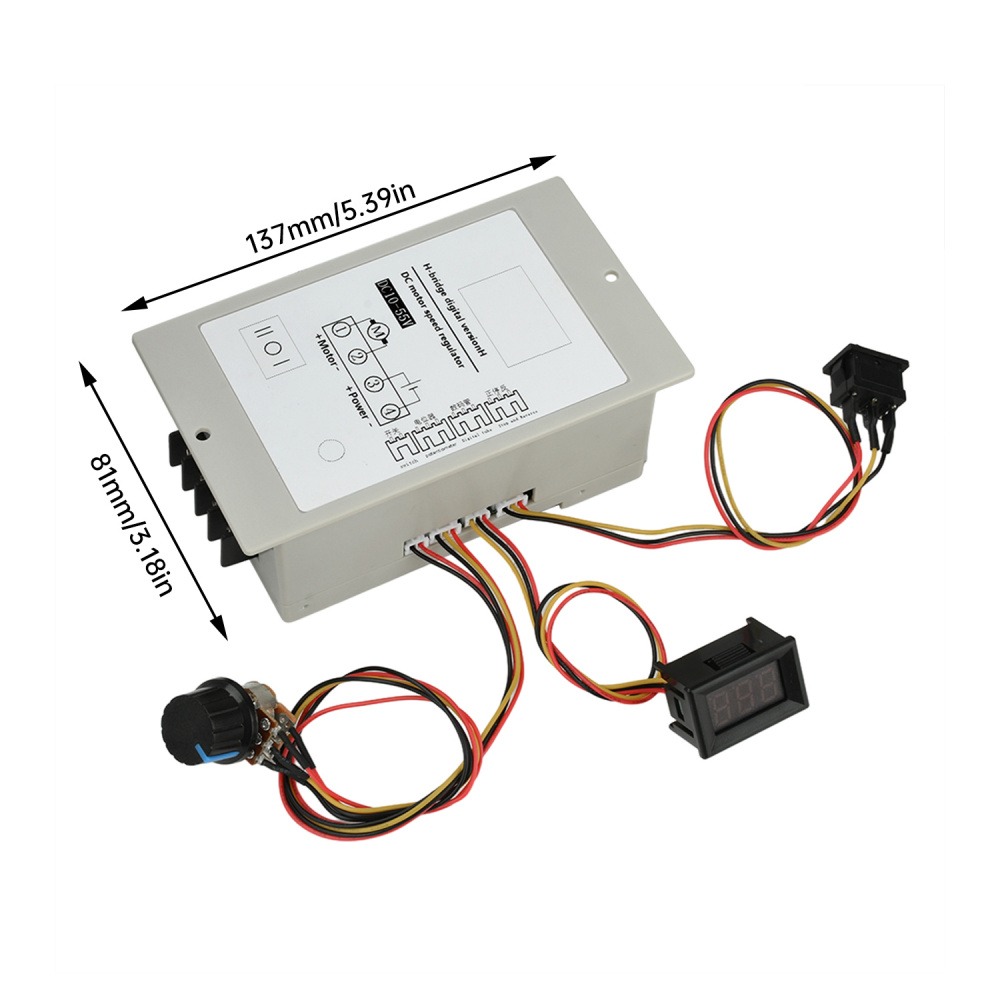

2.Please allow 1mm-1cm differences due to manual measurement.

Package Includes:

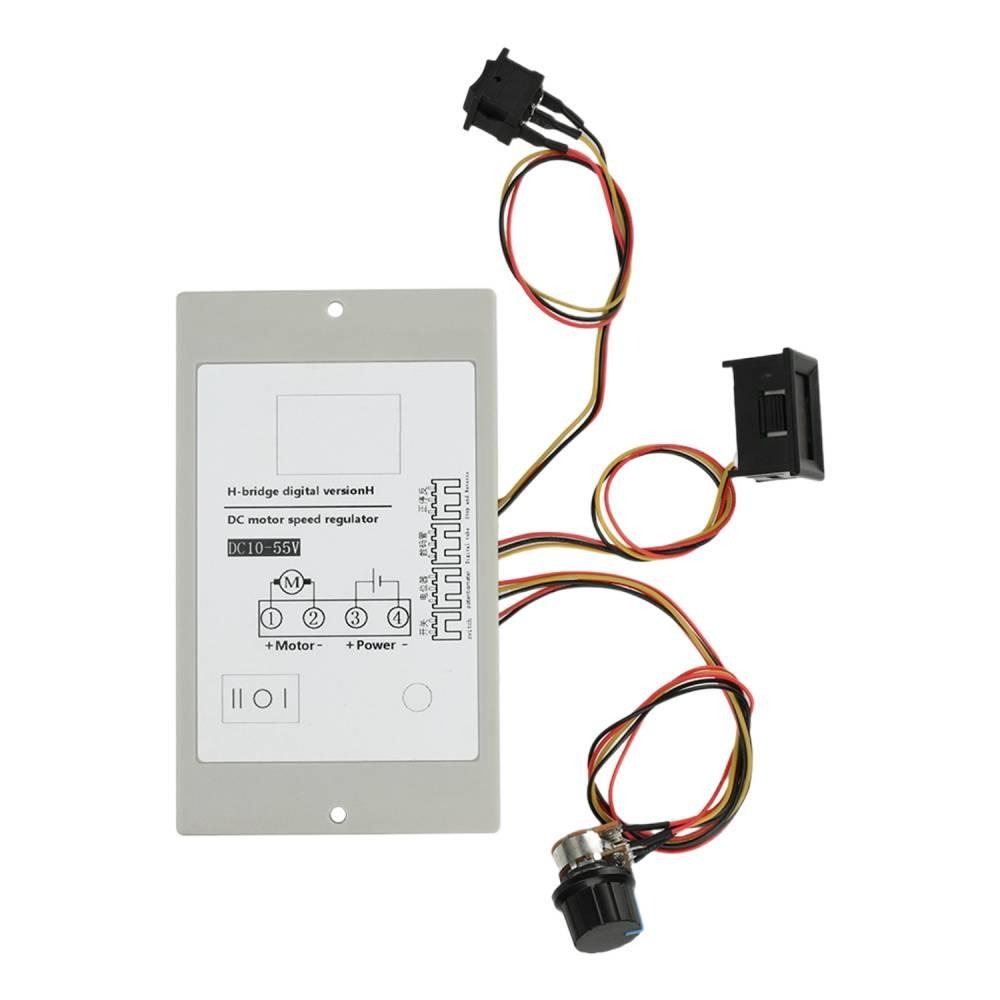

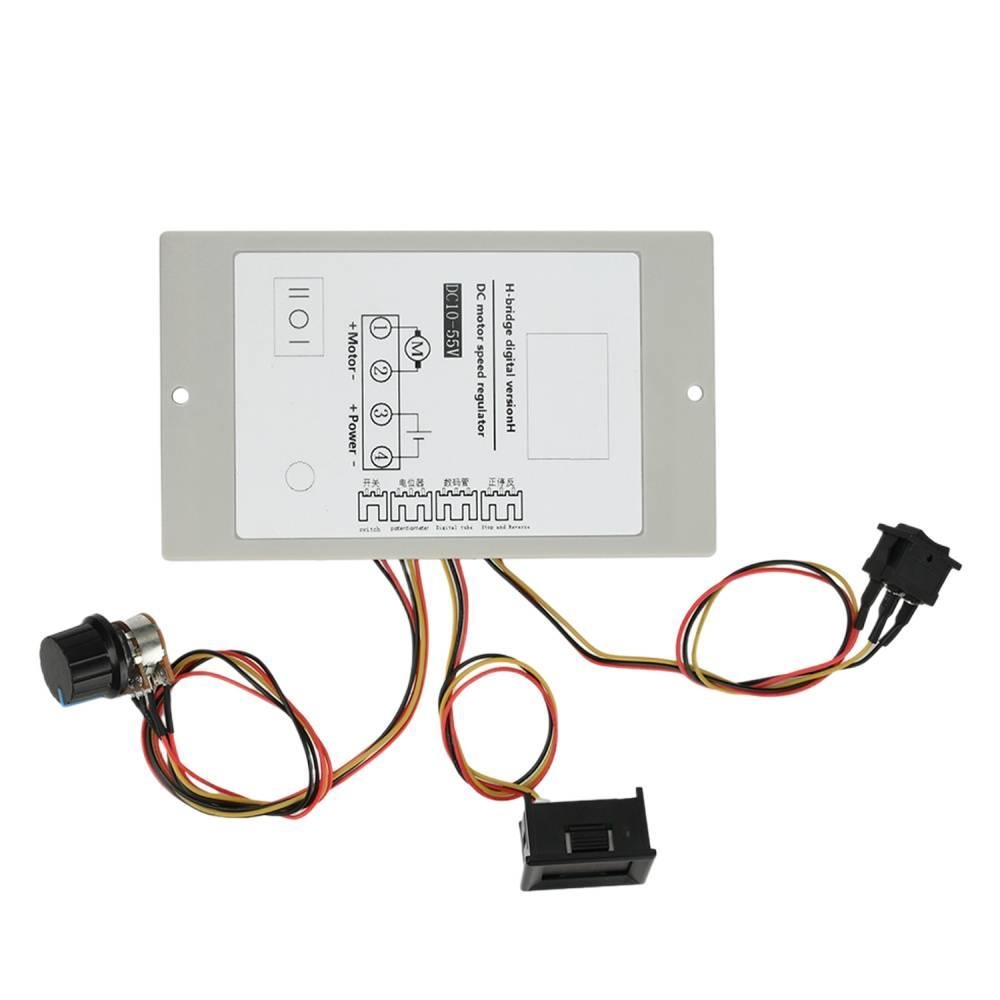

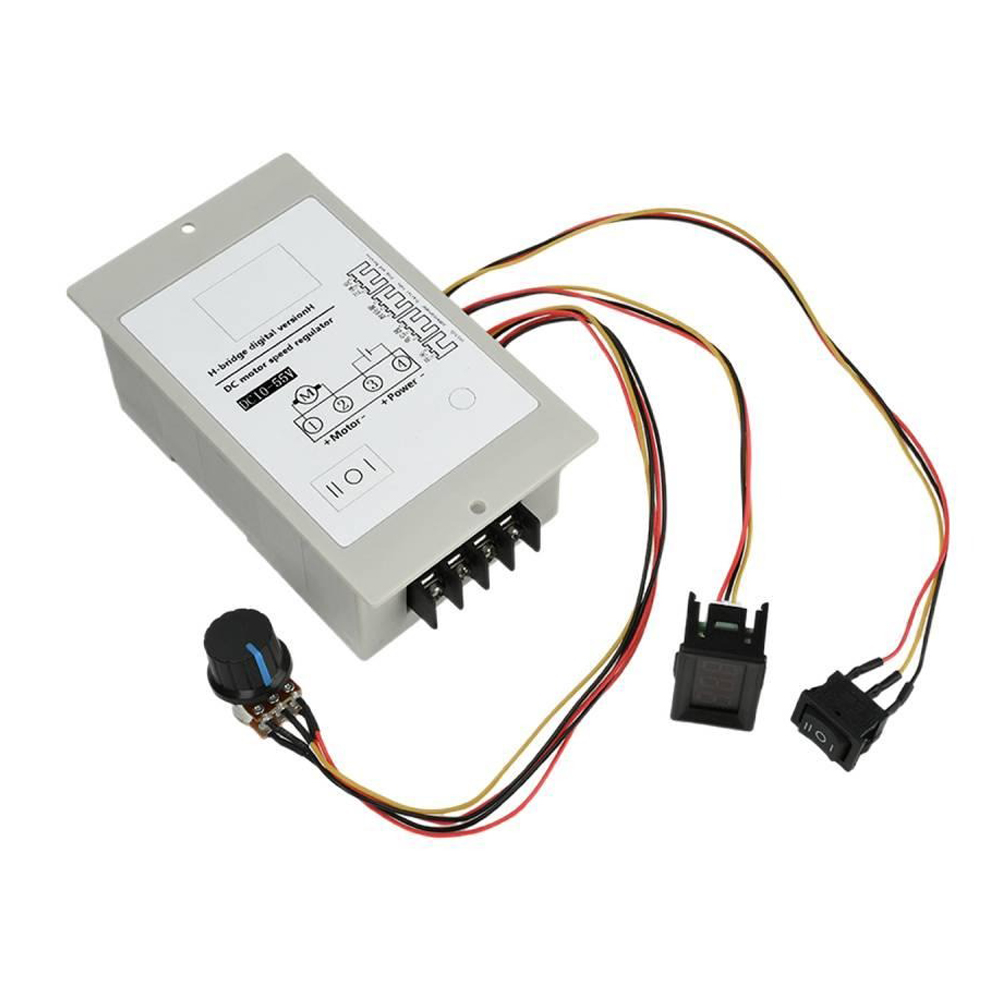

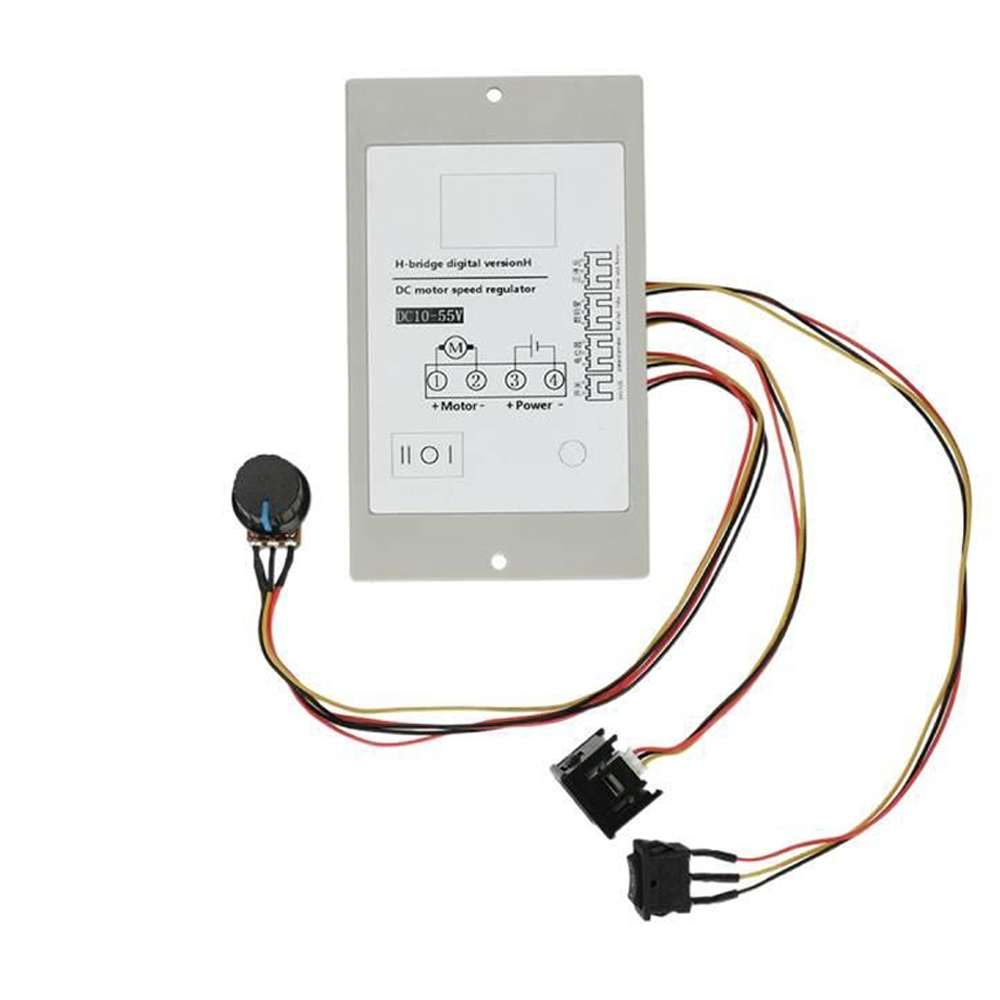

1x Motor Speed Controller
